Pepperl+Fuchs UBC400-18GH40-I-V1 Ultrasonic Sensor 212672-
Manufacturer : Pepperl+Fuchs
-
UBC400-18GH40-I-V1
-

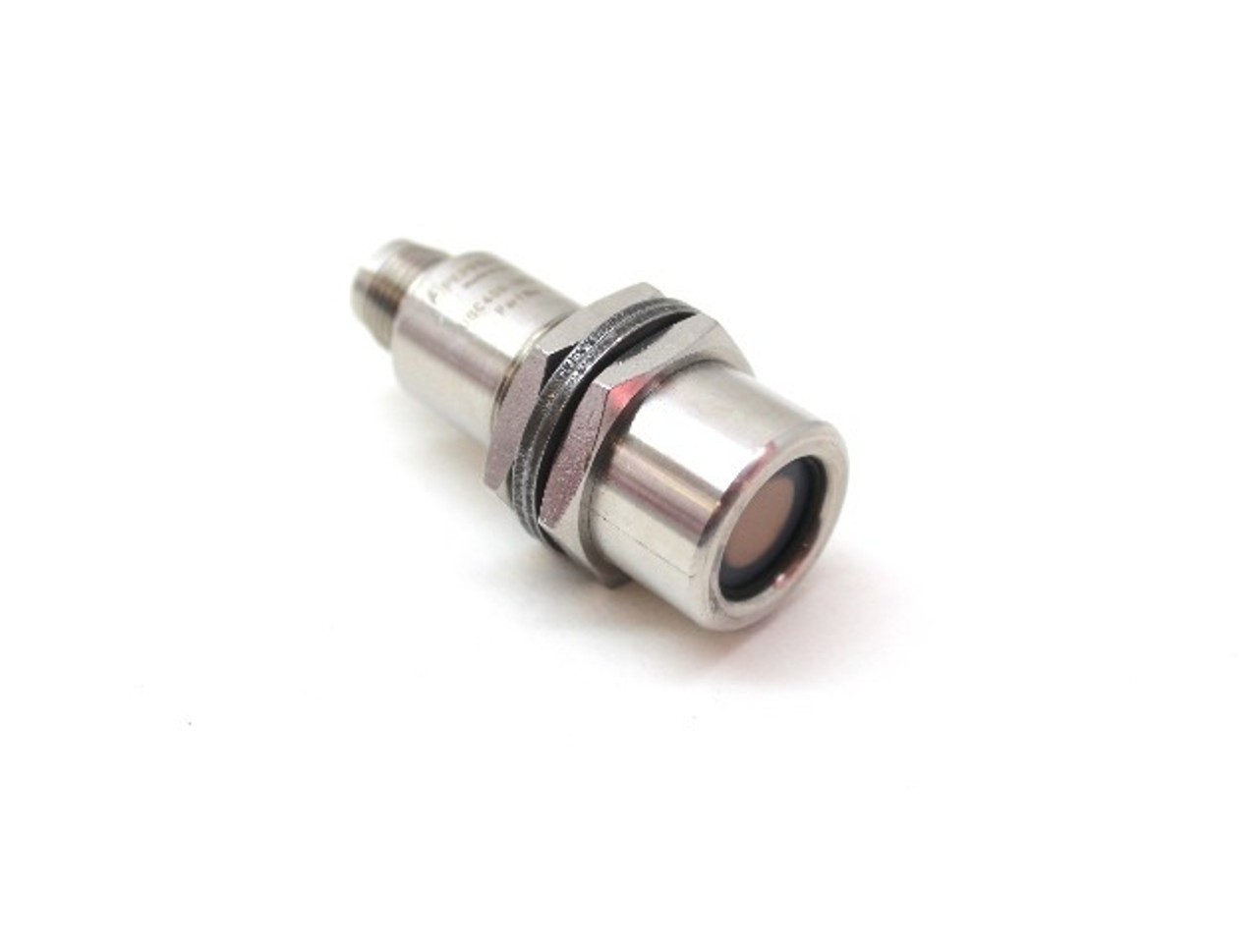

Ultrasonic sensor UBC400-18GH40-I-V1
-
Short design, 40 mm
-
Analog output 4 mA ... 20 mA
-
Measuring window adjustable
-
Program input
-
Temperature compensation
-
Single head system
-
Sensing range : 40 ... 400 mm
-
Adjustment range : 50 ... 400 mm
-
Dead band : 0 ... 40 mm
-
Standard target plate : 100 mm x 100 mm
-
Transducer frequency : approx. 255 kHz
-
Response delay : approx. 100 ms
-
Electrical specifications
-
Operating voltage : 10 ... 30 V DC , ripple 10 %SS
-
No-load supply current : ≤ 20 mA
-
Input
-
Input type : 1 program input
lower evaluation limit A1: -UB ... +1 V, upper evaluation limit A2: +4 V ... +UB
input impedance: > 4.7 kΩ, pulse duration: ≥ 1 s -
Output
-
Output type : 1 analog output 4 ... 20 mA, short-circuit/overload protected
-
Resolution : 0.4 mm at max. sensing range
-
Deviation of the characteristic curve : ± 1 % of full-scale value
-
Repeat accuracy : ± 0.5 % of full-scale value
-
Load impedance : 0 ... 300 Ohm
-
Temperature influence : ± 1.5 % of full-scale value
-
Approvals and certificates
-
UL approval : cULus Listed, General Purpose
-
CSA approval : cCSAus Listed, General Purpose
-
CCC approval : CCC approval / marking not required for products rated ≤36 V
-
Ambient conditions
-
Ambient temperature : 0 ... 70 °C (32 ... 158 °F)
-
Storage temperature : -40 ... 85 °C (-40 ... 185 °F)
-
Mechanical specifications
-
Connection type : Connector M12 x 1 , 4-pin
-
Degree of protection : IP67
-
Material
-
Housing : Stainless steel 1.4435 / AISI 316L
O-ring for cover seal: Viton -
Transducer : PTFE
-
Mass : 25 g
-
Shipping Weight : 1.5 Kg
