Product Description

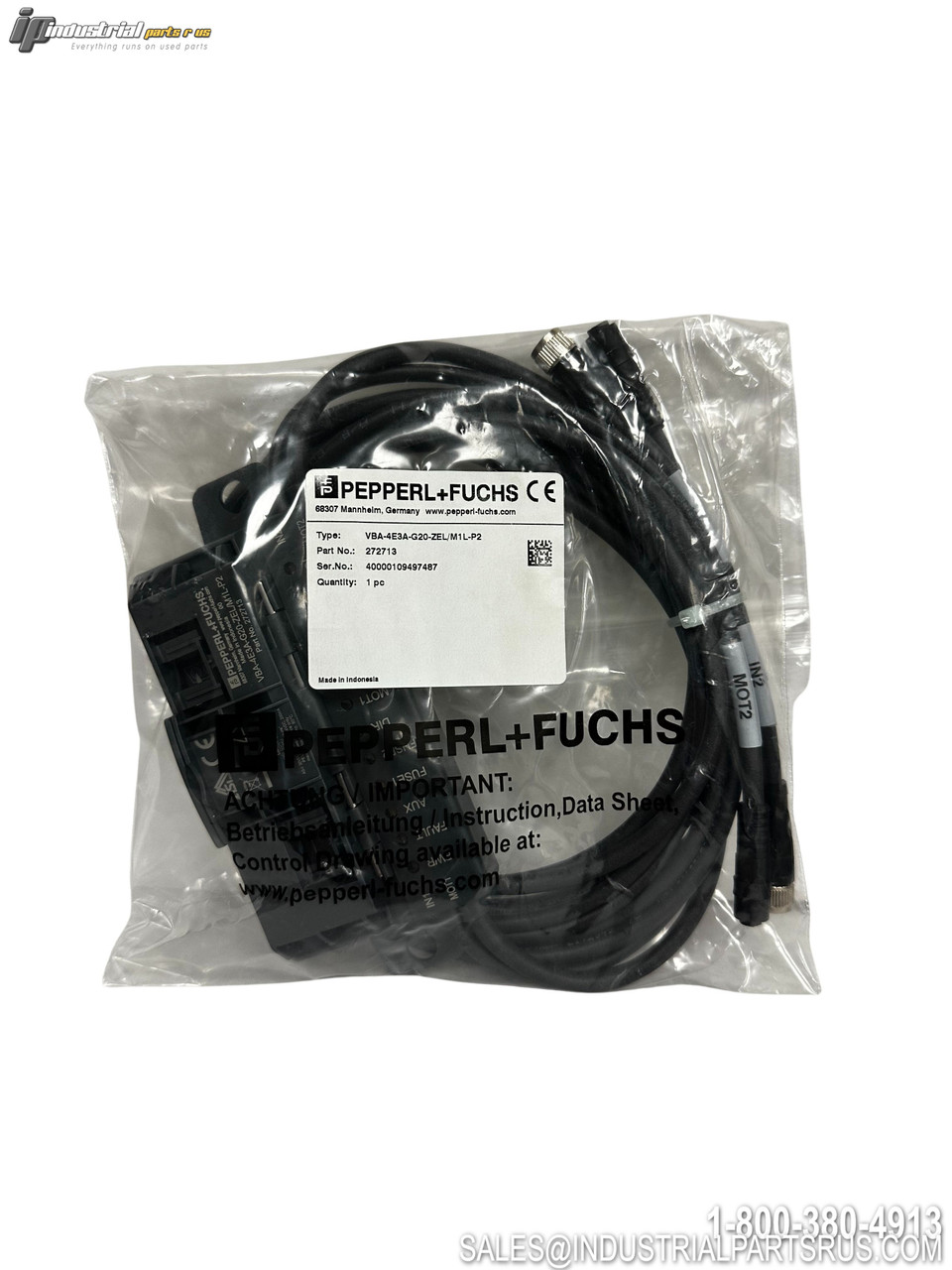

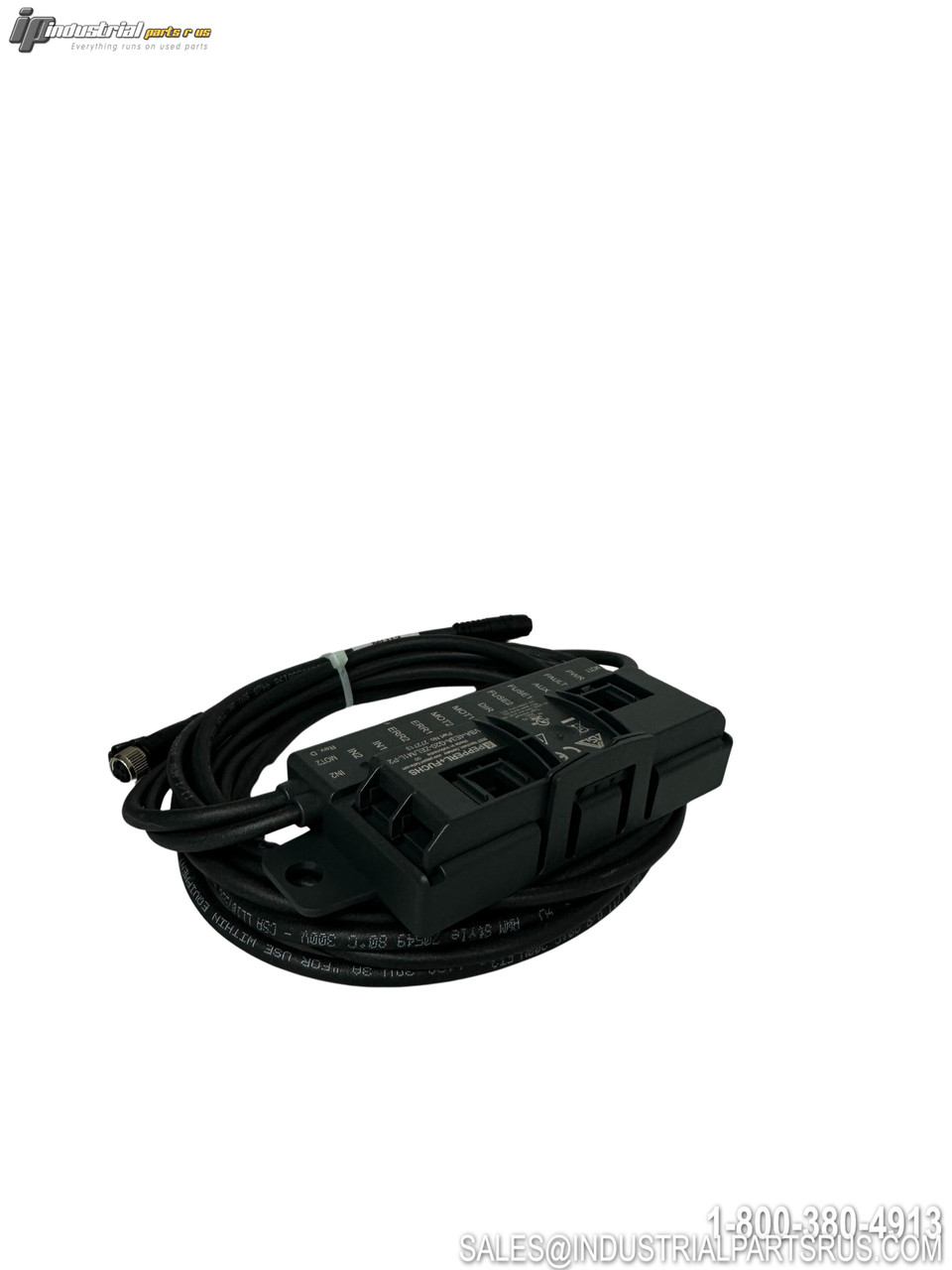

The Pepperl+Fuchs VBA-4E3A-G20-ZEL/M1L-P2 is an AS-Interface Motor Control Module designed for controlling one or two DC roller motors in conveyor applications. This compact G20 series module features two sensor inputs for 3-wire sensors and two electronic outputs optimized for Interroll EC310 roller motors and compatible DC motors, with configurable start/stop ramps and communication monitoring.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pepperl+Fuchs |
| Model/Part Number | VBA-4E3A-G20-ZEL/M1L-P2 |
| Product Type | AS-Interface Motor Control Module |
| Pepperl+Fuchs Part Number | 272713 |
| Communication Standard | AS-Interface V3.0 |
| Node Type | A/B Slave with Extended Addressing |
| Maximum Nodes | 62 |
| Input Points | 2 |
| Output Points | 2 |
| Input Type | 3-Wire Sensors |
| Output Type | DC Roller Motors (Drum Motors) |
| Auxiliary Voltage | 18-30 VDC |
| Operating Voltage | 26.5-31.6V |
| Operating Current | ≤35mA |
| Connection Type | M8 Connectors |
| AS-Interface Profile | S-7.A.E |
| IO Code | 7 |
| ID Code | A |
| ID1 Code | 6 |
| ID2 Code | E |
| Compatible Motors | Interroll EC310, EC5000 24V AI, Rulmeca BL3, Itoh Denki PM500XK/PM500XC |
| Series | G20 |
| Features | Configurable Start/Stop Ramps, Communication Monitoring, Function Display |
| Connection Method | Cable Piercing with Gold Plated Contact Pins |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type DC Roller Motors (Drum Motors)
Country/Region of Manufacture Germany
Full Load Amps ≤35mA
Manufacturer Pepperl+Fuchs
Part Number VBA-4E3A-G20-ZEL/M1L-P2
Controller Platform AS-Interface
Shelf K-10
Model VBA-4E3A-G20-ZEL/M1L-P2
MPN VBA-4E3A-G20-ZEL/M1L-P2
Type I/O Module
