Product Description

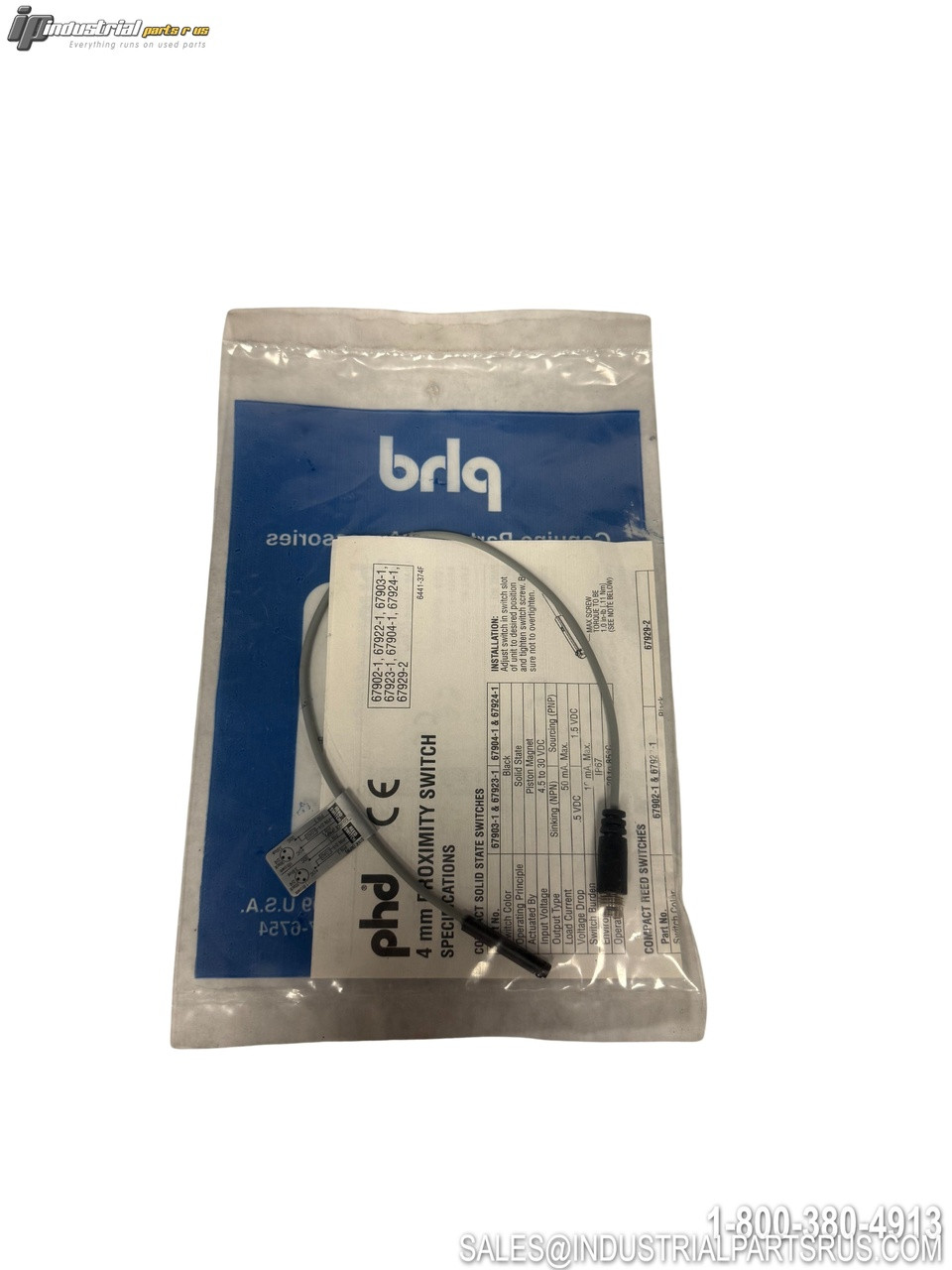

The PHD 67922-1 is a Series 6790 Reed Switch designed for position sensing applications on pneumatic cylinders and actuators. This magnetic reed switch features a compact design with quick connect termination for easy installation and reliable operation in industrial automation systems.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | phd |
| Model/Part Number | 67922-1 |
| Manufacturer | PHD, Inc. |
| Series | 6790 |
| Sensor Type | Magnetic Reed Switch |
| Input Voltage | 4.5-30VDC |
| Output Type | PNP (Source) or NPN (Sink) |
| Load Current | 50mA Max |
| Maximum Impedance | 0.12 Ohm |
| Connection Type | Quick Connect 3-Pin |
| Weight | 0.32 lbs |
| LED Indication | Yes |
| Actuator Compatibility | PHD Pneumatic Cylinders with Magnet Option |
| Status | Discontinued (Replacement: JC1RDU-K) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Output Type PNP (Source) or NPN (Sink)
Sensor Type Magnetic Reed Switch
Full Load Amps 50mA Max
Manufacturer Phd
Part Number 67922-1
Shelf K-9
Model 67922-1
MPN 67922-1
Type Reed Switch
