Product Description

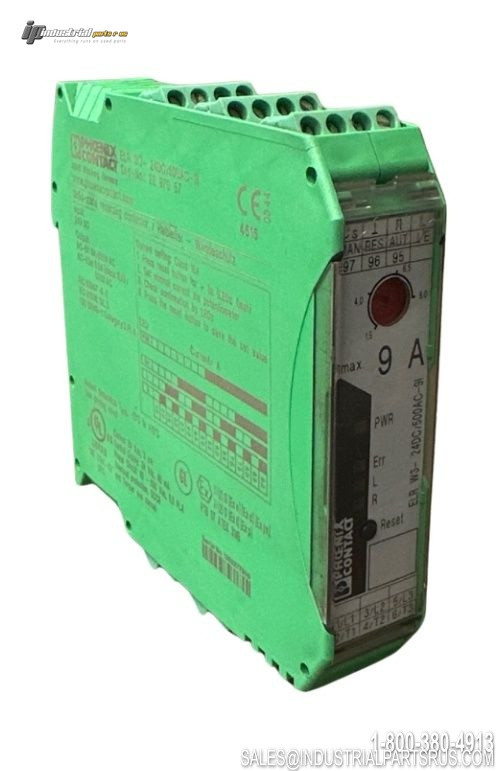

The Phoenix Contact ELR W3-24DC/500AC-9I is a hybrid motor starter designed for reversing 3-phase AC motors up to 500V AC with 9A output current capability. This solid-state reversing contactor features 24V DC control voltage, adjustable overload shutdown protection, emergency stop function certified to SIL 3/PL e safety standards, and screw terminal connections for secure wiring.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Phoenix Contact |

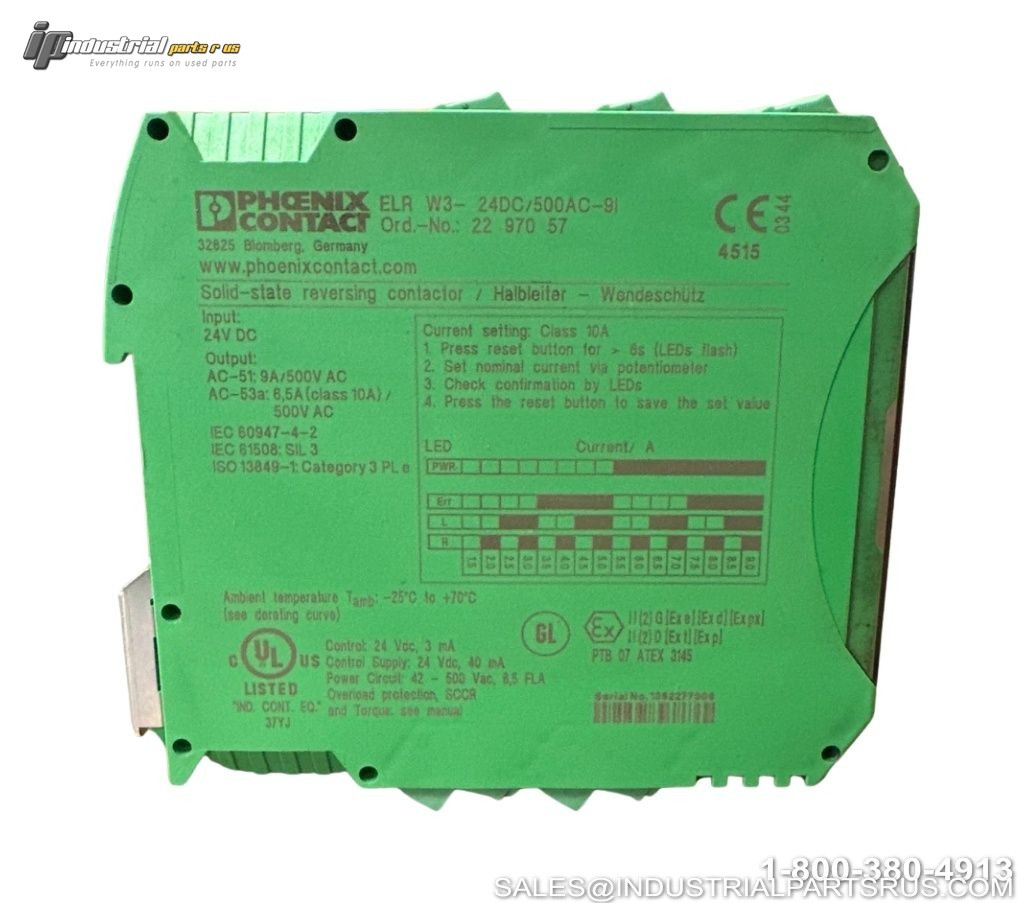

| Model/Part Number | ELR W3- 24DC/500AC-9I |
| Type | Hybrid Motor Starter |
| Phoenix Contact Order Number | 2297057 |
| Control Voltage | 24 VDC |
| Output Current Rating | 9 A |
| Maximum AC Voltage Rating | 500 VAC |
| Application | 3-Phase AC Motor Reversing |
| Termination Style | Screw Terminal |
| Mounting Type | DIN Rail |
| Housing Width | 22.5 mm |
| Safety Features | Emergency Stop Function SIL 3/PL e |
| Protection | Adjustable Overload Shutdown |
| LED Indicators | Yes |
| Max Switching Frequency | 2 Hz |
| Mains Frequency | 40-100 Hz |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Full Load Amps 40 mA
Manufacturer Phoenix Contact
Part Number ELR W3- 24DC/500AC-9I
Shelf K-47
Model ELR W3- 24DC/500AC-9I
MPN ELR W3- 24DC/500AC-9I
Type Hybrid Motor Starter
