Product Description

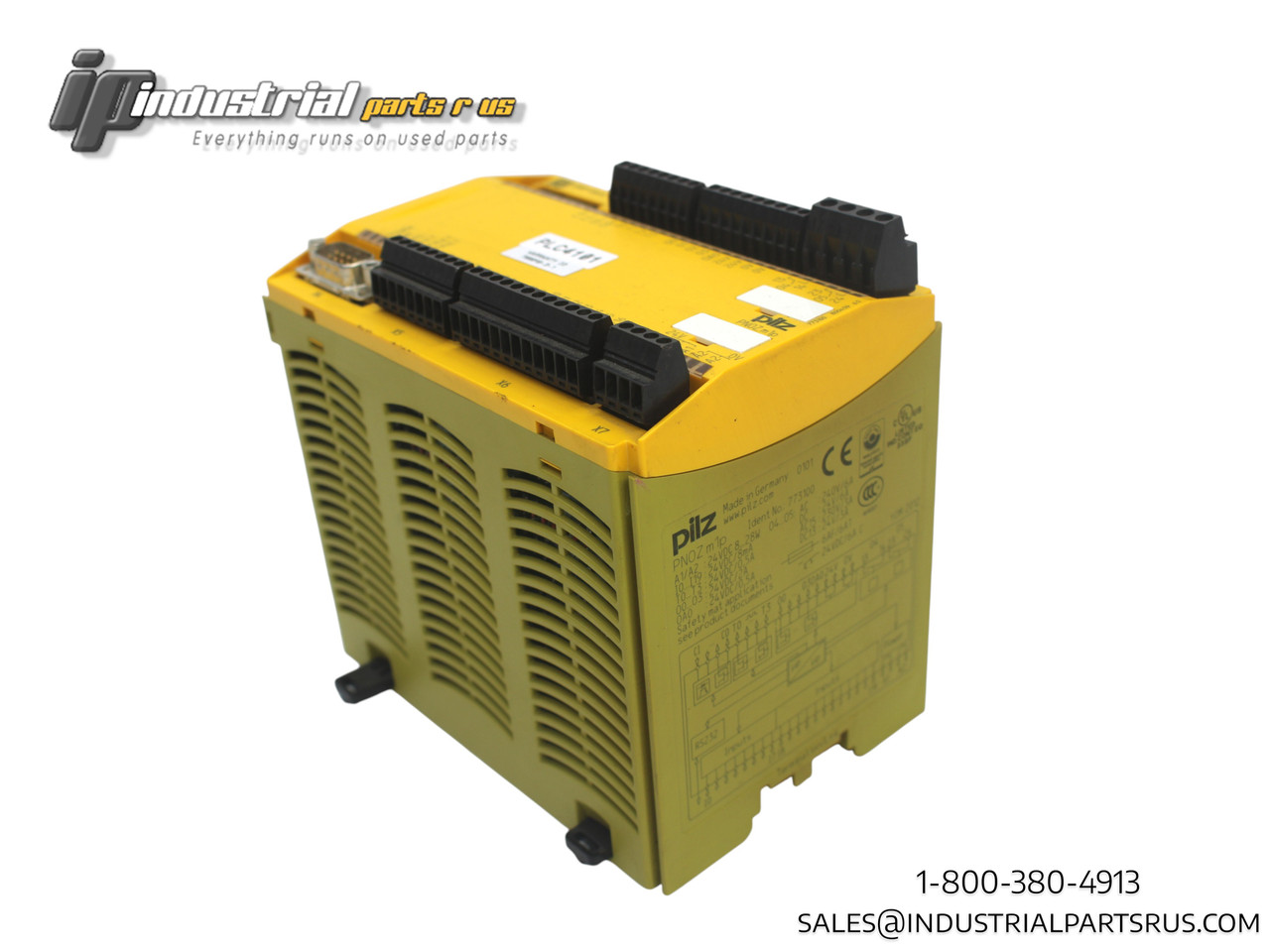

The Pilz 773100 is a configurable safety system PNOZmulti base module that's expandable with 20 safe digital inputs, 4 safe semiconductor outputs, and 2 safe relay outputs. This innovative safety controller features positive guided relay outputs and semiconductor outputs for use in industrial safety applications. The unit operates on 24VDC power supply and mounts on DIN rail with IP20 protection rating.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pilz |
| Model/Part Number | 773100 |
| Product Line | PNOZmulti Classic |
| Base Unit Model | PNOZ m1p |
| Supply Voltage | 24VDC |
| Supply Voltage Range | 20.4-28.8VDC |
| Safety Digital Inputs | 20 |
| Safety Semiconductor Outputs | 4 |
| Safety Relay Outputs | 2 |
| Test Pulse Outputs | 4 |
| Cascading Outputs | 1 |
| Communication Interface | RS-232 |
| Terminal Type | Screw or Spring-loaded |
| Mounting Type | DIN Rail |
| IP Rating | IP20 |
| Operating Temperature | 0 to 60°C |
| Dimensions (W x H x D) | 135 x 94 x 121 mm |
| Net Weight | 499g |
| Maximum Expansion Modules | 8 |
| Semiconductor Output Current | 2A |
| Relay Output Rating | 6A 24VDC / 6A 240VAC |
We warranty all items for 30 days from date of purchase.
Other Details
Used Item, Good Condition, Surplus Inventory. 30 Day WarrantyProduct Videos
Custom Field
Type Safety Relay Base Unit
Voltage 24Vdc
MPN 773100
Model PNOZ m1p
Google Manufacturers Part Number 773100
Shelf F-18
Part Number 773100
Manufacturer Pilz
Country/Region of Manufacture Germany
GTIN 646412782822
GPS Manufacturers Part Number 773100
Mounting Style DIN Rail
Current Rating 6 A
Application Industrial Safety
Coil Voltage 24 VDC
