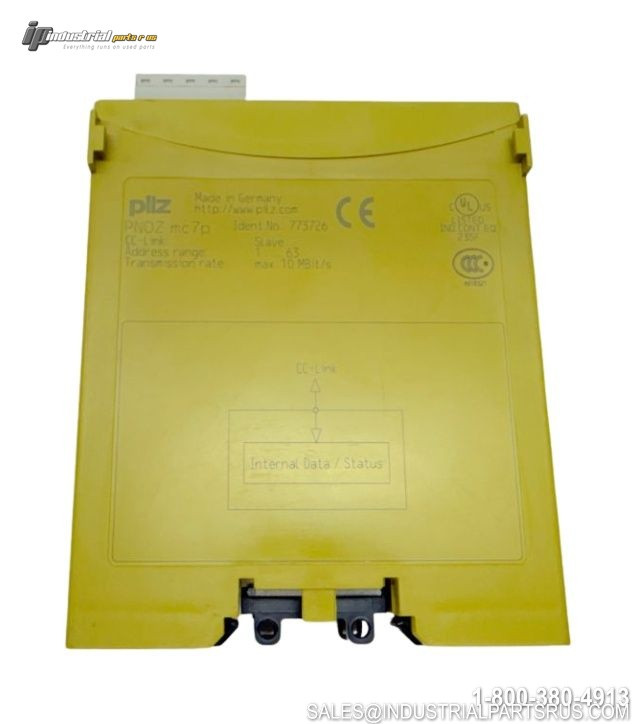

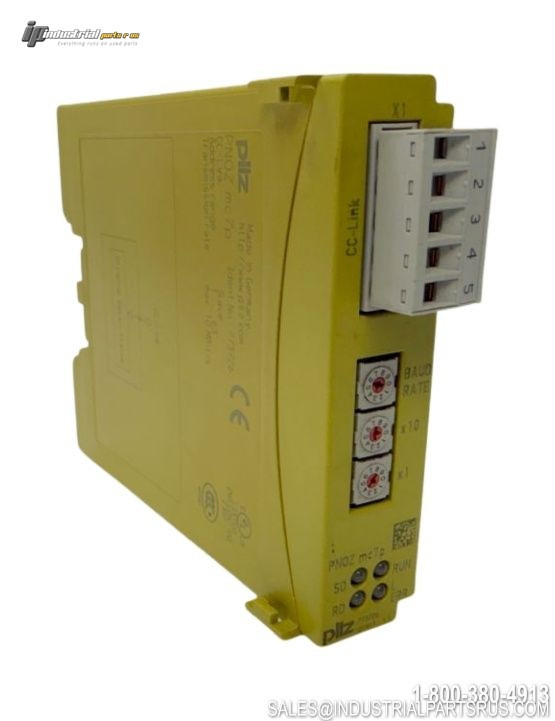

Product Description
The Pilz PNOZ mc7p 773726 is an expansion module for connection to a base unit from the configurable control system PNOZmulti. It is used for communication between the configurable control system PNOZmulti and the CC-Link. CC-Link is designed for fast data exchange at field level. The expansion module CC-Link is a passive subscriber (Slave) in CC-Link.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pilz |
| Model/Part Number | 773726 |
| Product Series | PNOZ mc7p |
| Communication Protocol | CC-Link |
| Module Type | Fieldbus Communication Module |
| System Compatibility | PNOZmulti |
| Station Type | Slave (Passive) |
| Station Addresses | 0-63 |
| Address Selection | Rotary Switch |
| Connection Type | 5-Pin Screw Connector |
| Power Supply | Via Base Unit Jumper |
| Configuration | PNOZmulti Configurator |
| Width | 22.5mm |
| Mounting | DIN Rail |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture Germany
Manufacturer Pilz
Part Number 773726
Controller Platform PNOZmulti
Shelf F-18
Model 773726
MPN 773726
Type Communication Module
