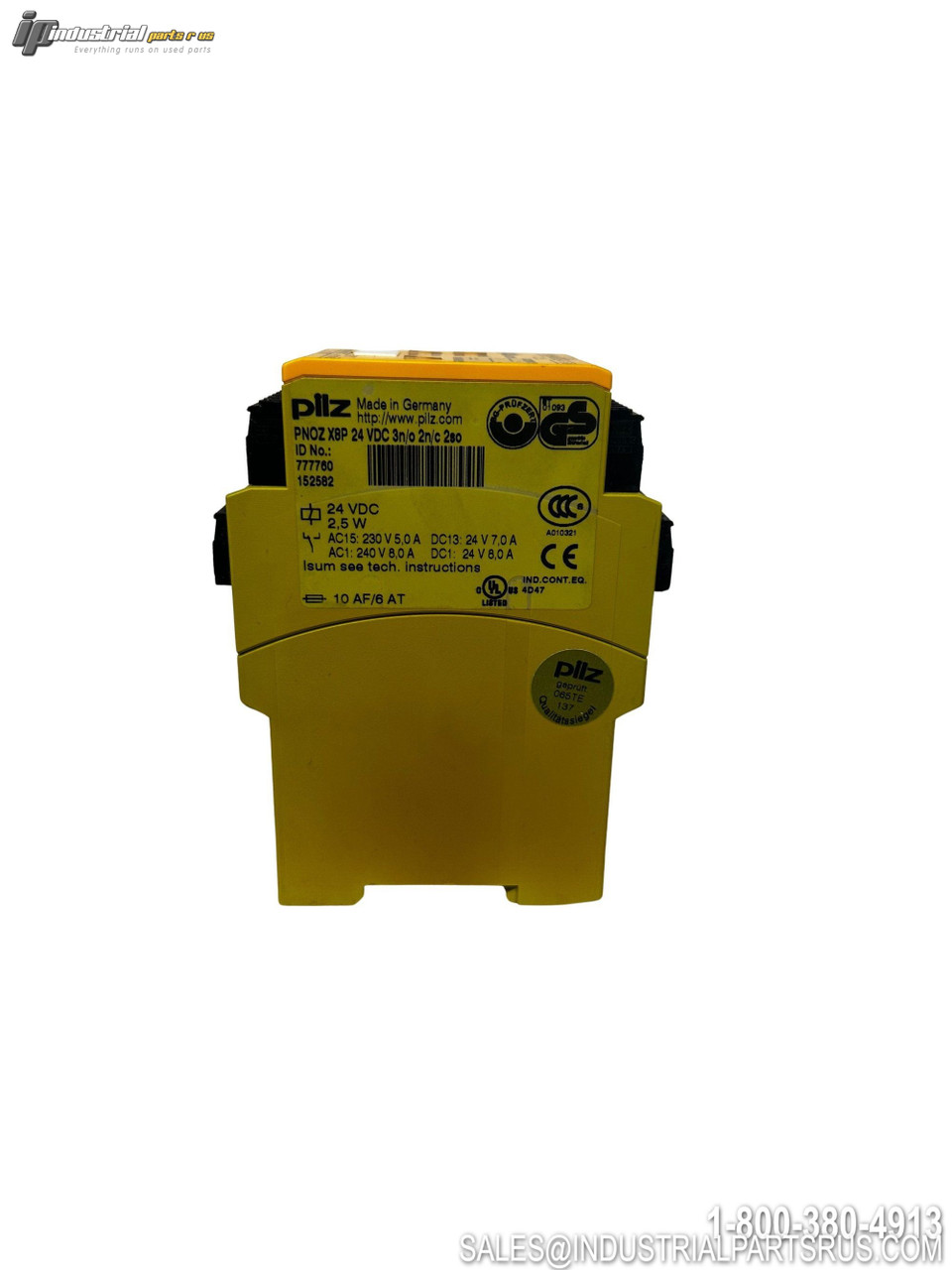

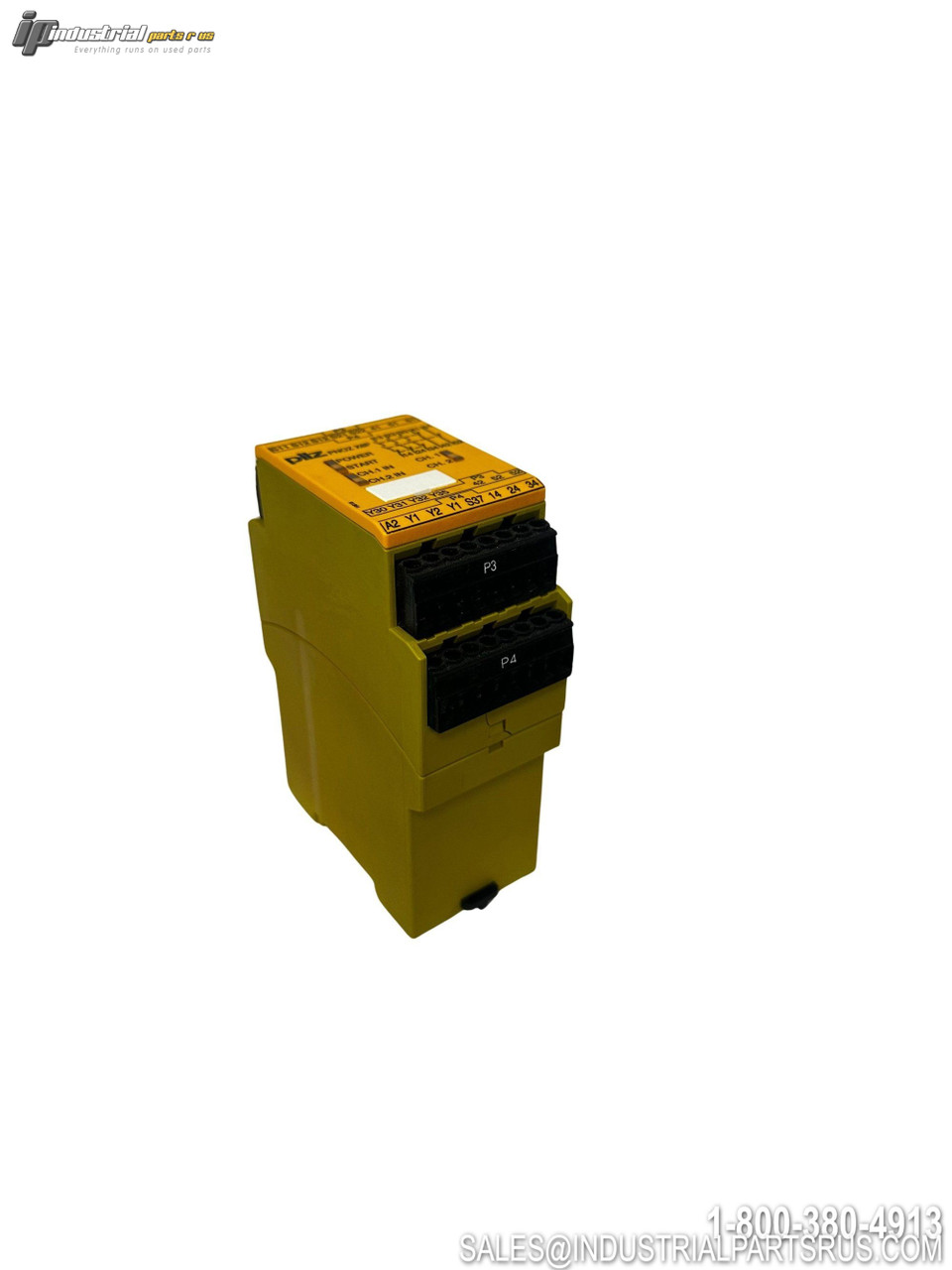

Product Description
The Pilz PNOZ X8P is a compact safety relay designed for monitoring emergency stop pushbuttons, safety gates, and light barriers in industrial applications. This single or dual-channel safety relay provides robust protection with automatic/monitored reset functionality and meets the highest safety standards including SIL3/PLe Category 4.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pilz |
| Model/Part Number | PNOZ X8P |
| Product Type | Safety Relay |
| Supply Voltage | 24VDC (20.4-26.4VDC) |
| Power Consumption | 2.5W |
| Safety Outputs | 3 N/O (Normally Open) |
| Auxiliary Outputs | 2 N/C (Normally Closed) |
| Semiconductor Outputs | 2 SO (24VDC, 20mA) |
| Contact Rating (DC1) | 8A at 24VDC |
| Contact Rating (AC1) | 8A at 240VAC |
| Contact Rating (DC13) | 7A at 24VDC |
| Contact Rating (AC15) | 5A at 230VAC |
| Digital Inputs | 2 x 24VDC, 45mA |
| Safety Level | SIL3 / PLe / Cat.4 |
| PFH Value | 2.31E-09 |
| Width | 45mm |
| Dimensions (H x W x D) | 101 x 45 x 121mm |
| Mounting Type | DIN Rail |
| Connection Type | Plug-in Screw Terminals |
| Operation Mode | Single/Dual Channel |
| Reset Type | Automatic/Monitored |
| LED Indicators | Power, Start, CH.1 IN, CH.2 IN, CH.1, CH.2 |
| Pilz Part Number | 777760 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Mounting Style DIN Rail
Current Rating 8 A
Application Emergency Stop, Safety Gate Monitor
Manufacturer Pilz
Part Number PNOZ X8P
Shelf K-41
Model PNOZ X8P
Coil Voltage 24 VDC
MPN PNOZ X8P
Type Safety Relay
