Product Description

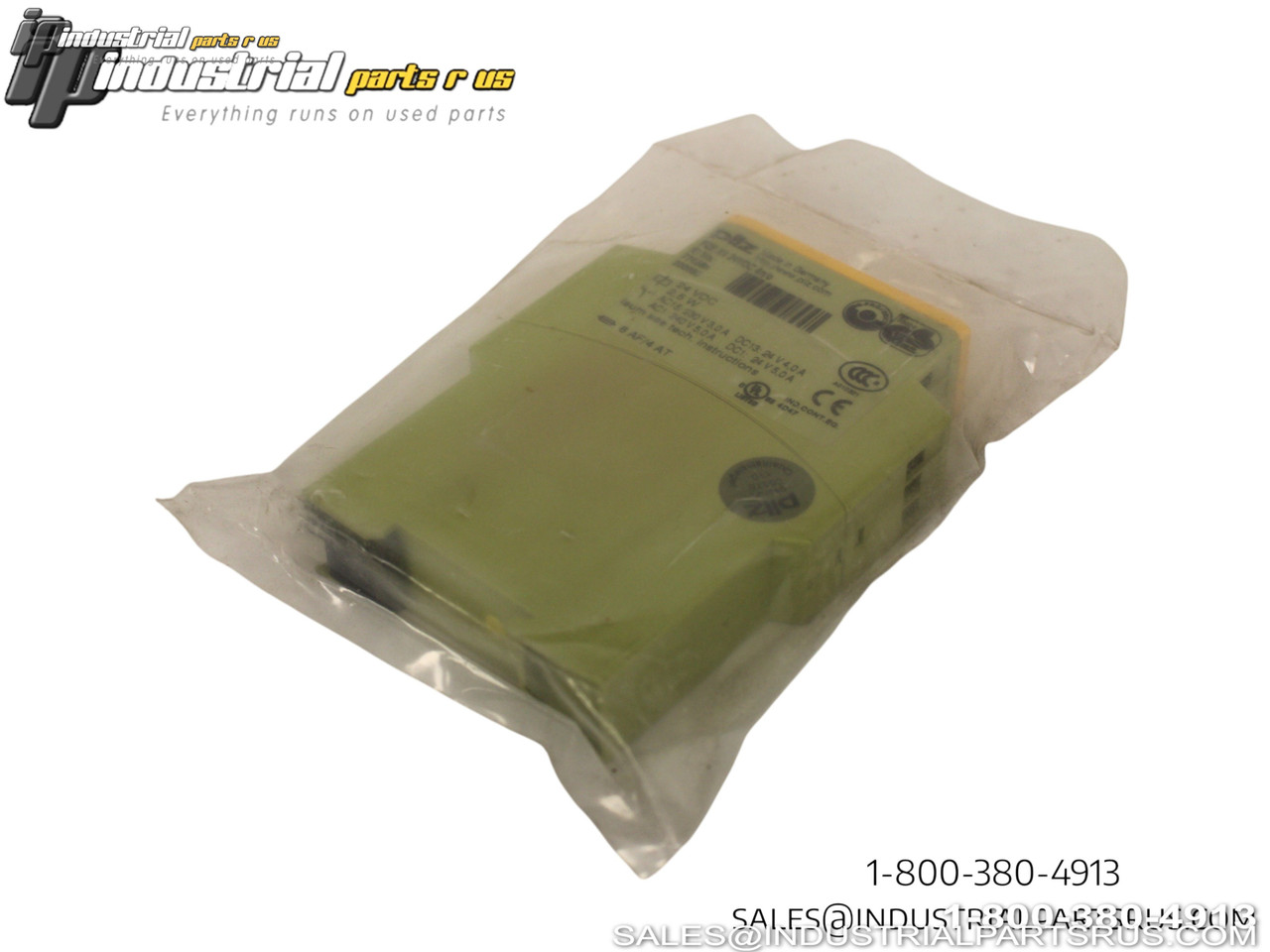

The Pilz PZE X4 is a contact expansion module designed to increase the number of available safety contacts in safety-related control circuits. This instantaneous safety relay features positive-guided relay outputs with 4 normally open safety contacts and operates on 24VDC power supply. It connects to base units like emergency stop relays to expand existing safety circuits while maintaining the safety function integrity.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Pilz |
| Model/Part Number | PZE X4 24VDC 4n/o |
| Manufacturer Part Number | 774585 |
| Series | PNOZ X |
| Product Family | PZE X4 |
| Operating Voltage | 24VDC |
| Power Consumption | 2.5W |
| Contact Configuration | 4 N/O (Normally Open) |
| Contact Rating | 5A |
| Contact Type | Positive-guided safety contacts |
| Operation | Single-channel wiring |
| Response Time | Instantaneous |
| Width | 25mm |
| Terminal Type | Screw terminals integrated |
| Mounting | DIN rail mount |
| LED Indicator | Yes, for switch status |
| Feedback Loop | Connection included |
| GTIN | 4046548010770 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Germany
GTIN 679523686161
Mounting Style DIN rail mount
Current Rating 5A
Application Contact expansion for safety circuits
Manufacturer Pilz
Part Number PZE X4 24VDC 4N/O
Shelf K-5
Model PZE X4 24VDC 4N/O
Coil Voltage 24VDC
MPN PZE X4 24VDC 4N/O
Type Safety Relay
