Product Description

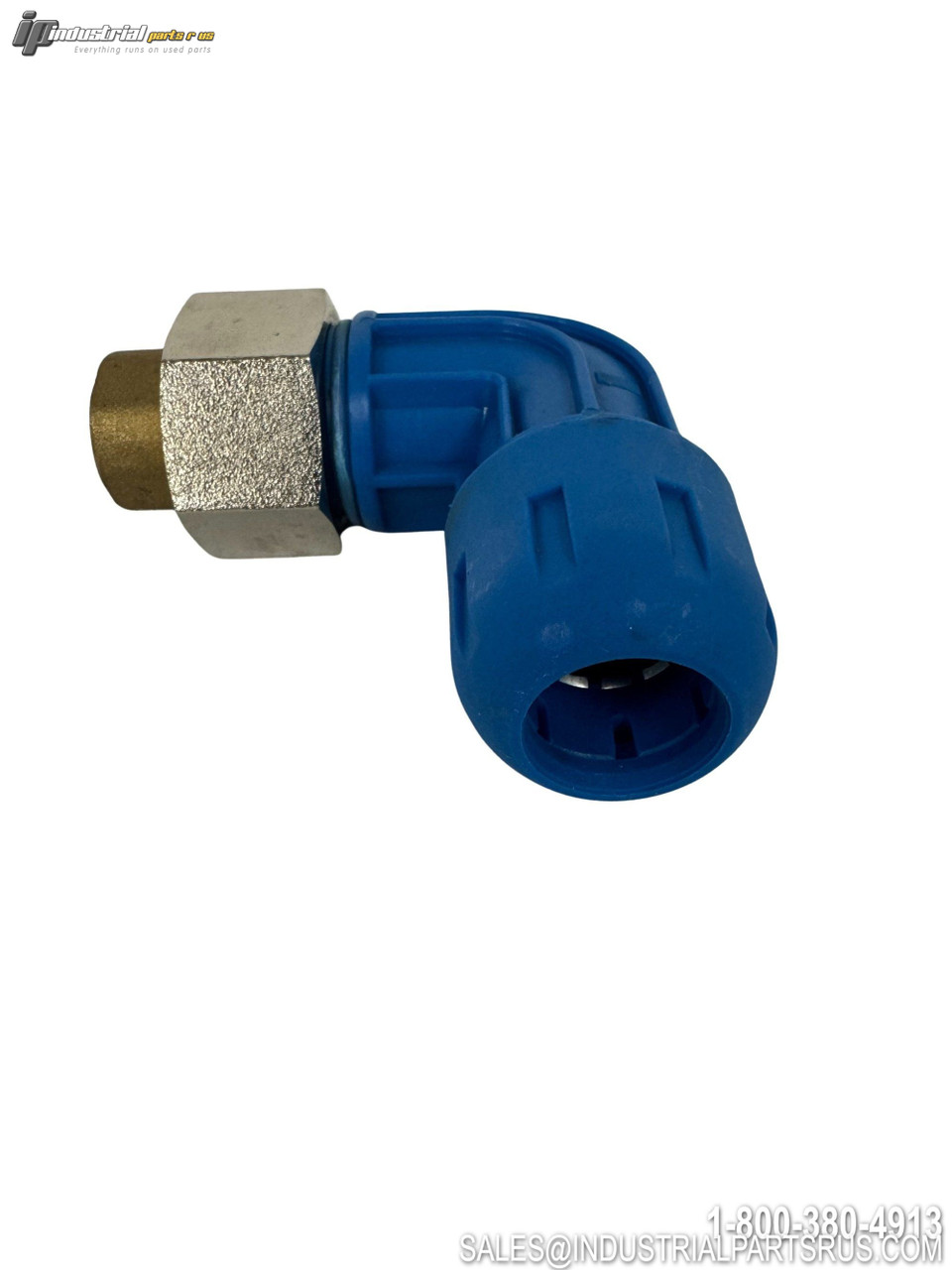

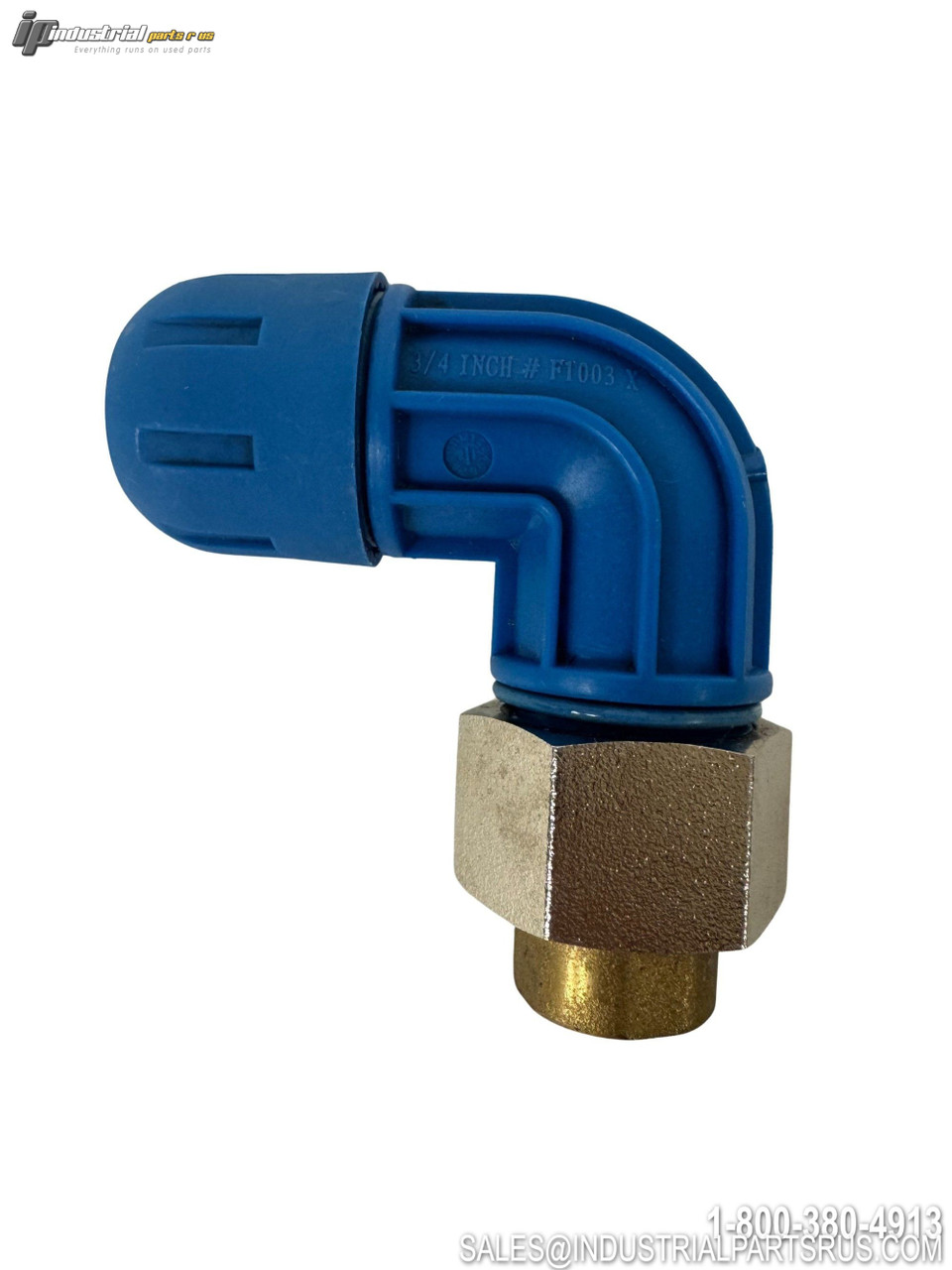

The RapidAir F1003 is a 3/4 inch FastPipe 90-degree elbow fitting designed for modular aluminum compressed air piping systems. This compression-style fitting provides reliable connections for rigid aluminum tubing without requiring gluing, threading, or soldering. Features O-ring seals for leak-free operation and corrosion resistance for extended tool life.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | RapidAir |
| Model/Part Number | F1003 |
| Manufacturer | RapidAir Products |
| Type | Pneumatic Elbow Fitting |
| Fitting Type | 90 Degree Elbow |
| Connection Type | Compression |
| Inside Diameter (ID) | 0.75 inch |
| Outside Diameter (OD) | 20 mm |
| Tube Diameter | 3/4 inch (20mm) |
| Material | Nylon 6 with Fiberglass Reinforcement |
| Maximum Operating Pressure | 190 PSI |
| Operating Temperature Range | 0°F to 140°F |
| Overall Length | 2-5/8 inches (2.625 inches) |
| Color | Blue |
| Compatible Tube Material | Aluminum |
| Hose/Tubing Type | Rigid Aluminum Pipe |
| Application | Compressed Air Piping |
| Standards | ASTM B221, ASTM B433 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Material Nylon 6 with Fiberglass Reinforcement
Manufacturer Fast Pipe
Part Number 3/4INCH F1003X
Shelf K- 63 Tub 1
Model 3/4INCH F1003X
MPN 3/4INCH F1003X
Type Pneumatic Valve
