Product Description

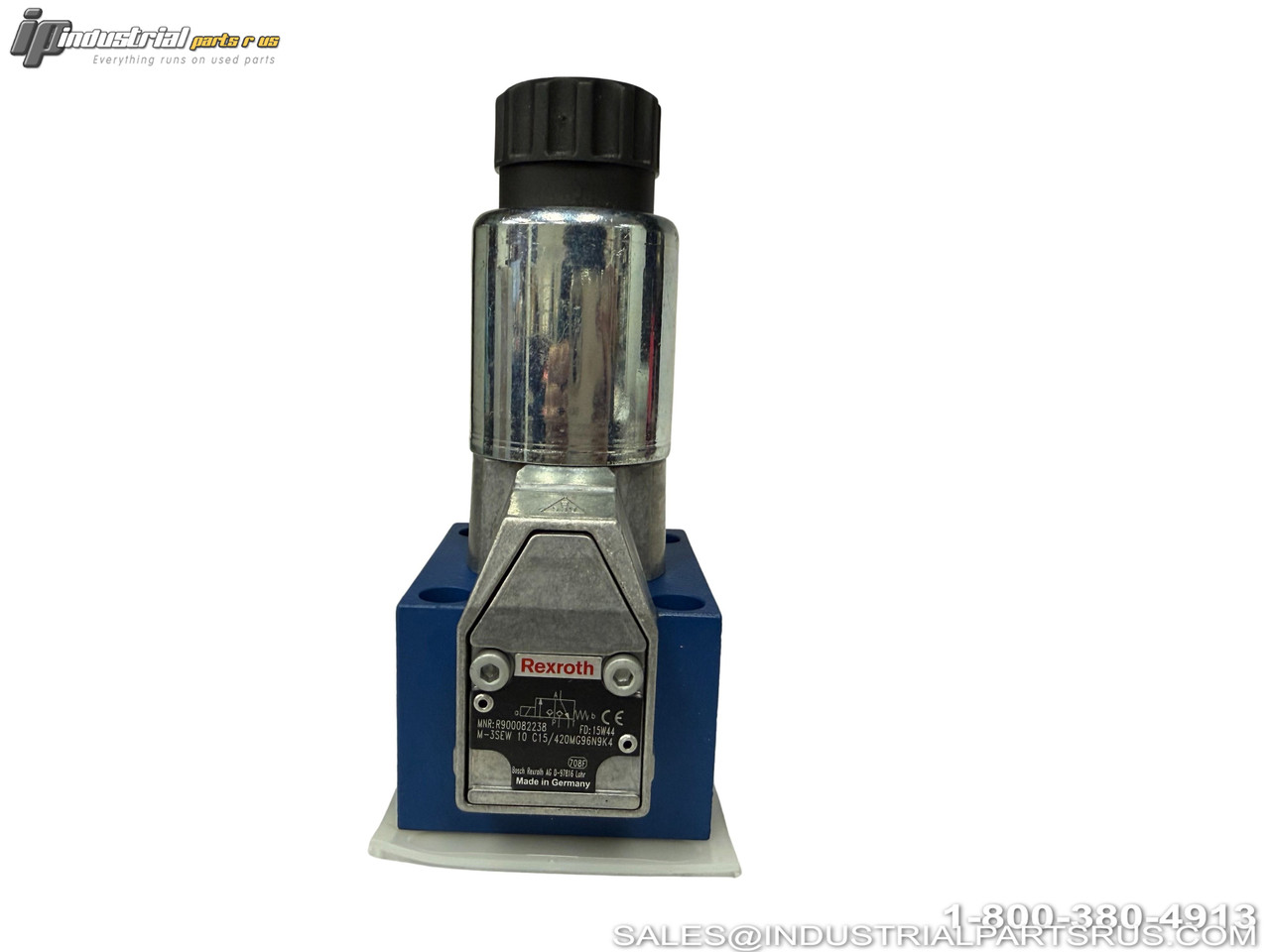

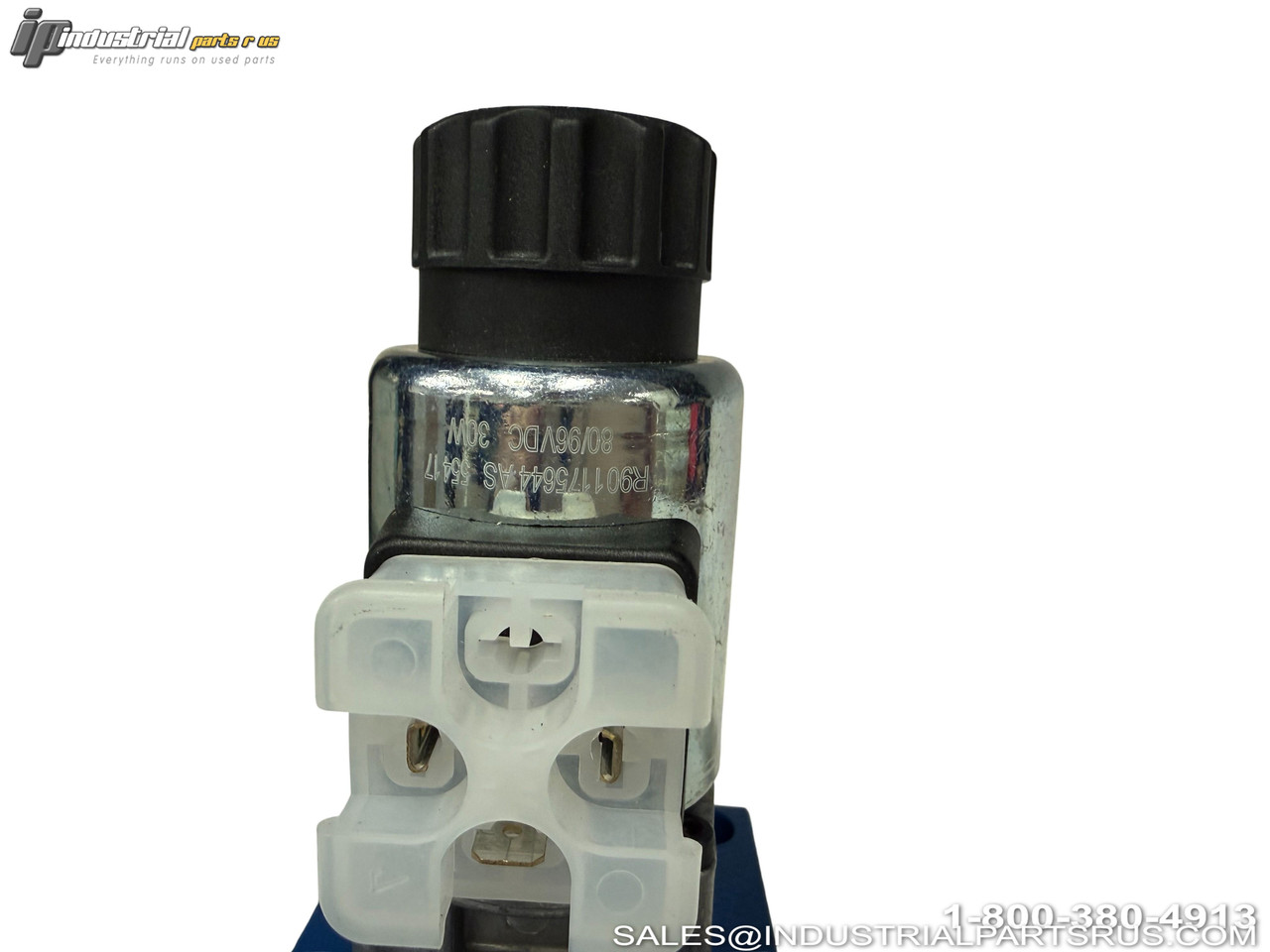

This Bosch Rexroth R900082238 is a solenoid directional poppet valve from the M-3SEW 10 series, designed for controlling the start, stop, and direction of hydraulic flow in industrial applications. The valve features solenoid actuation with 96VDC coil voltage and operates at maximum pressures up to 420 bar, providing leakage-free isolation through its directional seat design.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Rexroth |
| Model/Part Number | R900082238 |
| Type Designation | M-3SEW 10 C1X/420MG96N9K4 |
| Valve Type | Directional Poppet Valve |
| Actuation | Solenoid |
| Size | 10 |
| Coil Voltage | 96VDC |
| Maximum Operating Pressure | 420 bar |
| Voltage Tolerance | ±10% |
| Power Consumption | 30W |
| Weight (3/2 valve) | 2.0 kg (4.41 lbs) |
| Weight (4/2 valve) | 3.5 kg (7.72 lbs) |
| Ambient Temperature Range | -30°C to +50°C (-22°F to +122°F) |
| Maximum Coil Temperature | 150°C (302°F) |
| Seal Type | NBR Seals |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686222
Country/Region of Manufacture Germany
Manufacturer Rexroth
Part Number R900082238
Shelf K-33
Model R900082238
MPN R900082238
Type Solenoid Valve
