Product Description

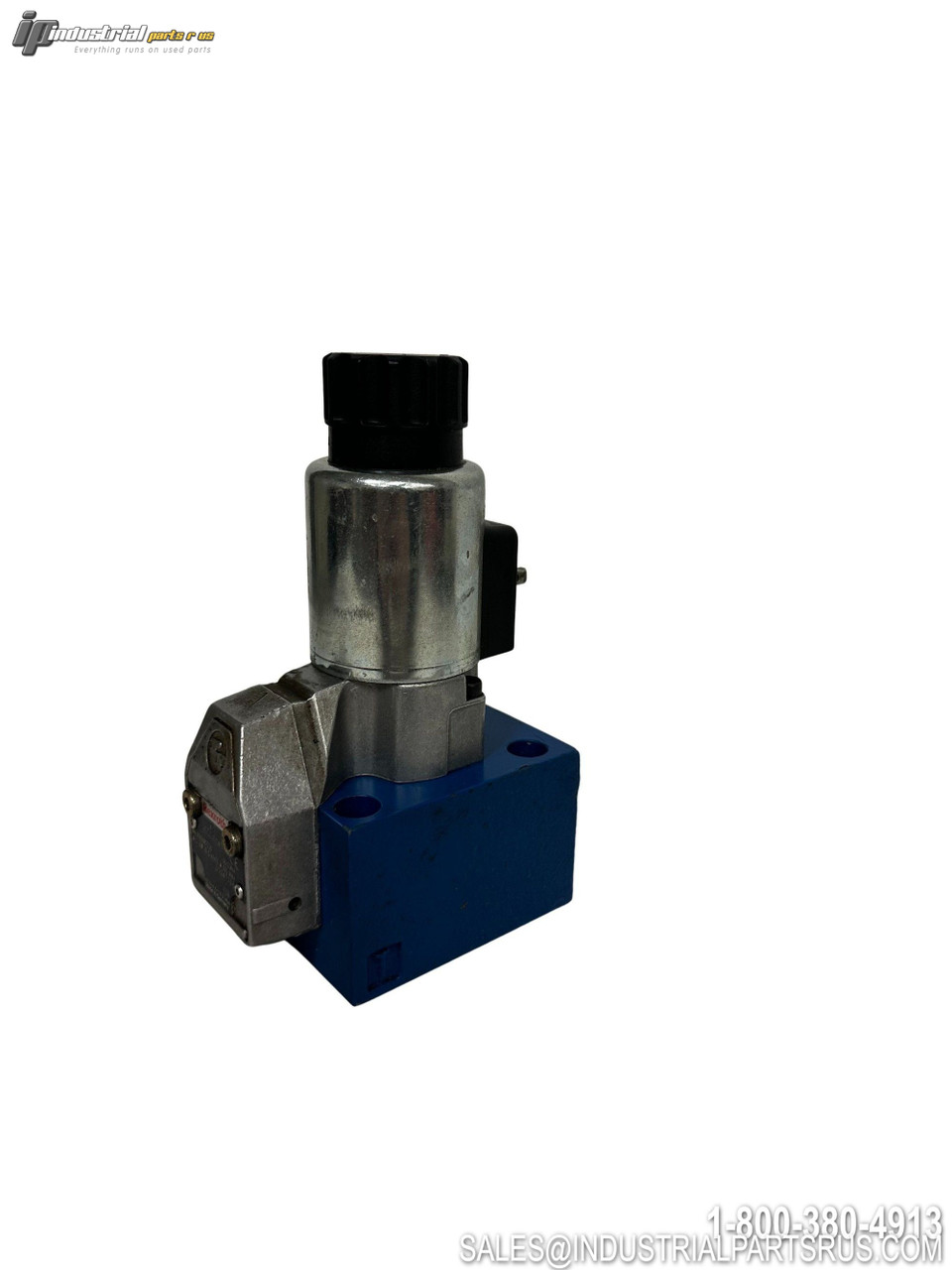

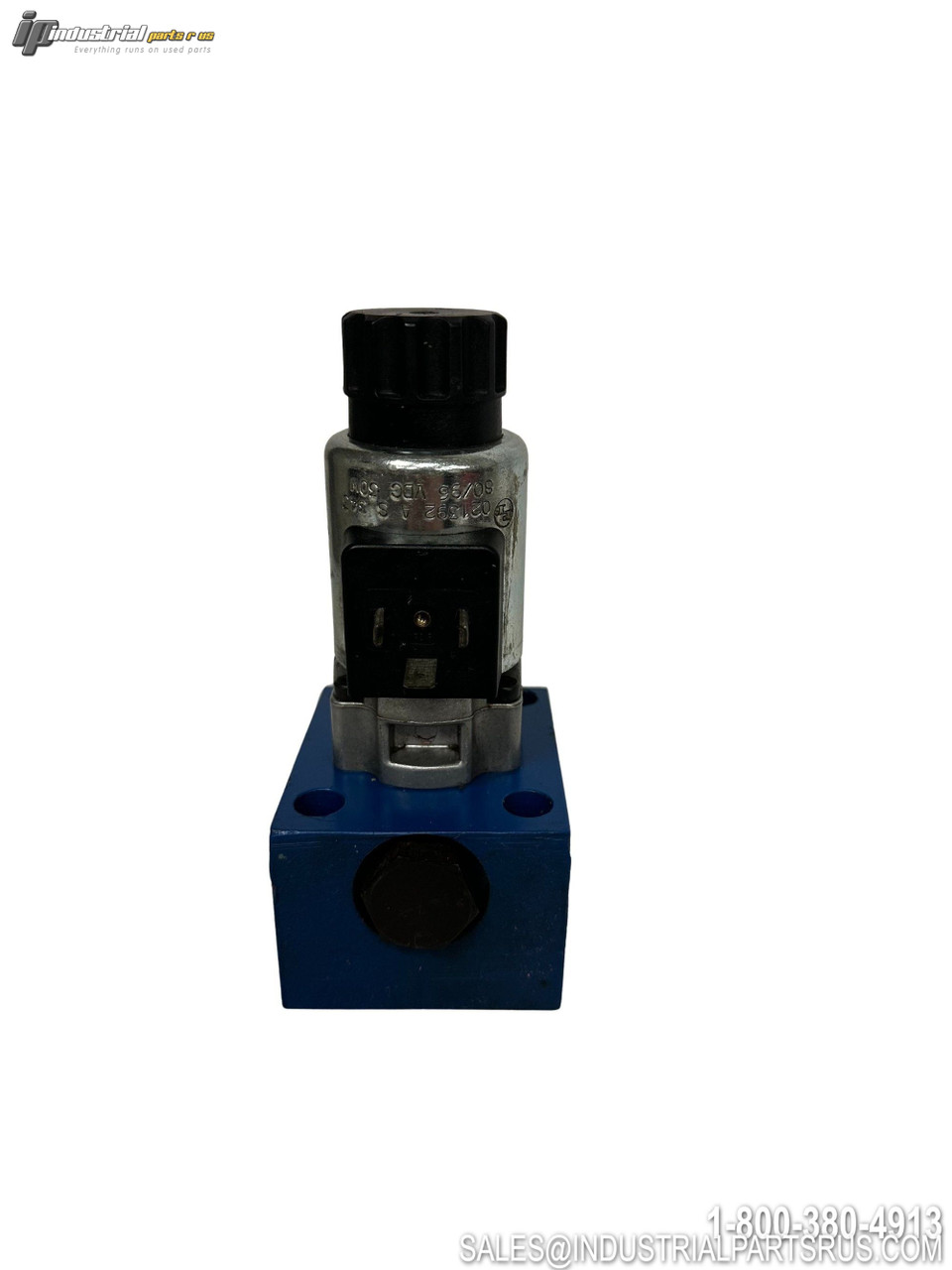

The Rexroth R900082238 is a direct-operated 3/2-way solenoid directional poppet valve designed for controlling the start, stop, and direction of hydraulic fluid flow. This M-3SEW series valve features a pressure-compensated design that allows operation up to 420 bar maximum pressure with excellent leakage-free isolation when closed.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Rexroth |
| Model/Part Number | R900082238 |
| Type Designation | M-3SEW 10 C1X/420MG96N9K4 |
| Valve Configuration | 3/2 Directional Poppet |
| Size | 10 |
| Maximum Operating Pressure | 420 bar (6100 psi) |
| Coil Voltage | 96VDC |
| Power Consumption | 30W |
| Voltage Tolerance | ±10% |
| Maximum Coil Temperature | 150°C (302°F) |
| Ambient Temperature Range | -30°C to +50°C (-22°F to +122°F) |
| Weight (3/2 Configuration) | 2.0 kg (4.41 lbs) |
| Weight (4/2 Configuration) | 3.5 kg (7.72 lbs) |
| Seal Material | NBR (Nitrile) |
| Actuation Type | Solenoid |
| Mounting Pattern | ISO 4401 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Country/Region of Manufacture Germany
Manufacturer Rexroth
Part Number R900082238
Shelf K-33
Model R900082238
MPN R900082238
Type Solenoid Valve
