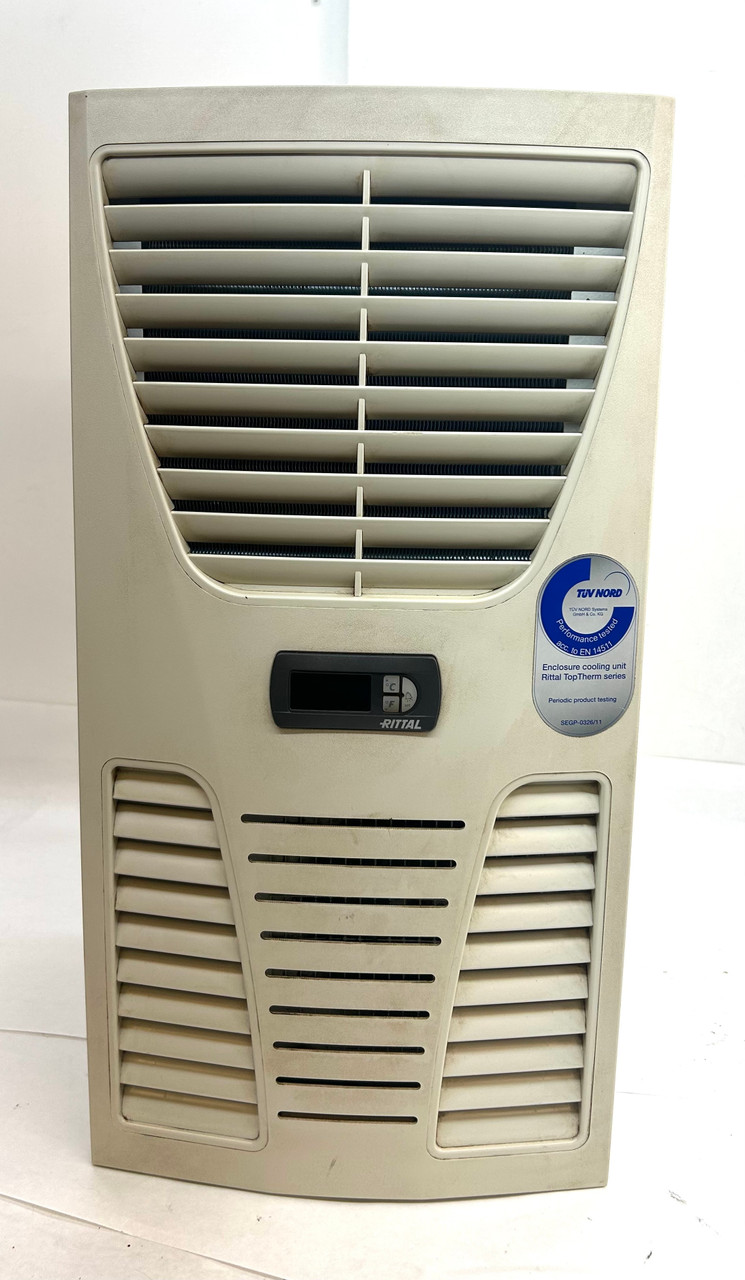

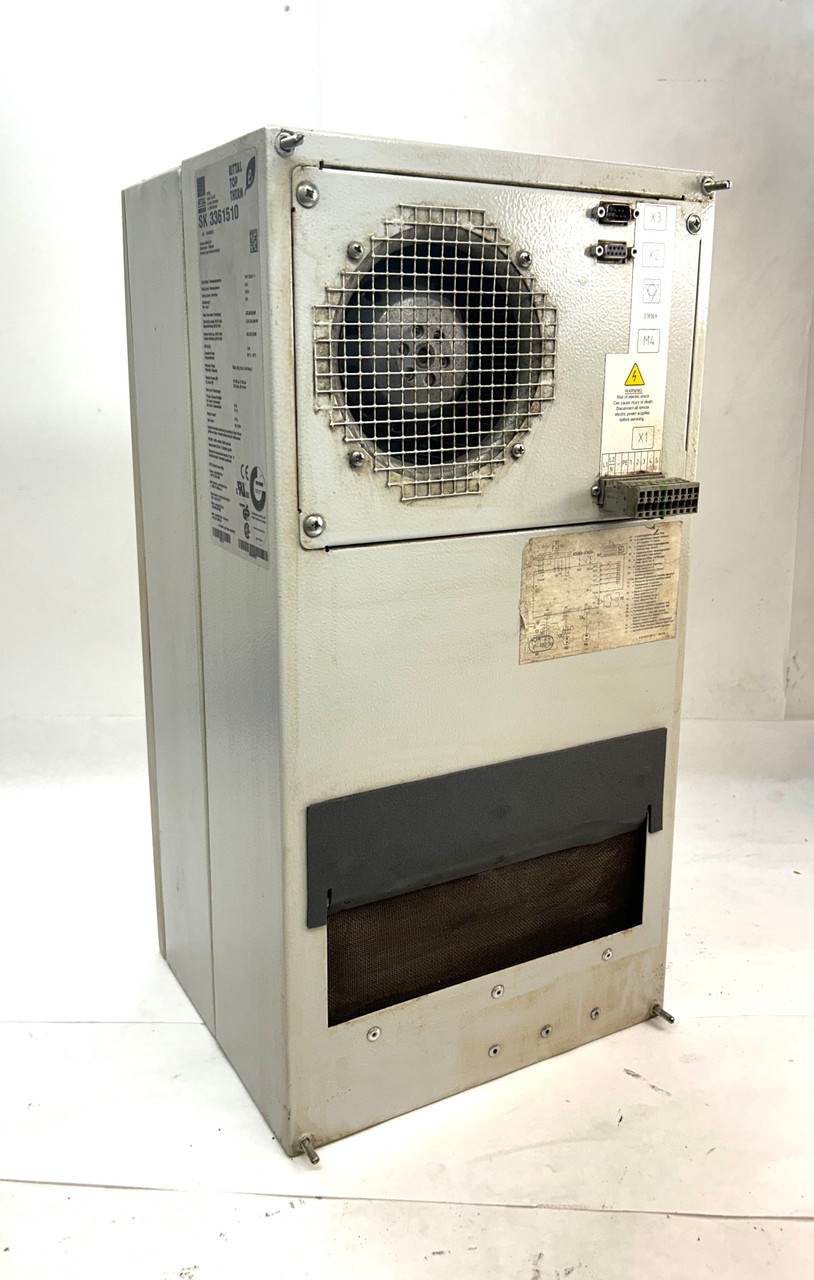

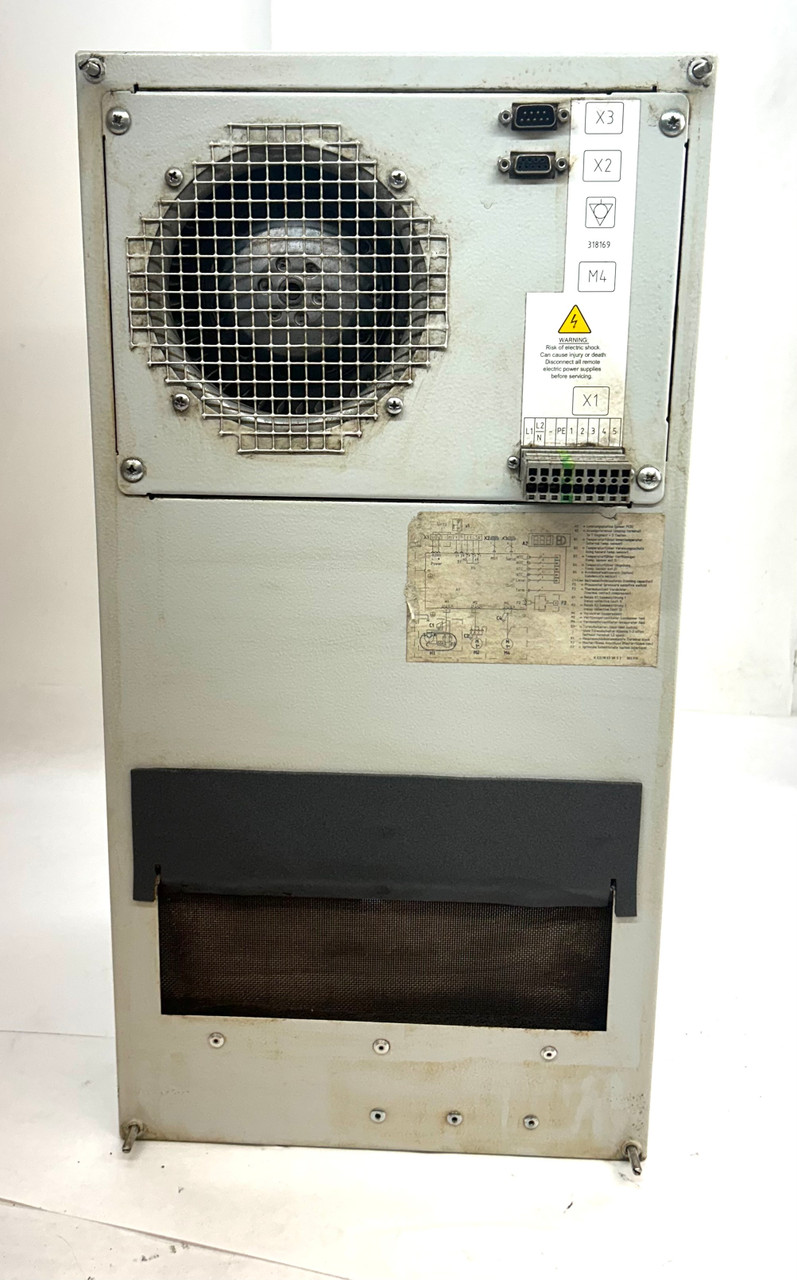

Rittal SK3361510 Enclosure Cooling Unit, 115V

Product Description

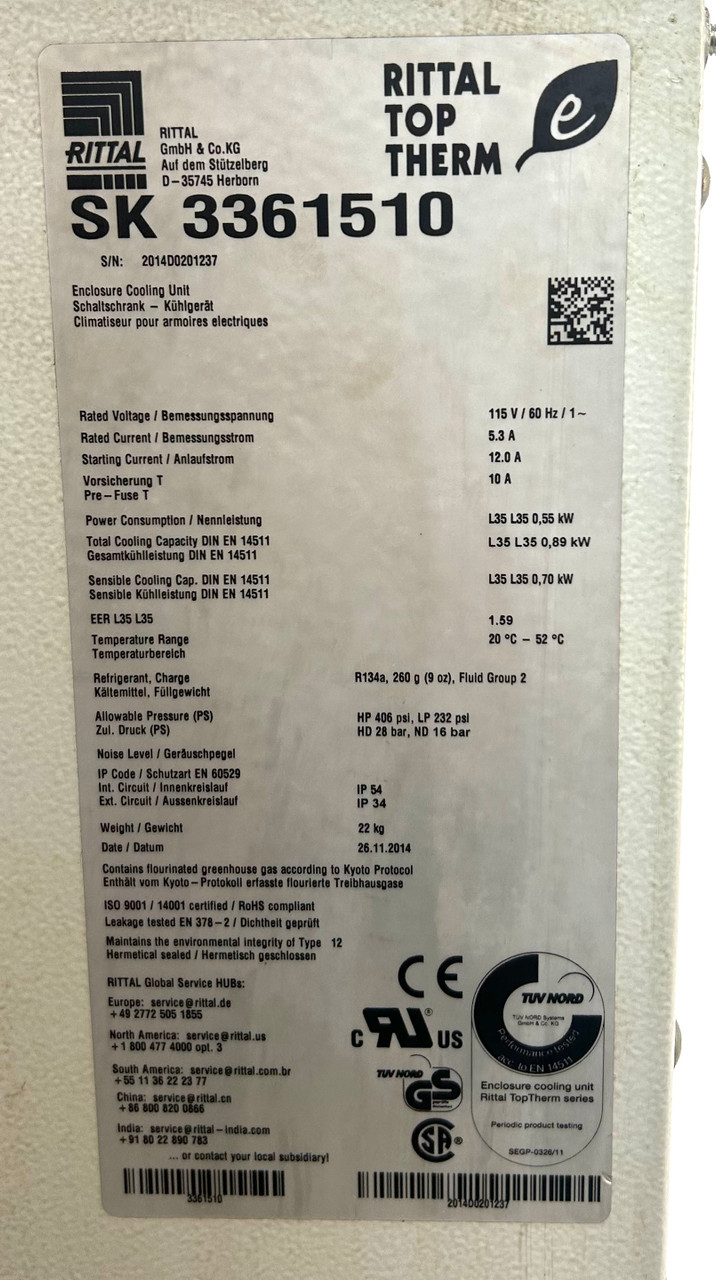

Electrical Specs:

• Rated Voltage: 115 V / 60 Hz / 1~

• Rated Current: 5.3 A

• Starting Current: 12.0 A

• Pre-fuse (recommended): 10 A

Performance:

• Power Consumption: 0.55 kW (L35 L35)

• Total Cooling Capacity (DIN EN 14511): 0.89 kW (L35 L35)

• Sensible Cooling Capacity (DIN EN 14511): 0.70 kW (L35 L35)

• EER (Energy Efficiency Ratio): 1.59 (L35 L35)

• Temperature Range: 20 °C – 52 °C

Refrigerant:

• Type: R134a

• Charge: 260 g (9 oz), Fluid Group 2

Allowable Pressure:

• HP (High Pressure): 406 psi (28 bar)

• LP (Low Pressure): 232 psi (16 bar)

Protection / Environment:

• IP Code (EN 60529):

  • Internal Circuit: IP 54

  • External Circuit: IP 34

• Weight: 22 kg

• Noise Level: Not specified (just labeled "Noise Level / Geräuschpegel")

• Date: 26.11.2014

• Standards: ISO 9001 / 14001 certified, RoHS compliant, hermetically sealed, leakage tested EN 378-2
