Product Description

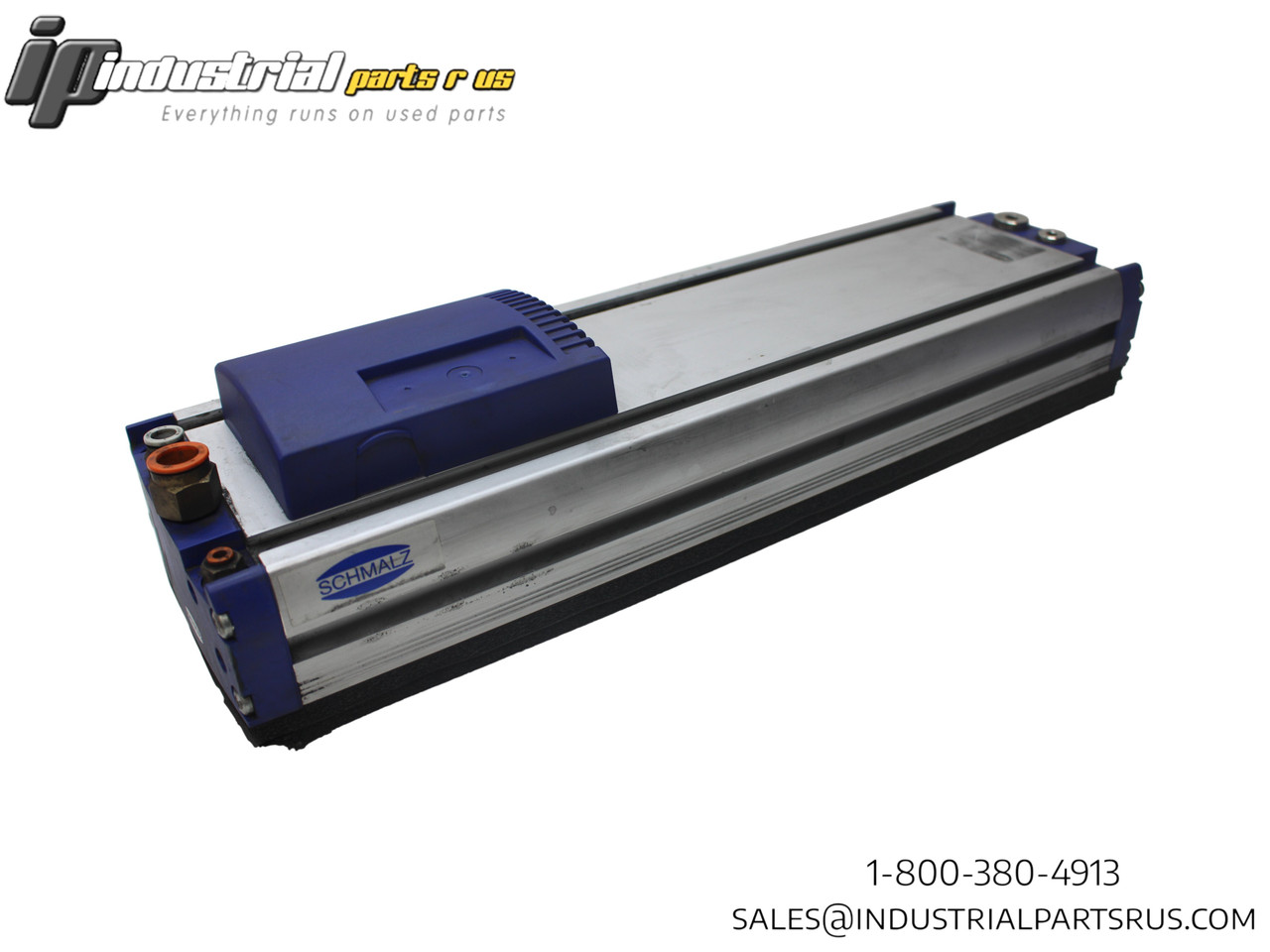

The Schmalz FXP-SVK 442 3R18 O10O10 F is a vacuum area gripping system with integrated pneumatic vacuum generator and ball check valves. The system features a length of 442 mm, width of 130 mm, with 3R18 arrangement and foam O material at height 2x10 mm. It includes 66 suction cells with multi-stage ejector SEMP design.Key Technical Specifications:
- Air consumption: 250 l/min
- Weight: 2.2 kg
- Sound level: 74 dB(A)
- Maximum degree of evacuation: 55%
- Requires compressed air hose 12/9 mm
Features control of vacuum on/off (24V DC, normally open) and blow off on/off (24V DC, normally closed) on FXP-S version. Meets dimensional tolerances for elastomer parts according to DIN ISO 3302-1 M3.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Germany
Type Area Vacuum Gripper System
GTIN 679523686161
Manufacturer Schmalz
Part Number FXP-SVK-442-3R18-O10O10
Shelf A-1
Model FXP-SVK-442-3R18-O10O10
MPN FXP-SVK-442-3R18-O10O10
