Product Description

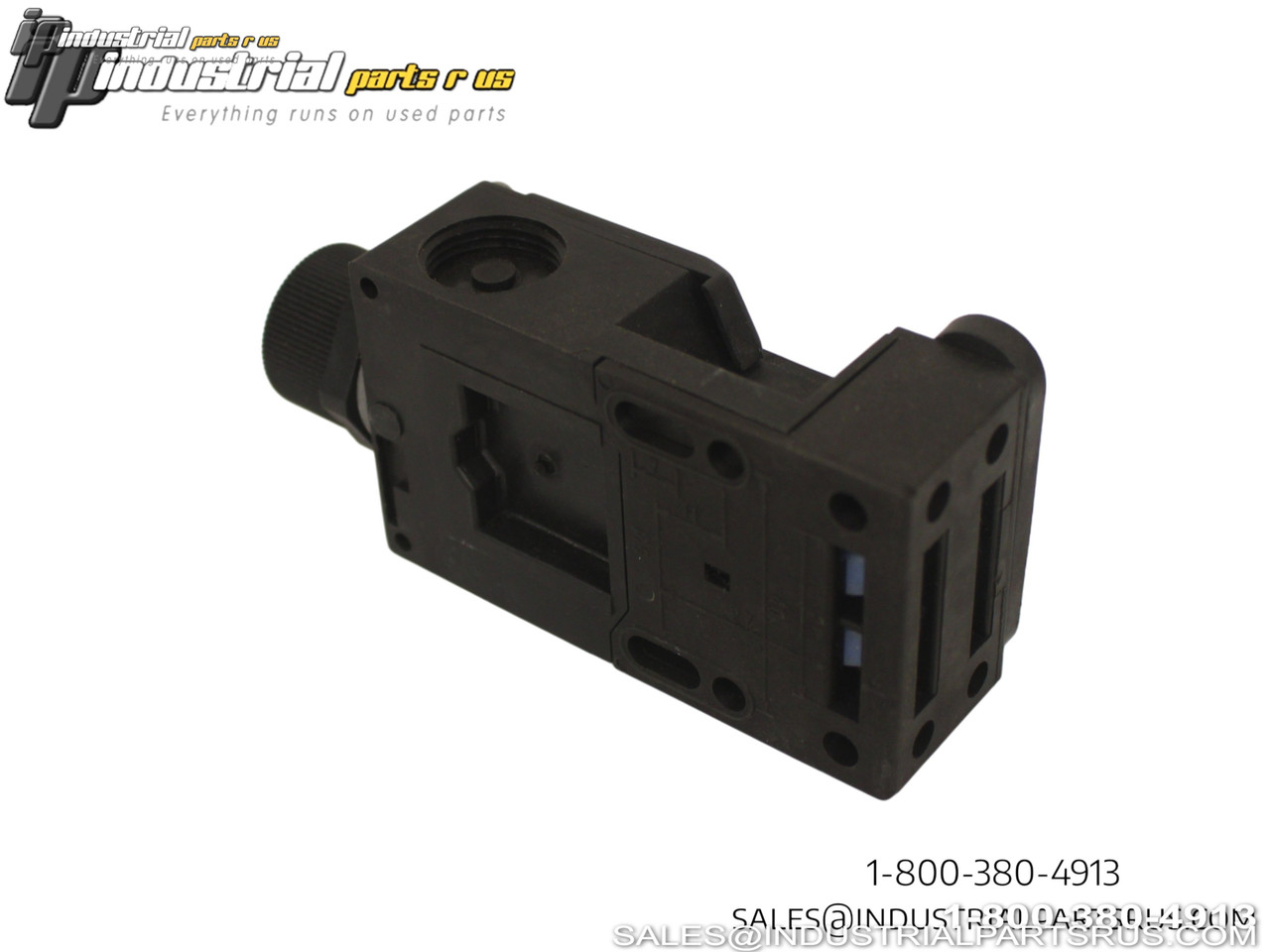

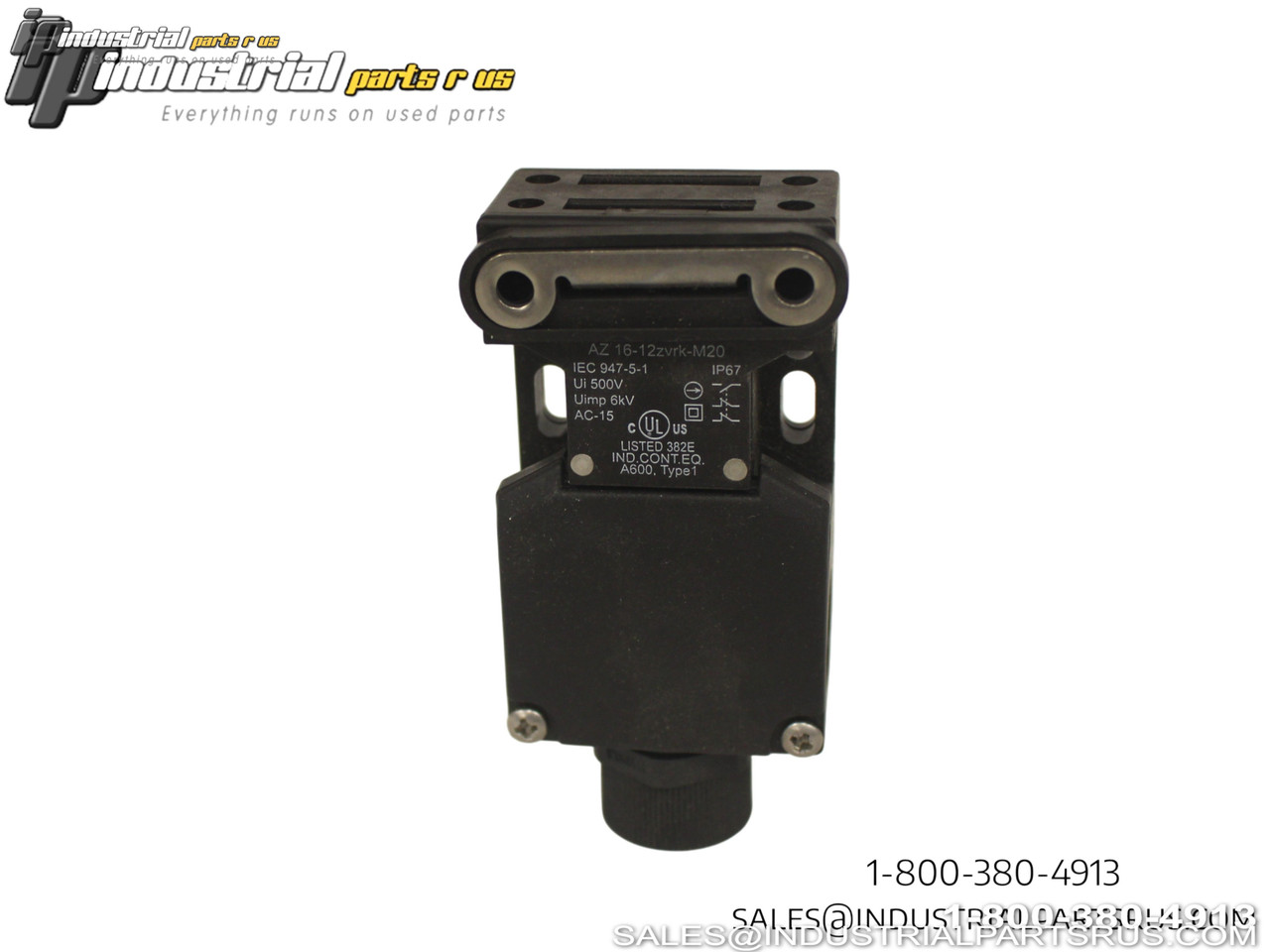

This Schmersal AZ 16-12zvrk-M20 is a professional safety interlock switch designed for industrial machine safety applications. The safety switches with separate actuator are suitable for sliding, hinged and removable safety guards, which need to be closed in order to ensure the necessary operational safety. The safety switchgears are classified according to EN ISO 14119 as type 2 interlocking devices. Features include 3 cable entries M 20 x 1.5, large wiring compartment, thermoplastic enclosure, double-insulated design, and dimensions of 52 mm x 90 mm x 30 mm.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Schmersal |
| Model/Part Number | AZ 16-12zvrk-M20 |
| Product Type | Safety Interlock Switch |
| Actuator Type | Separate Actuator Required |
| Contact Configuration | 1NO + 2NC |
| Contact Current AC Max | 4A |
| Contact Voltage AC Max | 230V |
| Contact Current DC Max | 4A |
| Contact Voltage DC Max | 24V |
| Operating Force Max | 30N |
| Latching Force | 30N |
| Cable Entry | 3 x M20 x 1.5 |
| Enclosure Rating | IP67 |
| Enclosure Material | Thermoplastic |
| Insulation | Double-insulated |
| Dimensions | 52mm x 90mm x 30mm |
| Safety Category | Cat. 3 / PL d (with 2-channel usage) |
| Standard Compliance | EN ISO 14119 Type 2 |
| RoHS Compliant | Yes |
| Weight | 120.8g |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Germany
GTIN 679523686161
Mounting Style Panel Mount
Current Rating 4A
Full Load Amps 4A
Application Industrial Safety Guards
Manufacturer Schmersal
Enclosure Type IP67
Part Number AZ 16-12ZVRK-M20
Shelf J-72
Model AZ 16-12ZVRK-M20
MPN AZ 16-12ZVRK-M20
Type Safety Interlock
