Product Description

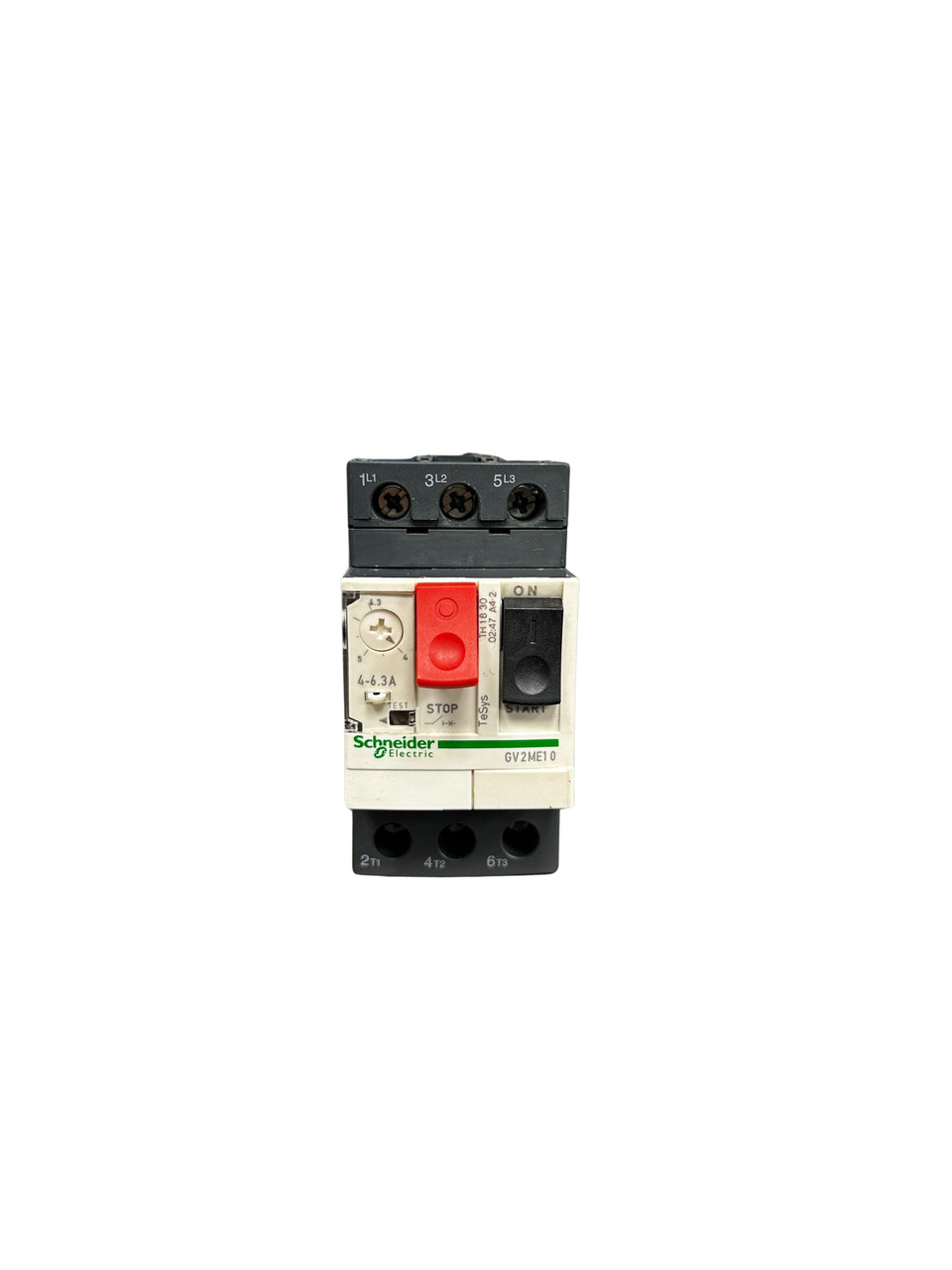

The Schneider Electric GV2ME10 is a TeSys GV2 manual motor starter and protector that combines thermal magnetic circuit protection with manual motor control in a compact 3-pole design. This device provides overcurrent protection for motors with full load currents from 4 to 6.3 amperes and operates at voltages up to 690VAC. It features screw clamp terminals, push button operation, and meets multiple international standards including IEC 60947-2 and IEC 60947-4-1.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Schneider Electric |
| Model/Part Number | GV2ME10 |
| Series | TeSys GV2 |
| Product Line | TeSys Deca |
| Poles | 3 |
| Current Rating | 4-6.3A |
| Voltage Rating | 690VAC |
| Trip Unit Technology | Thermal-Magnetic |
| Terminal Type | Screw Clamp |
| Breaking Capacity 230/240V | 100kA |
| Breaking Capacity 400/415V | 100kA |
| Breaking Capacity 690V | 3kA |
| Motor Power 400/415V | 2.2kW |
| Motor Power 500V | 3kW |
| Motor Power 690V | 4kW |
| Network Frequency | 50/60 Hz |
| Utilization Category | AC-3 |
| Standards Compliance | IEC 60947-2, IEC 60947-4-1 |
| Dimensions (H x W x D) | 3.5 x 1.77 x 3.09 inches |
| Mounting | DIN Rail |
| Enclosure Rating | IP20 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Schneider Electric
Enclosure Type IP20
Part Number GV2ME10
Shelf J-79 Tub 2
Model GV2ME10
MPN GV2ME10
Type Motor Starter
