Product Description

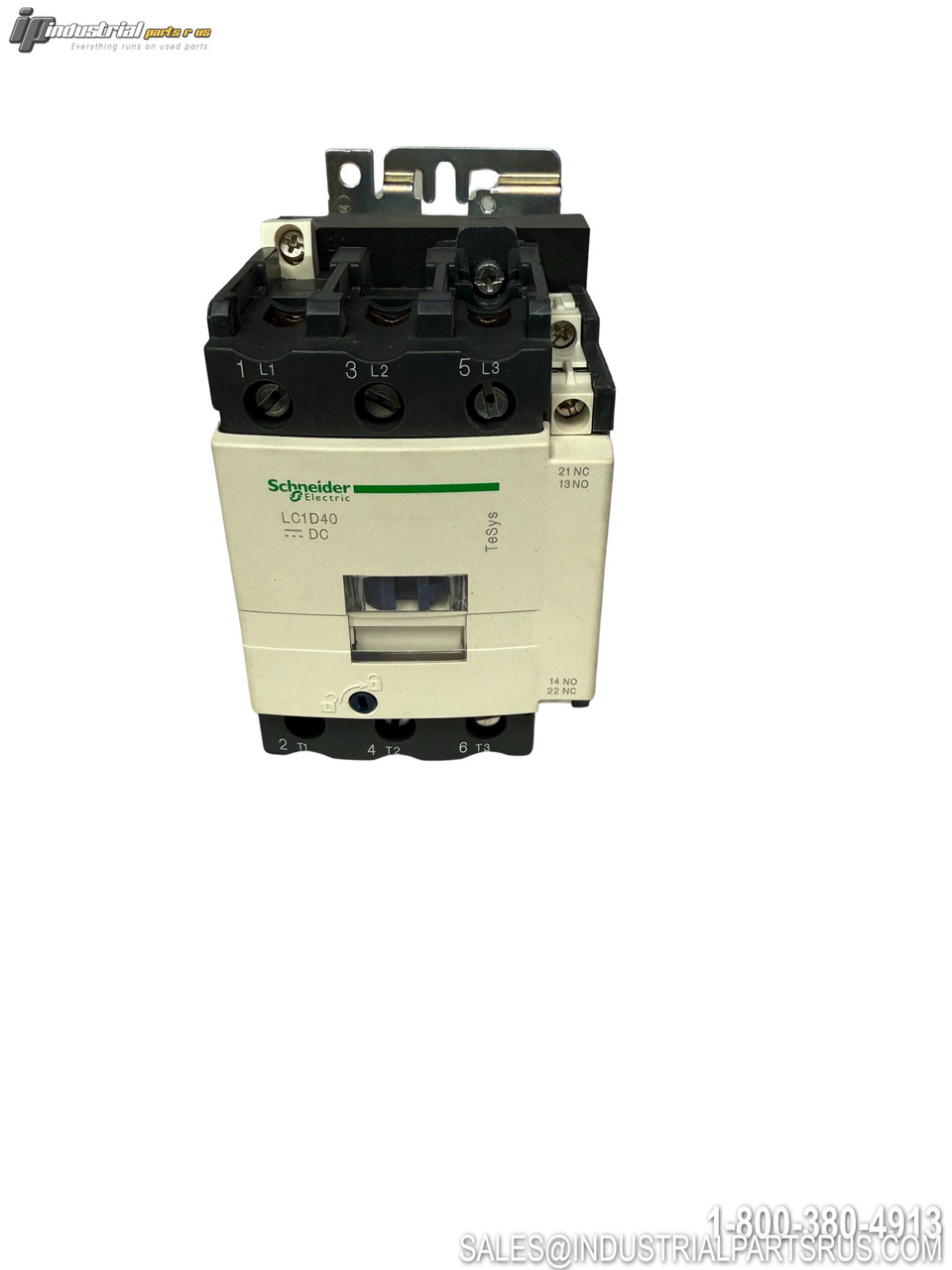

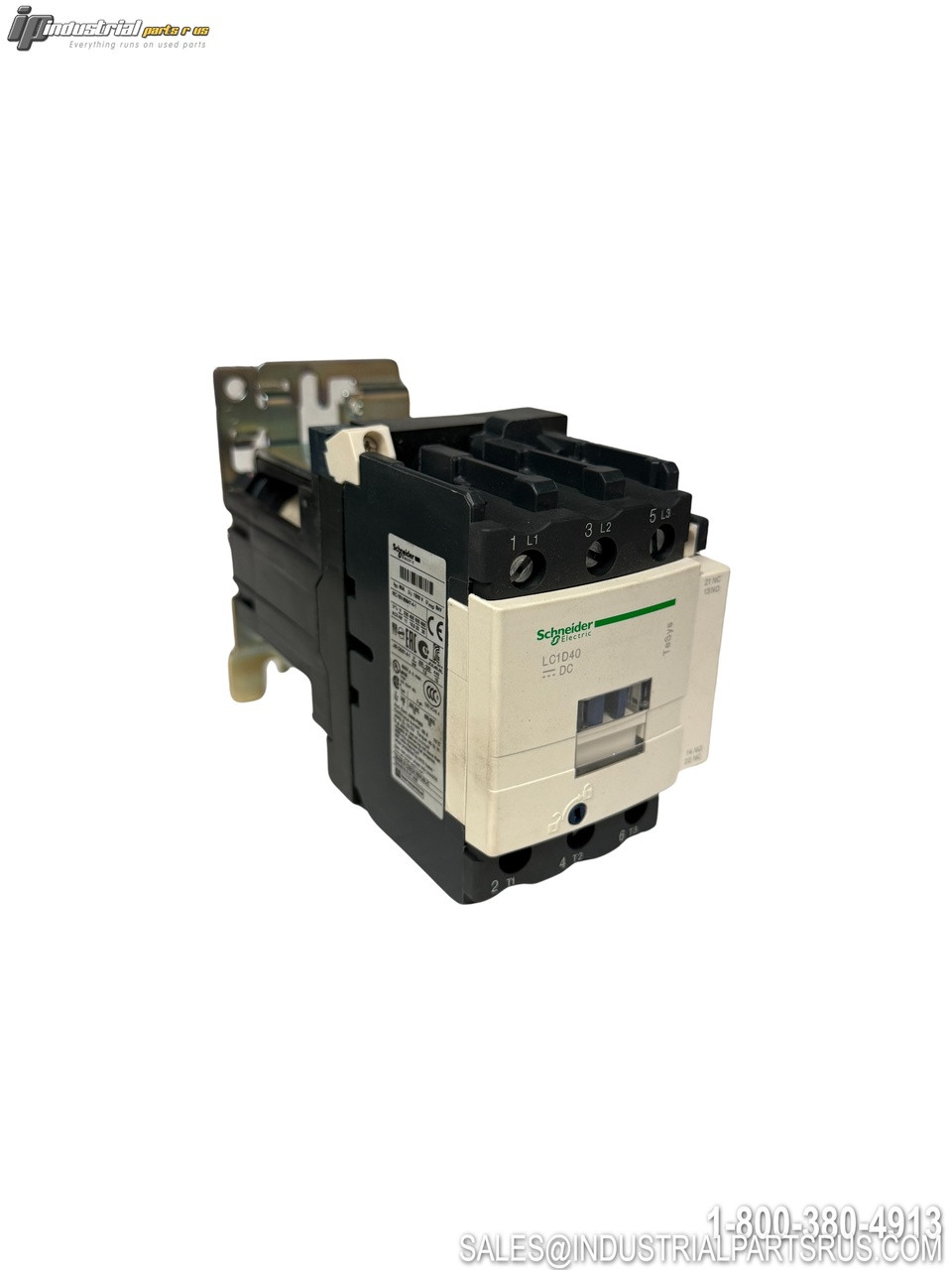

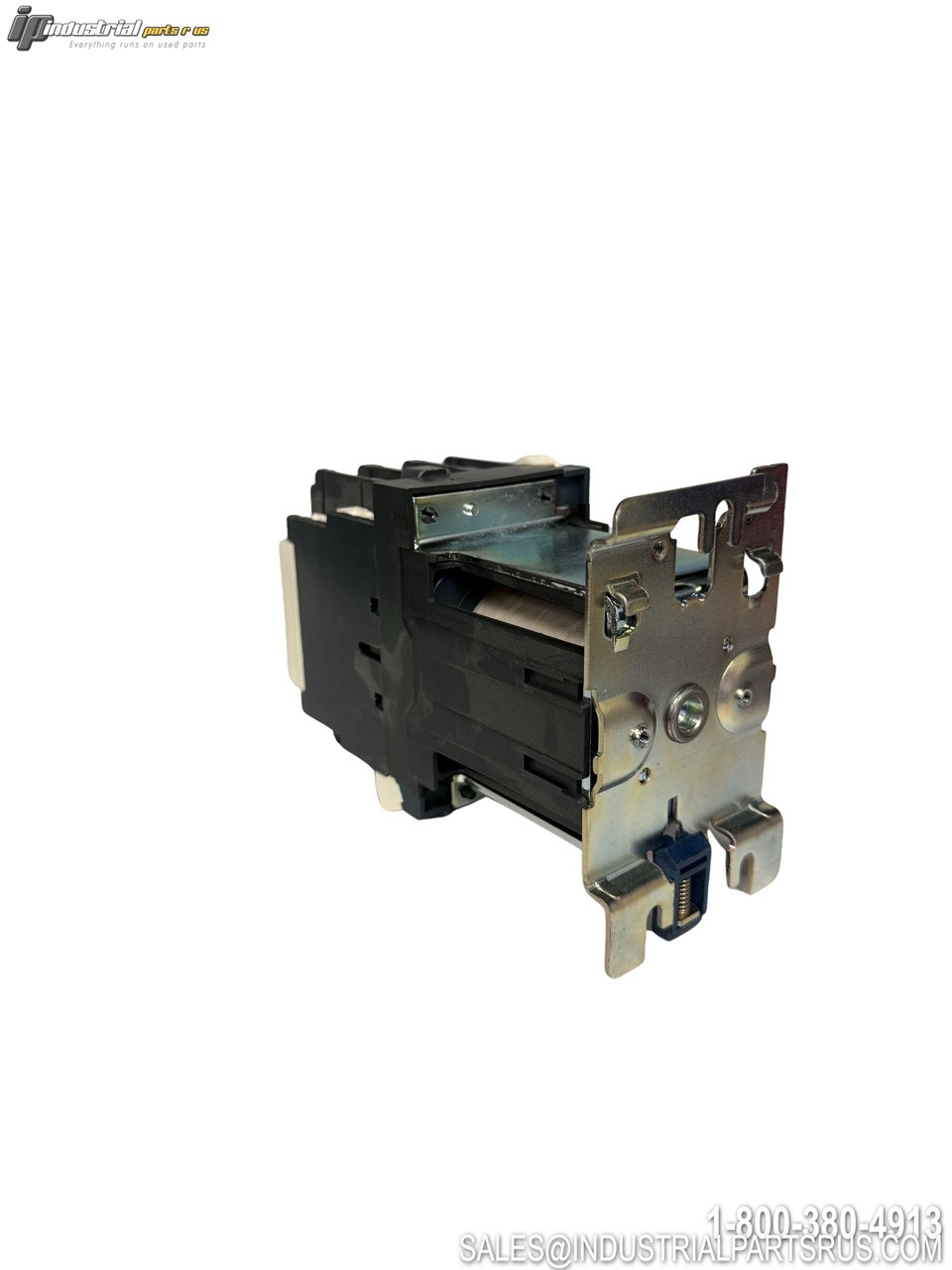

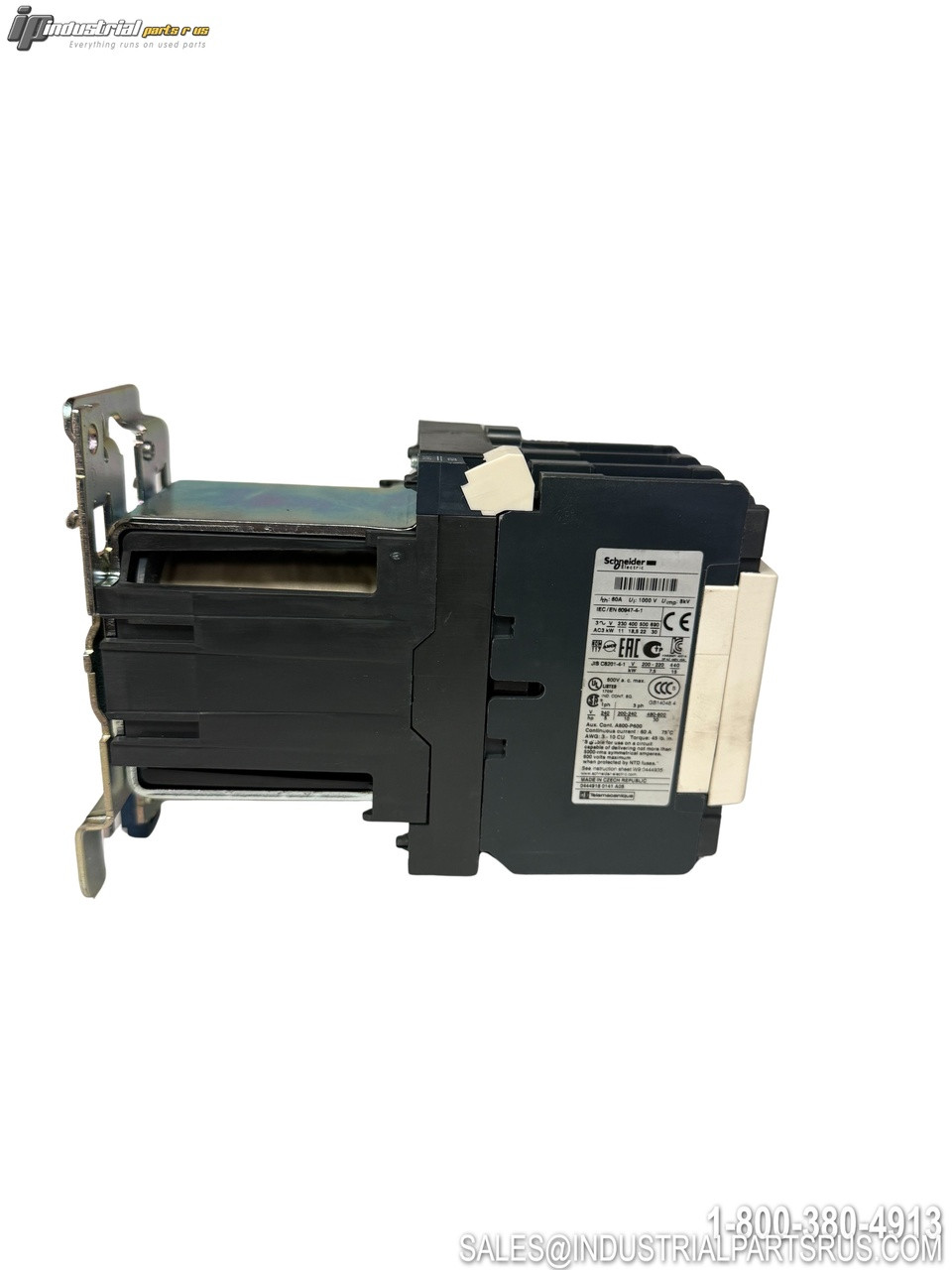

The Schneider Electric LC1D40BD is a 3-pole IEC contactor from the TeSys D series designed for industrial motor control applications. This non-reversing contactor features a 40A AC-3 inductive rating and 24VDC coil voltage, making it suitable for controlling motors up to 30HP at 480VAC and provides reliable switching for demanding industrial applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Schneider Electric |
| Model/Part Number | LC1D40BD |
| Series | TeSys D |
| Poles | 3-Pole (3 N.O.) |
| Inductive Current Rating (AC-3) | 40A |
| Resistive Current Rating (AC-1) | 60A |
| Coil Voltage | 24VDC |
| Coil Voltage Range | 18-30VDC |
| Coil Power | 14W at 24VDC |
| Maximum Voltage Rating | 600VAC |
| Rated Operating Voltage (Ue) | 690V |
| Rated Impulse Voltage (Uimp) | 6kV |
| Horsepower Rating (1-Phase) | 3HP@115VAC, 5HP@230VAC |
| Horsepower Rating (3-Phase) | 10HP@200/230VAC, 30HP@460/575VAC |
| Auxiliary Contacts | 1NO + 1NC built-in |
| Connection Type | Screw Clamp Terminals |
| Mounting Type | DIN Rail or Panel Mount |
| Degree of Protection | IP20 |
| Mechanical Durability | 15,000,000 operations |
| Electrical Durability | 10,000,000 cycles |
| Action Type | Non-Reversing |
| Application Type | Direct On Line (DOL) FVNR |
| Short Circuit Current Rating | Up to 100kA SCCR |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 40A
Manufacturer Schneider Electric
Part Number LC1 D40BD
Shelf K-50
Model LC1 D40BD
MPN LC1 D40BD
Type Contactor
