Product Description

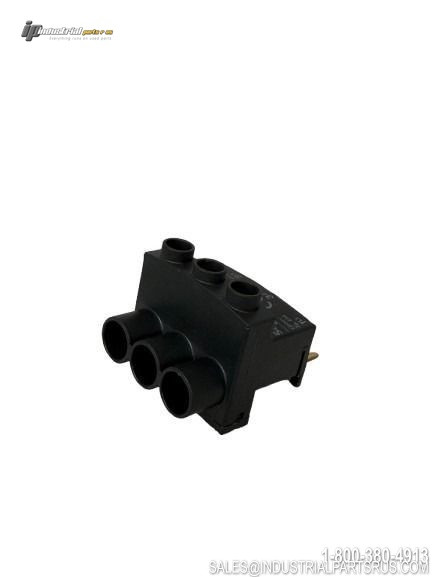

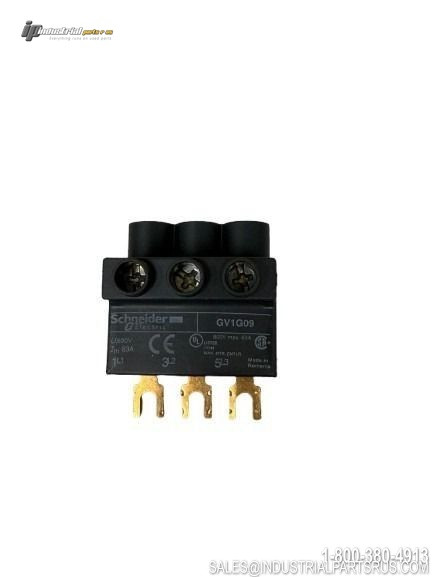

The Schneider Electric GV1G09 is a TeSys GV top feed terminal block designed for busbar power distribution in industrial control applications. This 3-pole terminal block provides 63A rated current at 690V and is specifically designed to supply busbar sets GV2G. It mounts directly to the top terminals of connected devices and features screw clamp connections for secure power distribution.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Schneider |
| Model/Part Number | GV1G09 |
| Product Type | Terminal Block |
| Series | TeSys GV |
| Poles | 3P |
| Current Rating | 63A |
| Voltage Rating | 690V AC |
| Mounting Location | Top Feed |
| Connection Type | Screw Clamp |
| IP Rating | IP20 |
| Compatible With | TeSys D, TeSys K, TeSys U, TeSys LS1 |
| Wire Range | 16-4 AWG |
| Weight | 0.09 lb (0.04 kg) |
| Tightening Torque | 15.04 lbf.in (1.7 N.m) |
| Standard | IEC 60529 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Schneider
Enclosure Type IP20
Part Number GV1G09
Shelf K-57 TUB 4
Model GV1G09
MPN GV1G09
Type Terminal Block
