Product Description

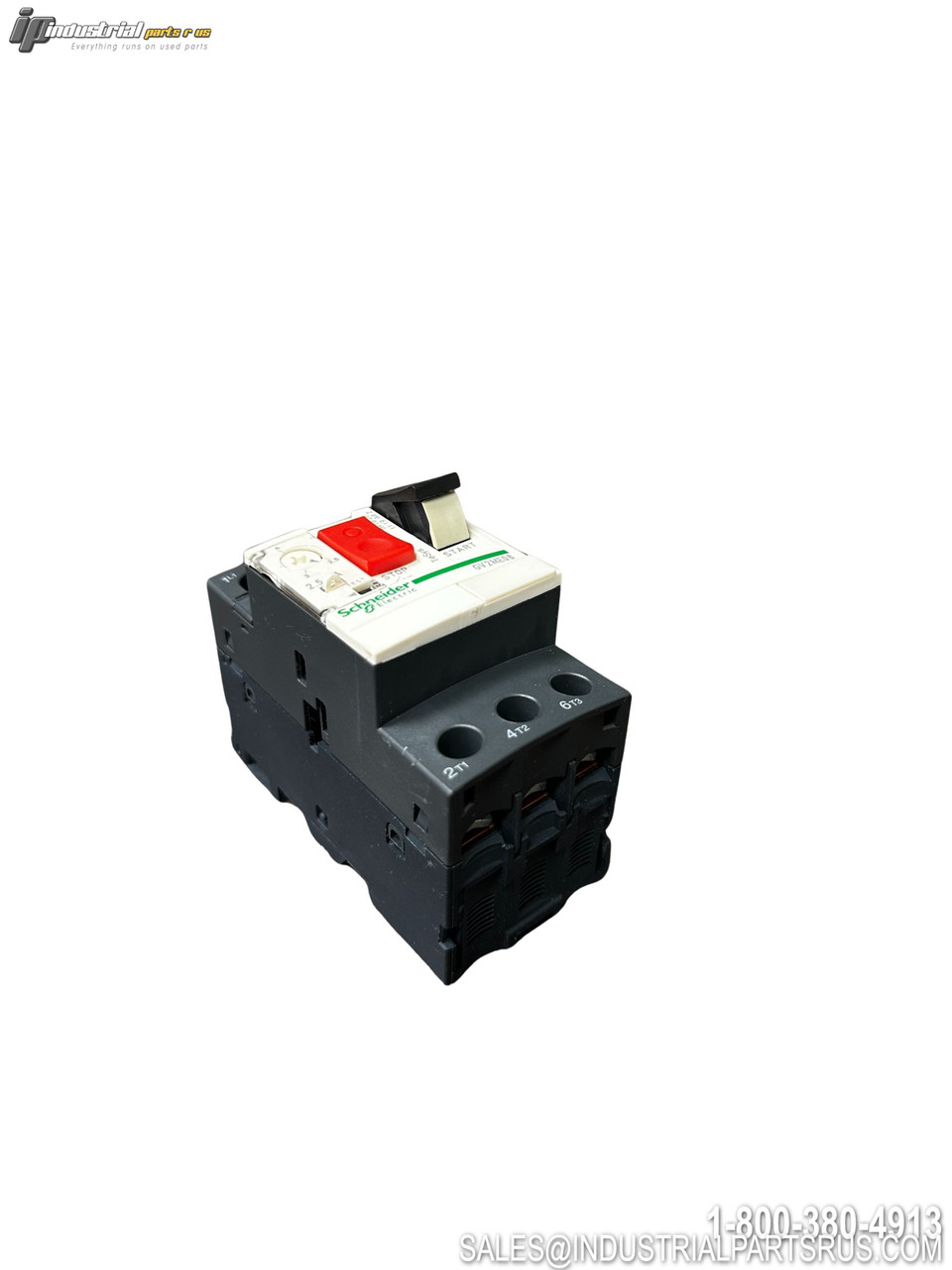

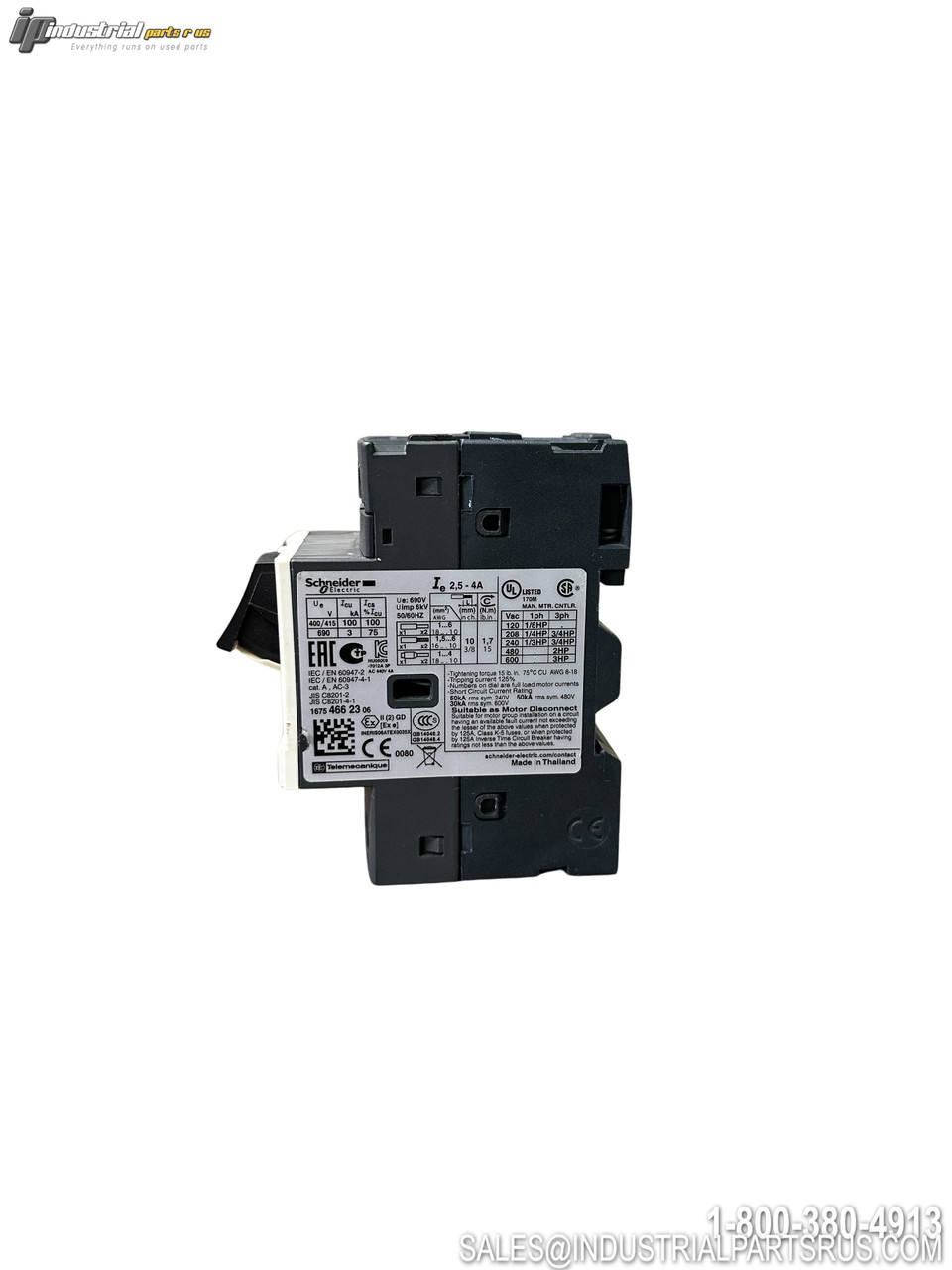

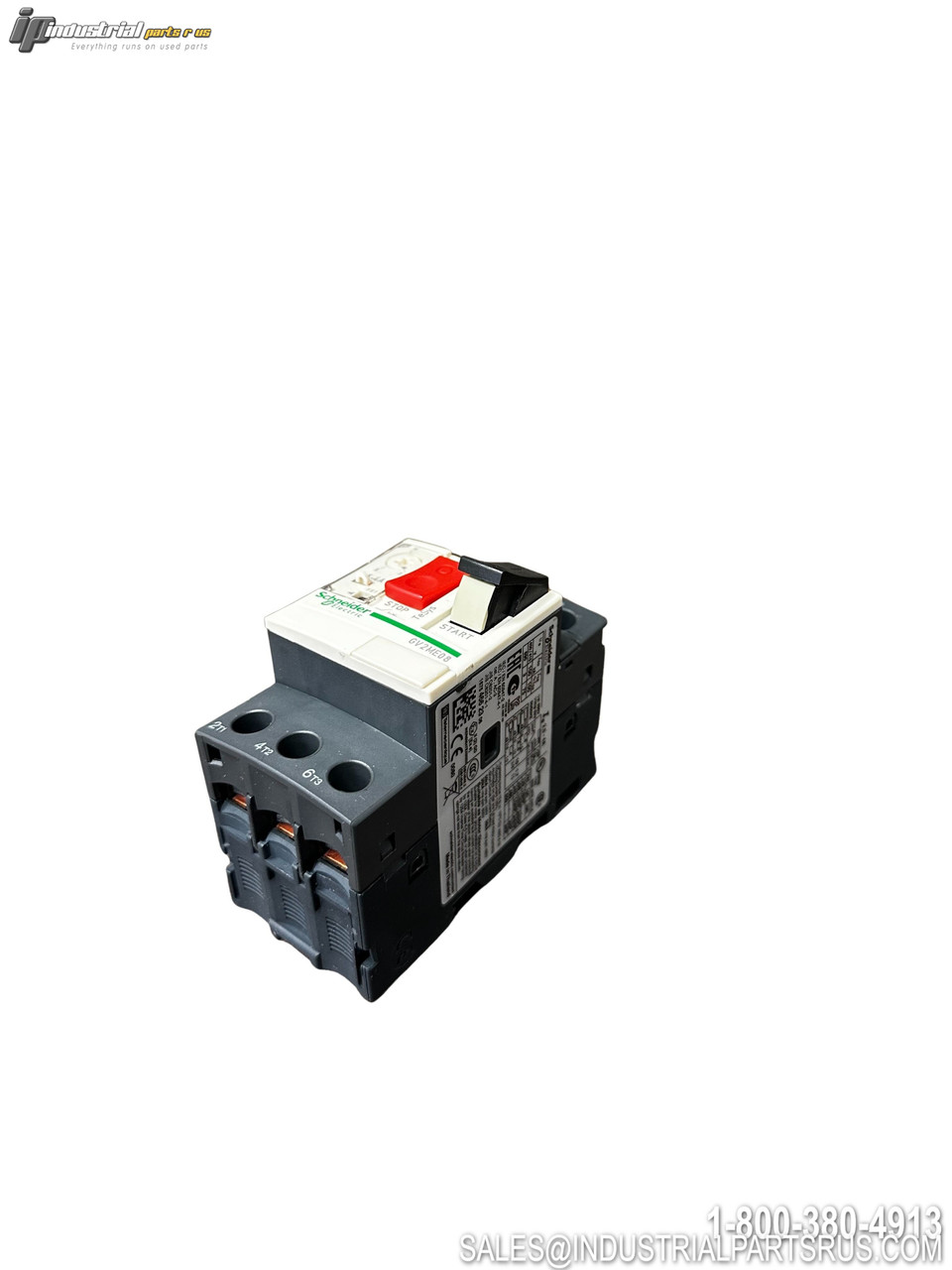

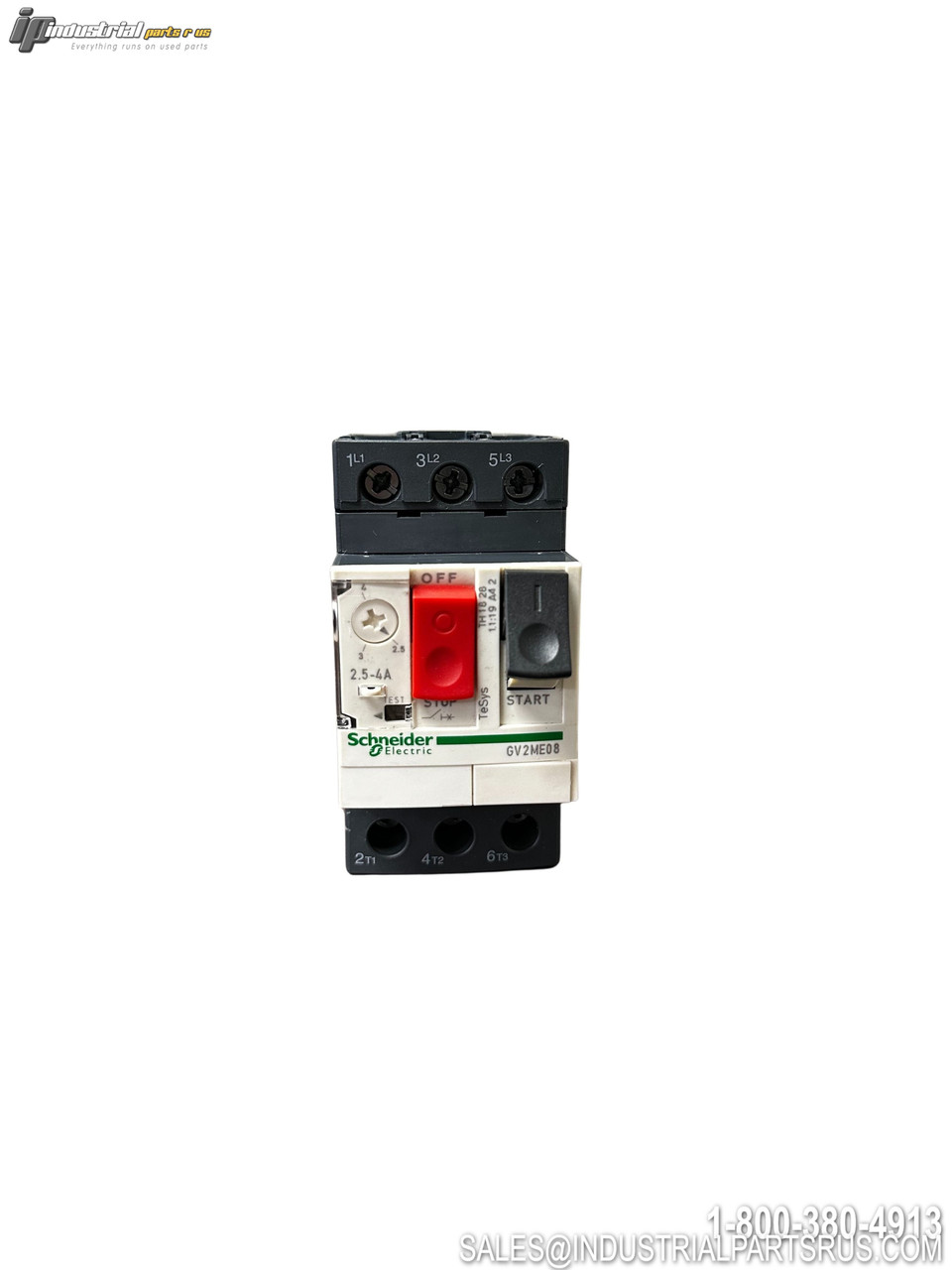

The Schneider Electric GV2ME08 is a TeSys GV2 manual motor starter and protector that provides motor control and thermal overcurrent protection in a compact unit. This 3-pole thermal-magnetic motor starter features pushbutton operation, adjustable trip current from 2.5A to 4A, and screw clamp terminals for secure connections.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Schneider |
| Model/Part Number | GV2ME08 |
| Series | TeSys GV2 |
| Product Name | TeSys GV2 |
| Number of Poles | 3-Pole |
| Current Rating | 2.5-4A |
| Voltage Rating | 690VAC Maximum |
| Trip Unit Technology | Thermal-Magnetic |
| Starter Type | Non-Reversing |
| Operator Type | Pushbutton |
| Terminal Type | Screw Clamp |
| Mounting Type | DIN Rail / Panel |
| Frequency | 50/60 Hz |
| Breaking Capacity | 100kA at 230/240VAC |
| Motor Power 1-Phase | 0.125HP@115VAC, 0.334HP@230VAC |
| Motor Power 3-Phase | 0.75HP@200VAC, 1HP@230VAC, 2HP@460VAC |
| Overload Type | Ambient Compensated Bimetallic (Class 10) |
| Dimensions (W x D x H) | 45mm x 78.5mm x 89mm |
| Operating Temperature | -20°C to +60°C |
| Enclosure Rating | IP20/IK04 |
| Approvals | UL, CSA, CE, IEC |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Schneider
Enclosure Type IP20/IK04
Part Number GV2MEO8
Shelf J-79 tub-1
Model GV2MEO8
MPN GV2MEO8
Type Motor Starter
