Product Description

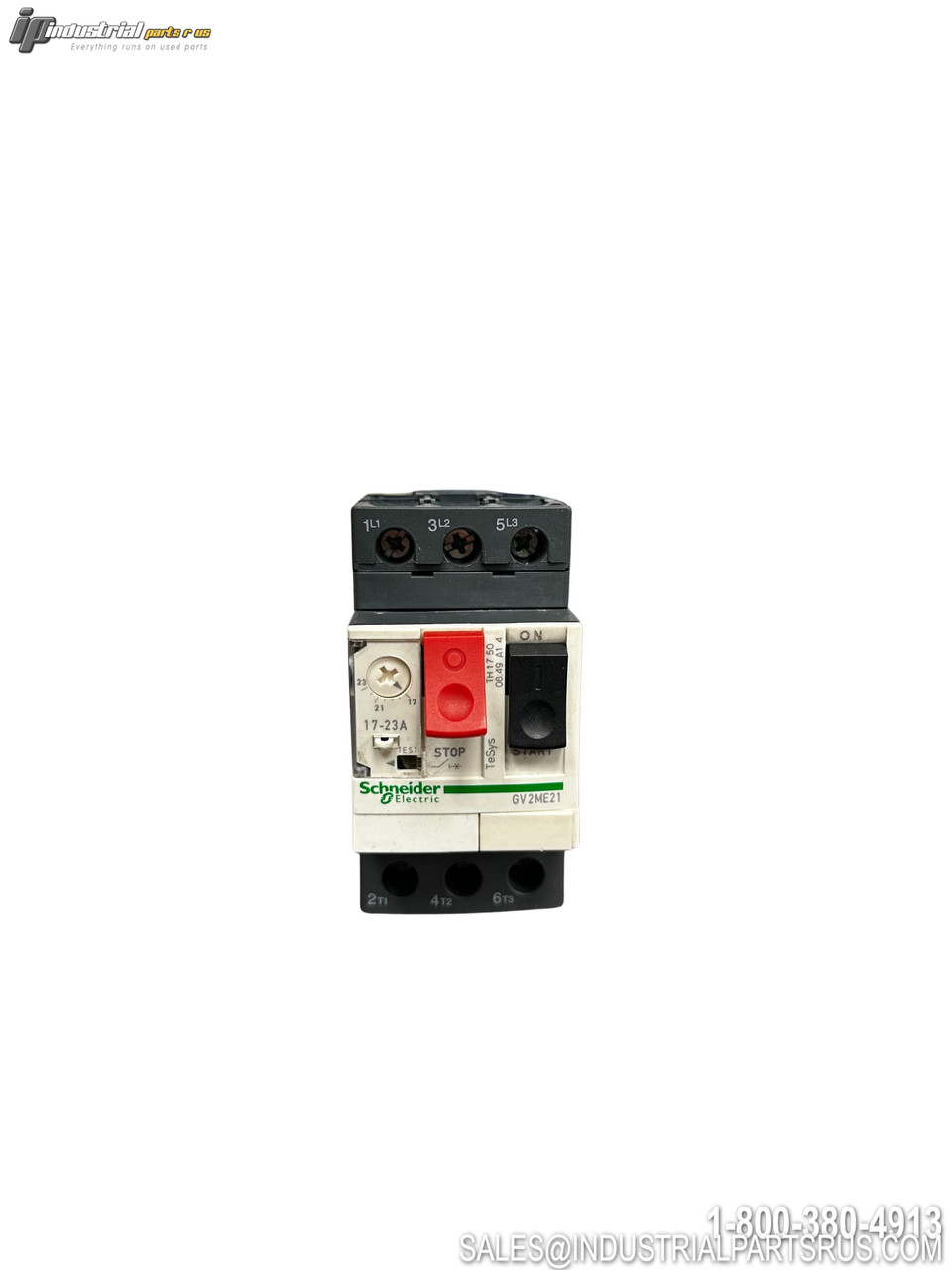

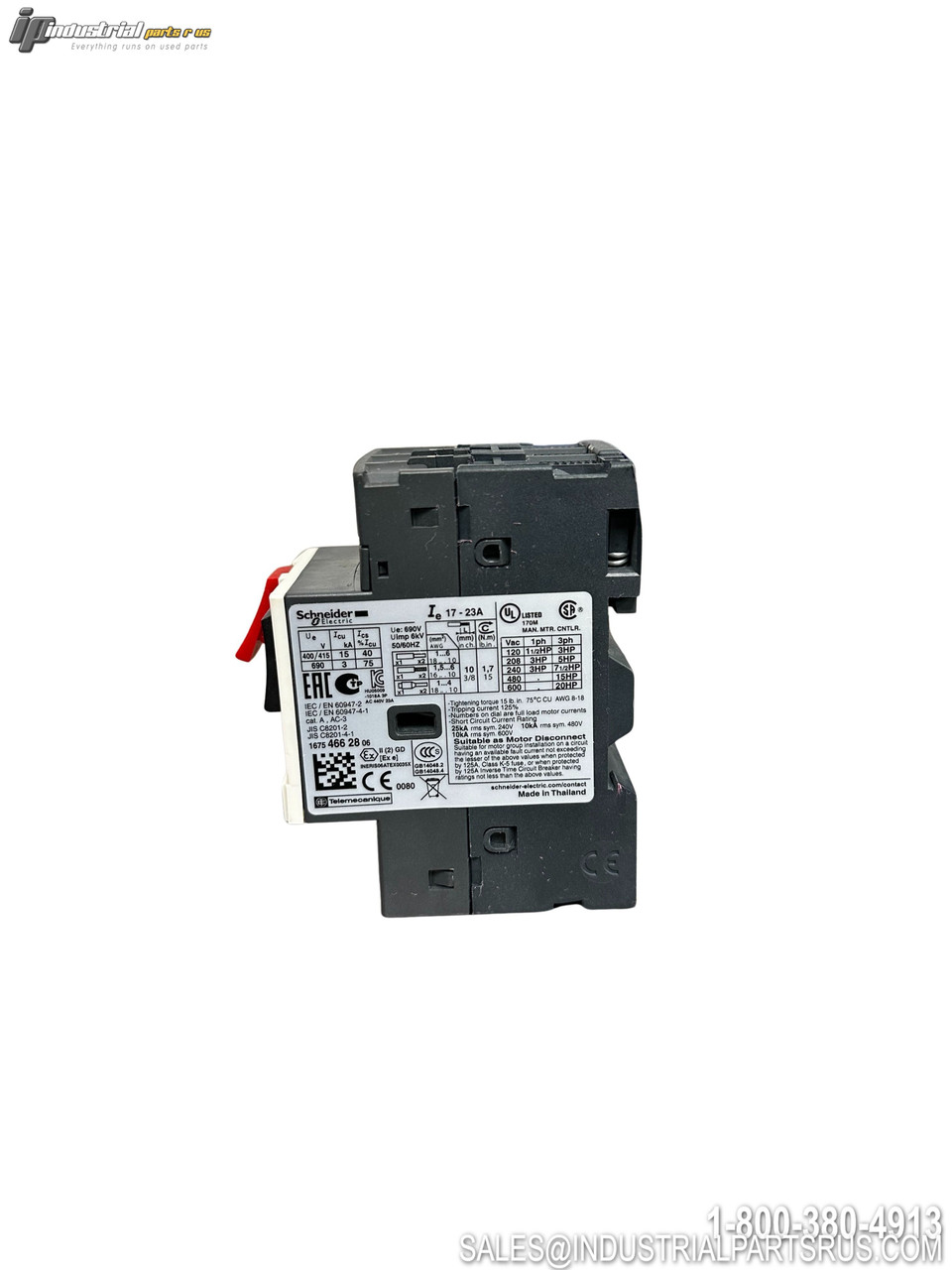

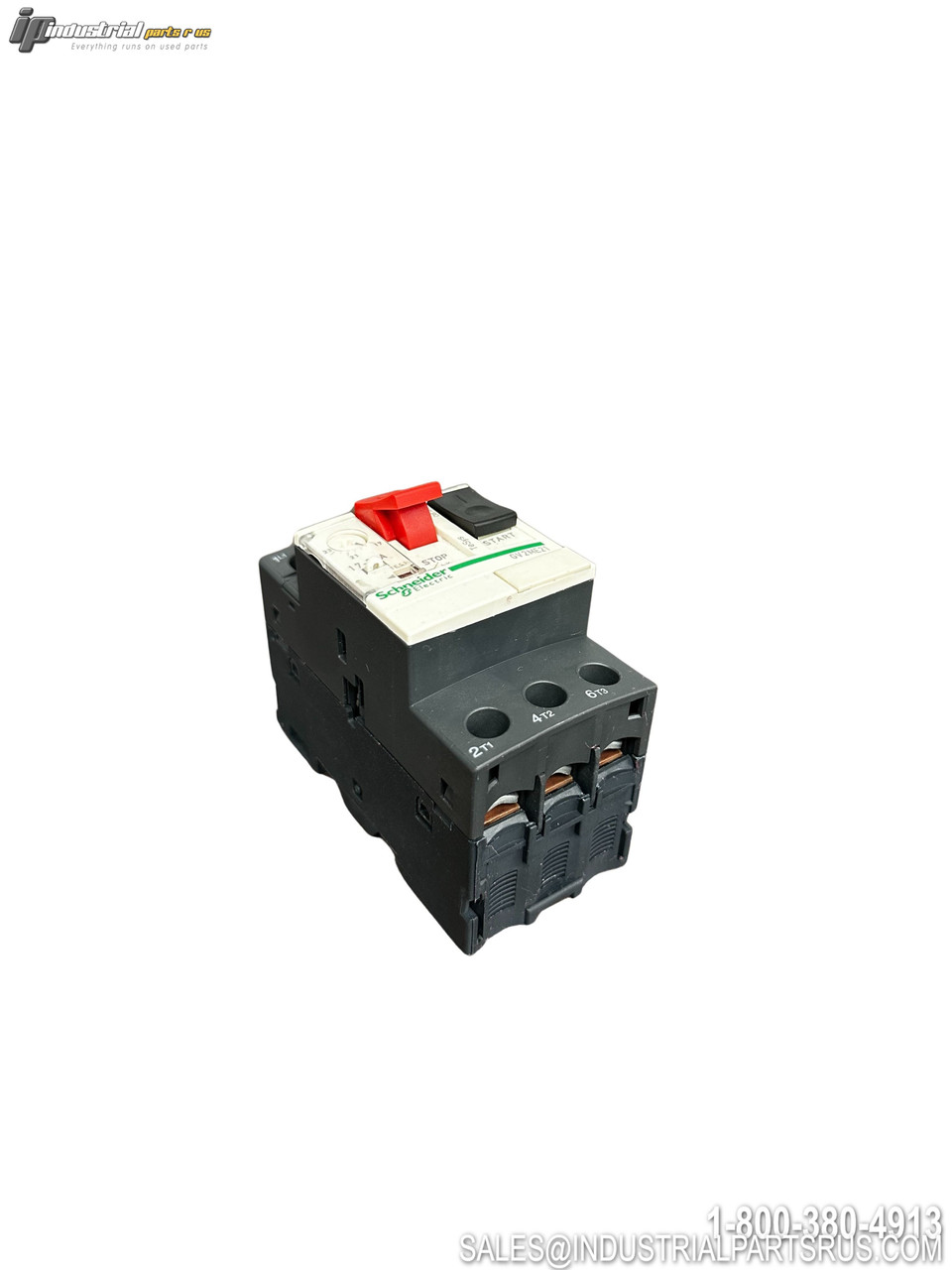

The Schneider Electric GV2ME21 is a TeSys GV2 series manual motor starter and protector that provides thermal-magnetic protection for motors with current ratings from 17-23 amperes. This 3-pole unit features pushbutton operation, ambient compensated bimetallic overload relay, and magnetic instantaneous short-circuit protection in a compact 45mm wide housing.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Schneider |
| Model/Part Number | Gv2me21 |
| Series | TeSys GV2 |
| Type | GV2ME Non-Reversing |
| Current Rating | 17-23A |
| Maximum Voltage | 600VAC |
| Number of Poles | 3 |
| Operator Type | Push Button |
| Trip Type | Thermal-Magnetic |
| Overload Class | Class 10 |
| Connection Type | Screw Clamp Terminals |
| Mounting | 35mm DIN Rail |
| Enclosure Rating | IP20 |
| Width | 45mm (1.77 in) |
| Height | 89mm (3.5 in) |
| Depth | 78.5mm (2.6 in) |
| Operating Temperature | -20°C to +60°C |
| Operating Cycles | 100,000 |
| Frequency | 50/60 Hz |
| HP @ 1 Phase 120V | 1.5 HP |
| HP @ 1 Phase 230V | 3 HP |
| HP @ 3 Phase 208V | 5 HP |
| HP @ 3 Phase 240V | 7.5 HP |
| HP @ 3 Phase 480V | 15 HP |
| HP @ 3 Phase 575V | 20 HP |
| Certifications | UL Listed, CSA Certified, CE Marked |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer Schneider
Enclosure Type IP20
Part Number GV2ME21
Shelf J-79 tub-3
Model GV2ME21
MPN GV2ME21
Type Motor Starter
