Product Description

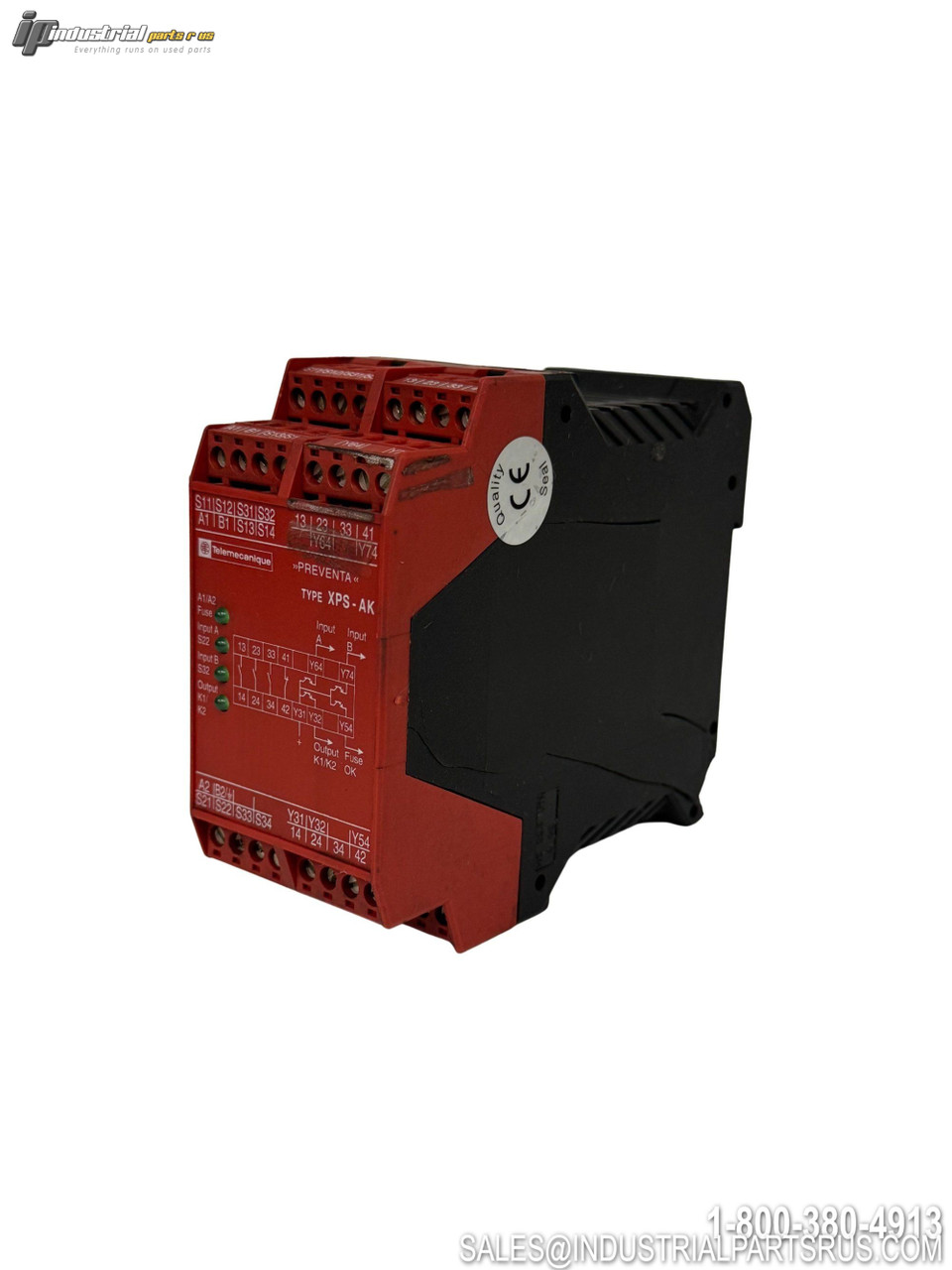

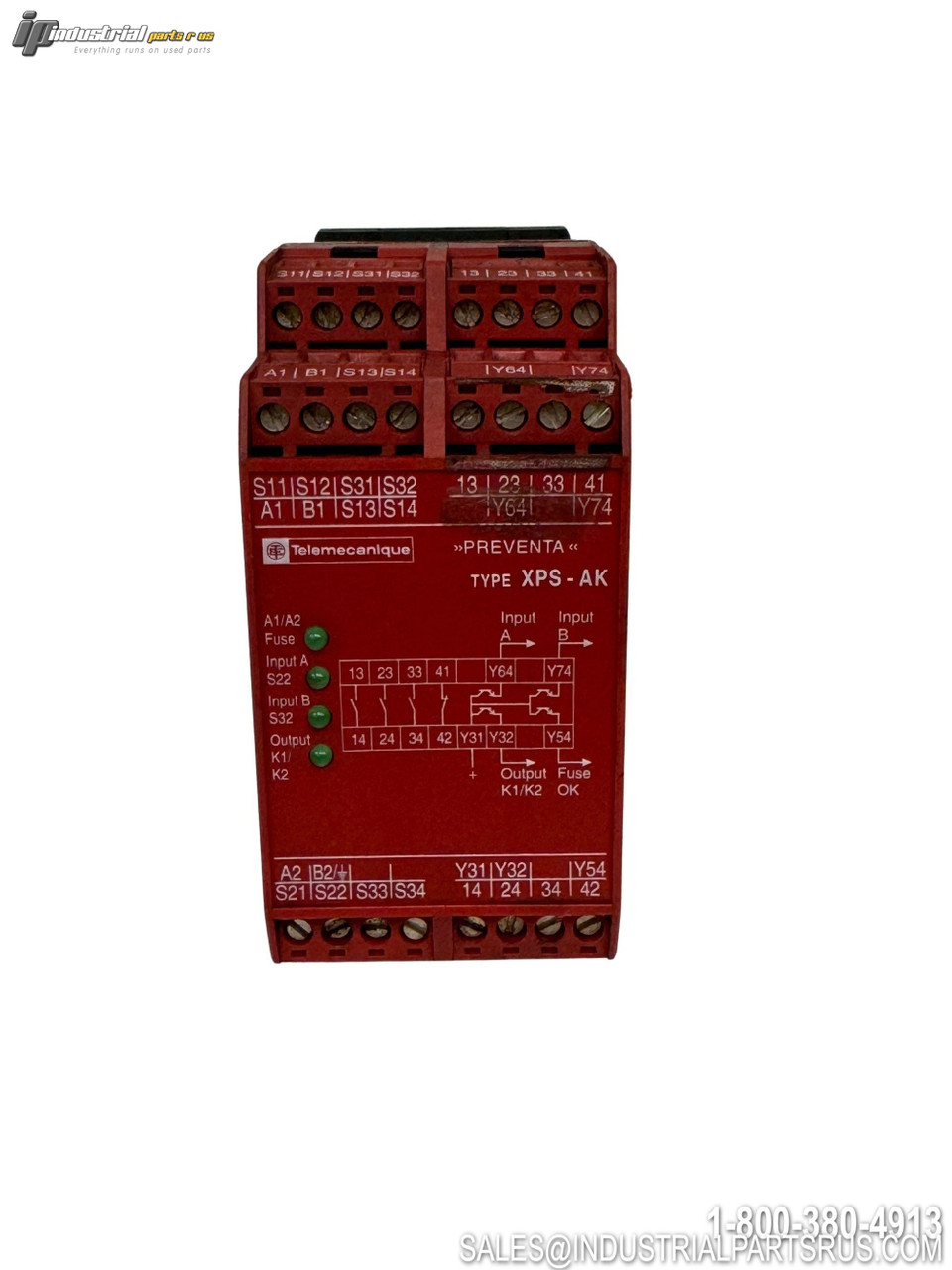

The Schneider XPSAK311144P is a Preventa safety relay module designed for emergency stop and safety monitoring applications. This dual-channel safety relay features microprocessor-based technology with redundancy principles, providing advanced safety functions for industrial automation systems. The module is suitable for monitoring emergency stops, safety switches, light curtains, and safety mats/edges.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Schneider Electric |
| Model/Part Number | XPSAK311144P |
| Series | XPSAK |
| Product Family | Preventa XPS Safety Automation |
| Coil Voltage | 24V AC/DC |
| Contact Configuration | 3PST-NO Safety, 1 NC Auxiliary |
| AC Contact Rating | 2.5A @ 300V |
| DC Contact Rating | 1.5A @ 24V |
| Response Time | ≤ 20ms |
| Safety Level | SIL 3, PLe, Category 4 |
| Mounting Type | DIN Rail |
| Operating Temperature | -10°C to +55°C |
| Dimensions | 45 x 99 x 114 mm |
| Width | 45mm |
| Height | 99mm |
| Depth | 114mm |
| IP Rating | IP20, IP40 |
| Input Power Consumption | 5.0 VA |
| Number of Inputs | 3 |
| Solid State Outputs | 4 |
| Terminal Type | Screw, Removable |
| Standards Compliance | EN ISO 13849-1, IEC 61508, EN 60204-1 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 2.5A @ 300V AC, 1.5A @ 24V DC
Manufacturer Schneider
Part Number XPSAK311144P
Shelf K-57
Model XPSAK311144P
Coil Voltage 24V AC/DC
MPN XPSAK311144P
Type Safety Relay
