Product Description

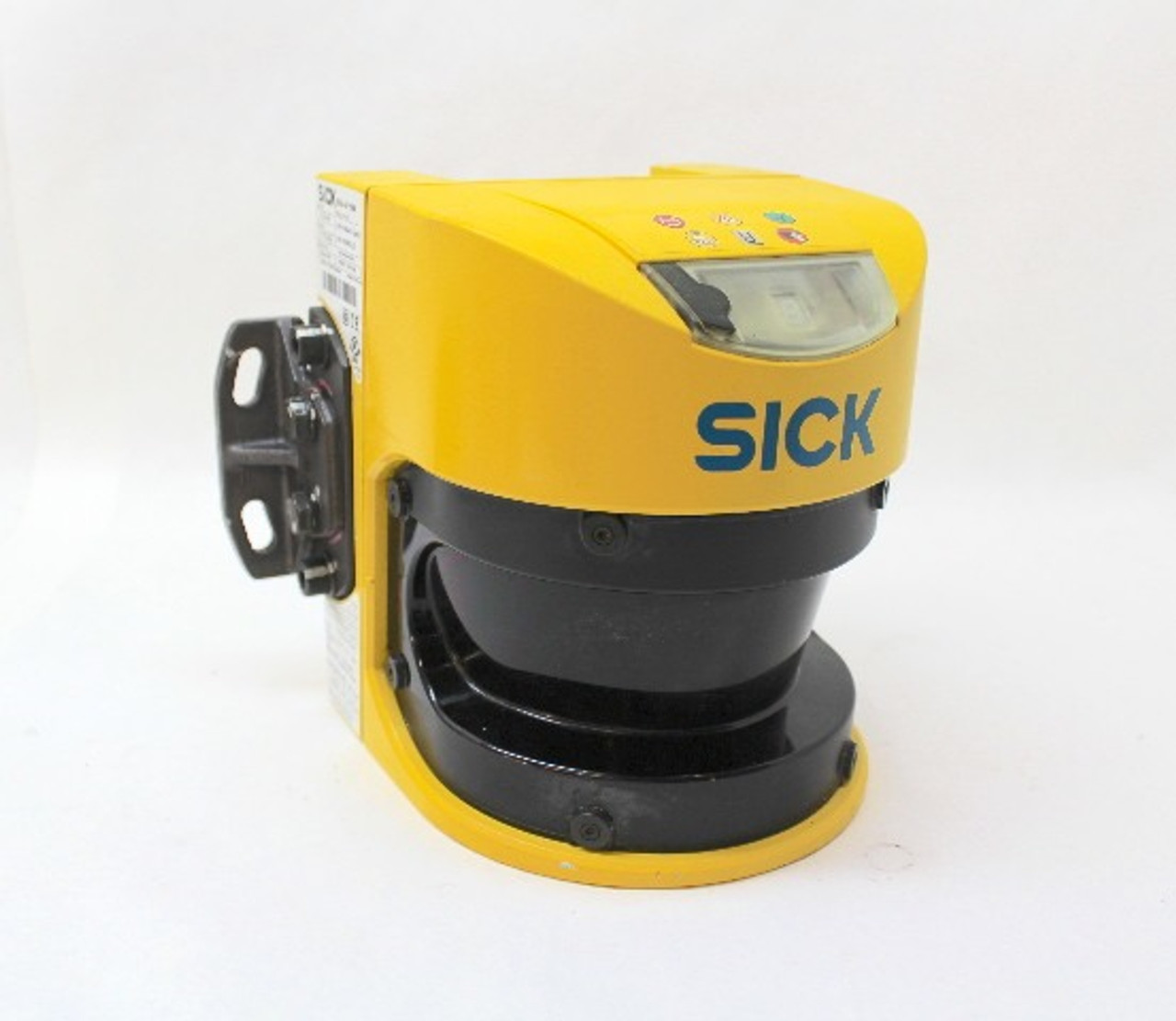

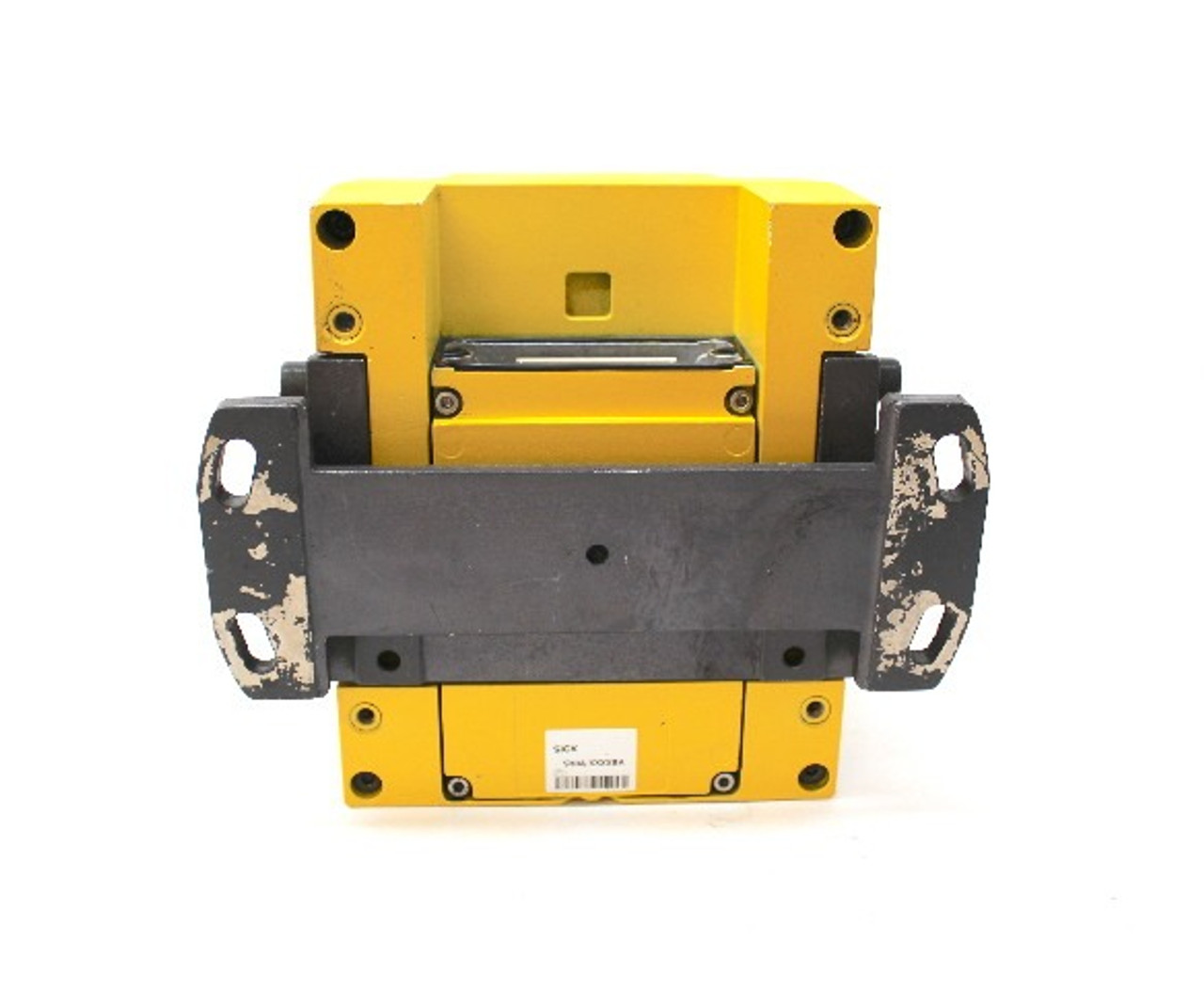

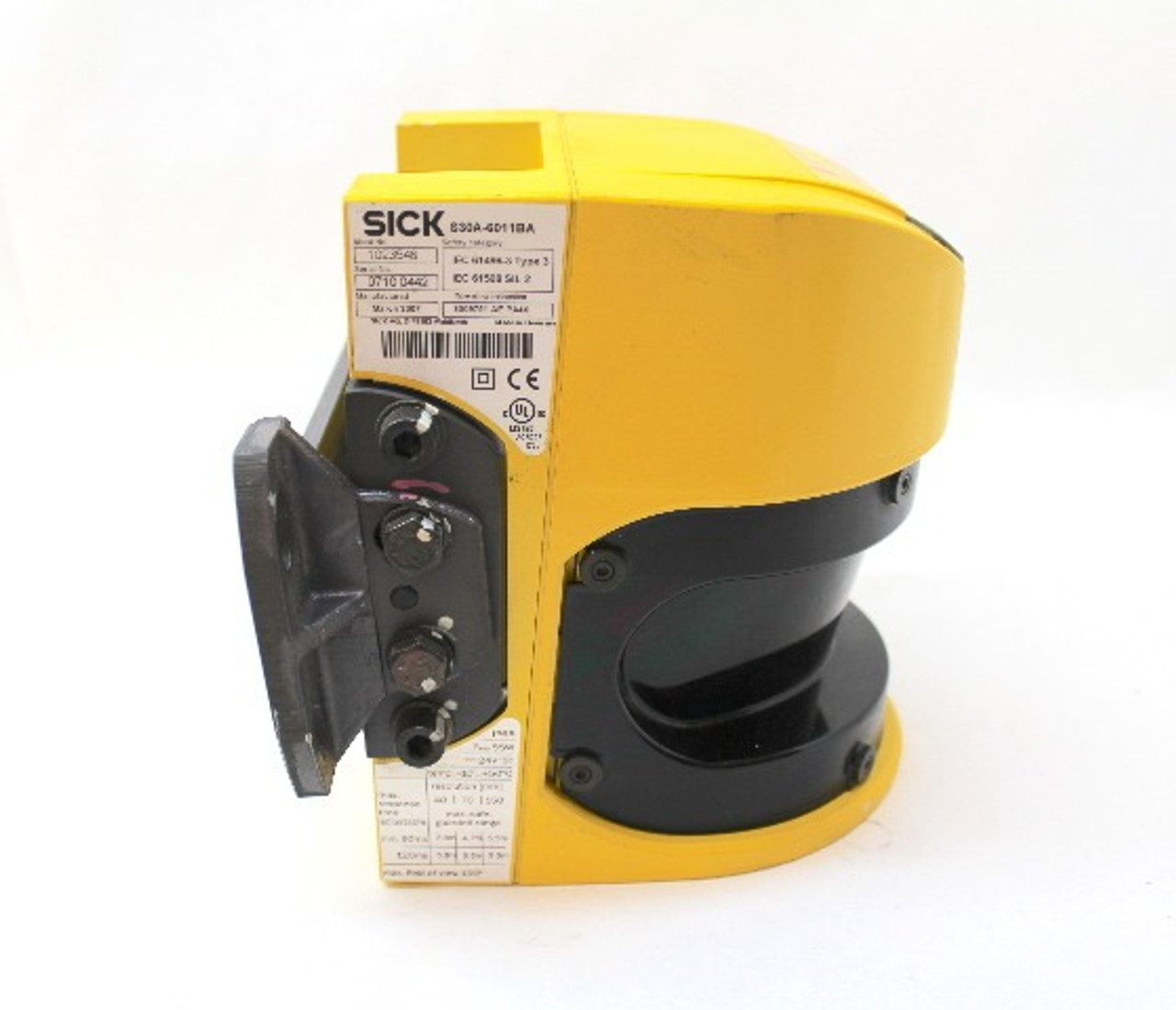

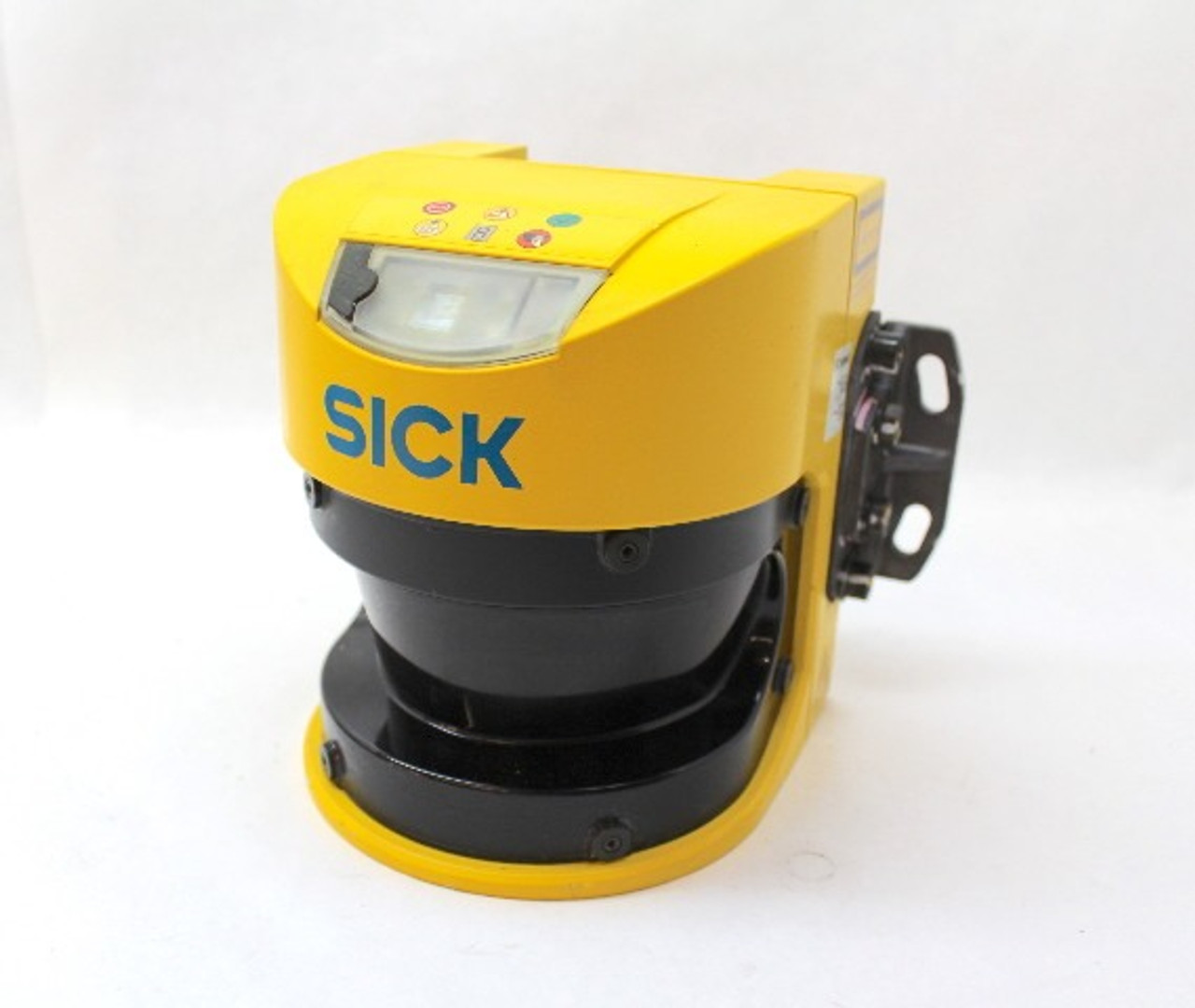

Sick Optic Electronic 1023546 Safety Laser Scanner S30A-6011BA. Sensing Range 5.5M| Configuration | : | PC with CDS (Configuration and Diagnostic Software) |
| Connection Type | : | System plug with or without connecting cable |
| Dimensions | : | 155 mm x 185 mm x 160 mm |
| IP Rating | : | IP65 |
| Material, Housing | : | Aluminum die cast |
| Output Type | : | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored |
| Power Dissipation | : | ≤ 0.8 A (at 24 V DC without output load)≤ 2.3 A (at 24 V DC including maximum output load) |
| Resolution | : | 14 mm |
| Response Time | : | 60 ms (depending on basic response time and multiple sampling) |
| Series | : | S3000 Standard Series |
| Shock Resistance | : | 16 g, 16 ms (IEC 60068-2-29) |
| Supply Voltage | : | 24 V DC (16.8 V DC ... 28.8 V DC) |
| Type | : | Safety Laser Scanner |
| Weight | : | 3.3 kg |
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
Type Safety Laser Scanner
Voltage 24V
MPN S30A-6011BA
Model S30A-6011BA
Google Manufacturers Part Number S30A-6011BA
Series S3000 Standard Series
Range 0-5.5M
Part Number 1023546
Manufacturer Sick
Country/Region of Manufacture Germany
Sensor Type Solid State
GTIN 646412782549
GPS Manufacturers Part Number S30A-6011BA
Shelf D-3
