Product Description

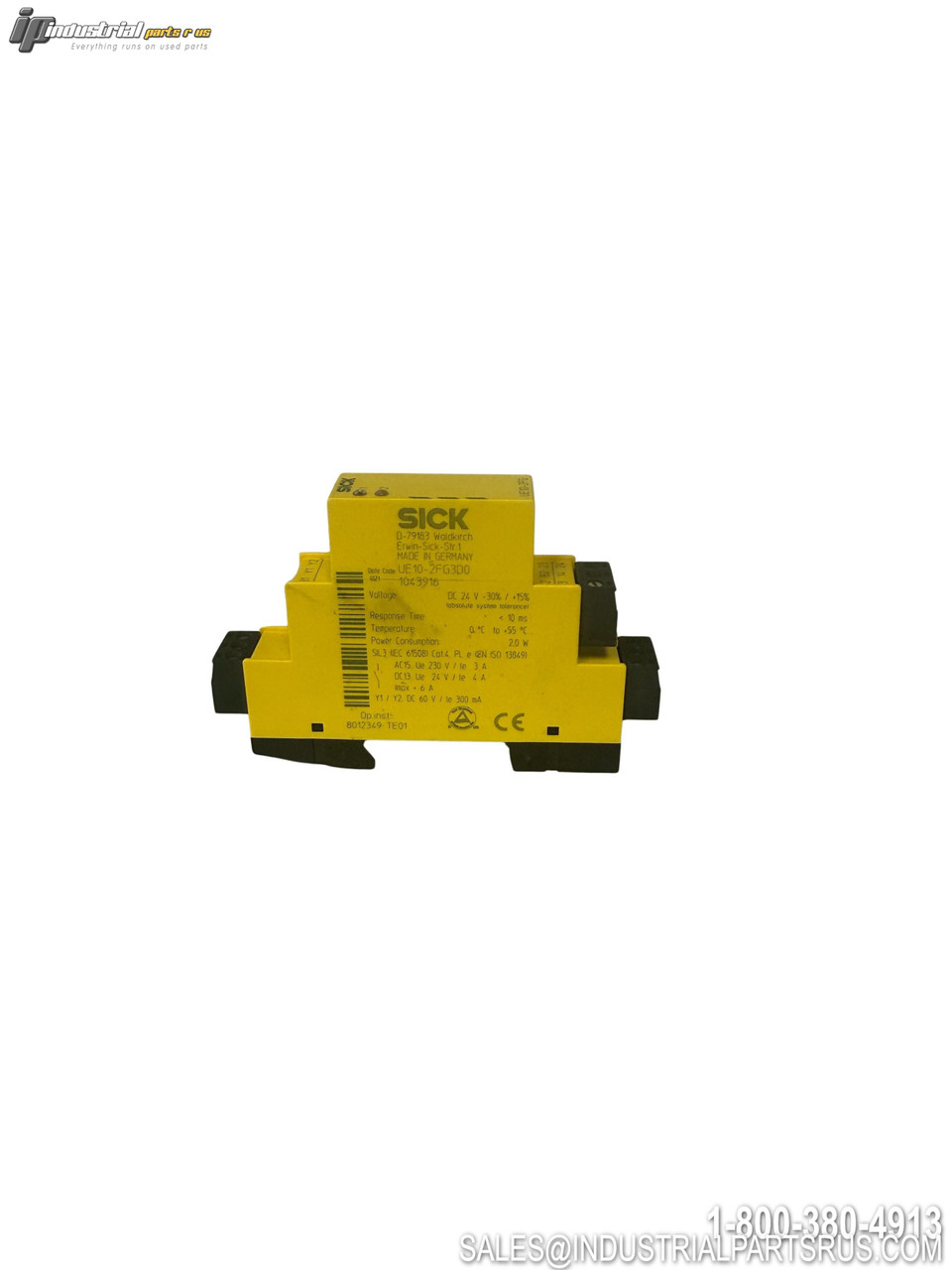

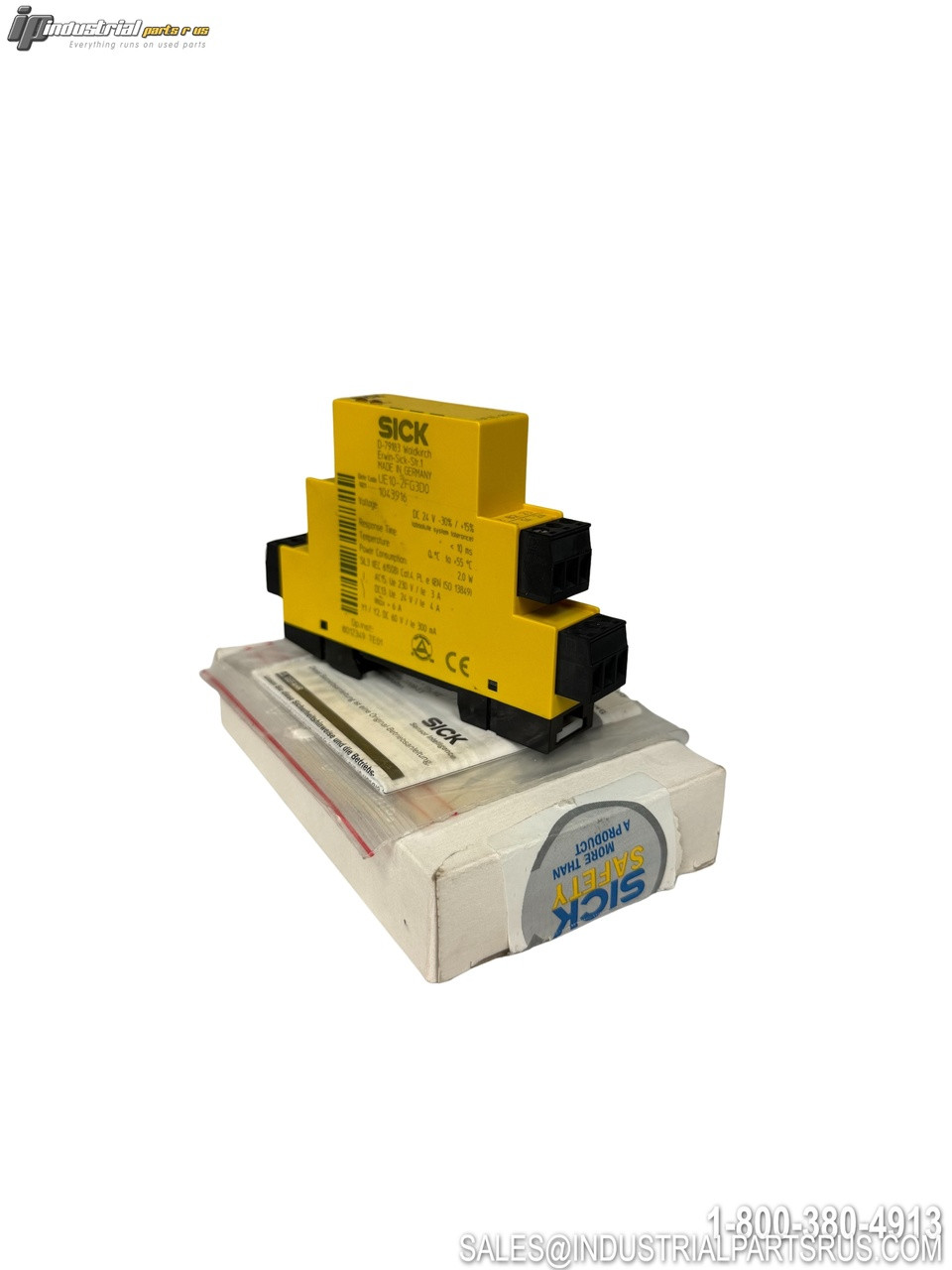

The SICK UE10-2FG3D0 is a professional-grade safety relay designed for critical safety applications in industrial automation. This relay features 2 normally open enabling current paths and 1 normally closed feedback current path for external device monitoring (EDM). It meets the highest safety standards with SIL 3 certification per IEC 61508 and Category 4 per EN ISO 13849, making it suitable for demanding safety-critical applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SICK |
| Model/Part Number | UE10-2FG3D0 |
| Manufacturer Part Number | 1043916 |
| Input Voltage | 24VDC (16.8-27.6VDC) |
| Input Current | ≤50mA |
| Number of Enabling Current Paths | 2 (Normally Open) |
| Number of Feedback Current Paths | 1 (Normally Closed) |
| Contact Type | Positively Driven |
| Contact Material | Silver Alloy, Gold Flashed |
| Switching Voltage - Enabling Path | 10-250V AC/DC |
| Switching Voltage - Feedback Path | 0.1-60V AC/DC |
| Current Loading - Enabling Path | 10mA-6A |
| Current Loading - Feedback Path | 1mA-300mA |
| Switching Power | ≤1,500VA (AC), ≤200W (DC) |
| Rated Operating Current | 3A (230VAC), 4A (24VDC) |
| Response Time | ≤10ms |
| Reset Time | ≤30ms |
| Test Pulse Width | ≤1ms |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Safety Category | Category 4 (EN ISO 13849) |
| Performance Level | PL e (EN ISO 13849) |
| Rated Insulation Voltage | 300VAC |
| Rated Impulse Withstand Voltage | 4kV |
| Enclosure Rating | IP20 (Clamps), IP40 (Housing) |
| Operating Temperature | 0°C to 55°C |
| Terminal Type | Plug-in Screw Type |
| Mounting | DIN Rail |
| Weight | 134.3g |
| Mechanical Life | 1 x 10⁷ Switching Cycles |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Mounting Style DIN Rail
Country/Region of Manufacture Geermany
Full Load Amps 2 (Normally Open)
Manufacturer SICK
Enclosure Type IP20 (Clamps), IP40 (Housing)
Part Number UE10-2FG3D0
Shelf K-45
Model UE10-2FG3D0
Coil Voltage 24VDC
MPN UE10-2FG3D0
Type Safety Relay
