Product Description

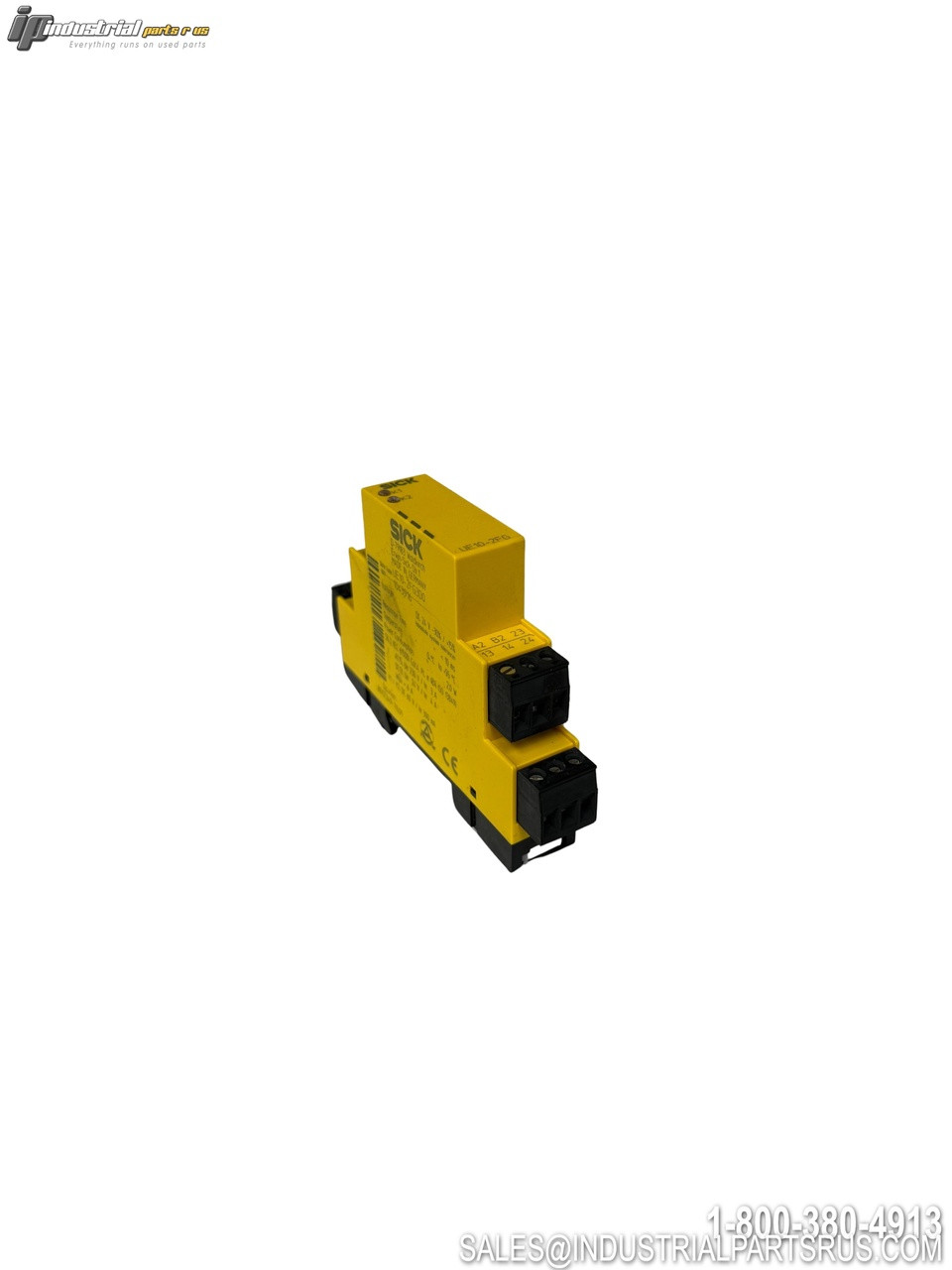

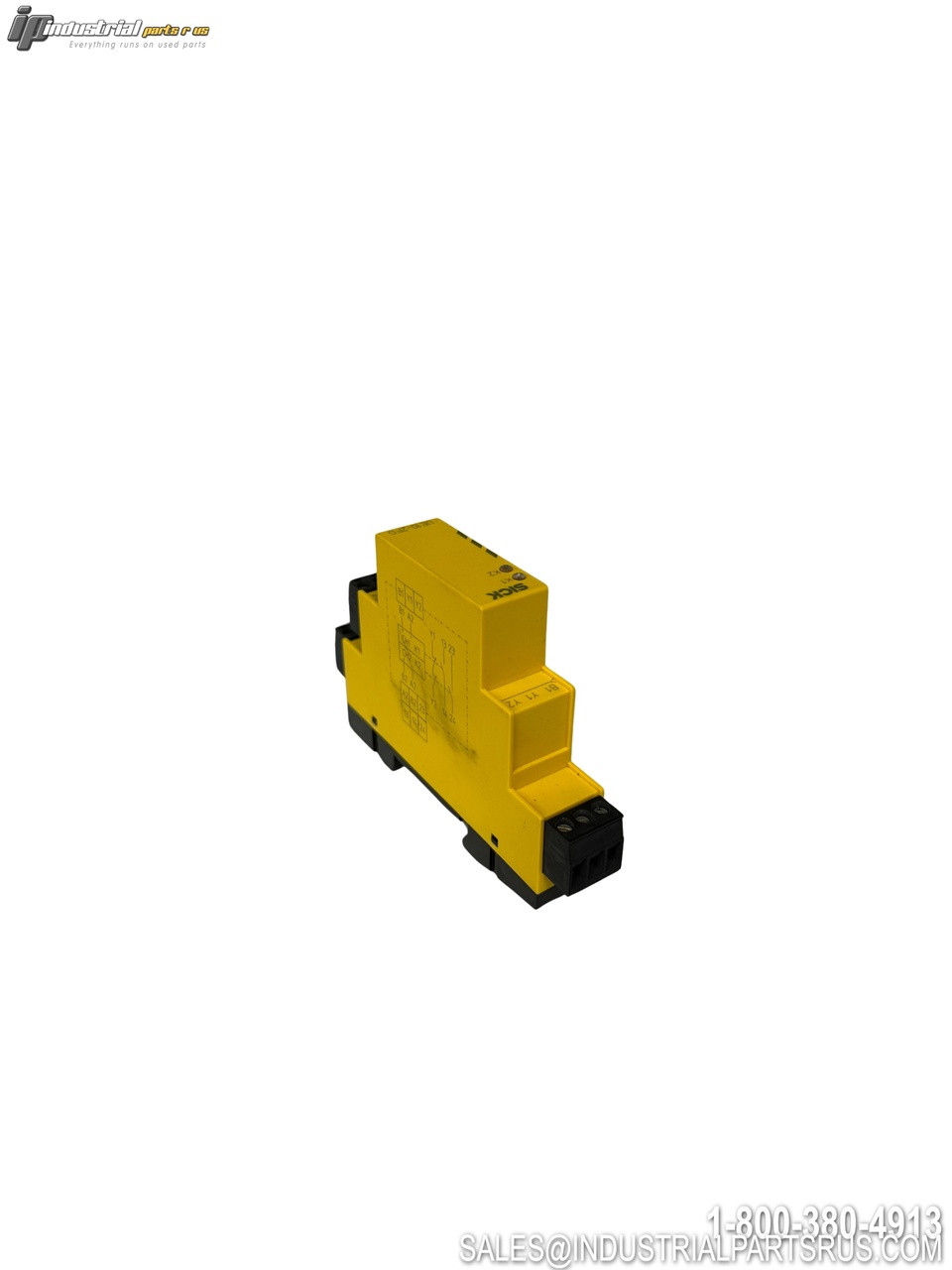

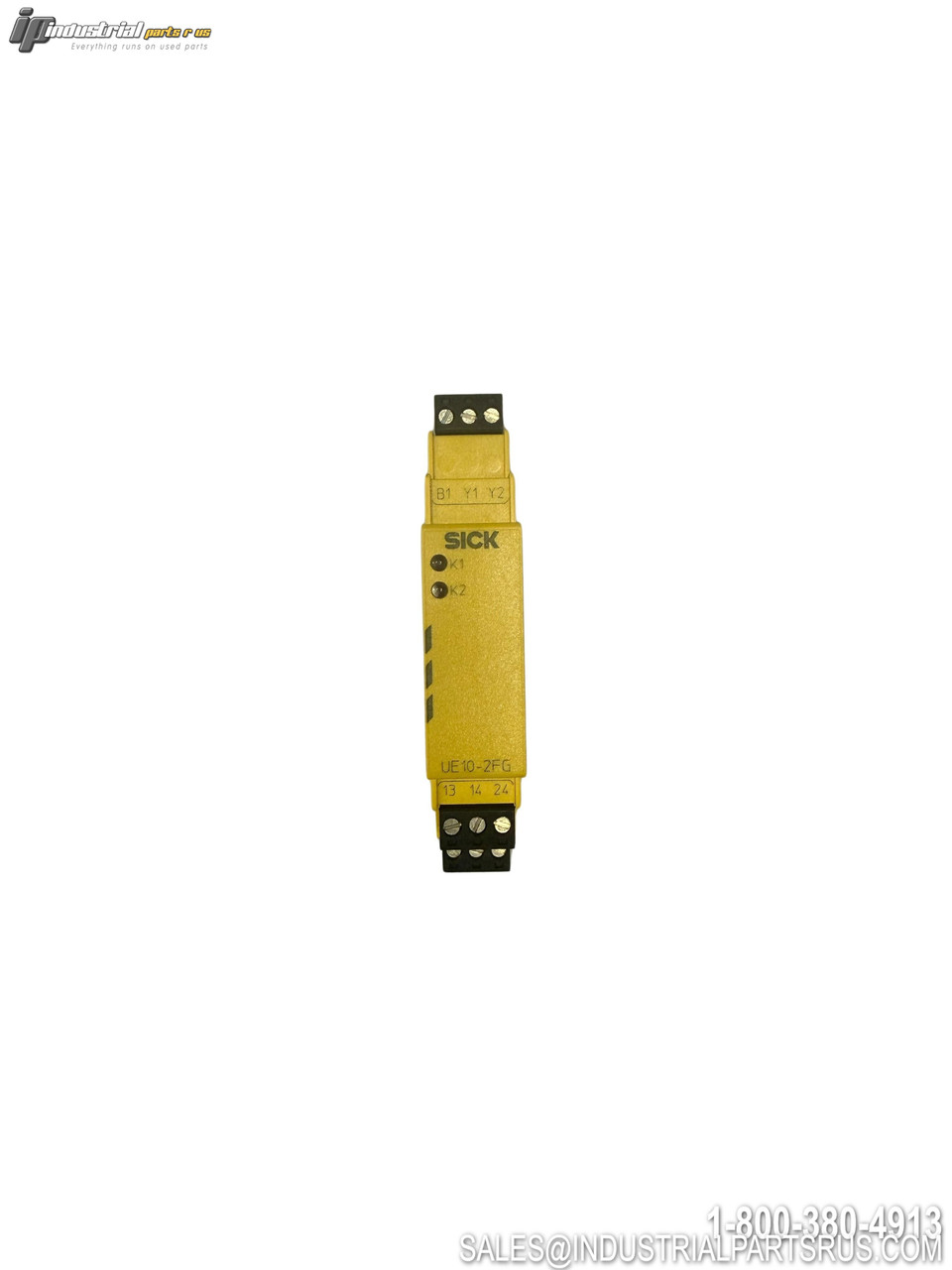

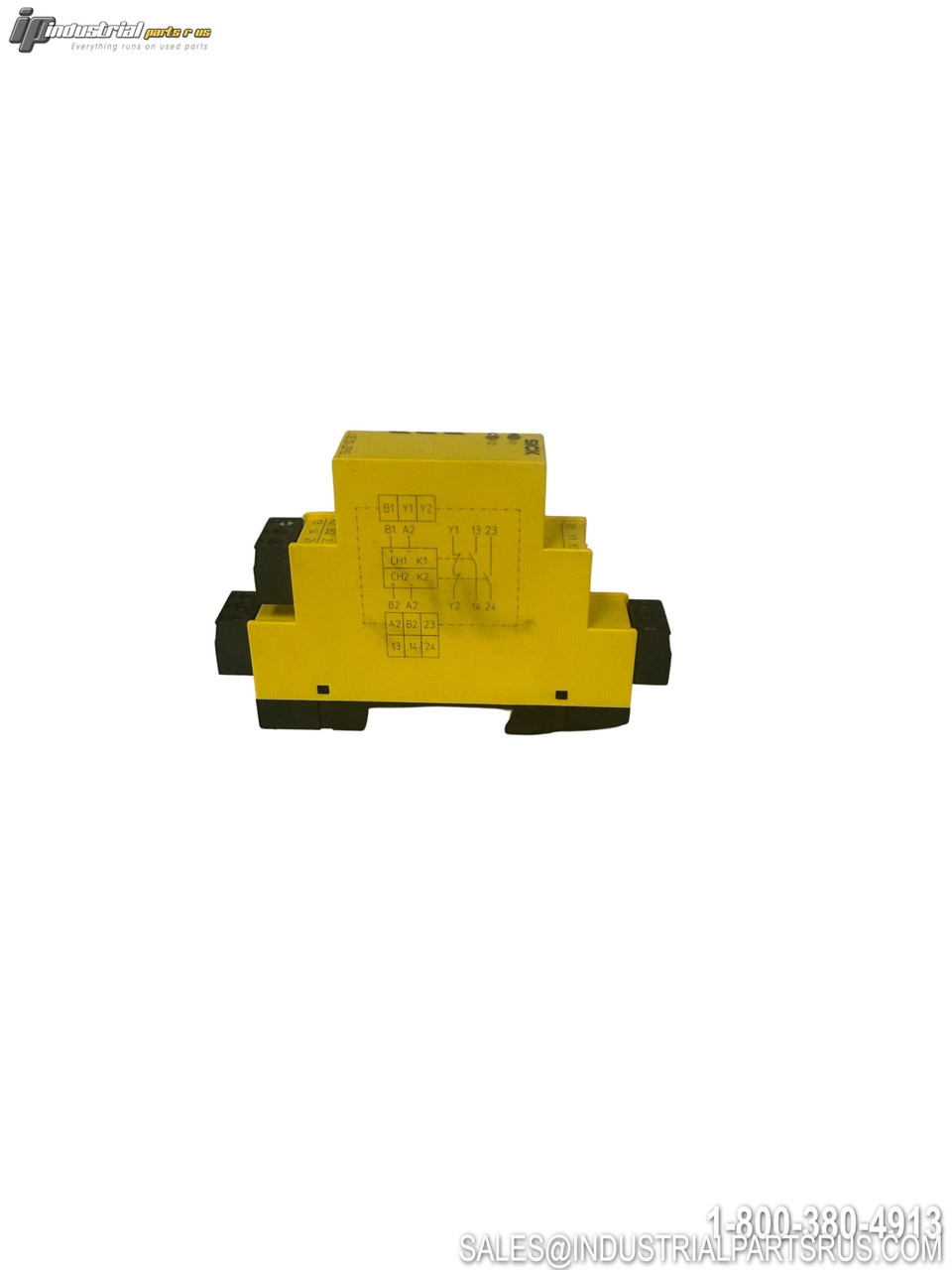

The SICK UE10-2FG3D0 is a high-performance safety relay designed for industrial safety applications requiring SIL 3 and Performance Level e compliance. This device provides secure switching and monitoring with external device monitoring capabilities for comprehensive safety system integration.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SICK |
| Model/Part Number | UE10-2FG3D0 |
| Manufacturer | SICK AG |
| SICK Part Number | 1043916 |
| Coil Voltage | 24VDC |
| Contact Configuration | 2NO + 1NC |
| Input Current | ≤50 mA |
| Response Time | ≤10 ms |
| Reset Time | ≤30 ms |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Performance Level | PL e (EN ISO 13849) |
| Safety Category | Category 4 (EN ISO 13849) |
| Contact Type | Positively driven |
| Contact Material | Silver alloy, gold flashed |
| Switching Voltage | 10 V AC/DC...250 V AC/DC |
| Current Rating | 3A (230VAC), 4A (24VDC) |
| Switching Power | ≤1,500 VA (AC), ≤200 W (DC) |
| Mounting Type | DIN Rail |
| Connection Type | M12 Male Connector, 5-Pin |
| Cable Length | 1.05m |
| Operating Temperature | 0°C to +55°C |
| IP Rating | IP20 |
| Width | 17.8mm |
| Height | 105.5mm |
| Depth | 89.8mm |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer SICK
Part Number UE10-2FG3D0
Shelf K-45
Model UE10-2FG3D0
MPN UE10-2FG3D0
Type Safety Relay
