Product Description

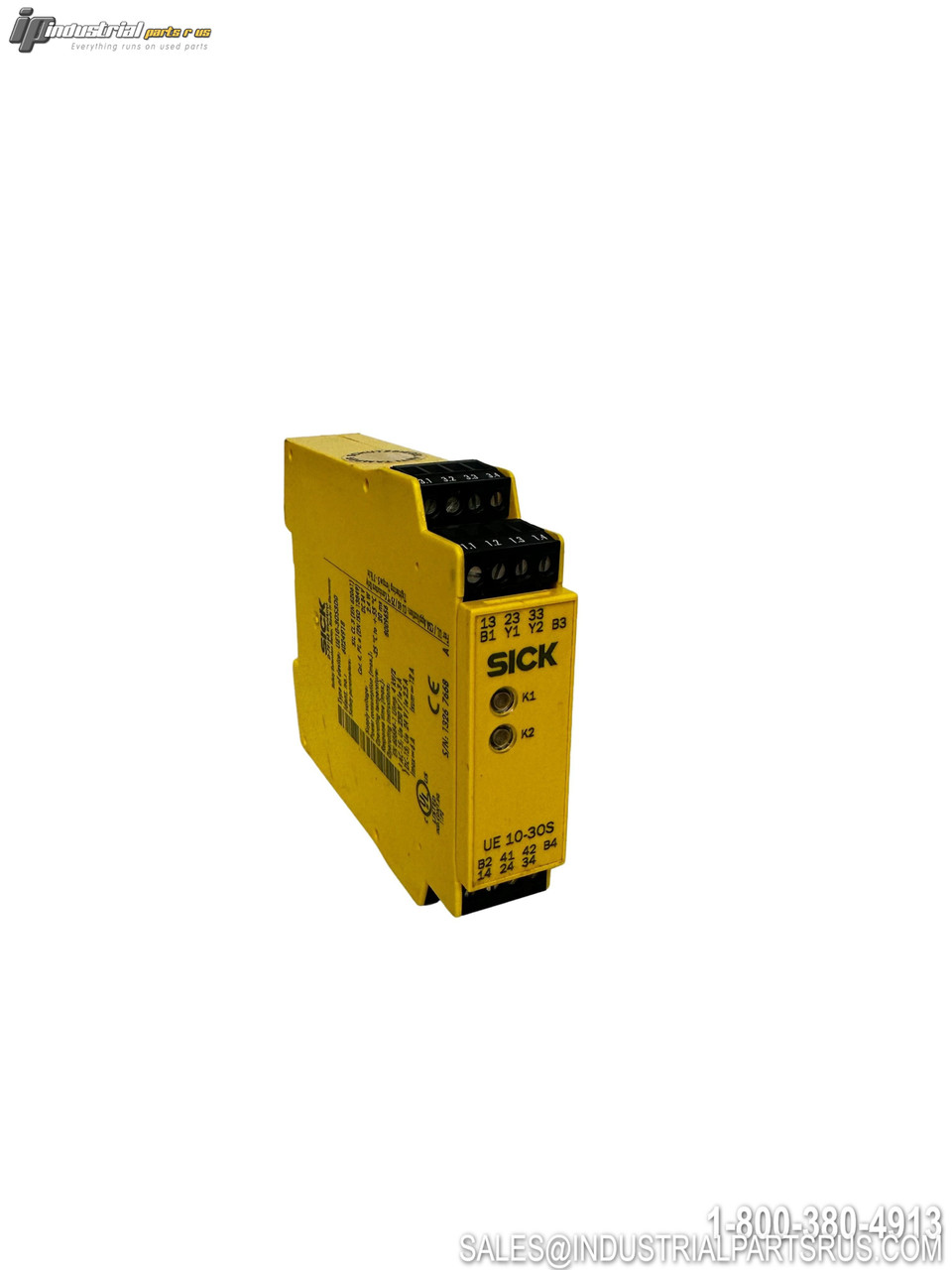

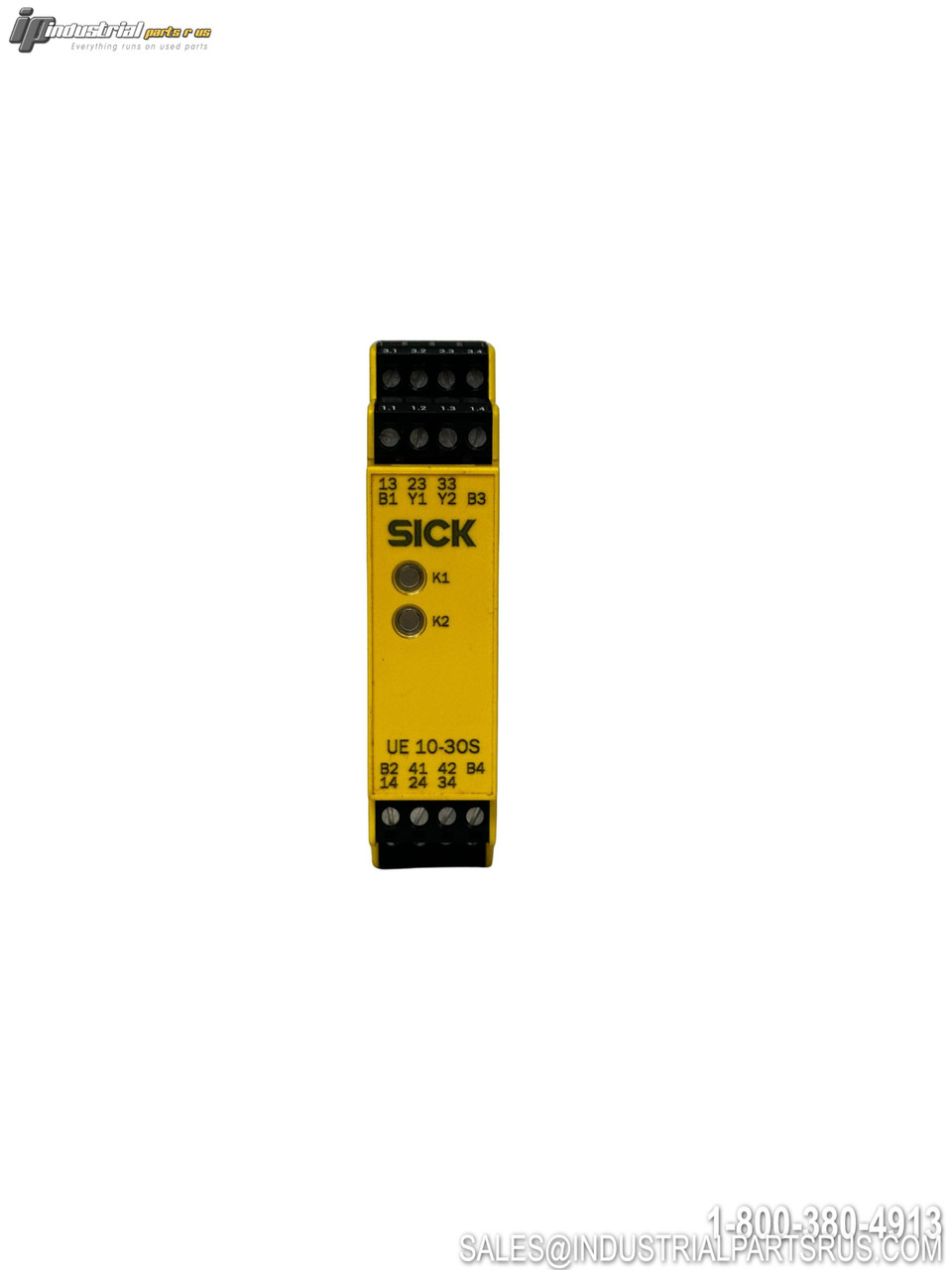

The SICK UE10-3OS3D0 is a safety relay designed as a contact expansion module for OSSD (Output Signal Switching Device) applications. This safety relay features plug-in screw-type terminals, 3NO (normally open) and 1NC (normally closed) contacts, and is suitable for interfacing with SICK light curtains and laser scanner products. It provides SIL3 safety integrity level with 20ms response time and includes 3 N/O enabling current paths, 1 N/C signaling current path, and 1 N/C feedback current path.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SICK |
| Model/Part Number | UE10-3OS3D0 |
| Manufacturer Part Number | 6024918 |
| Series | UE10-3OS |
| Input Voltage | 24VDC |
| Current Type | DC |
| Input Current | ≤ 500mA |
| Power Consumption | 2.4W |
| Connection Type | Plug-in screw-type terminals |
| Contact Configuration | 3NO, 1NC |
| Switching Current | 6A |
| Switching Voltage | 230VAC / 30VDC |
| Contact Material | Silver Alloy, Gold Flashed |
| Rated Insulation Voltage | 300VAC |
| Safety Integrity Level | SIL3 |
| Response Time | 20ms |
| Input Circuit | Single or Dual Channel |
| Dimensions (W x H x D) | 22.5mm x 114mm x 96.5mm |
| Weight | 0.2kg |
| Mounting Style | DIN Rail |
| IP Rating | IP20 |
| Reset/Restart | Automatic |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style DIN Rail
Current Rating 6 A
Full Load Amps 6A
Application Industrial Safety Systems
Manufacturer SICK
Part Number UE10-3OS3D0
Shelf K-45
Model UE10-3OS3D0
Coil Voltage 24 V DC
MPN UE10-3OS3D0
Type Safety Relay
