Product Description

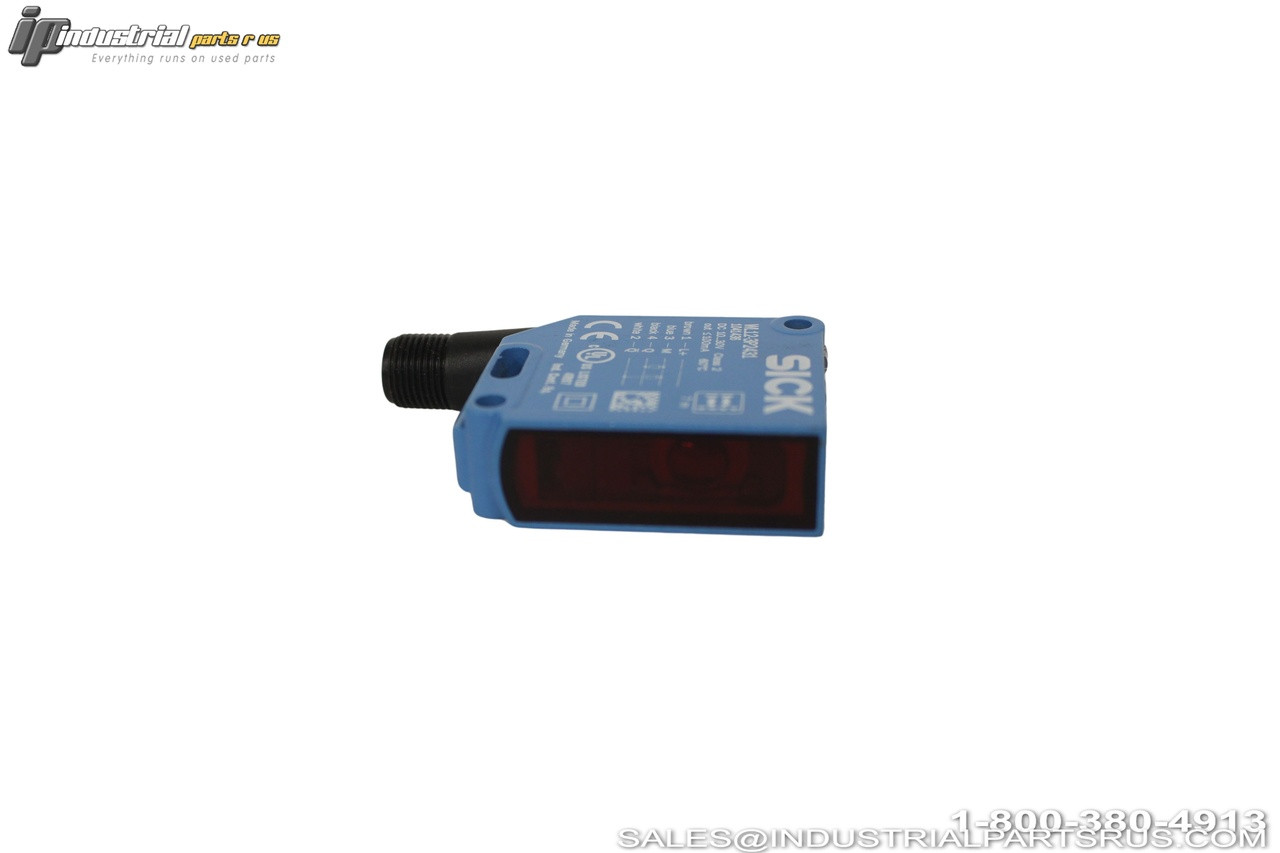

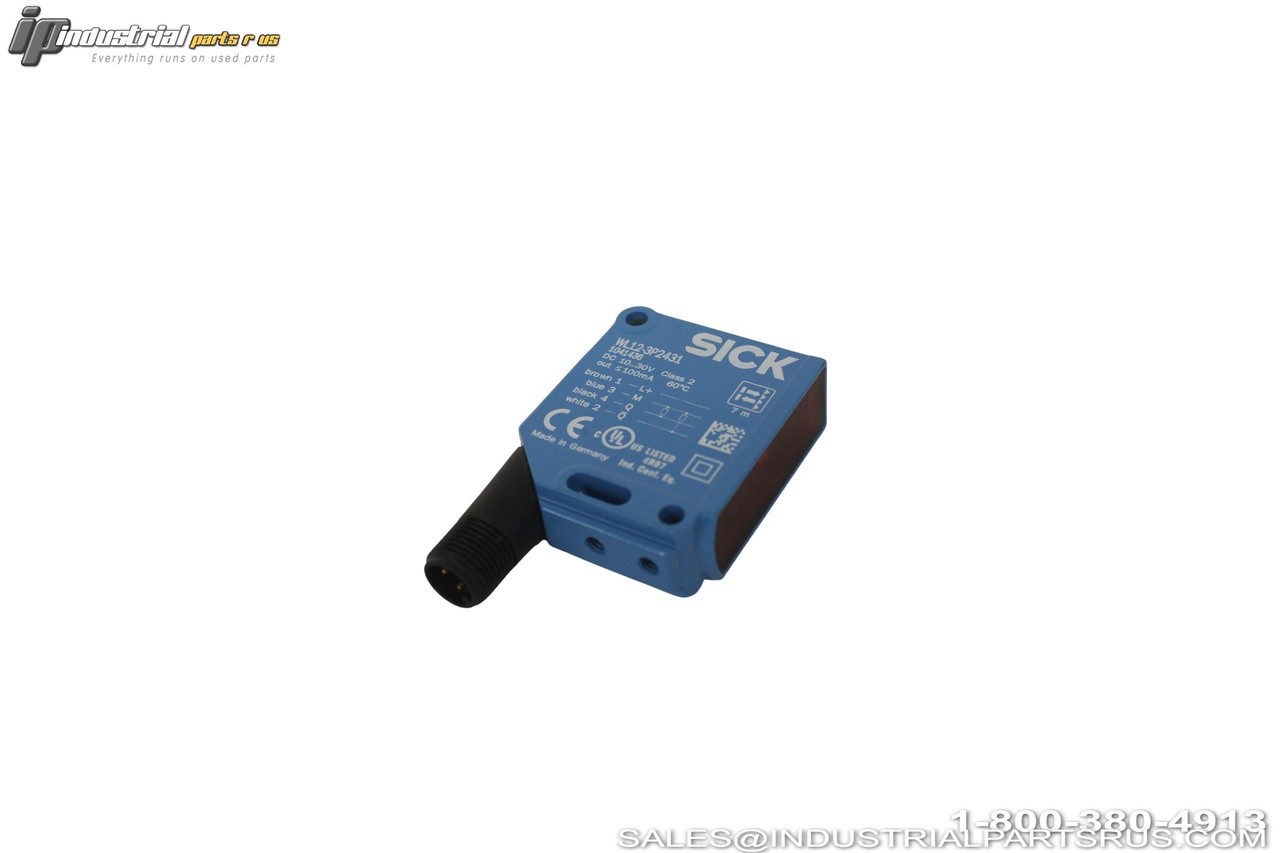

The SICK WL12-3P2431 is a W12-3 series photoelectric retro-reflective sensor with autocollimation technology designed for demanding industrial applications. This sensor provides reliable object detection with a maximum sensing range of 7m (5m typical) using visible red LED light at 640nm wavelength. The rugged metal housing construction ensures exceptional performance in harsh environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SICK |
| Model/Part Number | WL12-3P2431 |
| Sensor Type | Photoelectric Retro-reflective |
| Series | W12-3 |
| Sensing Range Max | 0-7m |
| Sensing Range Typical | 0-5m |
| Supply Voltage | 10-30VDC |
| Output Type | PNP |
| Current Consumption | 30mA |
| Output Current Max | 100mA |
| Response Time | ≤330µs |
| Switching Frequency | 1,500Hz |
| Light Source | LED Visible Red Light |
| Wavelength | 640nm |
| Connection Type | M12 4-pin Male Connector |
| Housing | Rectangular Metal |
| Dimensions (W×H×D) | 15.6 × 48.5 × 42mm |
| Protection Rating | IP66/IP67/IP69K |
| Operating Temperature | -40°C to +60°C |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Germany
GTIN 679523686161
Output Type PNP
Sensor Type Photoelectric
Operating Distance 0-5m typical
Full Load Amps 30mA
Manufacturer SICK
Part Number WL12-3P2431
Shelf P7
Model WL12-3P2431
MPN WL12-3P2431
Type Photoelectric Sensor
