Product Description

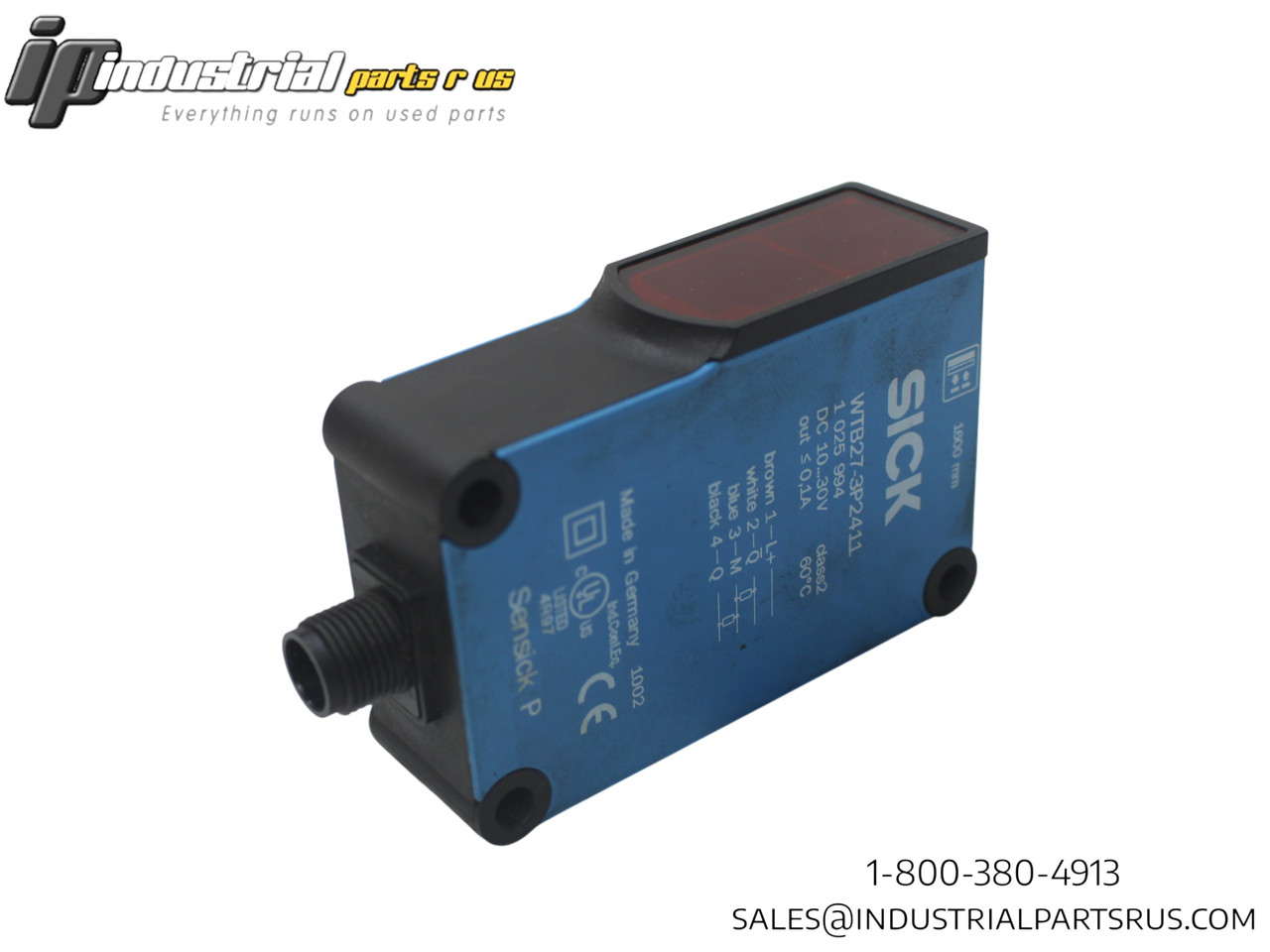

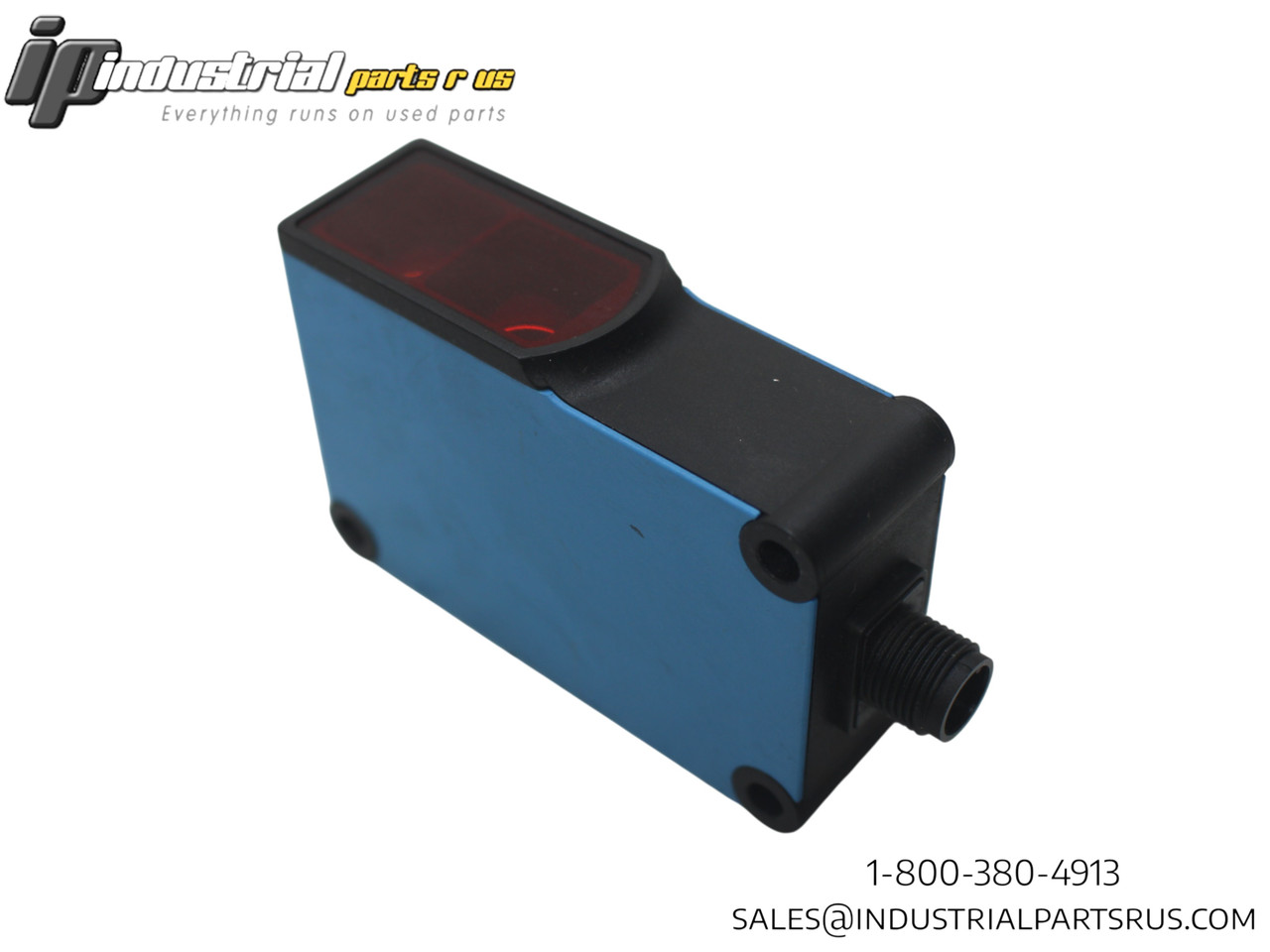

The SICK WTB27-3P2411 is a compact photoelectric proximity sensor featuring background suppression technology for reliable object detection. This infrared LED sensor offers adjustable sensing range from 30mm to 1600mm with potentiometer adjustment and PNP complementary output for industrial automation applications.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SICK |
| Model/Part Number | WTB27-3P2411 |
| Product Type | Photoelectric Sensor |
| Sensor Type | Background Suppression |
| Sensing Range | 30mm - 1600mm |
| Light Source | Infrared LED |
| Wavelength | 880nm |
| Supply Voltage | 10-30 VDC |
| Current Type | DC |
| Current Consumption | 40mA |
| Output Type | PNP |
| Output Current | 100mA Max |
| Response Time | ≤1.5ms |
| Switching Frequency | 350Hz |
| Connection Type | M12 Male Connector, 4-pin |
| Termination Type | M12 Male Connector |
| Housing Design | Rectangular |
| Dimensions (W x H x D) | 24.6mm x 80.6mm x 54mm |
| Housing Material | ABS Plastic |
| Optics Material | PMMA Plastic |
| Enclosure Rating | IP69K |
| Operating Temperature | -40°C to +60°C |
| Weight | 100g |
| Adjustment | Potentiometer |
| Light Spot Size | Ø25mm (at 800mm distance) |
| SICK Part Number | 1025994 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Germany
Sensing Range 30mm - 1600mm
Switching Frequency 350HzPhotoelectric Sensor
Connection Type M12 Male Connector, 4-pin
Response Time ≤1.5ms
Voltage 10-30 VDC
GTIN 679523686161
Output Type PNP
Sensor Type Background Suppression
Operating Distance 30mm - 1600mm
Full Load Amps 40mA
Manufacturer Sick
Enclosure Type IP69K
Part Number WTB27-3P2411
Shelf P-7
Model WTB27-3P2411
MPN WTB27-3P2411
Type Photoelectric Sensor
