Product Description

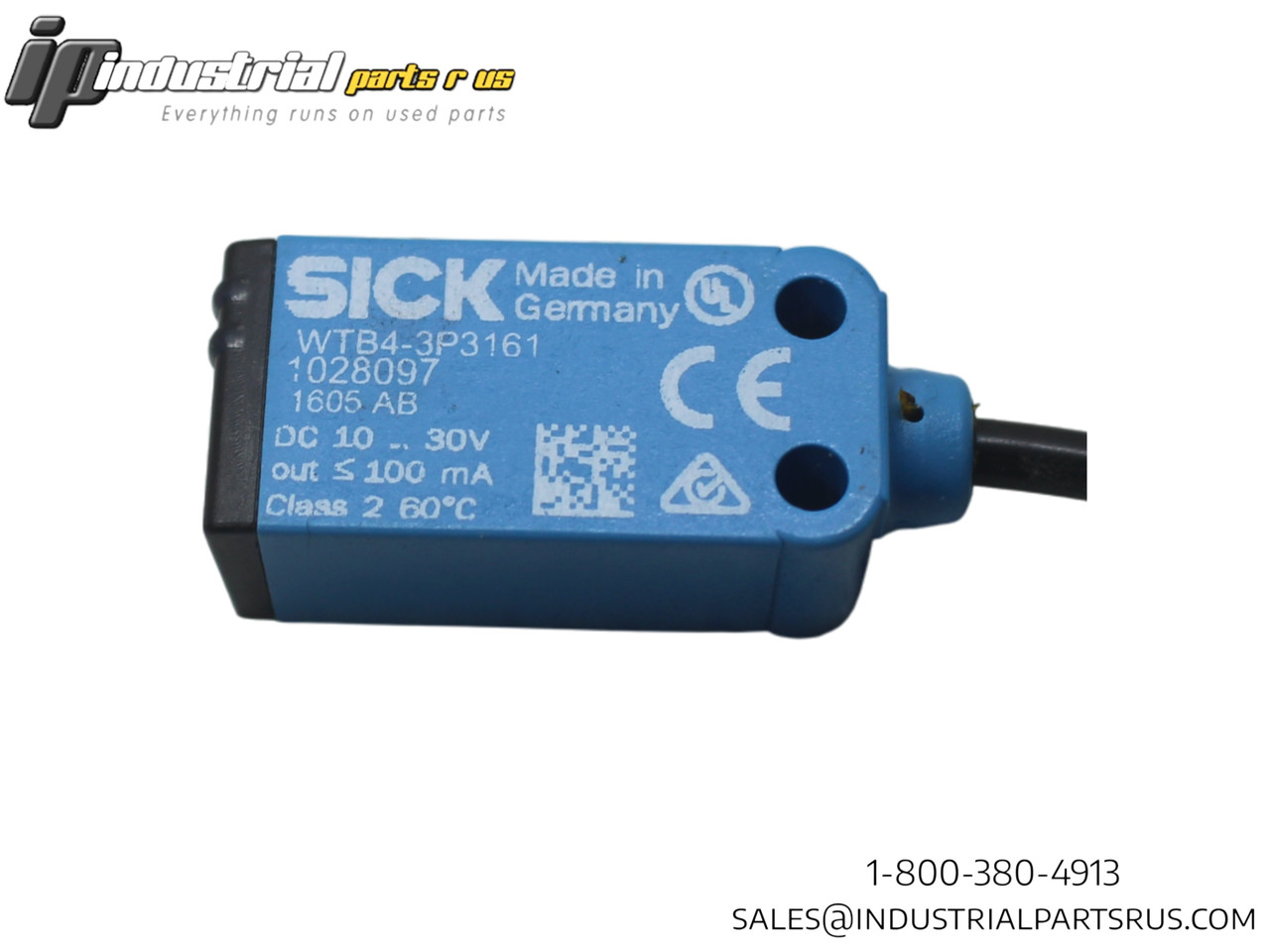

The Sick WTB4-3P3161 is a miniature photoelectric proximity sensor featuring background suppression technology for precise object detection in industrial automation applications. This sensor utilizes PinPoint LED technology with visible red light to detect objects at distances from 4mm to 150mm while suppressing false readings from background reflections.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Sick |
| Model/Part Number | WTB4-3P3161 |
| Series | W4-3 |
| Sensor Type | Photoelectric |
| Functional Principle | Background Suppression |
| Sensing Range | 4mm - 150mm |
| Optimized Range | 15mm - 150mm |
| Light Source | PinPoint LED |
| Light Type | Visible Red Light |
| Wave Length | 650 nm |
| Light Spot Size | Ø 7mm at 50mm distance |
| Supply Voltage | 10-30 VDC |
| Current Type | DC |
| Current Consumption | 20 mA |
| Output Type | PNP |
| Switching Mode | Light Switching |
| Output Current Max | ≤ 100 mA |
| Response Time | < 0.5 ms |
| Switching Frequency | 1,000 Hz |
| Protection Class | III |
| Housing | Rectangular, Flat Design |
| Dimensions | 16mm x 39.5mm x 12mm (W x H x D) |
| Connection Type | Cable with M8 Connector, 3-pin |
| Termination Type | M8 Connector |
| Cable Length | 100mm |
| Adjustment | 5-turn Potentiometer, Teach-in Button |
| Part Number | 1028097 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Sensor Type Photoelectric
Country/Region of Manufacture Germany
Operating Distance 15mm - 150mm
Sensing Range 4mm - 150mm
Switching Frequency 1,000 Hz
Full Load Amps 20 mA
Current 20 mA
Manufacturer Sick
Part Number WTB4-3P3161
Series W4-3
Shelf P-7
Model WTB4-3P3161
MPN WTB4-3P3161
Voltage 10-30 Vdc
Type Photoelectric Sensor
