Product Description

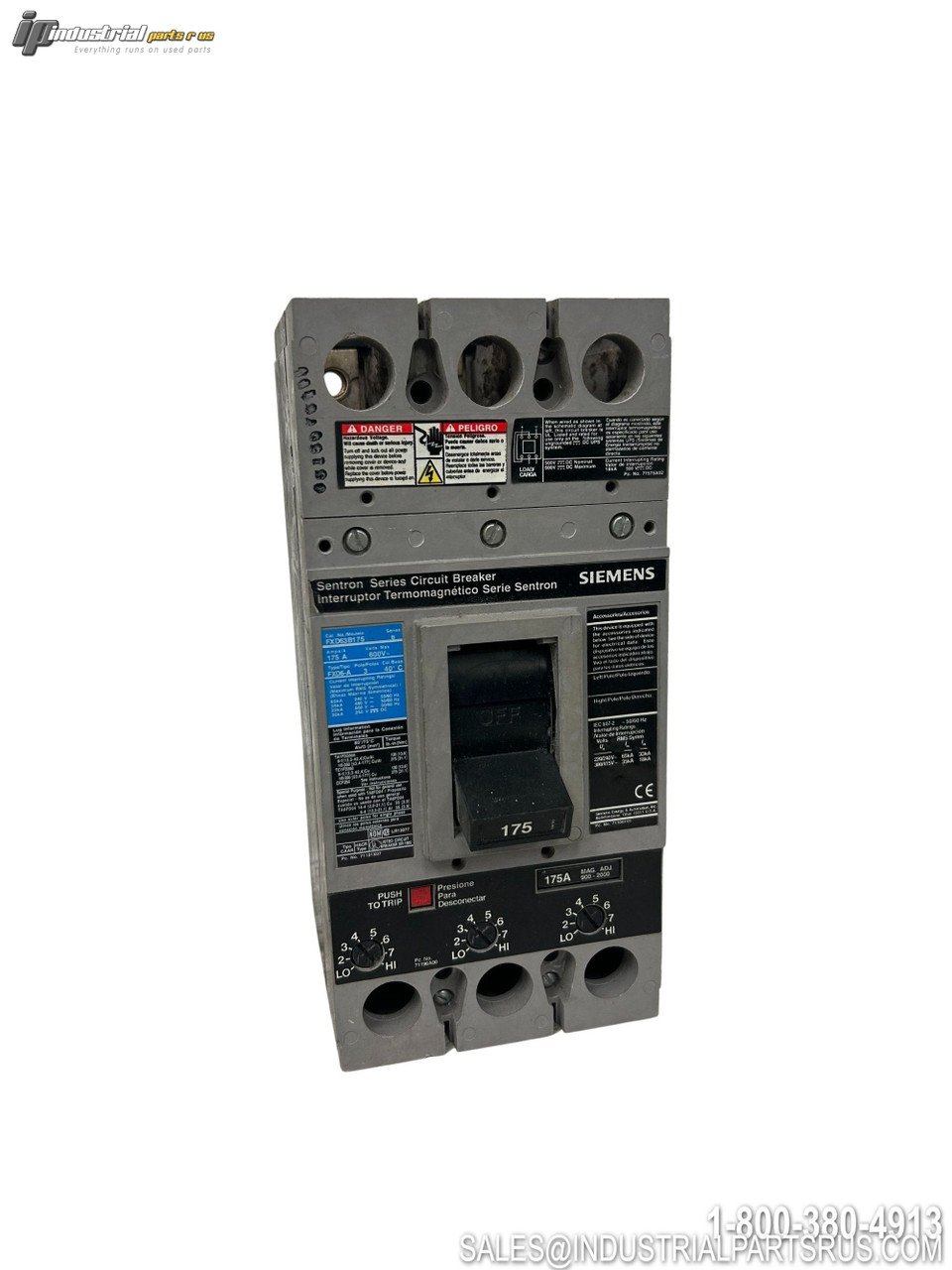

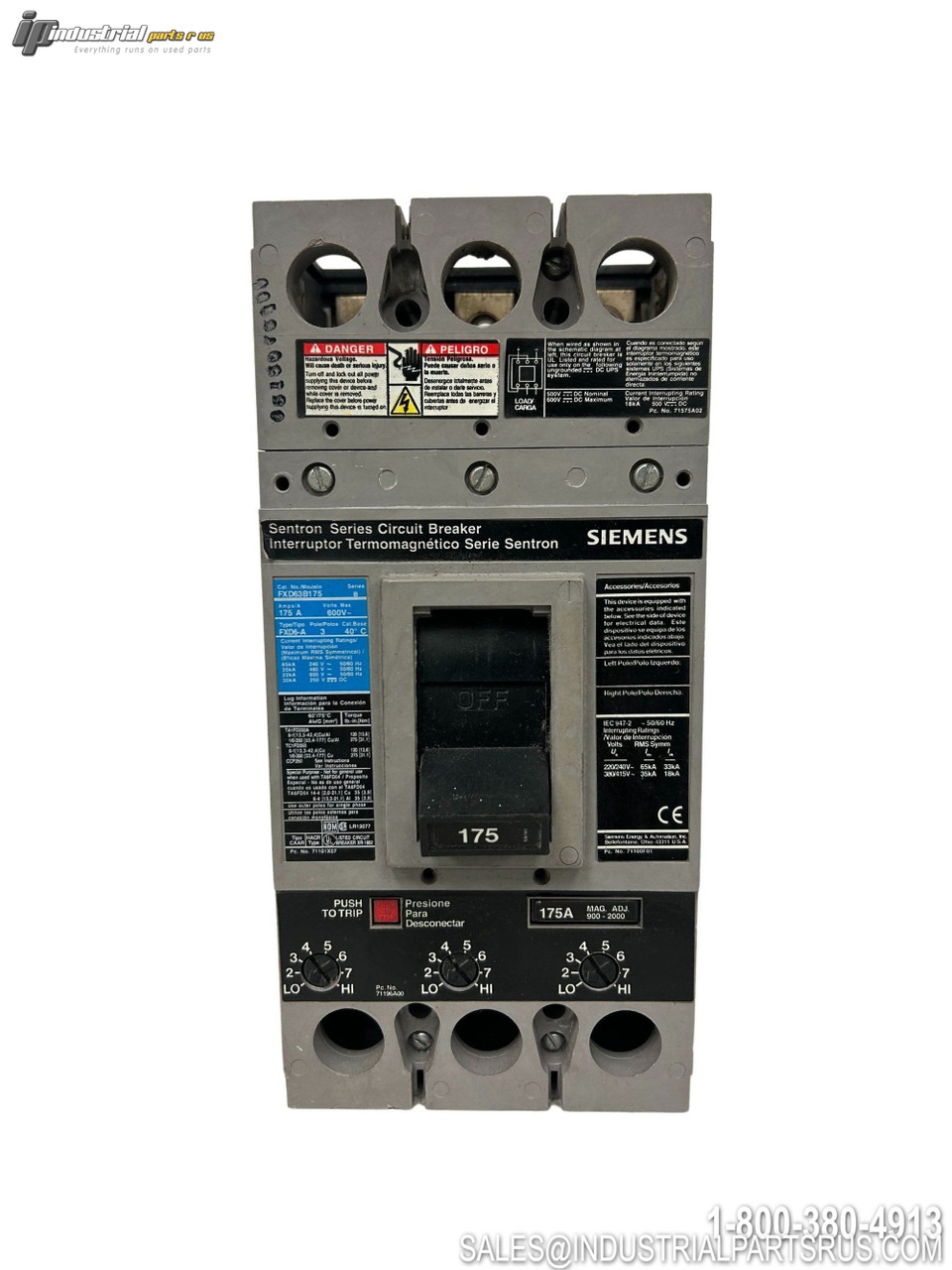

The Siemens FXD63B175 is a high-performance 3-pole molded case circuit breaker designed for industrial electrical distribution systems. This thermal magnetic circuit breaker provides reliable overcurrent protection with a 175 amp rating and 600VAC voltage capacity, featuring non-interchangeable trip units and standard 40°C operating temperature rating.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Siemens |
| Model/Part Number | FXD63B175 |
| Type | FXD6 |
| Frame Type | FD |
| Series | Sentron |
| Current Rating | 175 Amps |
| Voltage Rating | 600V AC |
| Number of Poles | 3 |
| Phase | 3 |
| Interrupting Rating at 600V | 22 kAIC |
| Interrupting Rating at 480V | 35 kAIC |
| Interrupting Rating at 240V | 65 kAIC |
| Trip Type | Thermal Magnetic |
| Trip Functions | LI - Long-Time and Instantaneous |
| Trip Unit Type | Non-Interchangeable |
| Trip Range | 900 - 2000 A |
| Operating Temperature | 40°C Standard |
| Mounting Type | Bolt-On |
| Frequency | 50/60 Hz |
| Dimensions | 4.5" W x 9.5" H x 4" D |
| Weight | 8.55 lbs |
| HACR Rating | Yes |
| UL Listed | UL 489 |
| Standards | UL 489, IEC 60947-2 |
| Reverse Fed Applications | UL Listed |
| Lugs | No Lugs Installed |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Mounting Style Bolt-On
Current Rating 175A
Full Load Amps 175
Application Industrial/Commercial Electrical Panel
Manufacturer Siemens
Part Number FXD63B175
Shelf J-6
Model FXD63B175
MPN FXD63B175
Voltage 600V
Type Circuit Breaker
Material Molded Case
