Product Description

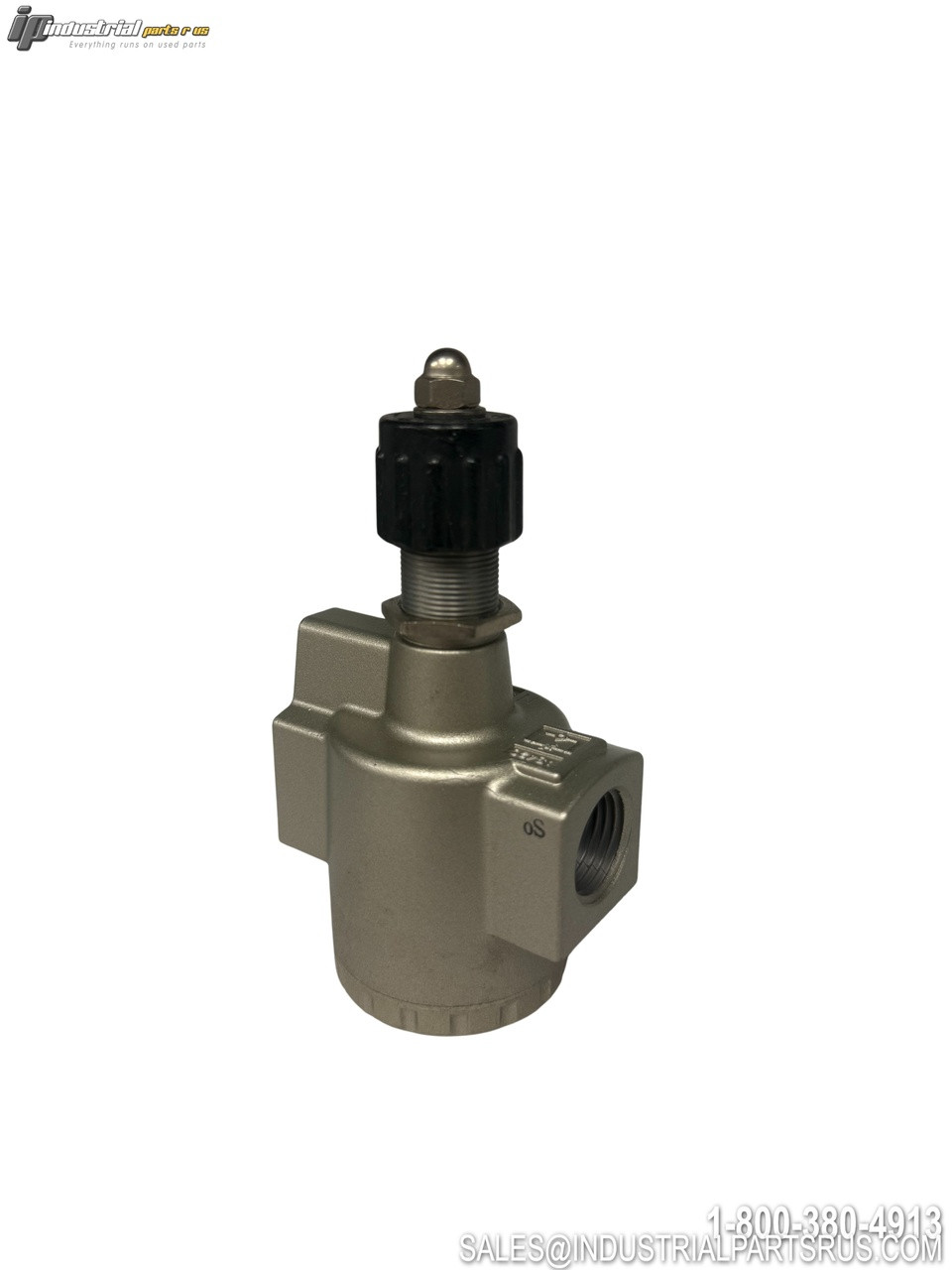

The SMC AS420-N04 is a precision pneumatic speed controller designed for large flow applications with in-line configuration. This manual 2-way flow control valve features brass construction with 1/2 NPT female threaded connections and provides precise speed control for pneumatic systems. The compact design includes needle valve operation with locking mechanism for reliable flow regulation.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | AS420-N04 |
| Product Type | Speed Controller Flow Control Valve |
| Series | AS Series |
| Construction Style | Large Flow In-Line |
| Body Size | 1/2 Standard |
| Port Size | 1/2 |
| Thread Standard | NPT |
| Input Port Type | 1/2 Female NPT Threaded |
| Output Port Type | 1/2 Female NPT Threaded |
| Body Material | Brass |
| Seal Material | Nitrile (NBR) |
| Valve Function | Needle |
| Metering | Meter Out |
| Operating Pressure Range | 0.1 to 1.0 MPa |
| Maximum Operating Pressure | 1.0 MPa |
| Minimum Operating Pressure | 0.1 MPa |
| Proof Pressure | 1.5 MPa |
| Operating Temperature Range | -5 to +60°C |
| Operating Medium | Air/Fluid |
| Flow Coefficient (Cv) | 26 mm² |
| Overall Width | 28.5 mm |
| Overall Height | 55.6 mm |
| Standards Met | JIS |
| Port Connection Type | Threaded |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer SMC
Part Number AS420-N04
Shelf J-38
Model AS420-N04
MPN AS420-N04
Type Pneumatic Valve
