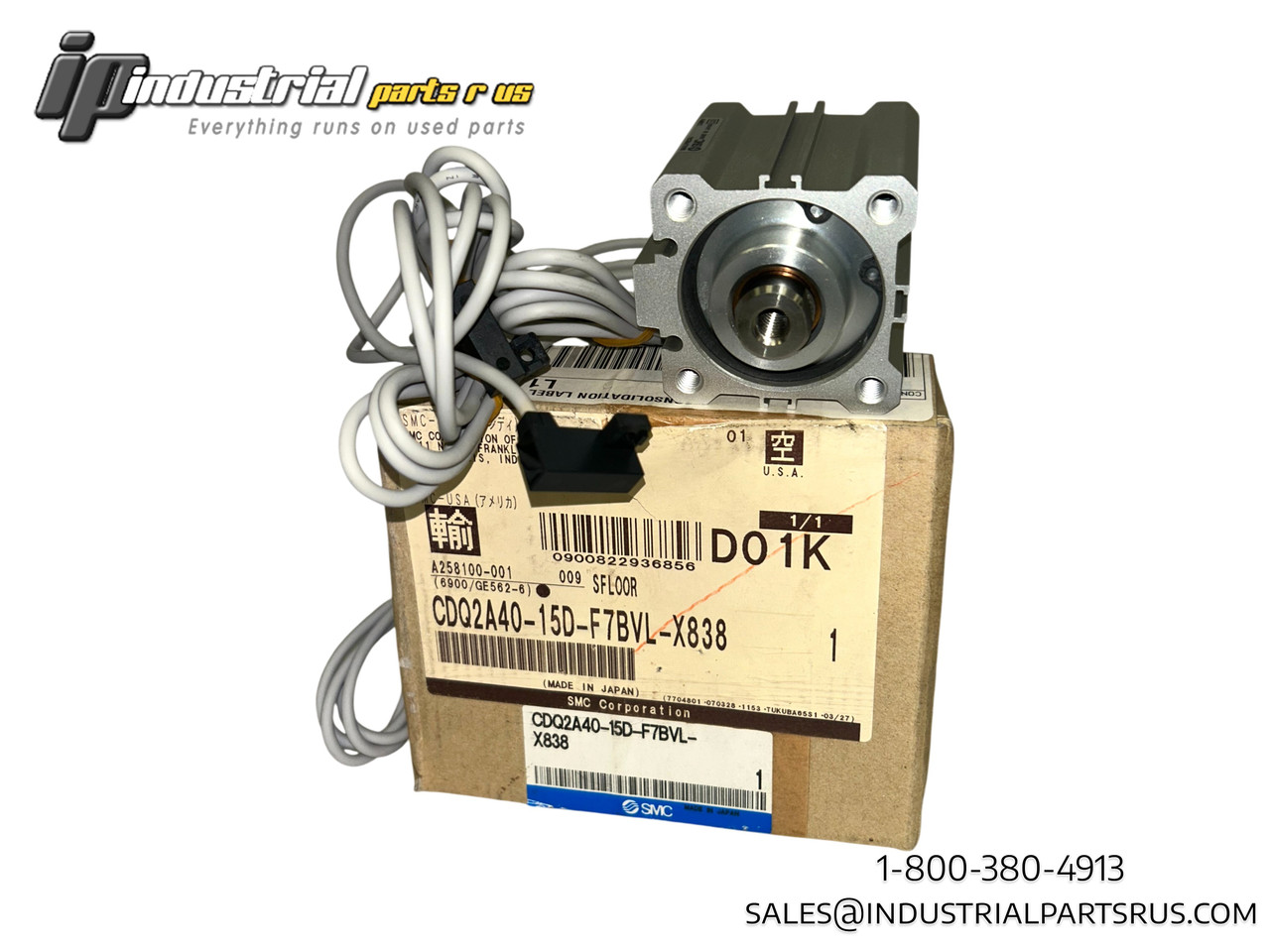

SMC CDQ2A40-15D-F7BVL-X838 Compact Pneumatic Cylinder 40mm Bore 15mm Stroke

The SMC CDQ2A40-15D-F7BVL-X838 is a double acting, single rod compact pneumatic cylinder from the CQ2 series. This space-saving cylinder features a 40mm bore size and 15mm stroke with built-in magnet for auto switch capability. It includes a solid state auto switch with grommet, indicator light, 2-wire configuration, and perpendicular lead wire, along with threaded mounting style for versatile installation.

Specifications

• Series: CQ2/CDQ2-Z Compact Cylinder
• Bore Size: 40mm
• Stroke Length: 15mm
• Action Type: Double Acting, Single Rod
• Maximum Operating Pressure: 1.0 MPa (145 PSI)
• Built-in Magnet: Yes (D designation)
• Mounting Style: Both Ends Tapped (Threaded Mount)
• Port Thread Type: Rc/M Thread
• Auto Switch: Solid State Type F7BVL - 2-wire, with Indicator Light, Grommet, Perpendicular
• Auto Switch Voltage: DC24V (DC10-28V range)
• Lead Wire: 3m length standard
• Special Option Code: X838
• Body Type: Standard (Rod End Female Thread)
• Auto Switch Mounting: 4 surfaces (40mm bore)
• Manufacturer: SMC Corporation
• Country of Origin: Japan
