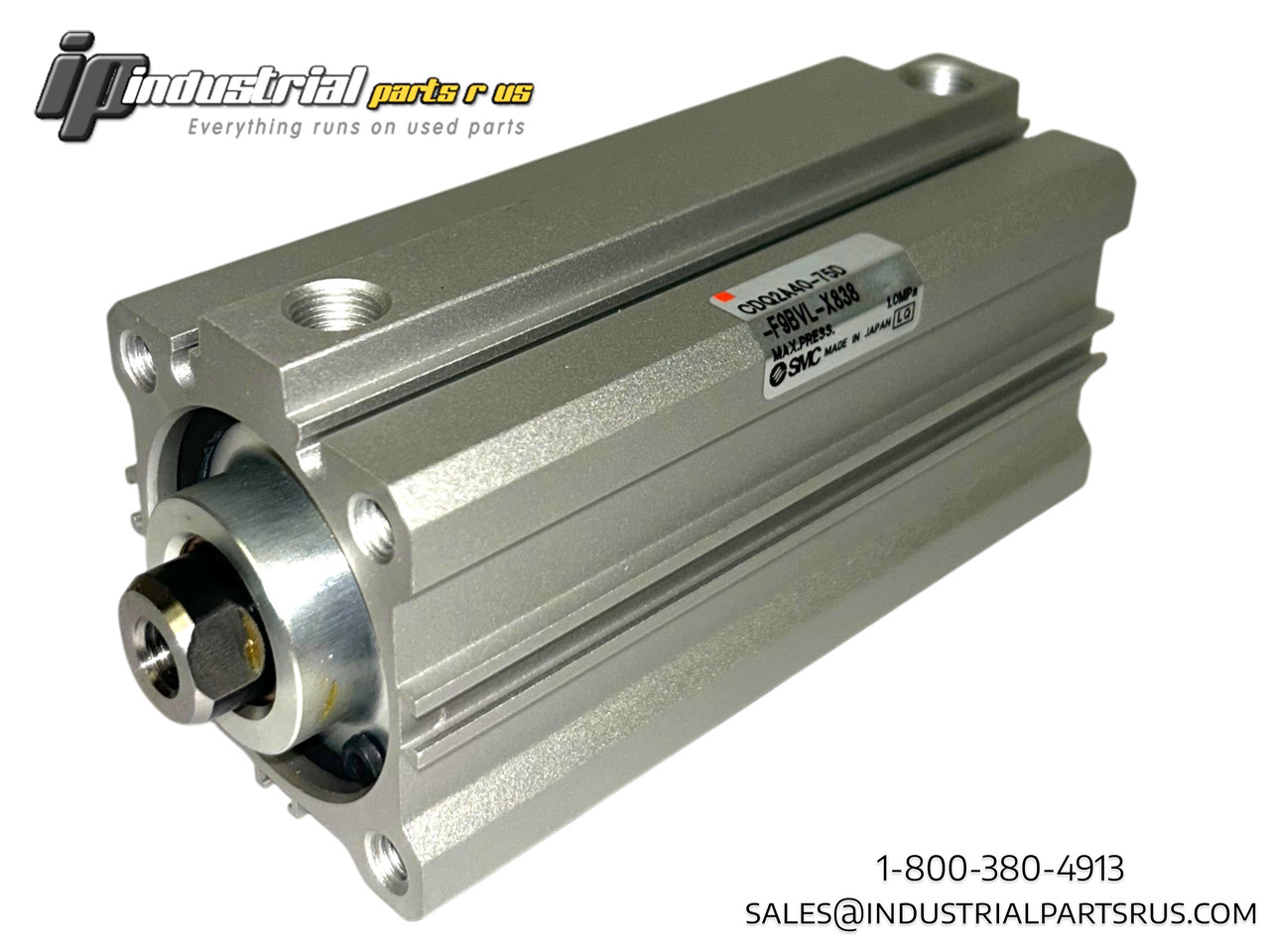

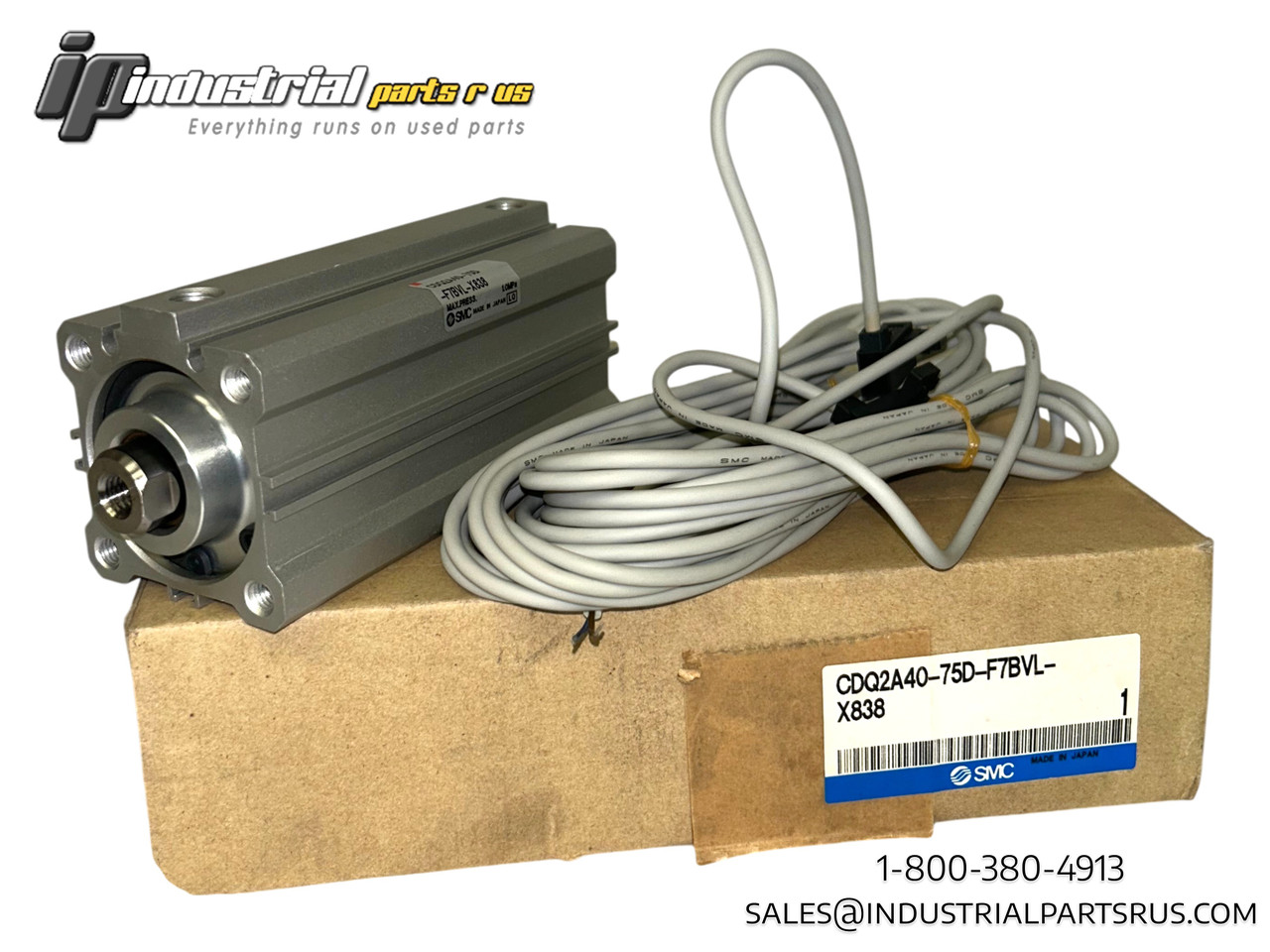

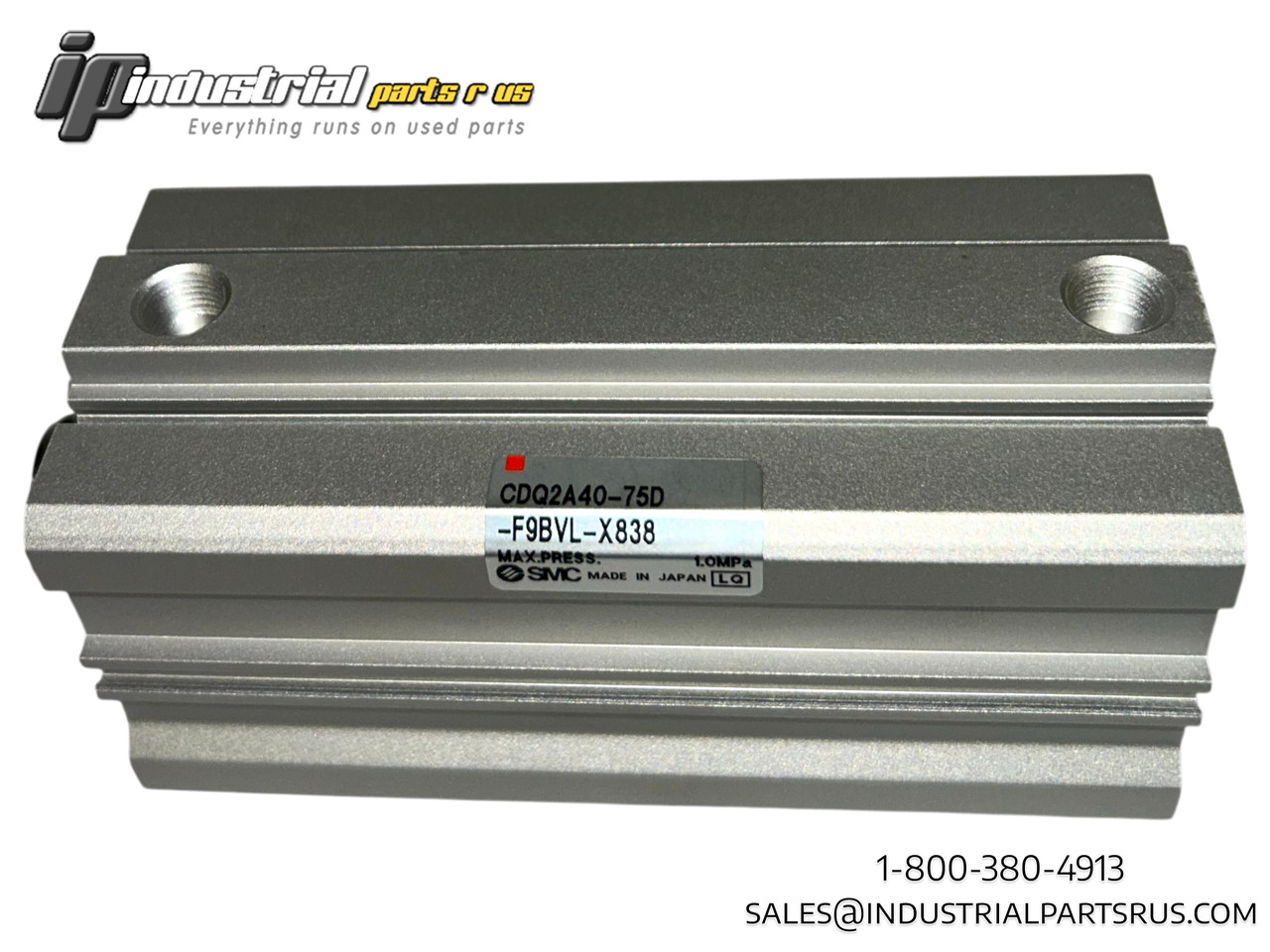

SMC CDQ2A40-75D-F9BVL-X838 Compact Pneumatic Cylinder 40mm Bore 75mm Stroke

The SMC CDQ2A40-75D-F9BVL-X838 is a compact pneumatic cylinder from the CQ2-Z series featuring a 40mm bore diameter and 75mm stroke length. This double-acting, single rod cylinder offers space-saving design with auto switch mounting capability on multiple surfaces. Engineered for industrial automation applications, it provides reliable pneumatic actuation in a lightweight, compact package with customizable mounting and switching options.

Specifications

• Bore Size: 40mm
• Stroke Length: 75mm
• Series: CQ2-Z Compact Cylinder
• Action: Double Acting, Single Rod
• Auto Switch: Compatible (F9BVL configuration)
• Manufacturer: SMC Pneumatics
• Type: Compact Air Cylinder
• Port Thread: Rc/NPT/G thread (standard for 32-100mm bore)
• Mounting: Auto switch mountable on 4 surfaces (32-100mm bore)
• Special Configuration: X838 custom variant
