Product Description

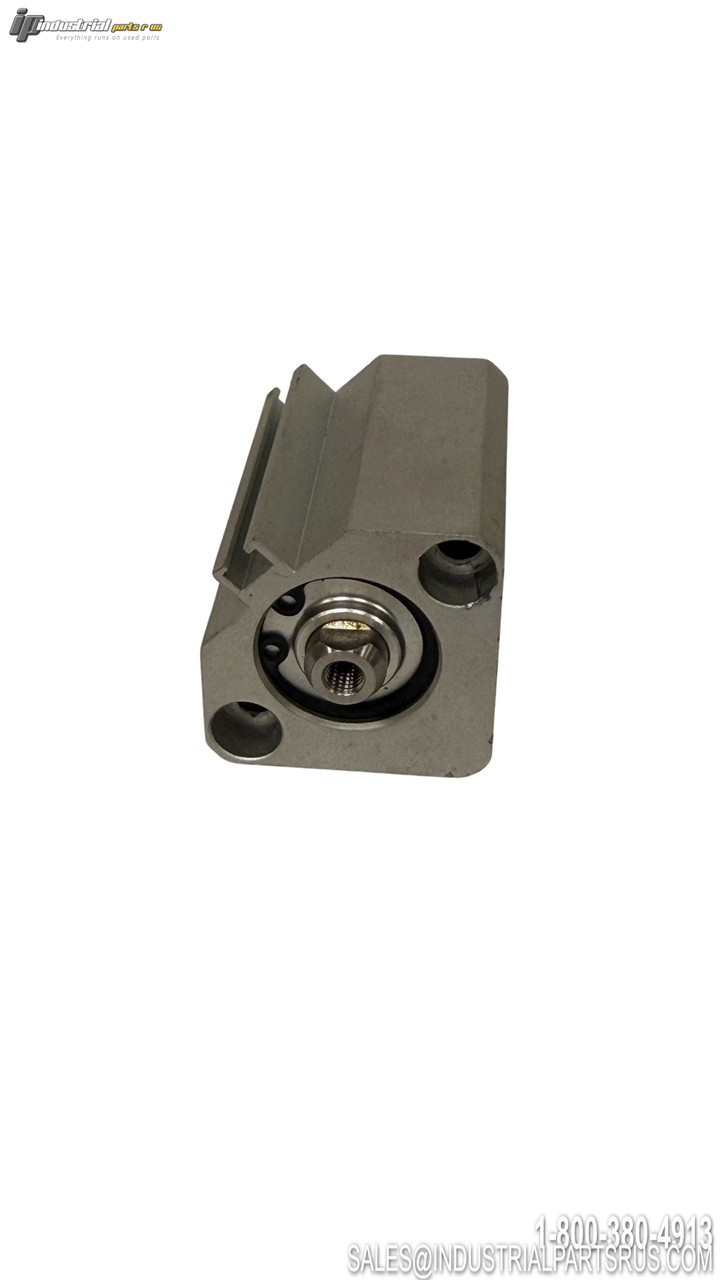

The SMC CDQ2B20-15D is a compact pneumatic cylinder from SMC's CQ2 series, designed for space-saving applications where compact design is critical. This double-acting, single rod cylinder features a 20mm bore diameter with a 15mm stroke length, making it ideal for automation equipment requiring precise linear motion in confined spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CDQ2B20-15D |
| Product Type | Compact Cylinder |
| Series | CQ2 |
| Bore Diameter | 20 mm |
| Stroke Length | 15 mm |
| Cylinder Action | Double Acting |
| Rod Configuration | Single Rod |
| Maximum Operating Pressure | 1.0 MPa (10 bar) |
| Rod Thread Size | M5 x 0.8 |
| Port Size | M5 x 0.8 |
| Rod Diameter | 10 mm |
| Body Material | Aluminum |
| Piston Material | Aluminum |
| Rod Material | Stainless Steel |
| Magnetic Piston | Yes |
| Auto Switch Capable | Yes (2 surfaces for ΓΈ20) |
| Mounting Style | Compact |
