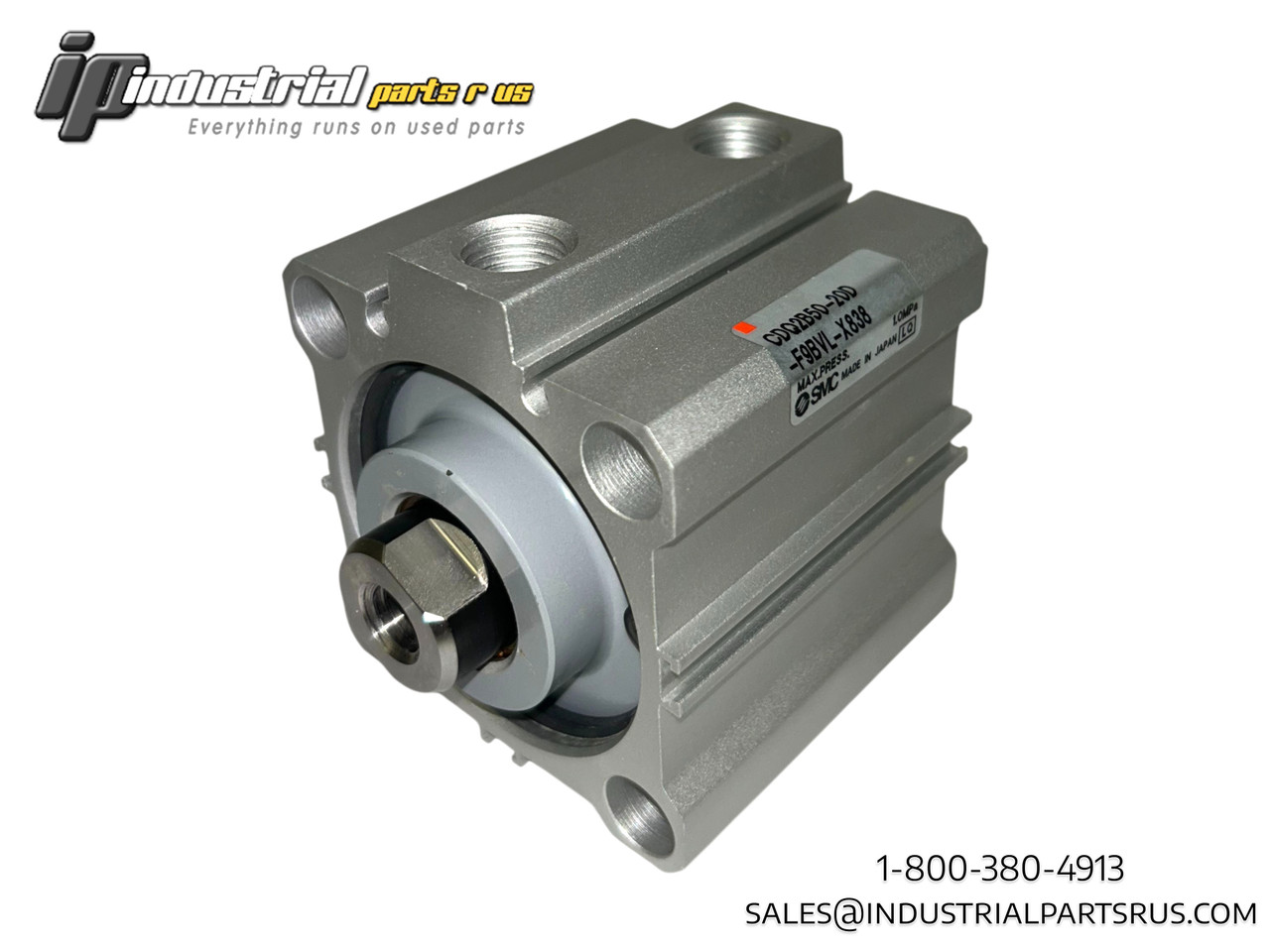

SMC CDQ2B50-20D-F9BVL-X838 Compact Pneumatic Cylinder with Auto Switch

The SMC CDQ2B50-20D-F9BVL-X838 is a double-acting, single rod compact pneumatic cylinder from the world-renowned CQ2 series. This space-saving cylinder features a 50mm bore diameter with 20mm stroke length, built-in magnet, and includes an F9BVL solid state auto switch with indicator light for precise position detection. Designed with through-hole mounting and auto switch mounting grooves, it delivers reliable performance in industrial automation applications requiring accurate position sensing and compact installation.

Specifications

• Series: SMC CQ2 Compact Cylinder
• Bore Size: 50mm
• Stroke Length: 20mm
• Action: Double Acting, Single Rod
• Mounting Style: Through-hole (Standard) Type B
• Built-in Magnet: Yes (D designation)
• Port Thread Type: Rc/M Thread
• Operating Pressure: 0.1 MPa to 1.0 MPa (19-145 psi)
• Proof Pressure: 1.5 MPa
• Ambient Temperature: -10°C to +60°C
• Piston Speed: 50-500 mm/s
• Auto Switch: F9BVL Solid State Type with Indicator Light
• Auto Switch Mounting Groove: 4 surfaces (32-100mm bore sizes)
• Cylinder Type: Pneumatic, Non-lube
