Product Description

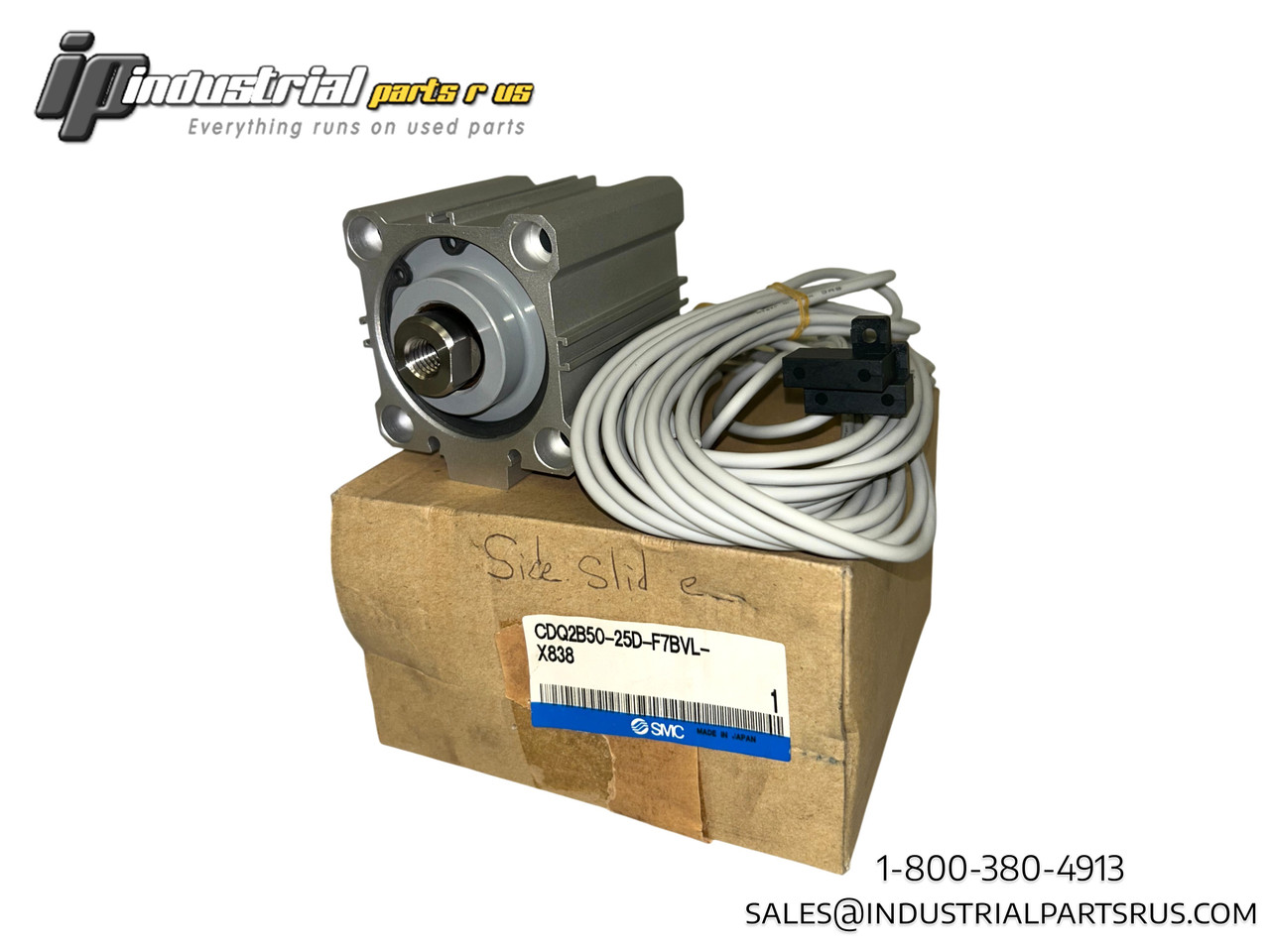

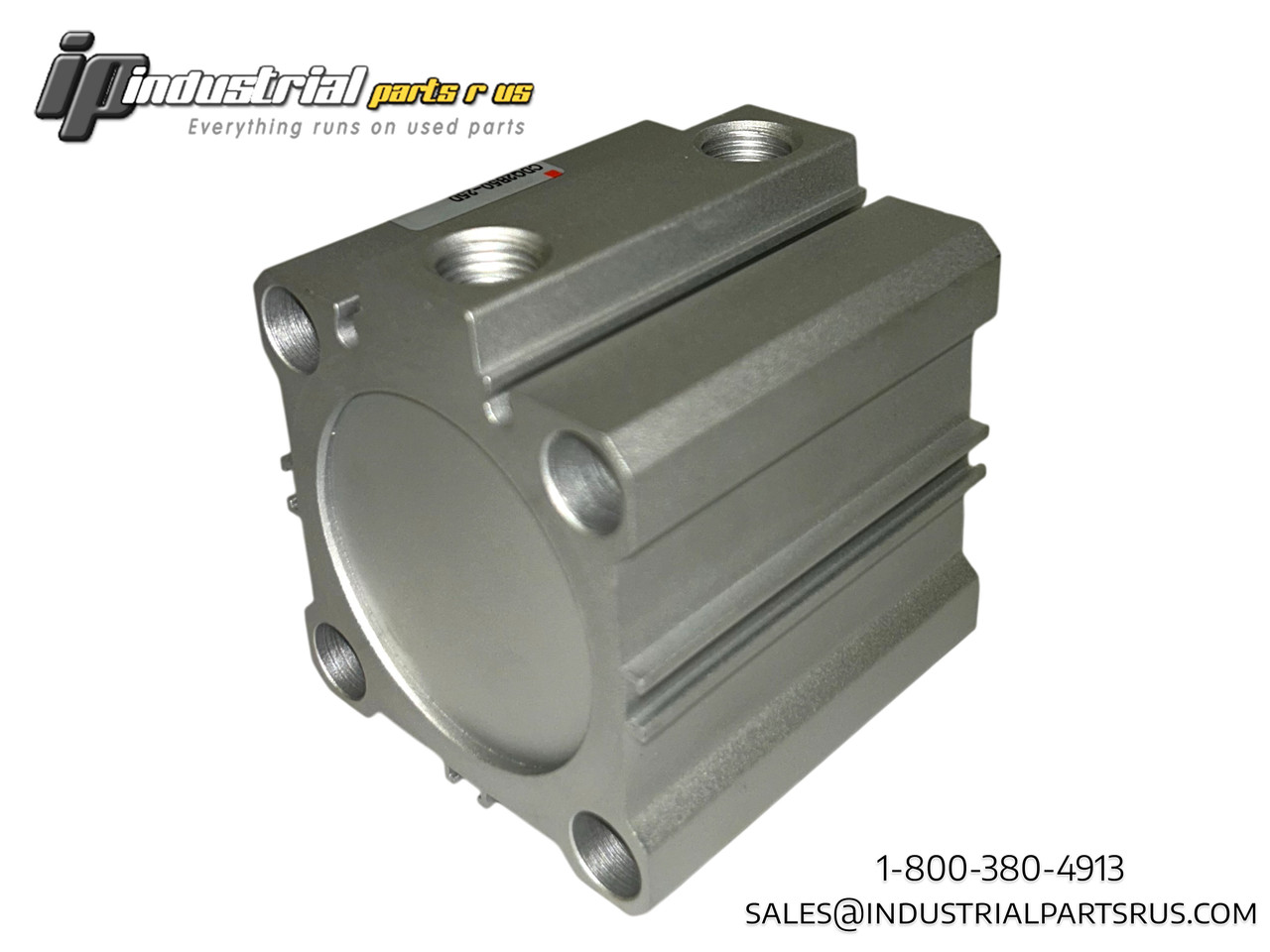

The SMC CDQ2B50-25D-F7BVL-X838 is a standard double acting, single rod compact pneumatic cylinder from the CQ2 series. This space-saving cylinder features a 50mm bore size and 25mm stroke length, equipped with an F7BVL rail-mounted solid state auto switch for position sensing. Designed with a compact body and through-hole mounting style, it supports auto switch mounting on multiple surfaces and operates at a maximum pressure of 1.0 MPa.
Specifications
- Series: CQ2 Compact Cylinder
- Bore Size: 50mm
- Stroke Length: 25mm
- Action: Double Acting, Single Rod
- Mounting Style: Through-hole
- Auto Switch: D-F7BVL Solid State, Rail Mounting
- Maximum Operating Pressure: 1.0 MPa (145 PSI)
- Port Thread Type: Rc/M Thread
- Rod End: Male Thread
- Built-in Magnet: Yes
- Manufacturer: SMC Corporation
Other Details
New Item. Surplus Inventory. 30 Day Warranty!Product Videos
Custom Field
GTIN 721814247855
Max. PSI 145 PSI
Max. Operating Pressure 1.0 MPa
Useraction Double Acting
Manufacturer SMC
Max. Pressure 1.0 MPa
Part Number CDQ2B50-25D-F7BVL-X838
Shelf B-10
Stroke 25mm
Bore Diameter 50mm
Model CDQ2B50-25D-F7BVL-X838
MPN CDQ2B50-25D-F7BVL-X838
Type Compact Pneumatic Cylinder with Auto Switch
