Product Description

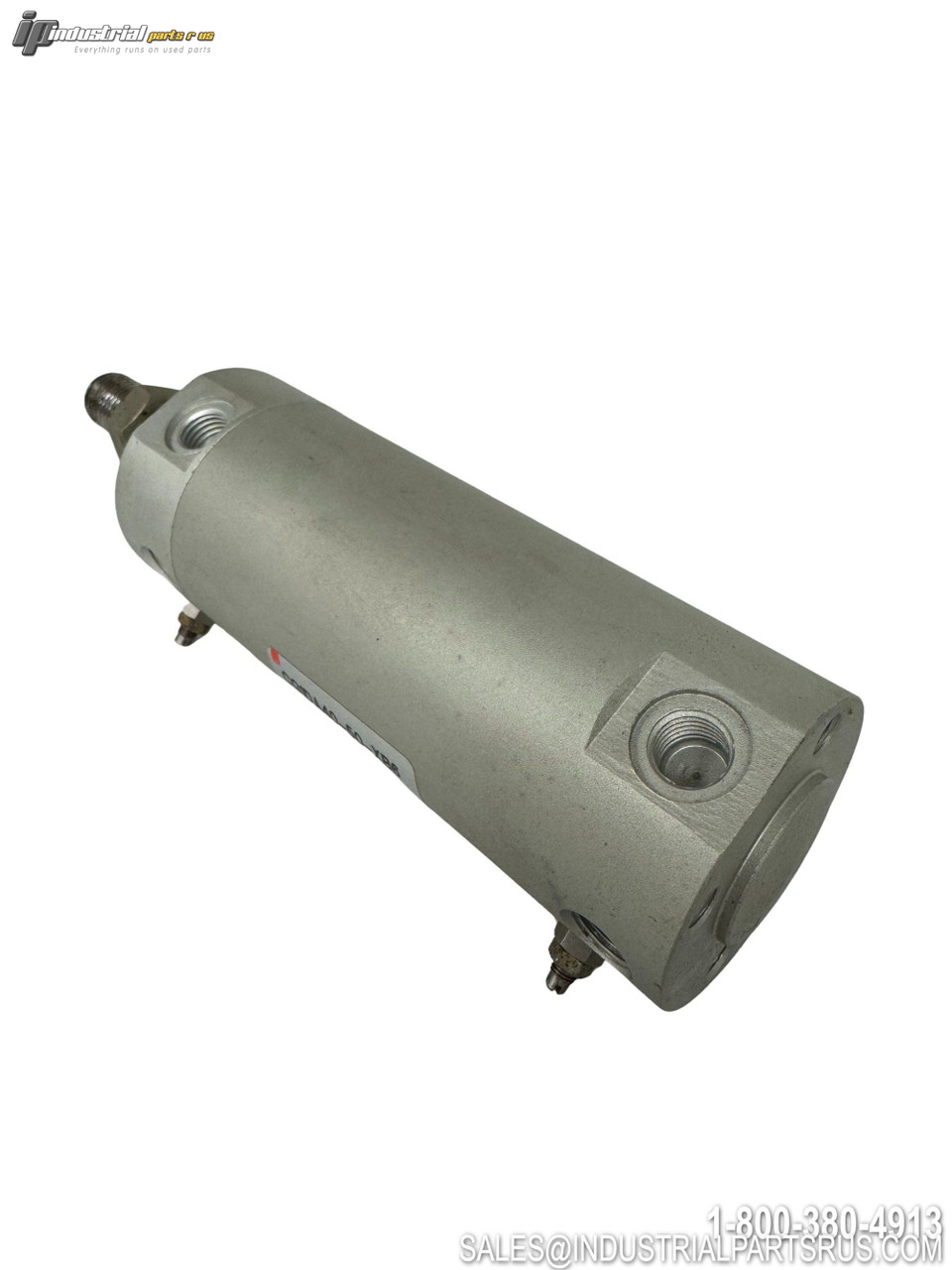

The SMC CG1DA40-50-XB6 is a double-acting pneumatic cylinder from the CG1 series designed for demanding applications requiring heat resistance. This clevis-mounted cylinder features a 40mm bore diameter with 50mm stroke length and incorporates the -XB6 heat resistant option for operation in high temperature environments up to 150°C.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | CG1DA40-50-XB6 |
| Series | CG1 |
| Bore Diameter | 40mm |
| Stroke Length | 50mm |
| Cylinder Type | Double Acting |
| Mounting Type | Clevis (DA) |
| Maximum Operating Pressure | 1.0 MPa (145 psi) |
| Minimum Operating Pressure | 0.05 MPa (8 psi) |
| Proof Pressure | 1.5 MPa |
| Operating Temperature Range | -10°C to +150°C |
| Heat Resistant Option | XB6 (Up to 150°C) |
| Piston Speed | 50-500 mm/s |
| Action | Single Rod |
| Lubrication | Non-lube |
| Fluid | Air |
| Cushion | Air Cushion/Rubber Bumper |
| Stroke Tolerance | +1.4/-0 mm |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number CG1DA40-50-XB6
Shelf B-7
Bore Diameter 40 mm
Model CG1DA40-50-XB6
MPN CG1DA40-50-XB6
Type Pneumatic Cylinder
