Product Description

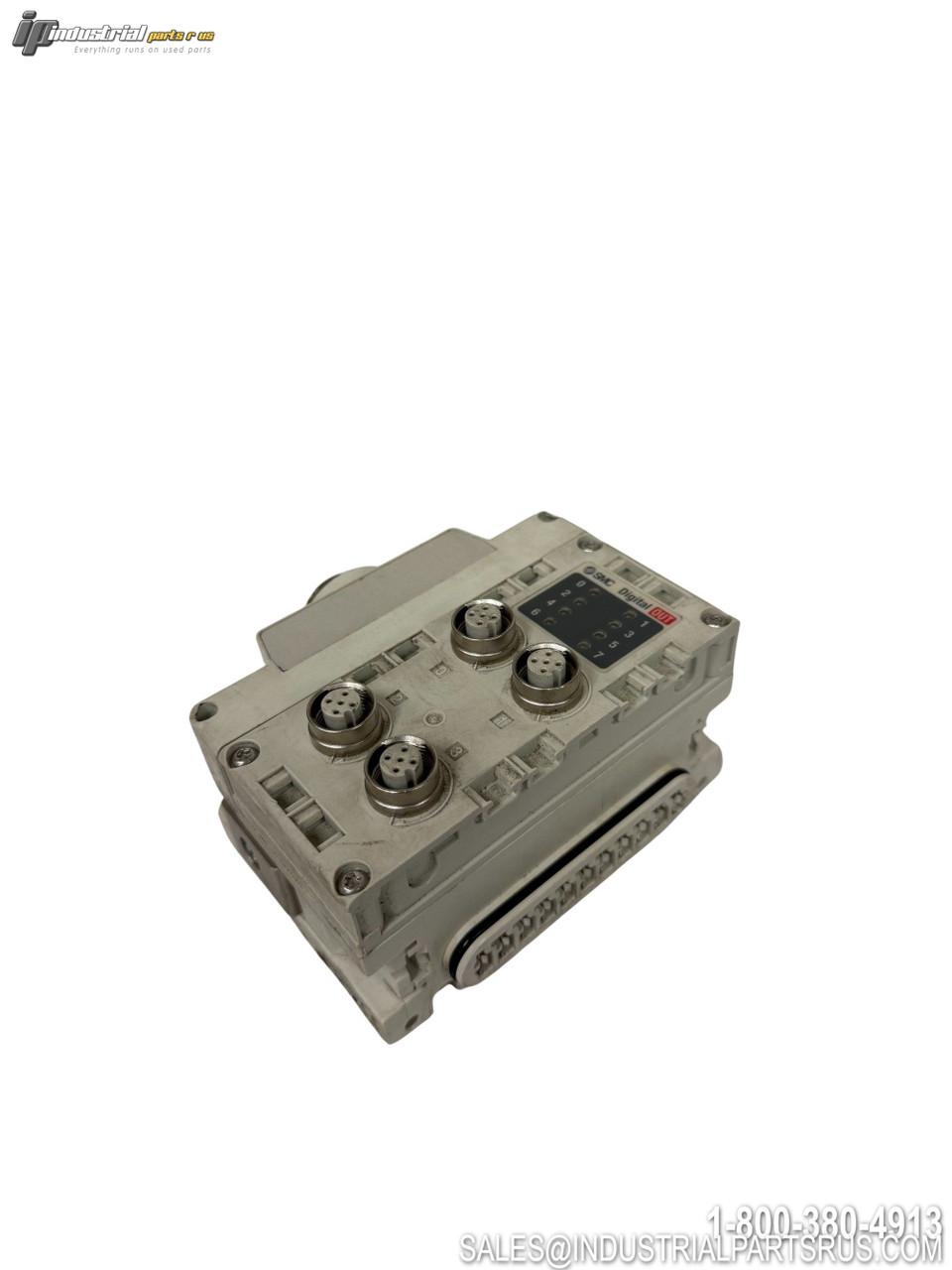

The SMC EX600-DYPB is a digital output unit designed for the EX600 fieldbus system series. This programmable unit provides 8 PNP outputs with M12 connector interfaces, offering excellent flexibility for industrial automation applications. The unit features comprehensive diagnostic capabilities and is compatible with multiple communication protocols including PROFIBUS-DP, DeviceNet, CC-Link, and EtherNet/IP.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | EX600-DYPB |
| Series | EX600 |
| Output Type | PNP |
| Number of Outputs | 8 |
| Output Configuration | 2 outputs per connector |
| Power Supply Voltage (Control) | 24 VDC Class2, 2A |
| Power Supply Voltage (Output) | 24 VDC Class2, 2A |
| Max Load Current | 0.5A per output, 2A per unit |
| Connector Type | M12 (5-pin) socket |
| Number of Connectors | 4 |
| Current Consumption | 50mA or less |
| Enclosure Rating | IP67 |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | 35% to 85% RH (no condensation) |
| Protection | Short circuit protection |
| Diagnostic Features | LED status indicators, open circuit detection |
| Withstand Voltage | AC 500V for 1 minute |
| Weight | 0.69 lbs |
| Compatible Protocols | PROFIBUS-DP, DeviceNet, CC-Link, EtherNet/IP, EtherCAT, PROFINET |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type PNP
Full Load Amps 0.5A per output, 2A per unit
Manufacturer SMC
Enclosure Type IP67
Part Number EX600-DYPB
Shelf K-43
Model EX600-DYPB
MPN EX600-DYPB
Type I/O Module
