Product Description

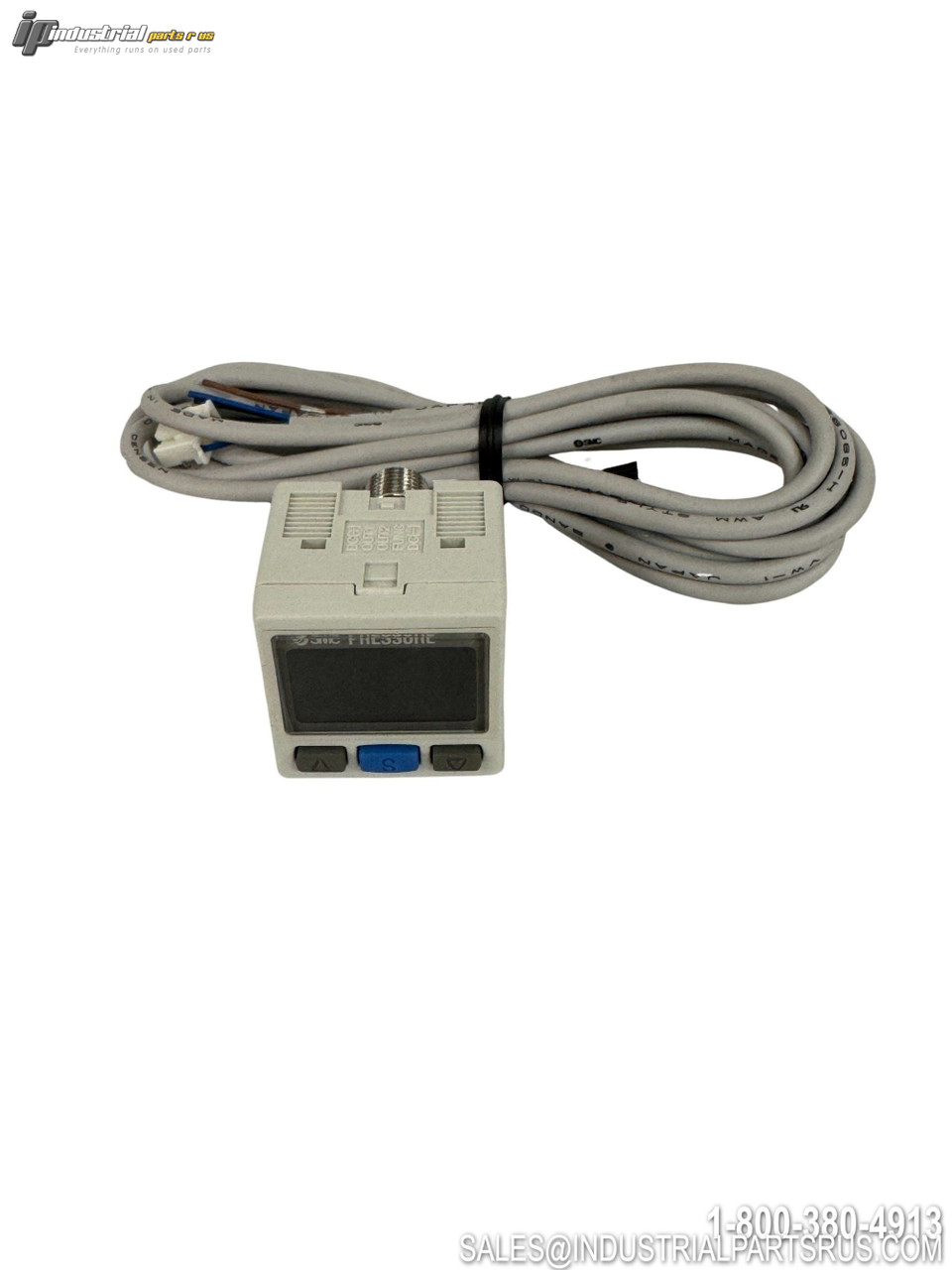

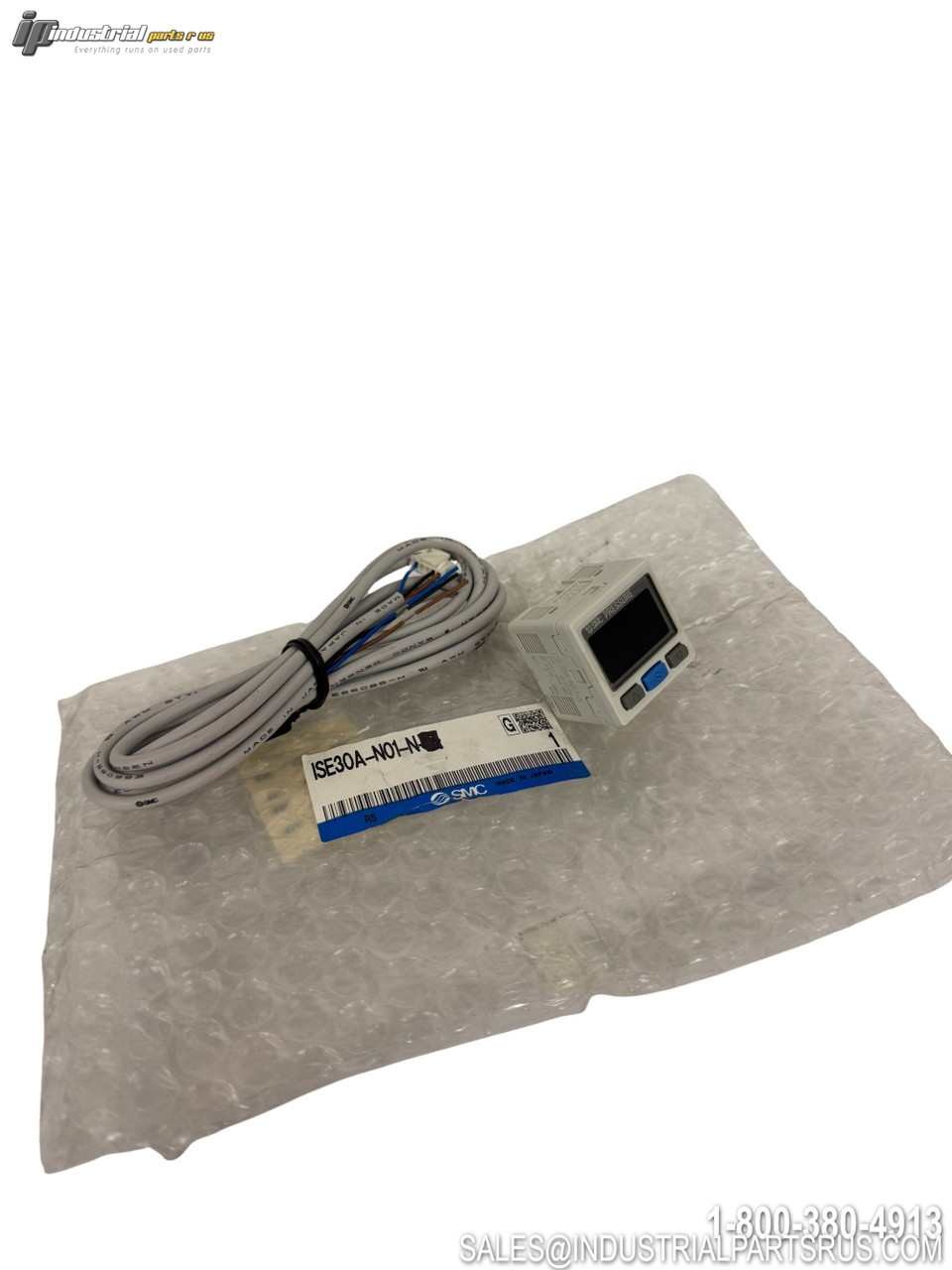

The SMC ISE30A-N01-N is a high-precision digital pressure sensor designed for positive pressure applications. This compact sensor features a 2-color LCD display that transitions from red to green based on process changes, offering clear visual indication of pressure conditions. The sensor includes advanced copy functionality allowing settings to be duplicated to up to 10 additional sensors simultaneously.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | ISE30A-N01-N |
| Series | ISE30A |
| Sensor Type | High-Precision Digital Pressure (Positive) |
| Measurement Range | -0.1 to 1.0 MPa |
| Maximum Pressure | 1.5 MPa |
| Connection Type | NPT1/8 (M5 Female Thread) |
| Output Type | NPN Open Collector |
| Number of Outputs | 1 Output |
| Supply Voltage | 12 to 24 VDC |
| Current Rating | 40 mA |
| Accuracy | ±2% Full Scale, ±1 Digit |
| Display | 4-Digit, 7-Segment, 2-Color LCD (Red/Green) |
| Operating Temperature | 0 to 50°C |
| Dimensions | 30mm H × 30mm W |
| IP Rating | IP40 |
| Mounting Type | Panel Mount/Bracket |
| Material | Silicone/C3602/HNBR, Electroless Nickel Plated |
| Weight | 0.10 lbs |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Output Type NPN
Sensor Type Digital Pressure Switch
Country/Region of Manufacture Japan
Manufacturer SMC
Part Number ISE30A-N01-N
Shelf K-61 Tub 1
Model ISE30A-N01-N
MPN ISE30A-N01-N
Type Pressure Sensor
