Product Description

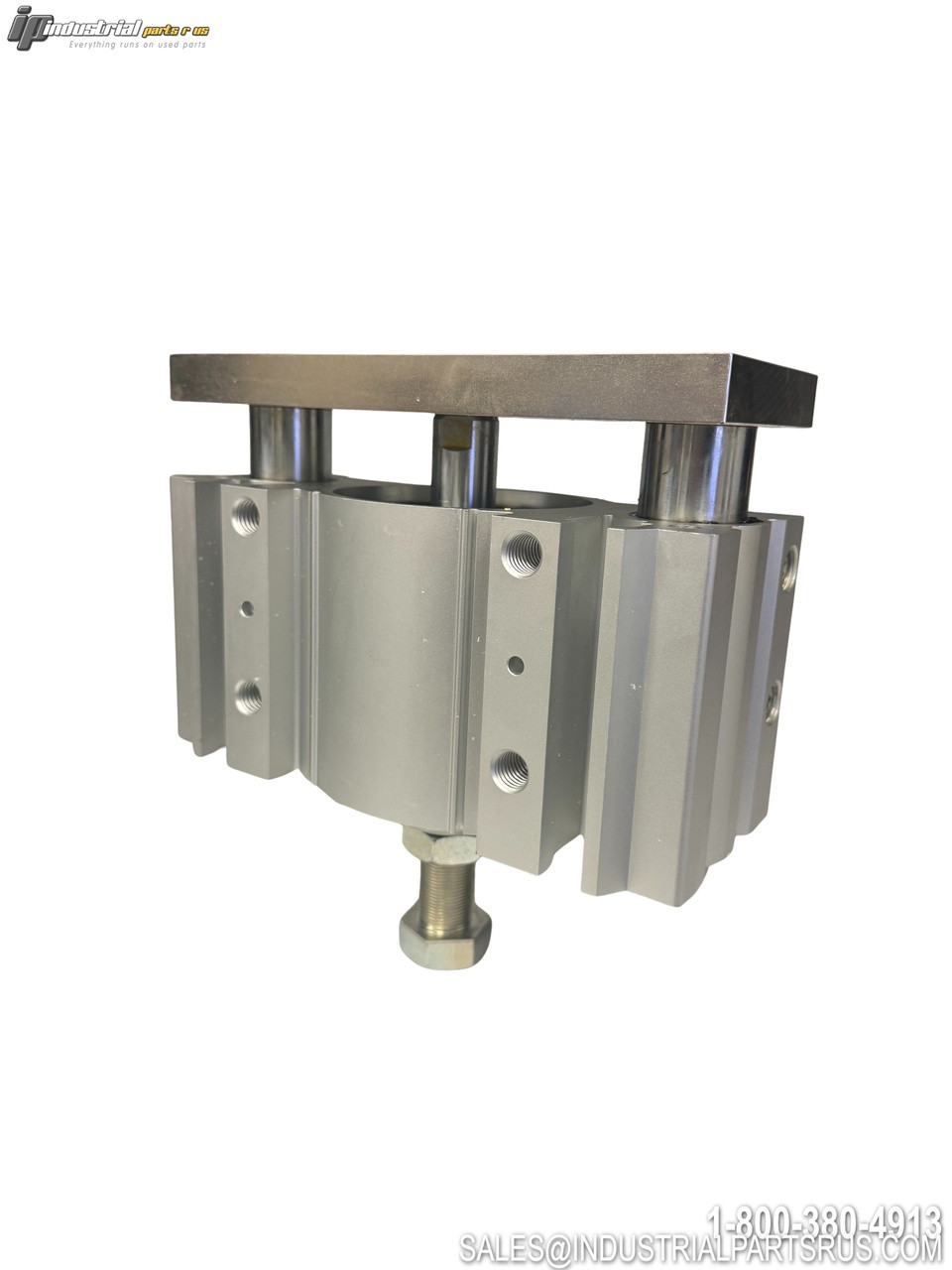

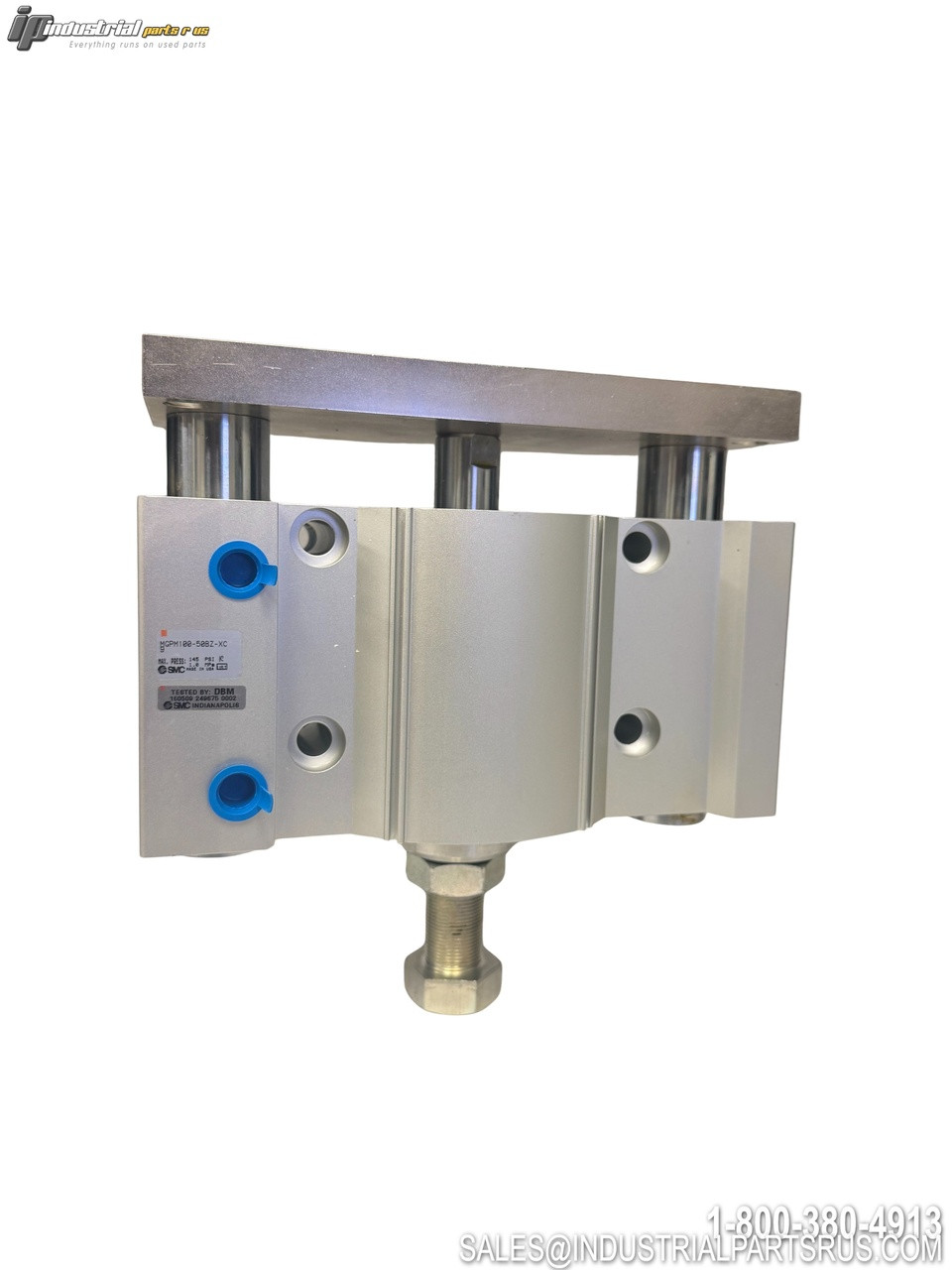

The SMC MGPM100-50BZ-XC is an MGP Compact Guide Cylinder designed for pneumatic linear actuation applications. The MGPM is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator's rod and seals. The MGPM-Z is designed for high side load applications found in material handling, lifting and stopping and utilizes an ultra-compact design by incorporating the cylinder body as part of the guide body.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | MGPM100-50BZ-XC |
| Product Series | MGP Compact Guide Cylinder |
| Bore Diameter | 100mm |
| Stroke Length | 50mm |
| Cylinder Type | Double-acting Compact Guide |
| Bearing Type | Slide Bearing |
| Operating Pressure | 0.1-1.0 MPa (14.5-145 psi) |
| Piston Speed | 50-500 mm/s |
| Port Thread Type | Rc3/8" (per series standard) |
| Non-rotating Accuracy | ±0.04° (100mm bore) |
| Operating Temperature | -10 to +60°C |
| Seal Material | NBR (Nitrile) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer SMC
Part Number MGPM100-50BZ-XC
Shelf B-14
Bore Diameter 100 mm
Model MGPM100-50BZ-XC
MPN MGPM100-50BZ-XC
Type Pneumatic Cylinder
