Product Description

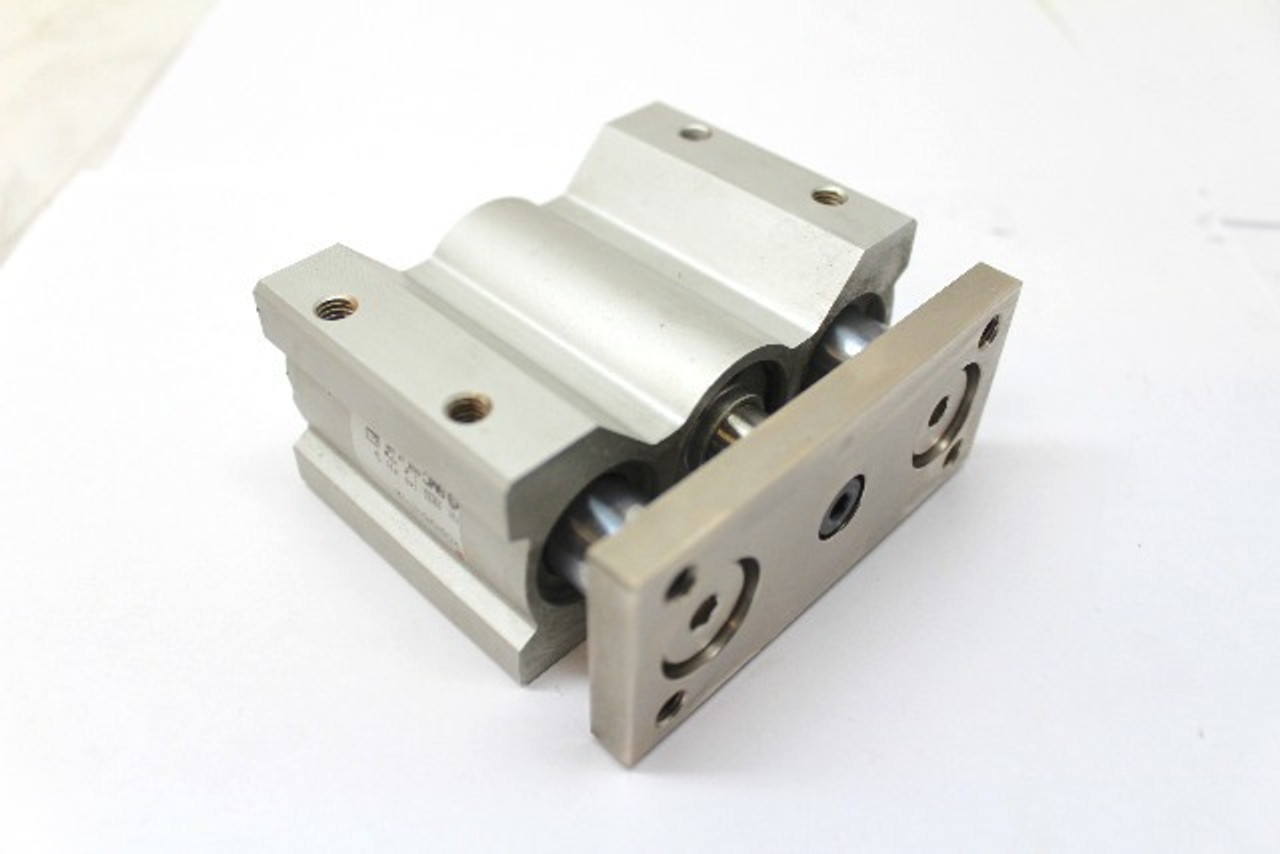

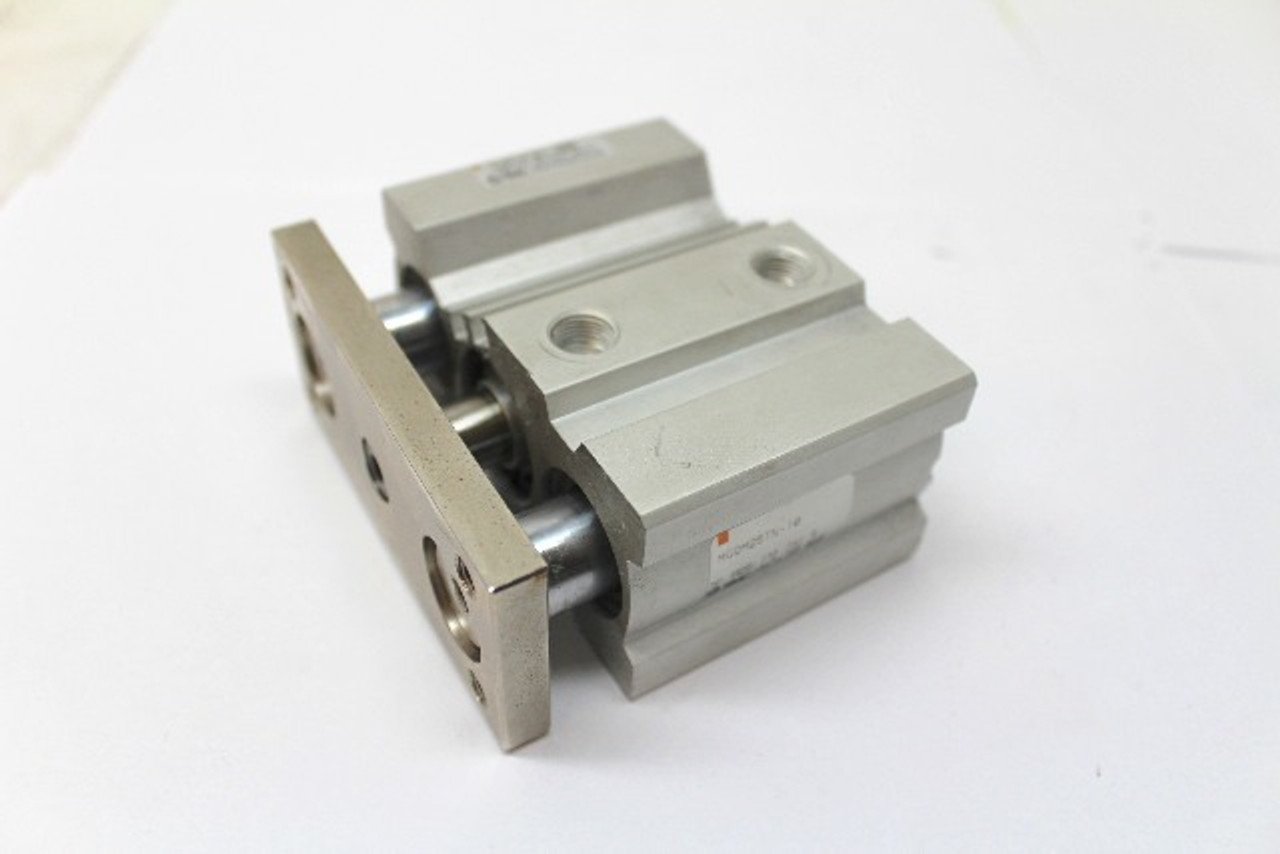

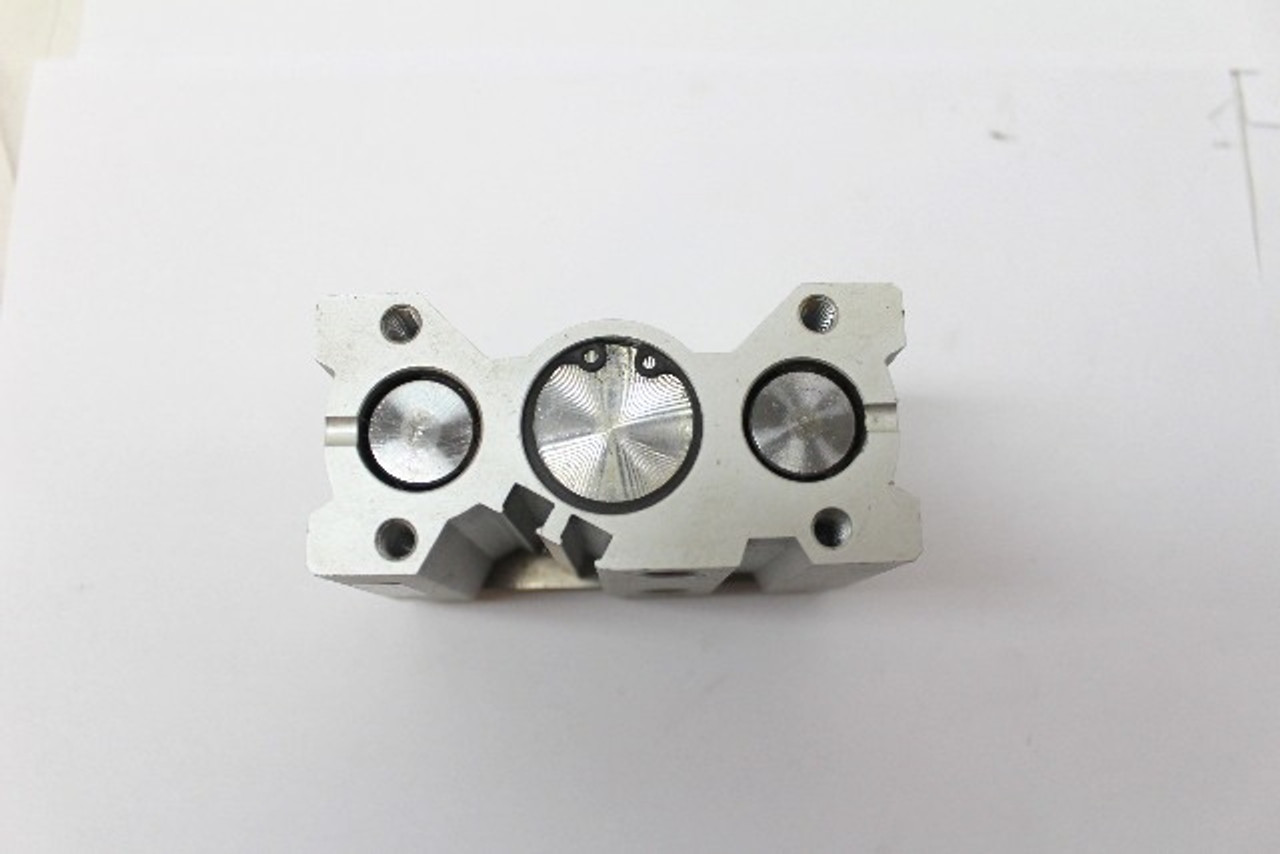

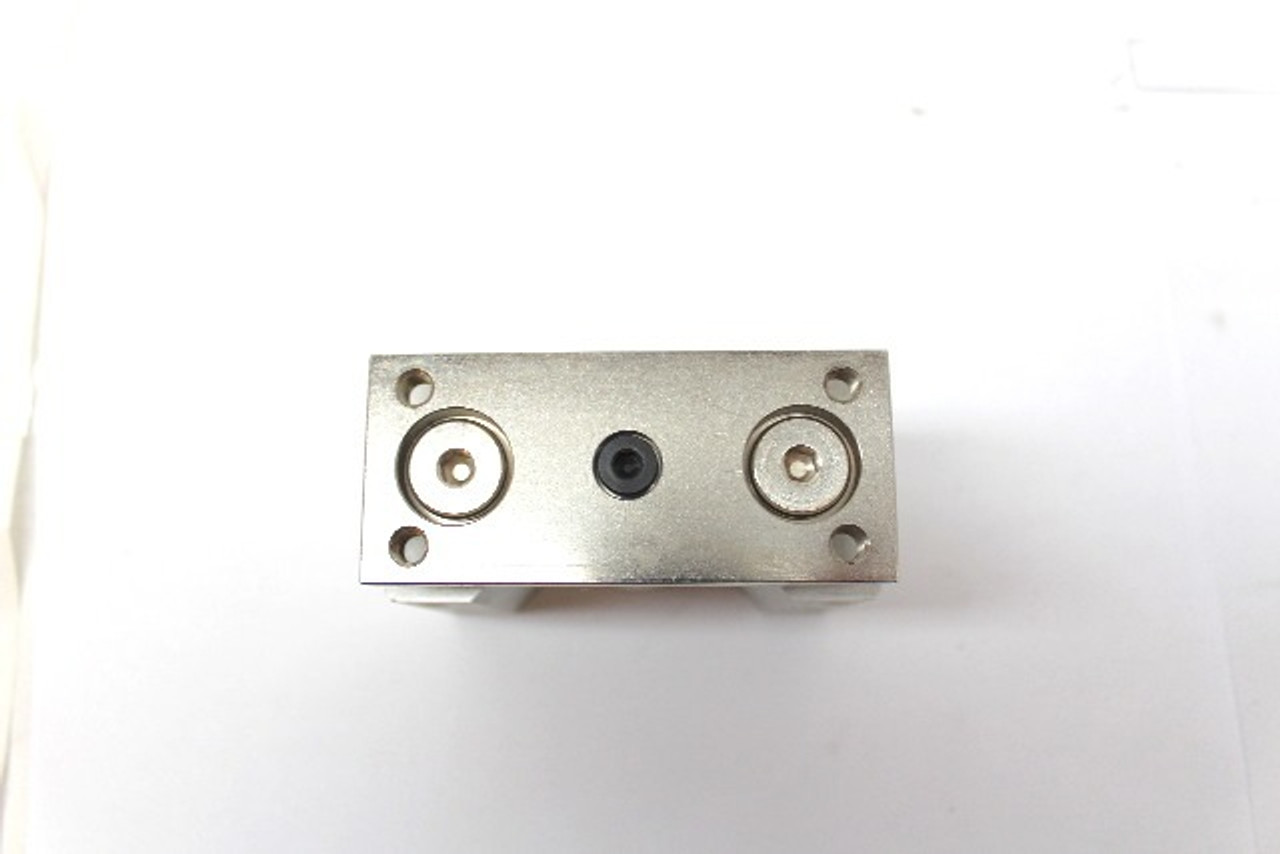

SMC MGQM25TN-10 Compact Guided Cylinder 25mm Bore 10mm StrokeSpecifications
| Bore diameter: | 25mm | Proof pressure: |
+1.5 Mpa |
|
| Stroke length: | 10mm | Operating pressure range: |
+0.1 to +1 Mpa |
|
| Guided cylinder type: |
Heavy Duty Compact Guide Cylinder |
Push force at 100 psi: |
344 N |
|
| Piston action: |
Double-Acting |
Pull force at 100 psi: |
265 N |
|
| Mounting type: |
Direct |
Operating temperature range: |
-10 to +60 °C |
|
| Rod type: |
Single Rod |
Overall length: |
137 mm |
|
| Bearings: |
Slide Bearing |
Overall width: |
88 mm |
|
| Cushion type: |
Rubber Bumper |
Overall height: |
42 mm |
|
| Port type: |
1/8 Female NPT Threaded in |
Other Details
Industrial Parts R Us Inc. will guarantee all items new and used for 30 days after the item has been received. (See Terms and Conditions). The buyer has the option to exchange the item if we have another in stock, or for the purchase price. The buyer is responsible for all return shipping charges. Refunds will be issued upon return of the item. Thank you from Industrial Parts R Us!!!!Product Videos
Custom Field
Type Guided Cylinder
MPN MGQM25TN-10
Model MGQM25TN-10
Bore Diameter 25mm
Stroke 10 mm
Shelf B-20
Series MGQ
Manufacturer SMC
Country/Region of Manufacture Japan
GTIN 646412780446
