Product Description

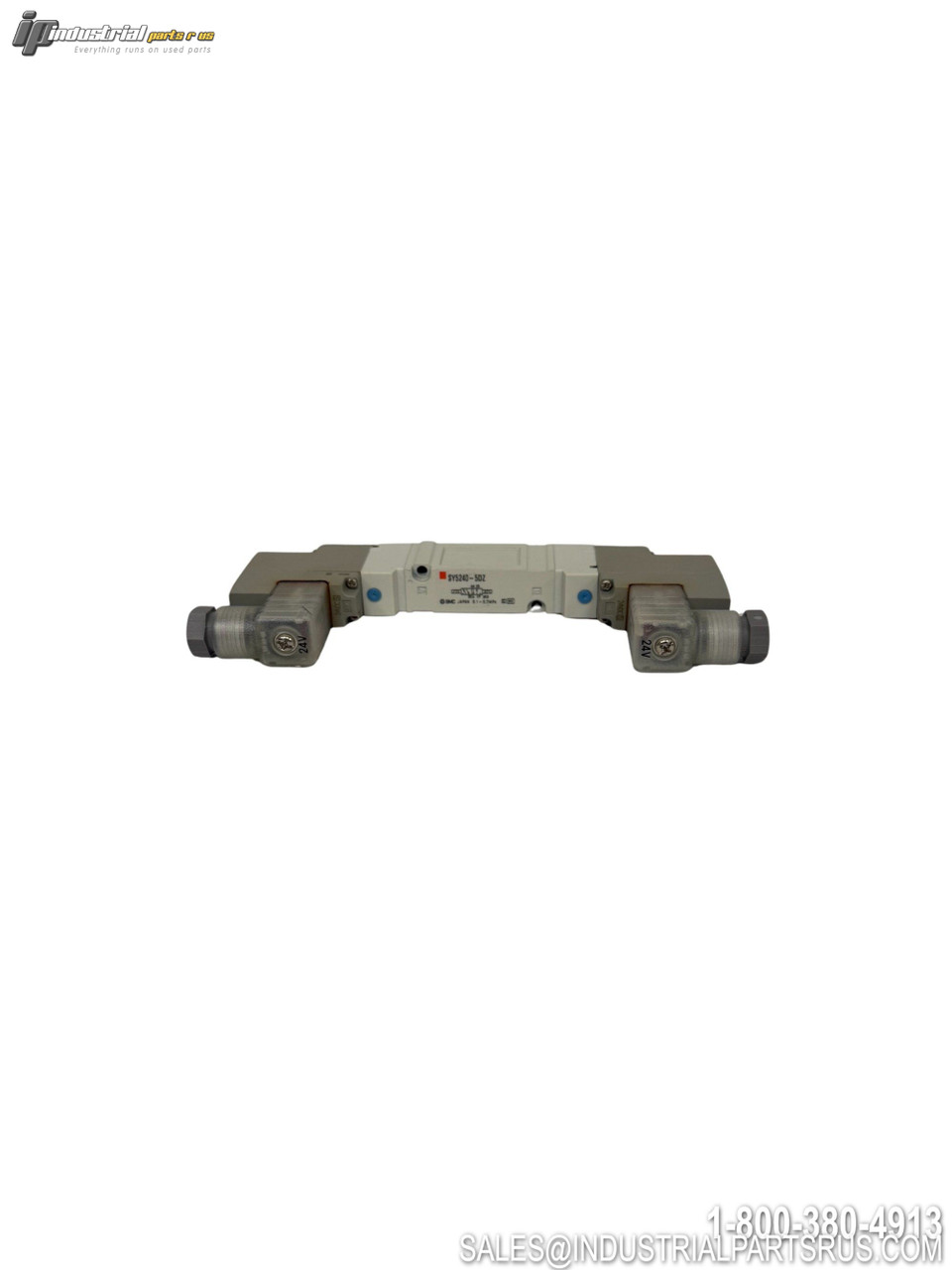

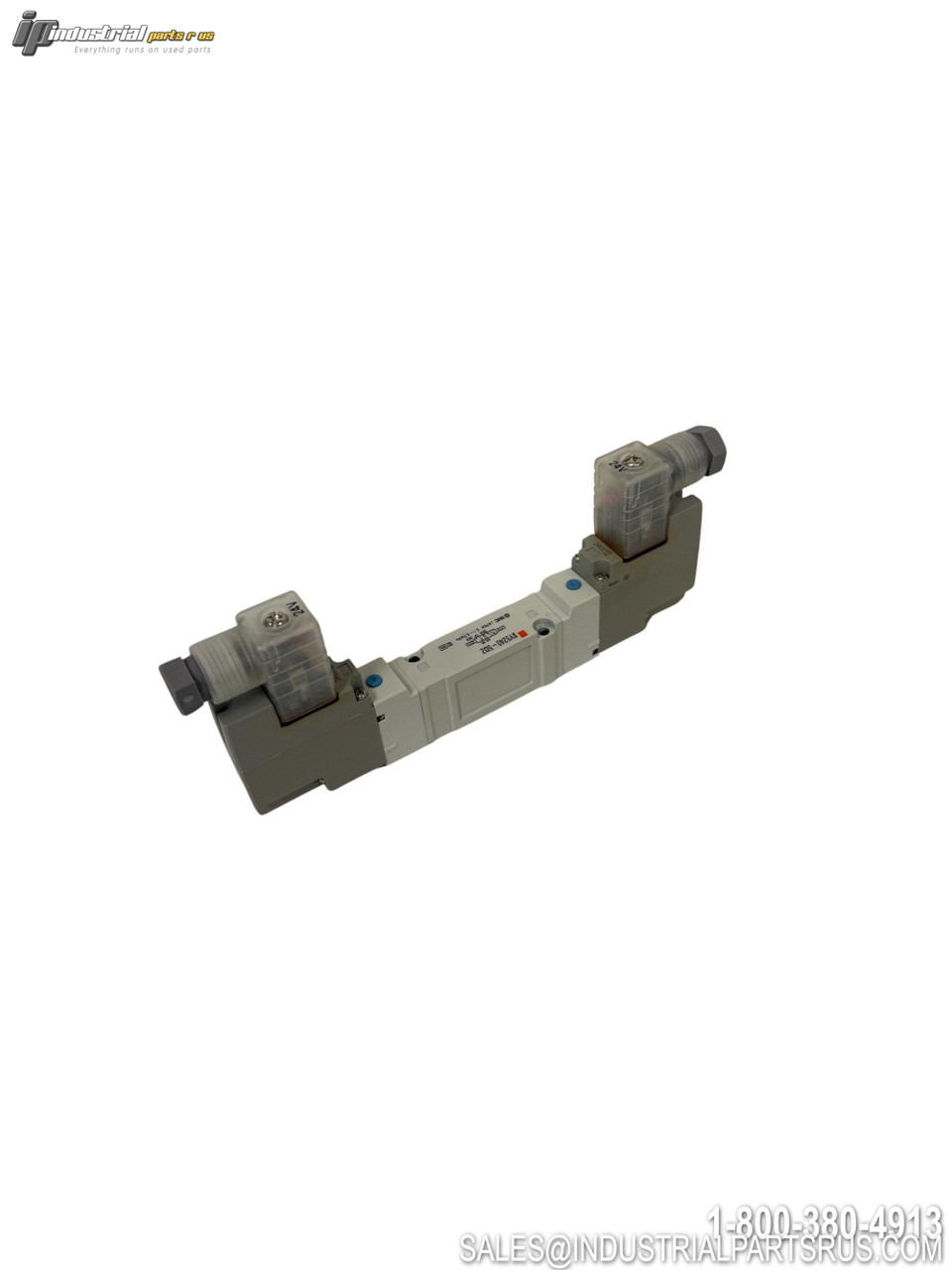

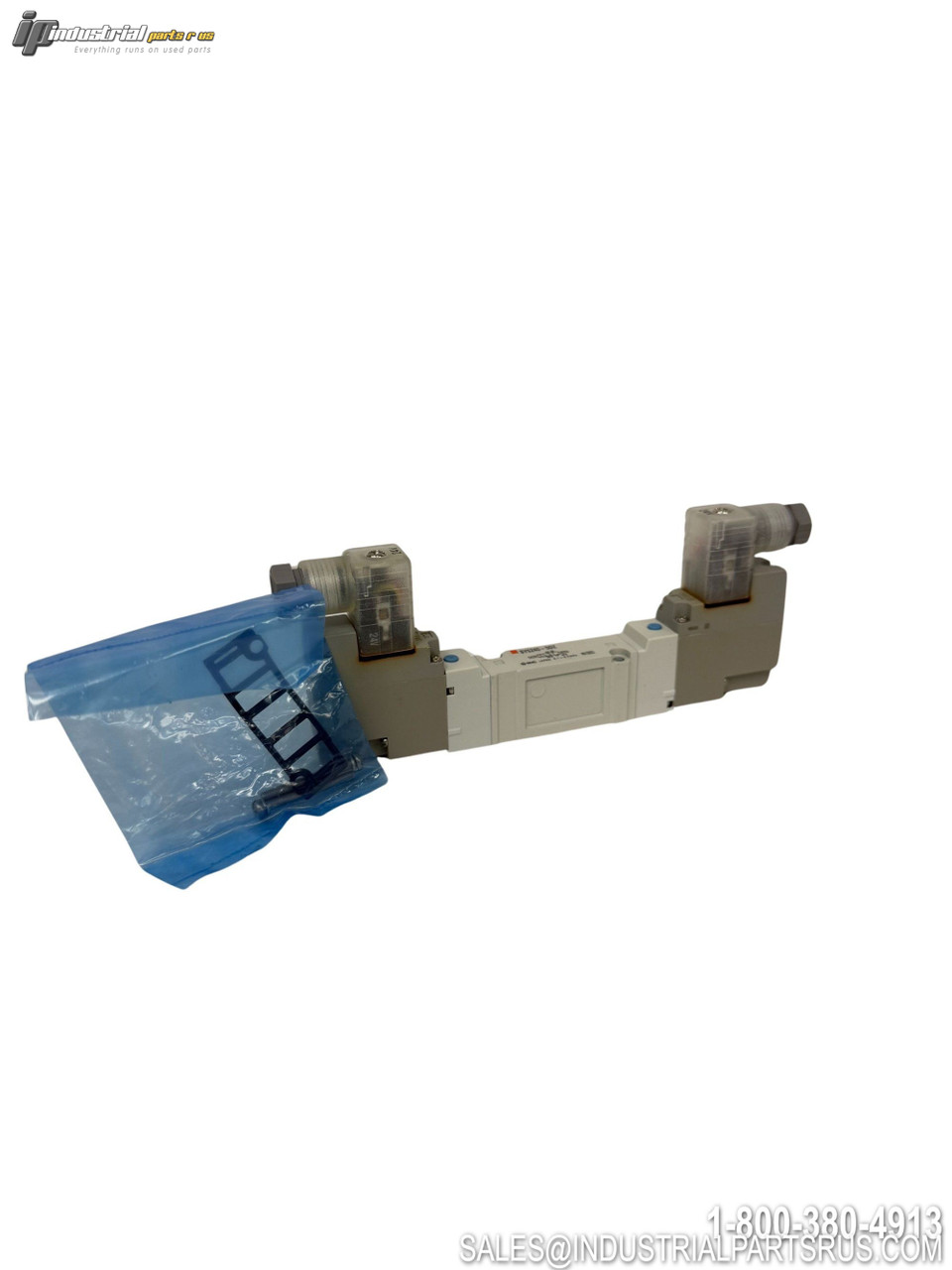

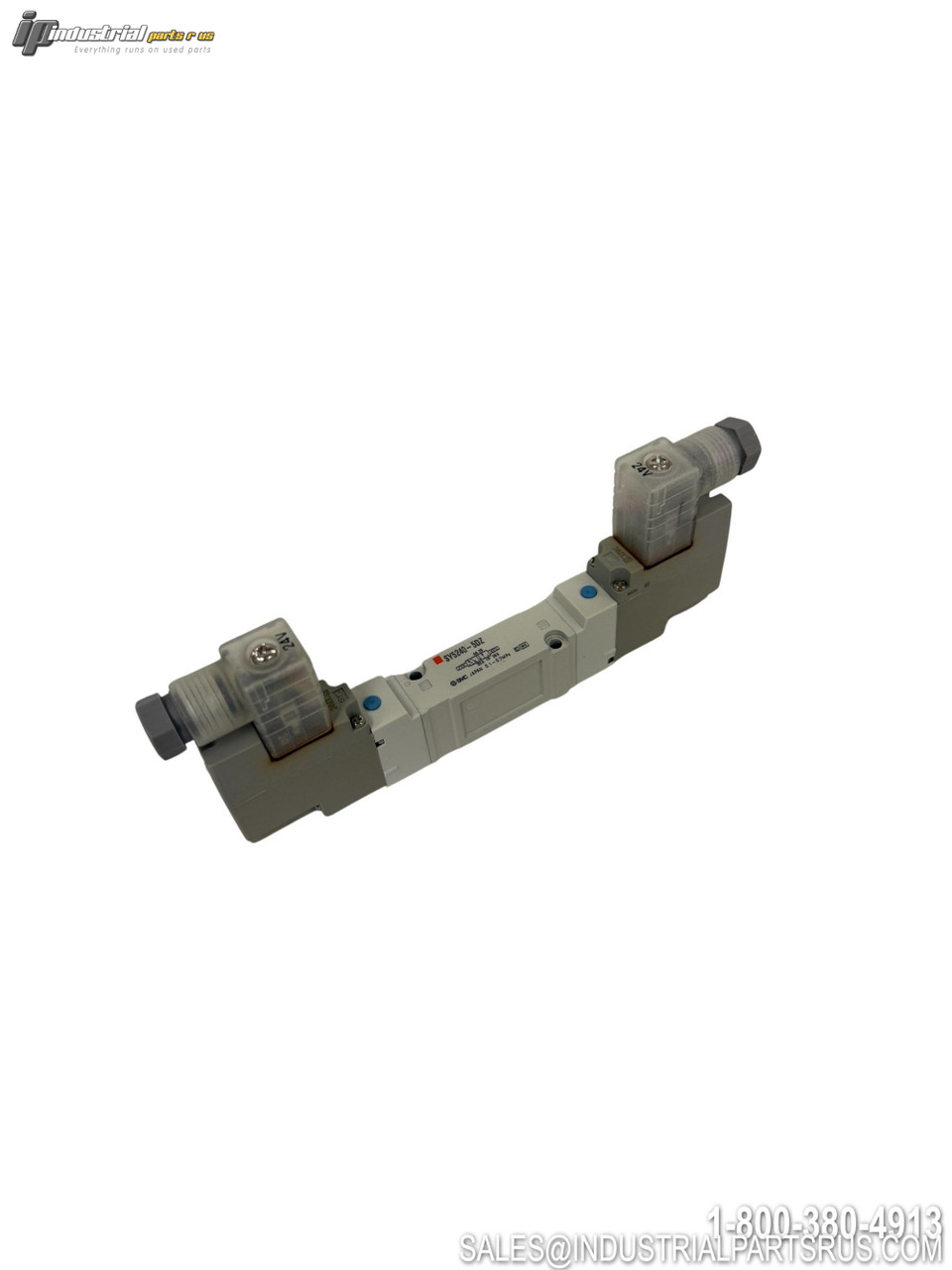

The SMC SY5240-5DZ is a professional 5-port solenoid valve from the SY5000 series featuring double solenoid actuation and internal pilot operation. This valve is designed for pneumatic automation applications with improved flow performance and reliability, featuring aluminum body construction and base mounted configuration.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | SY5240-5DZ |
| Series | SY5000 |
| Type | 5-Port Solenoid Valve |
| Actuation | 2-Position Double Solenoid |
| Pilot Type | Internal Pilot |
| Coil Voltage | 24 VDC |
| Body Material | Aluminum |
| Media Type | Air |
| Operating Pressure (Internal Pilot) | 0.1 - 0.7 MPa |
| Operating Pressure (External Pilot) | -100kPa to 0.7MPa |
| Flow Rate | 5.93 CFM |
| Cv (Base Mounted) | 0.7 |
| Power Consumption | 0.1 W |
| Response Time | 32ms or less |
| Ambient Temperature | 50°C |
| Number of Ports | 5 |
| Mounting Type | Base Mounted |
| Terminal Type | DIN Terminal w/Connector |
| Manual Override | Non-locking Push Style |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Manufacturer SMC
Part Number SY5240-5DZ
Shelf A-7
Model SY5240-5DZ
MPN SY5240-5DZ
Type Solenoid Valve
