Product Description

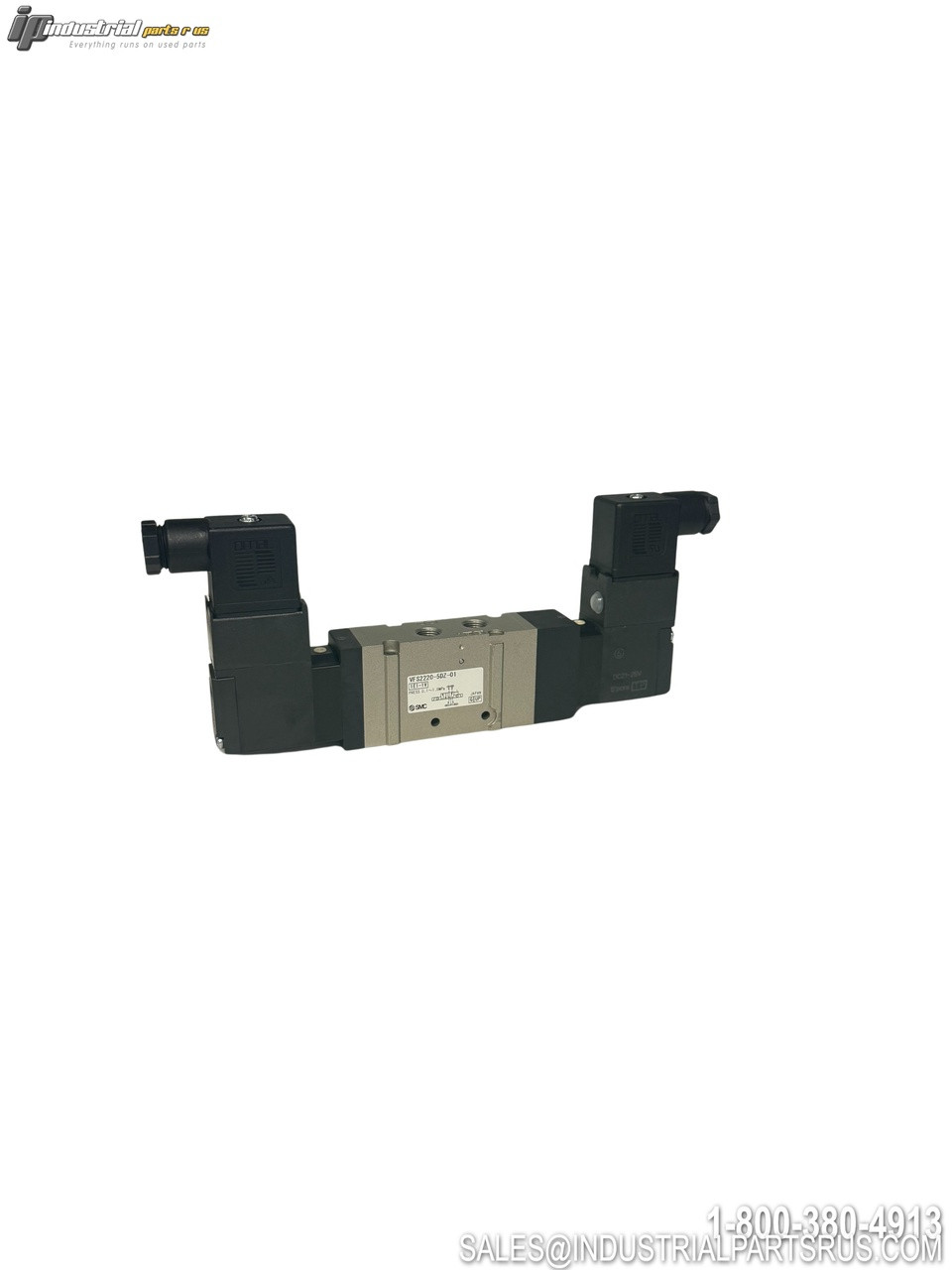

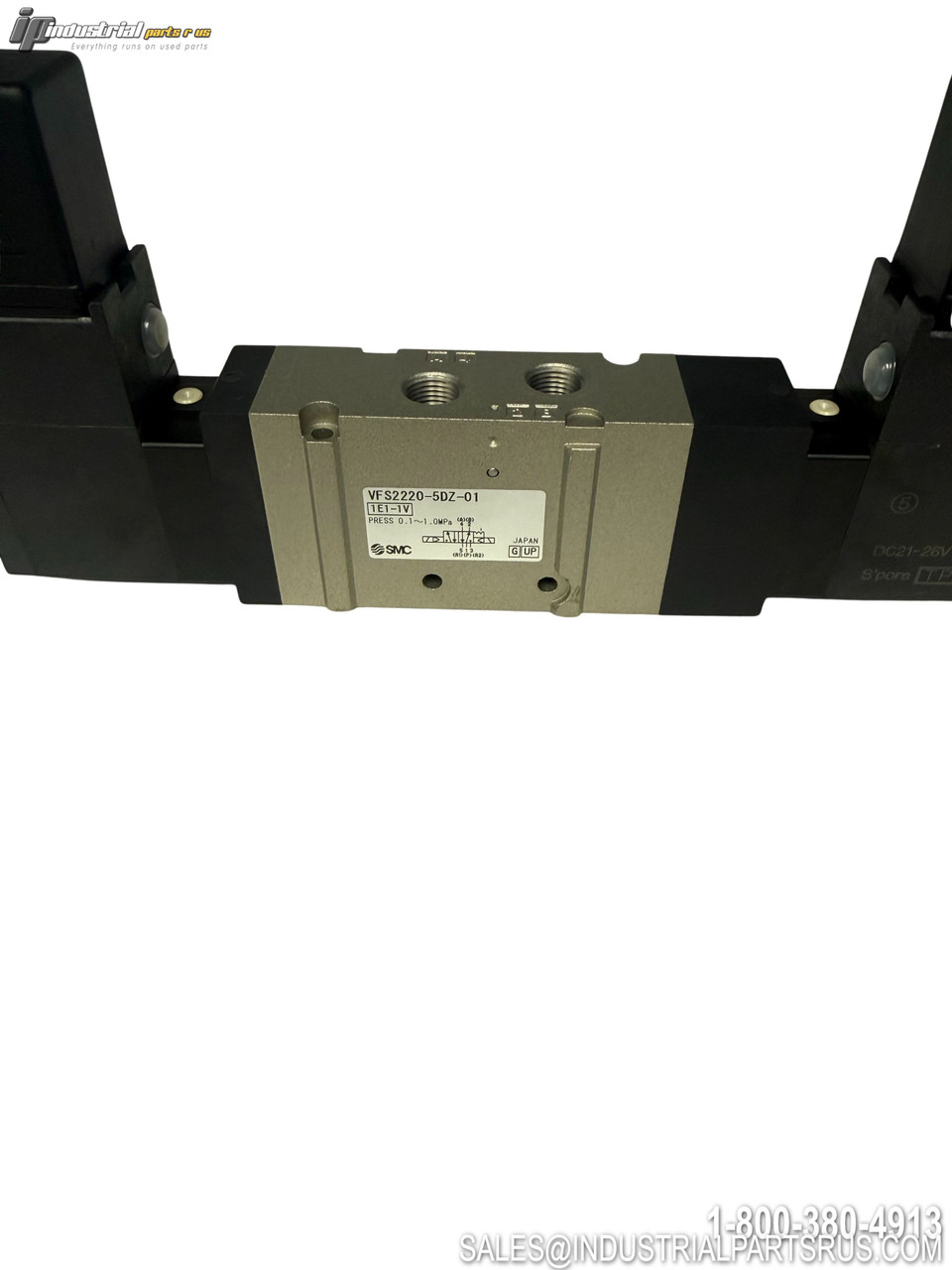

The SMC VFS2220-5DZ-01 is a 5-port pilot operated solenoid valve from the VFS2000 series, designed for pneumatic automation applications. This valve features metal seal construction and is part of SMC's comprehensive line of pilot solenoid valves with metal seals and body ported type manifolds. The VFS2000 series provides compact design with high flow capacity of 1/4: C: 3.4 dm3/(s·bar) and low power consumption of 1.8 W DC.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | VFS2220-5DZ-01 |
| Series | VFS2000 |
| Port Configuration | 5 Port |
| Operation Type | Pilot Operated |
| Actuation | 2 Position Double |
| Coil Voltage | 24VDC |
| Port Size | 1/4" |
| Thread Type | Rc (PT) |
| Electrical Entry | DIN Terminal |
| Pilot Type | Internal Pilot |
| Manual Override | Non-locking Push Type (Flush) |
| Body Type | Body Ported Individual Exhaust |
| Seal Type | Metal Seal |
| Maximum Operating Pressure | 9.9 kgf/cm² (0.97 MPa) |
| Operating Temperature | -10 to 60°C |
| Power Consumption | 1.8W DC |
| Flow Capacity | C: 3.4 dm³/(s·bar) |
| Light/Surge Suppressor | With Light/Surge Voltage Suppressor |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture Japan
GTIN 679523686208
Manufacturer SMC
Part Number VFS2220-5DZ-01
Shelf A-18
Model VFS2220-5DZ-01
MPN VFS2220-5DZ-01
Type Solenoid Valve
