Product Description

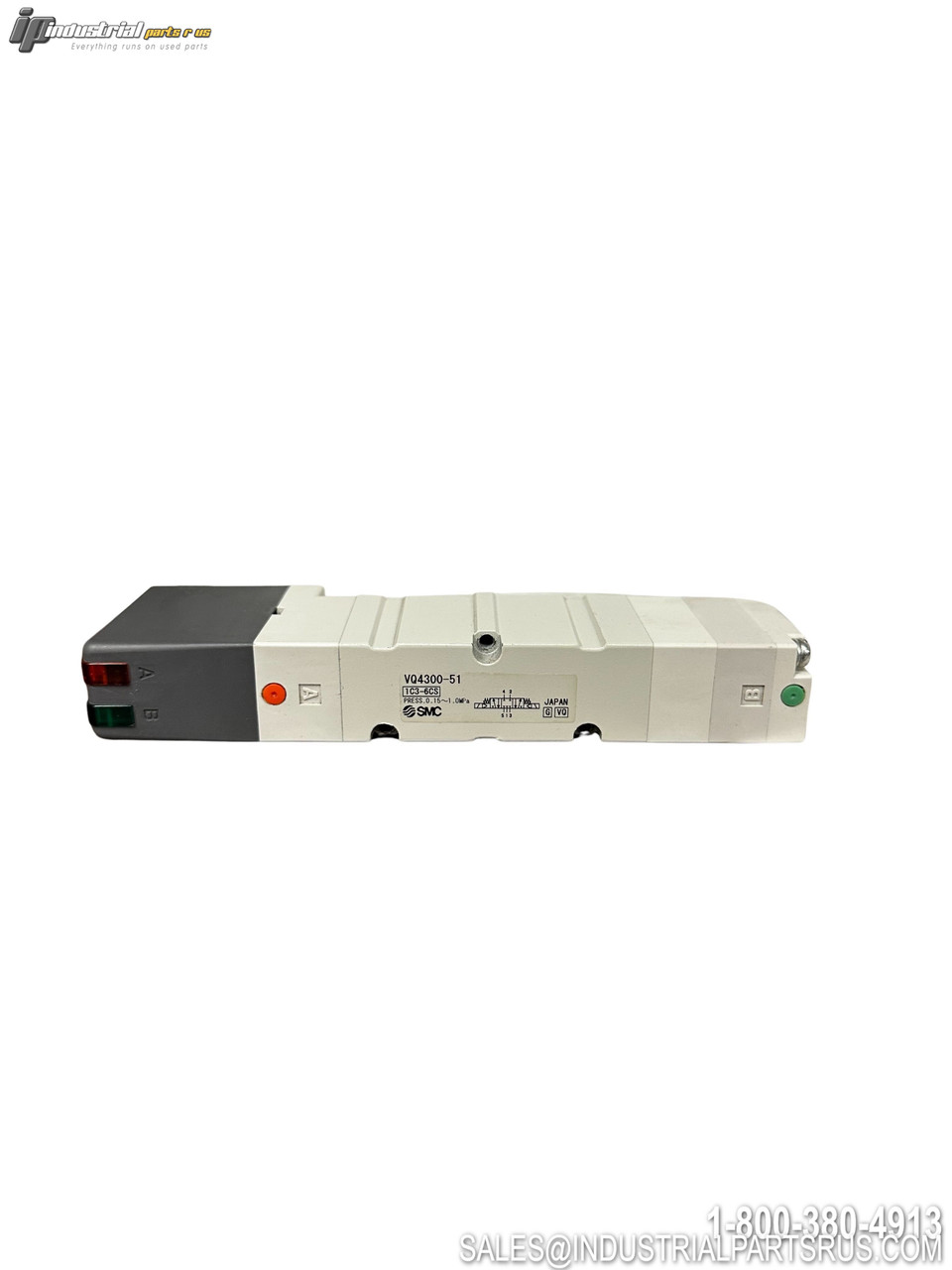

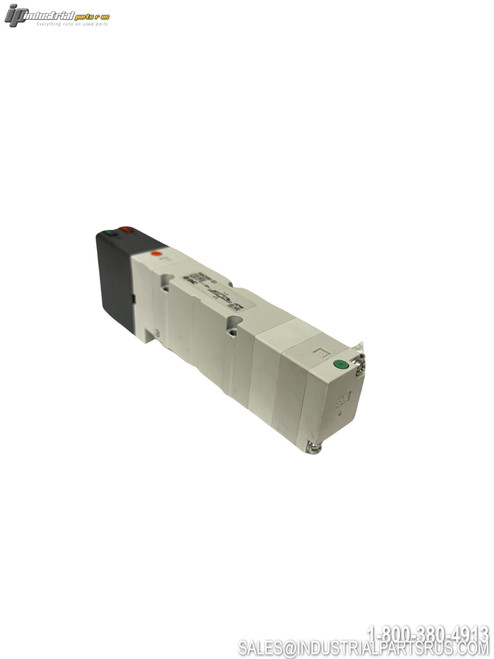

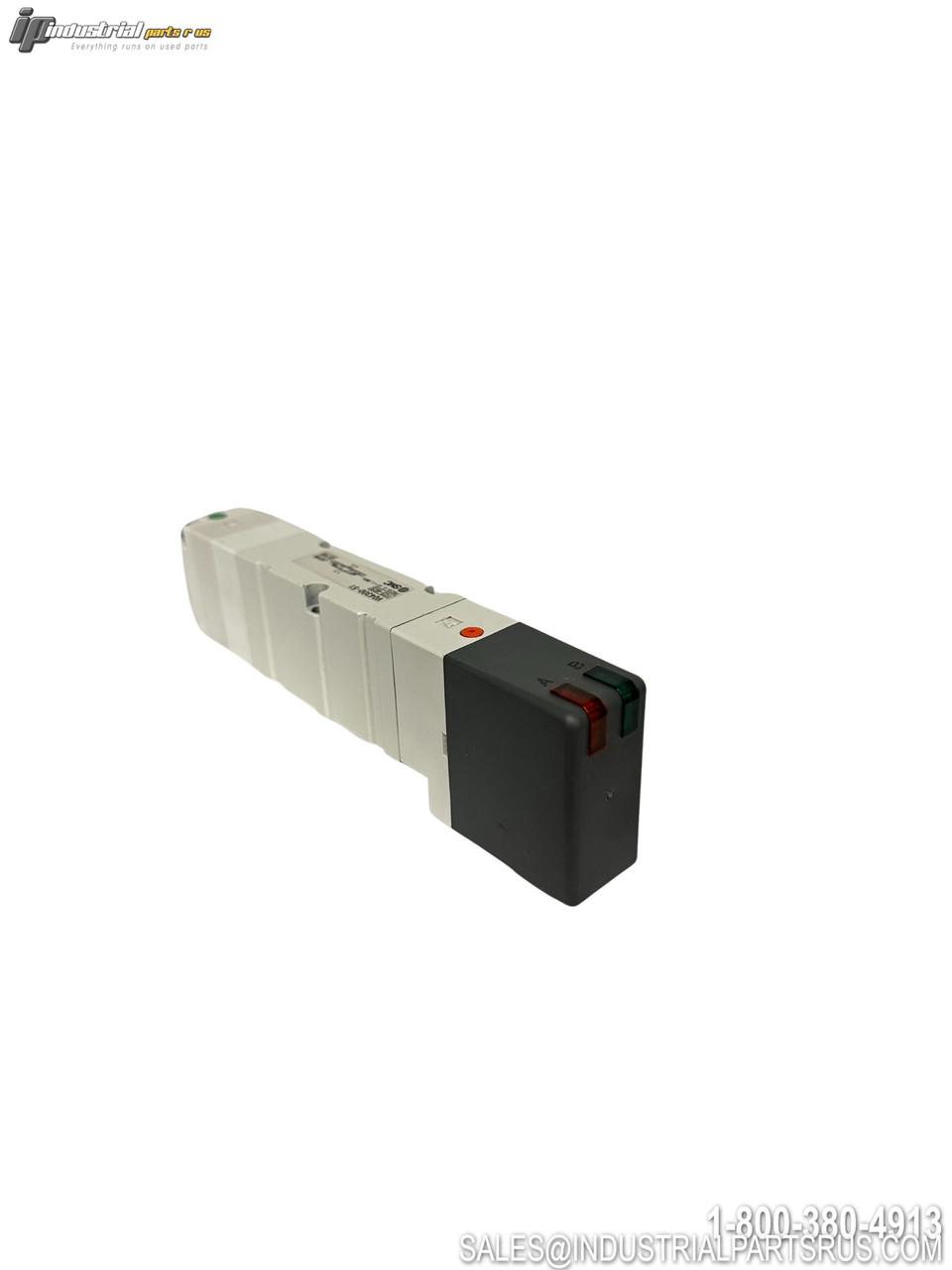

The SMC VQ4300-51 is a high-performance 5-port solenoid valve from the VQ4000 series designed for pneumatic automation applications. This base-mounted valve features a 3-position closed center configuration with metal seal construction for reliable operation and long service life up to 100 million cycles.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SMC |
| Model/Part Number | VQ4300-51 |
| Series | VQ4000 |
| Type | Solenoid Valve |
| Number of Ports | 5 |
| Configuration | 3 Position Closed Center |
| Coil Voltage | 24VDC |
| Power Consumption | 0.95W |
| Operating Pressure Range | 0.15 - 1.0 MPa |
| Flow Rate (Cv) | 1.5/1.6 |
| Media | Air and Inert Gas |
| Seal Type | Metal Seal |
| Mount Type | Base Mounted |
| Actuator Type | Plug-In |
| Body Material | Die Cast Aluminum |
| Thread Type | RC |
| Operating Temperature Range | -10 to 55°C |
| Enclosure Rating | IP65 Dust-Proof |
| Manual Override | Non-locking Push Type |
| Light/Surge Suppressor | Yes |
| Cylinder Capacity | Up to ø160 |
| Service Life | 100 Million Cycles |
| Dimensions | 179mm L x 78.8mm H |
| Weight | 0.63 lbs |
