Product Description

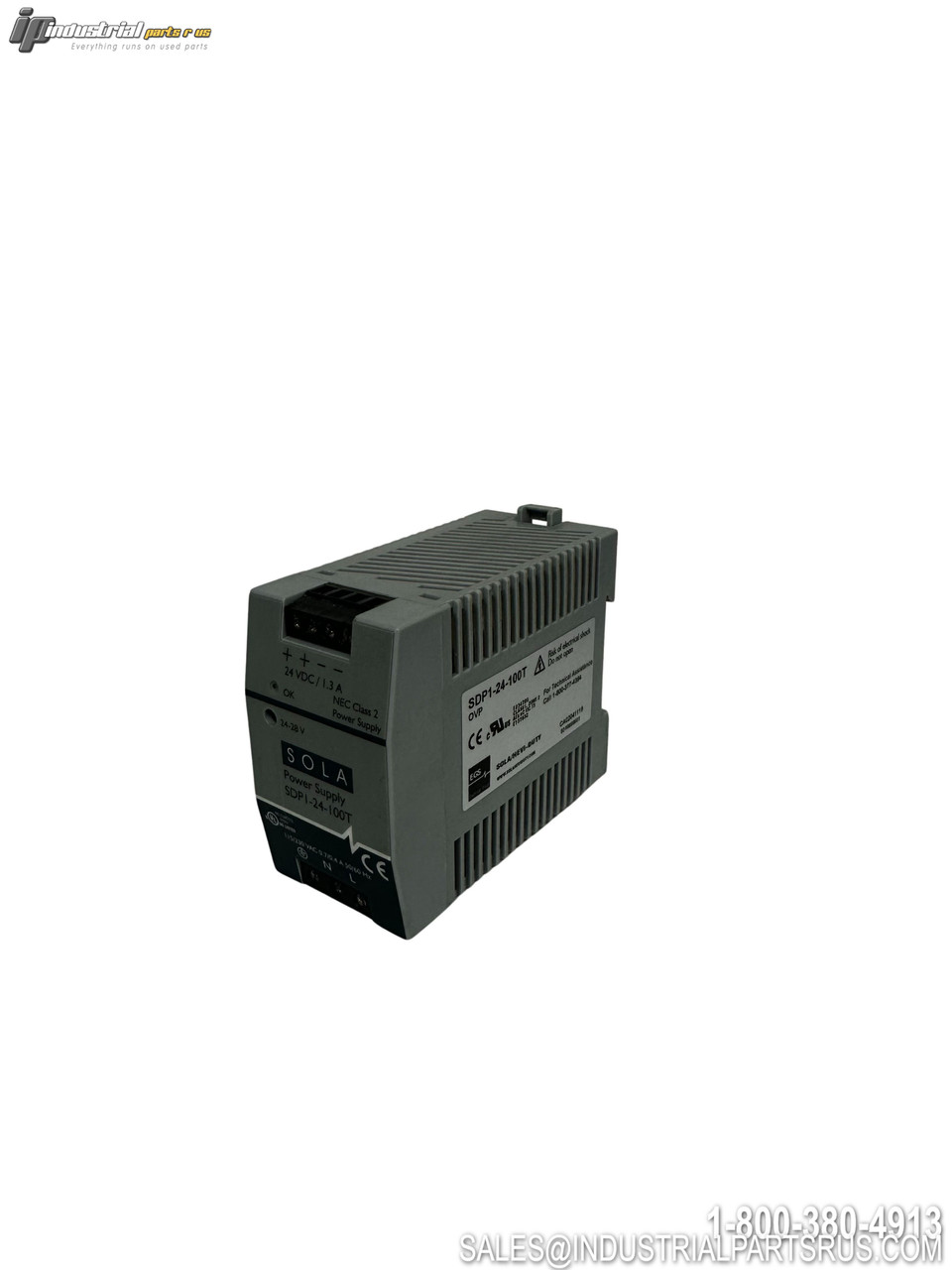

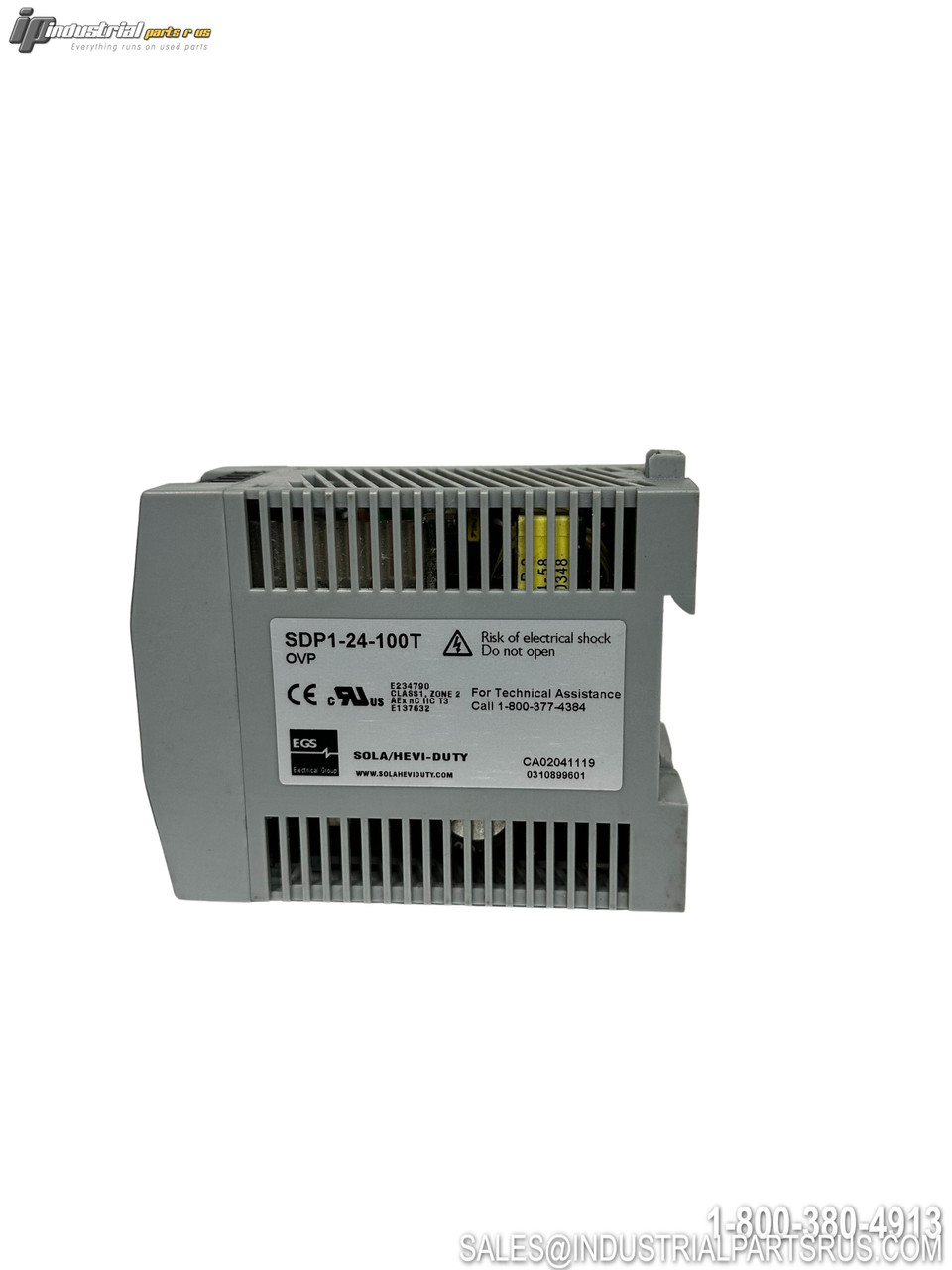

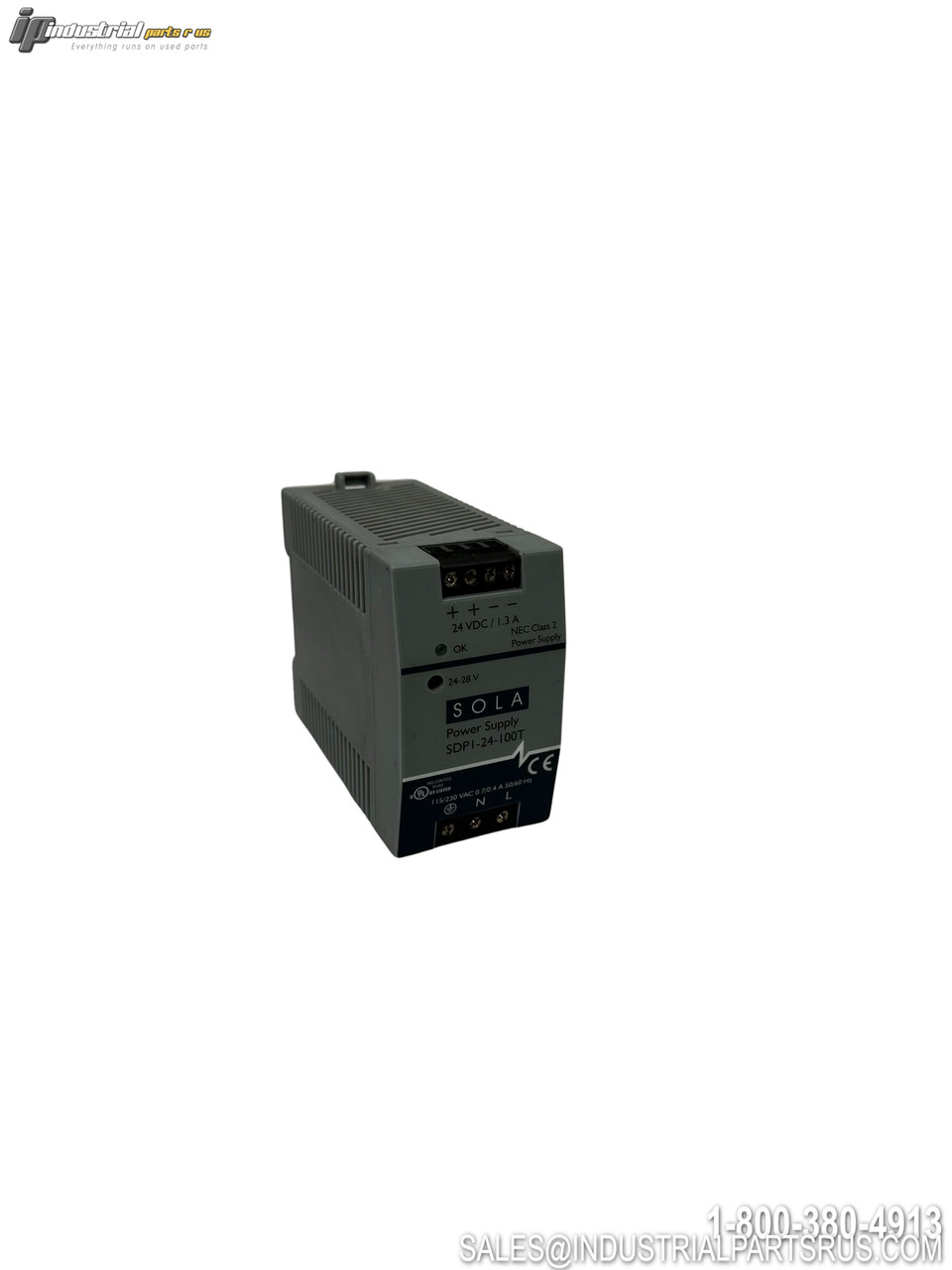

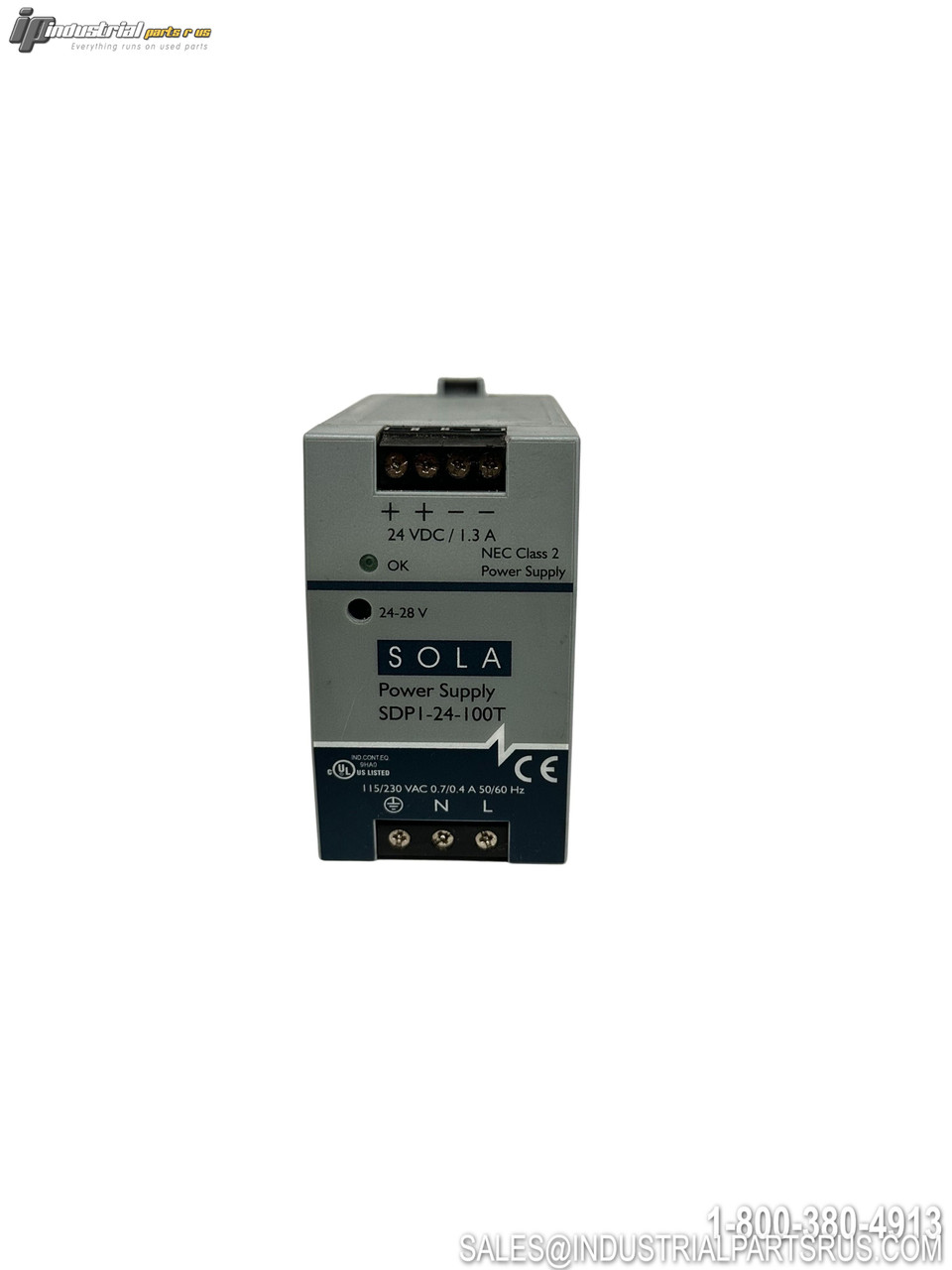

The SOLA/HEVI-DUTY SDP1-24-100T is an industrial-grade switching power supply from the SDP Low Power DIN Rail Series. This compact unit delivers reliable 24VDC power for industrial control applications with PowerBoost overload circuitry for demanding loads like motors and solenoids.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | SOLA/HEVI-DUTY |
| Model/Part Number | SDP1-24-100T |
| Series | SDP |
| Power Rating | 30W |
| Maximum Power | 36.4W |
| Input Voltage | 85-264VAC |
| Input Frequency | 43-67Hz |
| Maximum Input Current | 0.25A |
| Output Voltage | 24-28VDC |
| Output Current | 1.3A |
| Phase | Single |
| Mounting Type | DIN Rail |
| Enclosure Type | Plastic Case |
| Color | Gray |
| Height | 2.95 in |
| Depth | 3.58 in |
| Width | 1.77 in |
| Connection Type | Screw Terminal |
| Cooling | Natural Convection |
| Number of Outlets | 1 |
| Features | Adjustable Output, PowerBoost Overload Protection, DC Indicator, Front Panel Adjustment |
| Operating Temperature | -10°C to 70°C |
| UPC | 783472151615 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Sola/Hevi-Duty
Enclosure Type Plastic Case
Part Number SDP1-24-100T
Shelf K-45
Model SDP1-24-100T
MPN SDP1-24-100T
Type Switching Power Supply
