Product Description

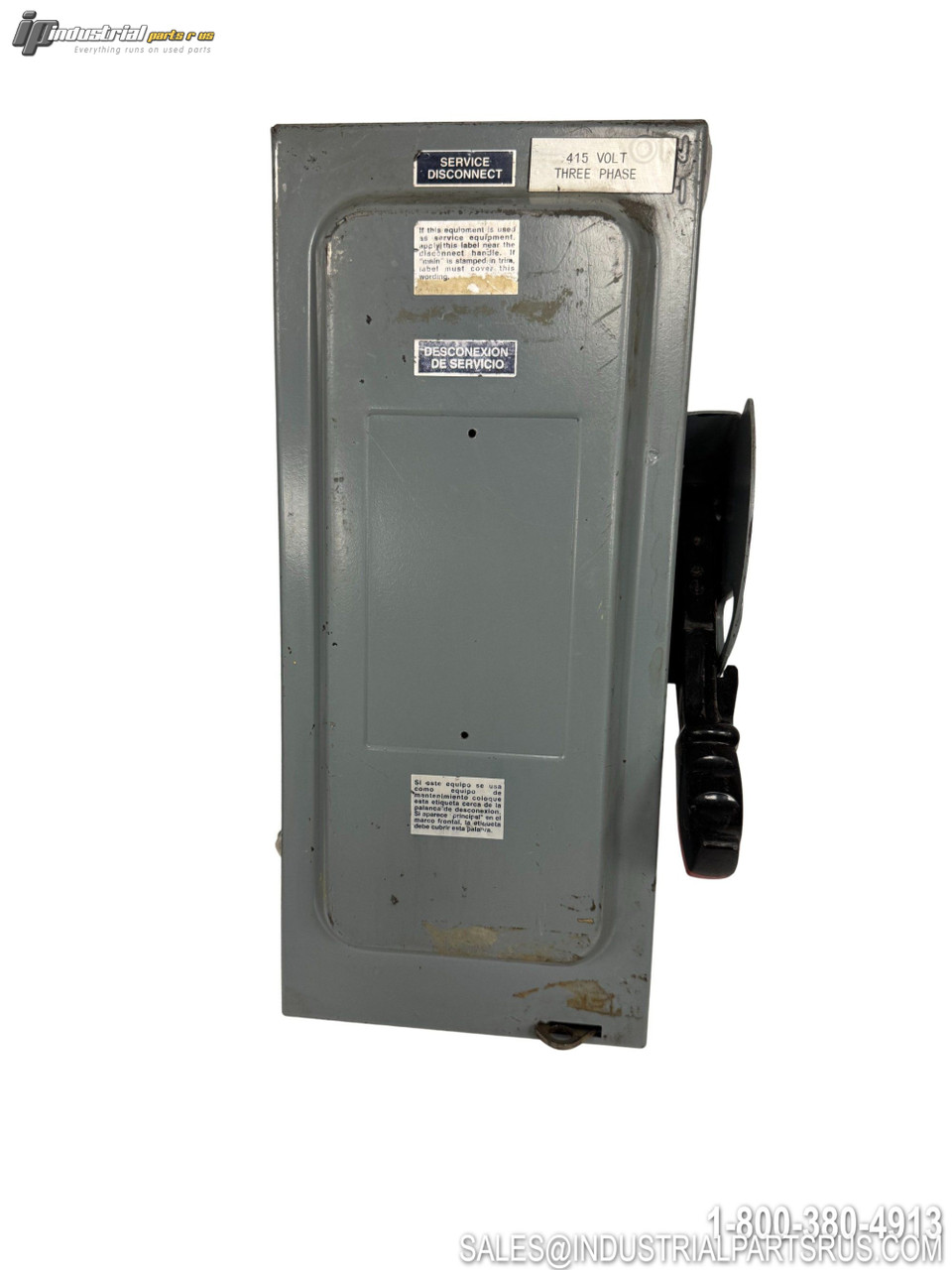

The Square D H361 is a heavy duty fusible safety switch designed for commercial and industrial applications requiring maximum performance and continuity of service. This 3-pole, 30-amp switch features a quick-make, quick-break operating mechanism with dual cover interlock and color-coded indicator handle. The unit provides over-current and short-circuit protection when equipped with appropriate fuses.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Square D |
| Model/Part Number | H361 |
| Type | Fusible Disconnect Switch |
| Ampere Rating | 30A |
| Voltage Rating | 600 VAC/DC |
| Number of Poles | 3 |
| Wire Configuration | 3 Wire |
| NEMA Enclosure Rating | NEMA 1 |
| Short Circuit Rating | 10kA (Class H/K), 200kA (Class R/J/L) |
| Fuse Classes Accepted | H, K, R, J, L |
| Wire Size Range | 14-6 AWG Copper, 12-6 AWG Aluminum |
| Enclosure Material | Steel |
| Mounting Type | Surface Mount |
| Terminal Type | Mechanical Lugs |
| Dimensions (H x W x D) | 14.6" x 7.55" x 4.87" |
| Weight | 8 lbs |
| Switch Action | Single Throw |
| Neutral Bar | None |
| UL Listed | Yes |
| Series | H3 Series |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Manufacturer Square D
Enclosure Type NEMA 1
Part Number H361
Shelf J-20
Model H361
MPN H361
Type Disconnect
