Product Description

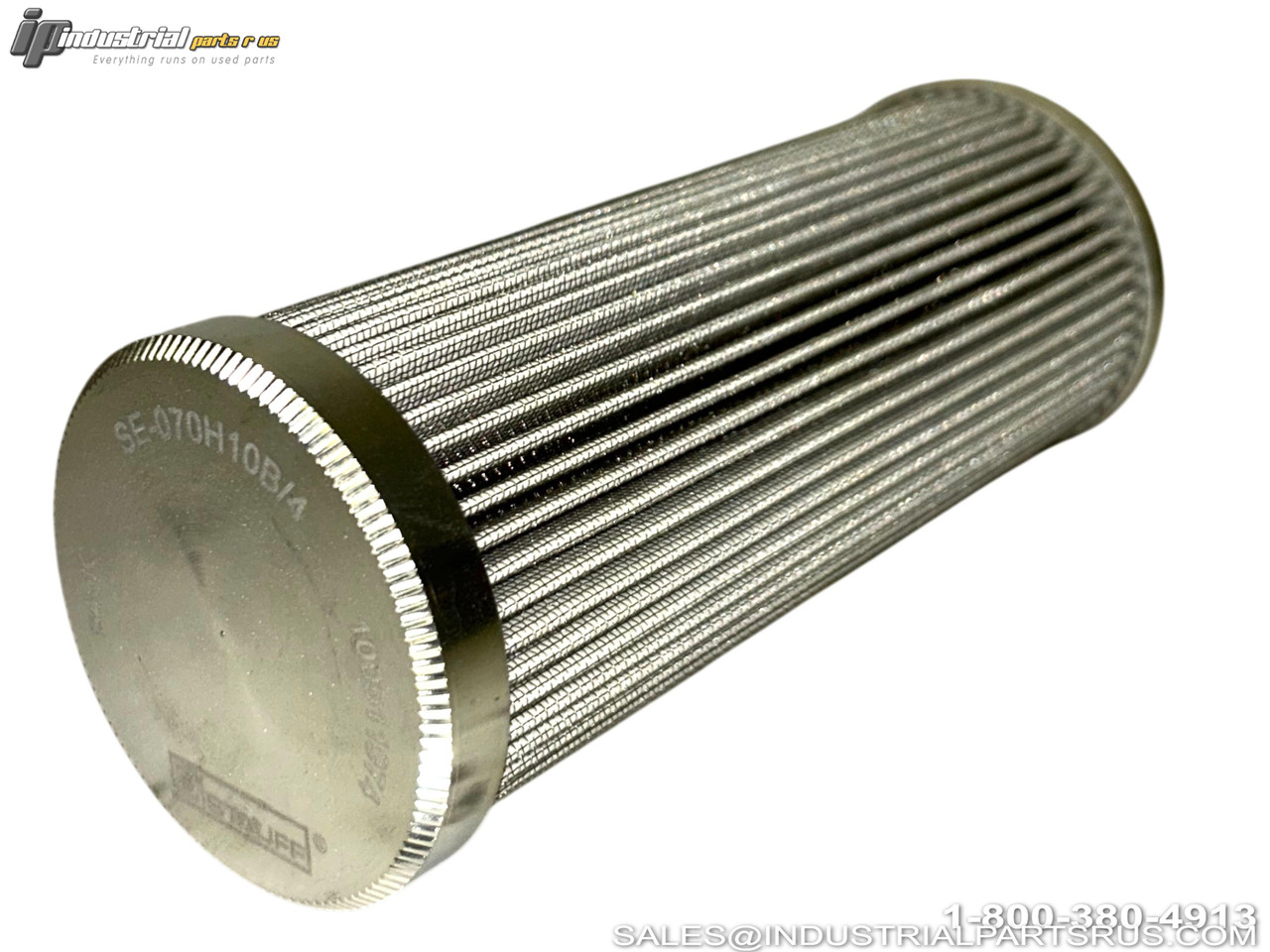

The Stauff SE-070-H-10-B/4 is a high-performance replacement hydraulic filter element designed for pressure filter applications. This element features inorganic glass fiber media for superior contaminant removal and is compatible with SF series filter housings including SF, SF-TM, SF-SM, SFZ, and SFA models.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Stauff |
| Model/Part Number | SE-070H10B/4 |
| Application | Hydraulic Pressure Filters |
| Micron Rating | 10 µm |
| Filter Material | Inorganic Glass Fiber |
| Outer Diameter | 69 mm |
| Inner Diameter | 34.2 mm |
| Length | 175 mm |
| Sealing Material | NBR (Buna-N) |
| Beta Ratio | >200 |
| Group Size | 070 |
| Flow Rate | 240 L/min (70 GPM) |
| Max Operating Pressure | 420 bar (6000 PSI) |
| Collapse Differential | 210 bar (3045 PSI) |

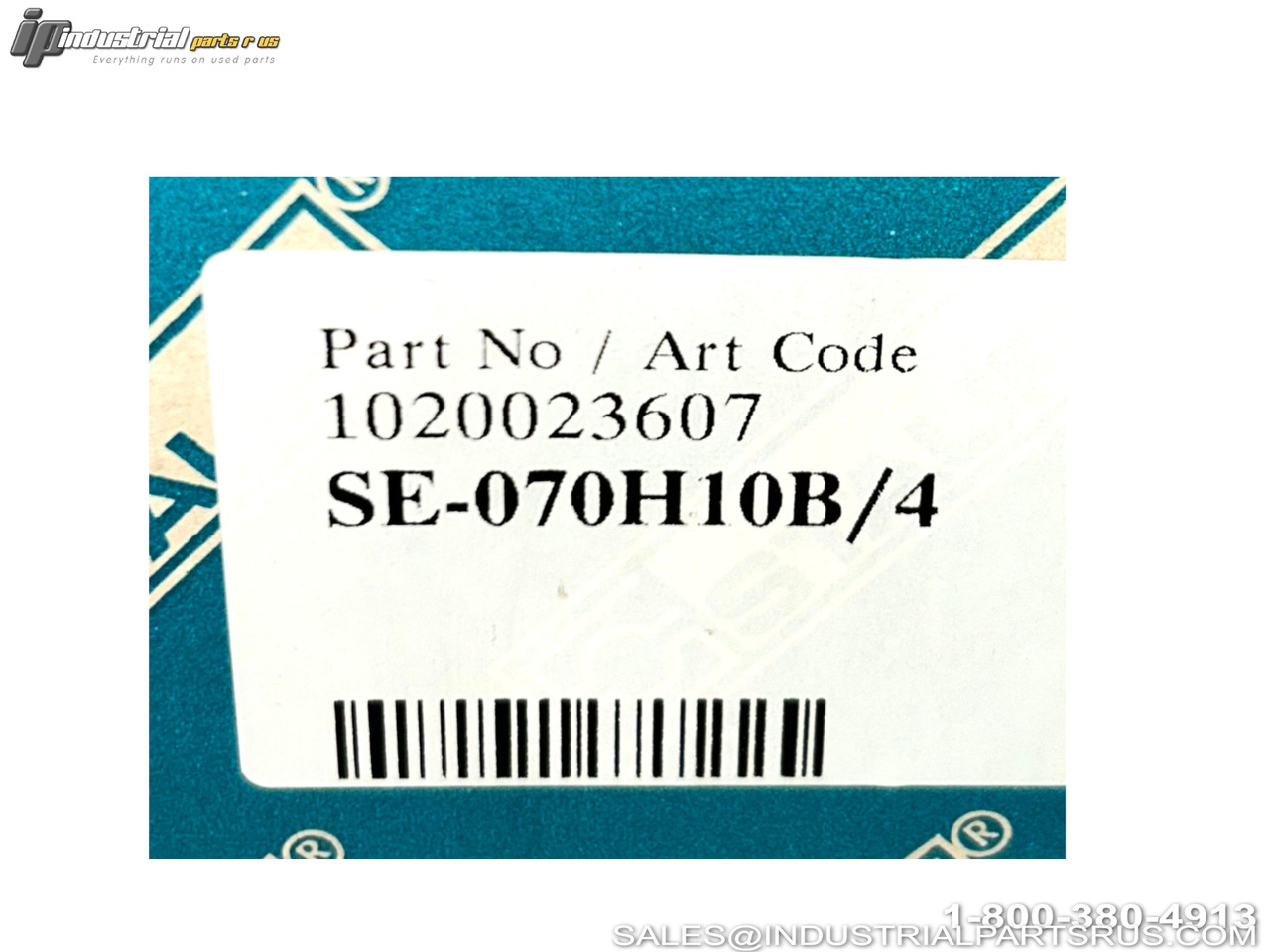

| Stauff Material Number | 1020023607 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686185
Manufacturer Stauff
Part Number SE-070H10B/4
Shelf K-49
Model SE-070H10B/4
MPN SE-070H10B/4
Type Hydraulic Filter Element
