Product Description

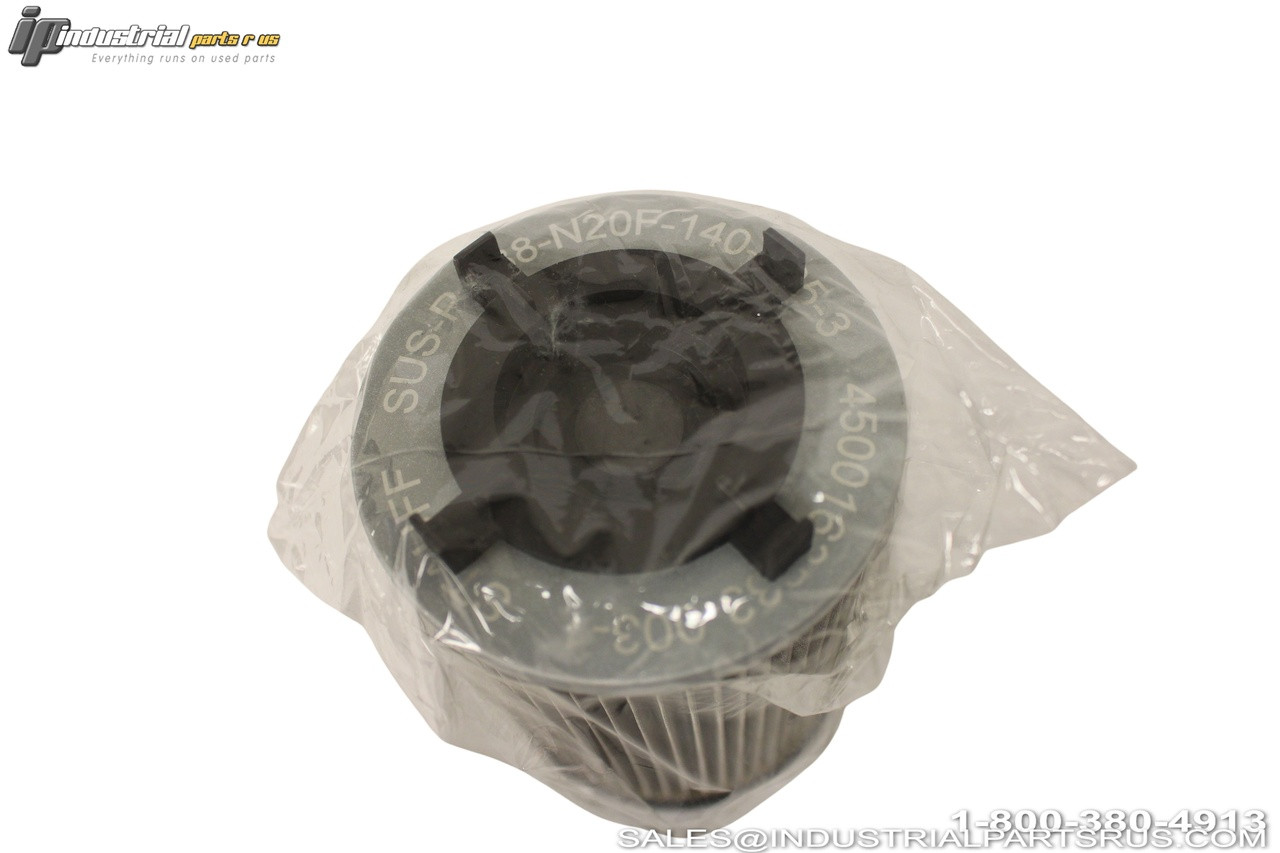

The STAUFF SUS-P-088-N20F-140-125-3 is a hydraulic suction strainer designed as an in-tank element for direct installation into pump suction lines. This unit features an integrated 3PSI bypass valve and polyamide end cap, providing reliable filtration for hydraulic systems while maintaining flow continuity when the filter element becomes clogged.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | STAUFF |
| Model/Part Number | SUS-P-088-N20F-140-125-3 |
| Product Type | Hydraulic Suction Strainer |
| Connection Thread | 1-1/4" FNPT |
| Threaded End Cap Material | Polyamide |
| Filter Material | Stainless Steel Mesh |
| Micron Rating | 125 Micron |
| Maximum Flow Rate | 16.9 GPM |
| Bypass Valve | 3PSI Integrated |
| Operating Temperature | -4°F to 212°F |
| Filter Area | 182 in² (1172 cm²) |
| Length | 140mm (5.51") |
| Outer Diameter | 88mm (3.46") |
| Inner Diameter | 85mm (3.35") |
| Media Compatibility | Mineral and Petroleum Based Hydraulic Fluids (HL and HLP) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686208
Application Hydraulic System
Manufacturer Stauff
Part Number SUS-P-088-N20F-140-125-3
Shelf K49
Model SUS-P-088-N20F-140-125-3
MPN SUS-P-088-N20F-140-125-3
Type Hydraulic Filter
