Product Description

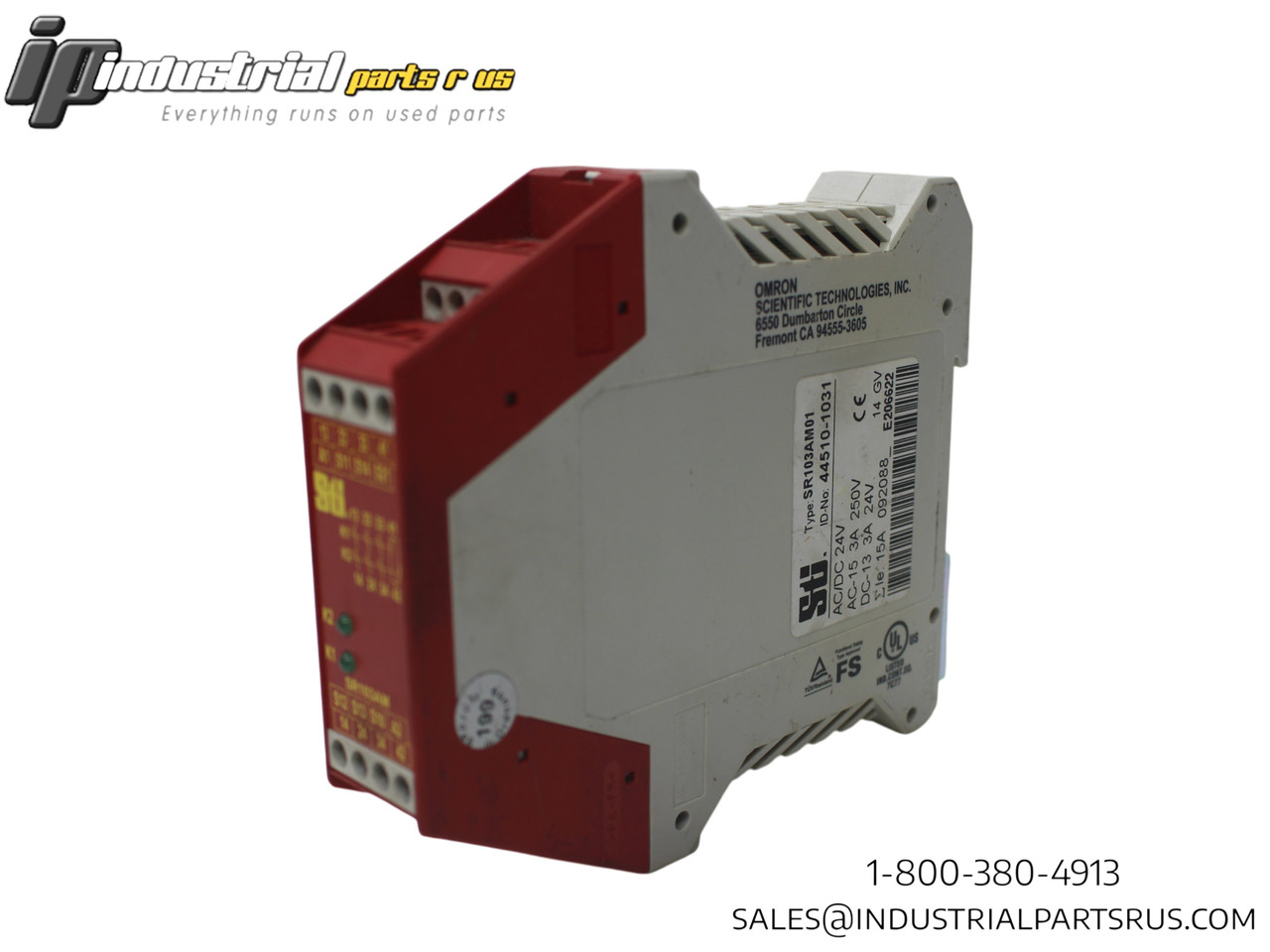

The STI SR103AM01 is a dual-channel safety monitoring relay designed for industrial safety applications. This relay provides 3 N/O outputs to route power to the coils of power contactors, plus 1 N/C auxiliary output for signaling purposes, with External Device Monitoring (EDM) provided with a N/C loop. It features DIN rail mounting and operates at 24VAC/DC supply voltage.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | STI |
| Model/Part Number | SR103AM01 |
| Product Type | Safety Relay |
| Coil Voltage | 24V AC/DC |
| Input Type | 1 N/C or 2 N/C or 2 solid state |
| Safety Outputs | 3 N/O |
| Auxiliary Output | 1 N/C |
| Contact Rating AC | 3A @ 230VAC (AC-15) |
| Contact Rating DC | 2A @ 24VDC (DC-13) |
| Power Consumption | Approx. 1 VA |
| Max Input Resistance | 800 Ohms per channel |
| Mounting Type | 35mm DIN Rail |
| Enclosure Rating | IP20 / IP40 / NEMA 1 |
| Operating Temperature | -15°C to +40°C |
| Reset Mode | Monitored manual or automatic/manual |
| Impulse Withstand Voltage | 2500V |
| Weight | 230g (8.1 oz) |
| Color | Red |
| Part Number (STI) | 44510-1031 |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
Country/Region of Manufacture United States
Amperage 3A
GTIN 679523686161
Current Rating 3A
Manufacturer STI
Part Number SR103AM01
Shelf F-19 Tub 2
Model SR103AM01
Coil Voltage 24V AC/DC
MPN SR103AM01
Type Safety Relay
