Product Description

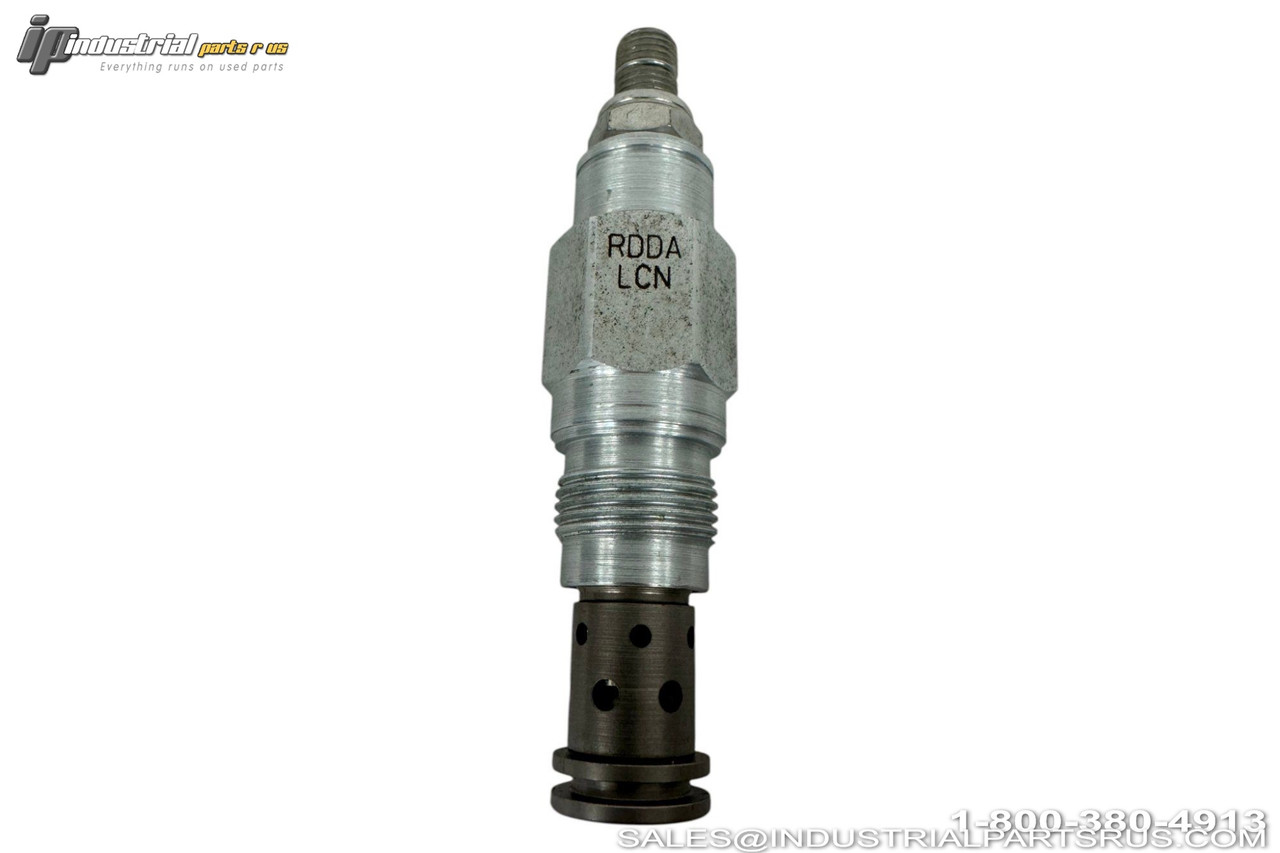

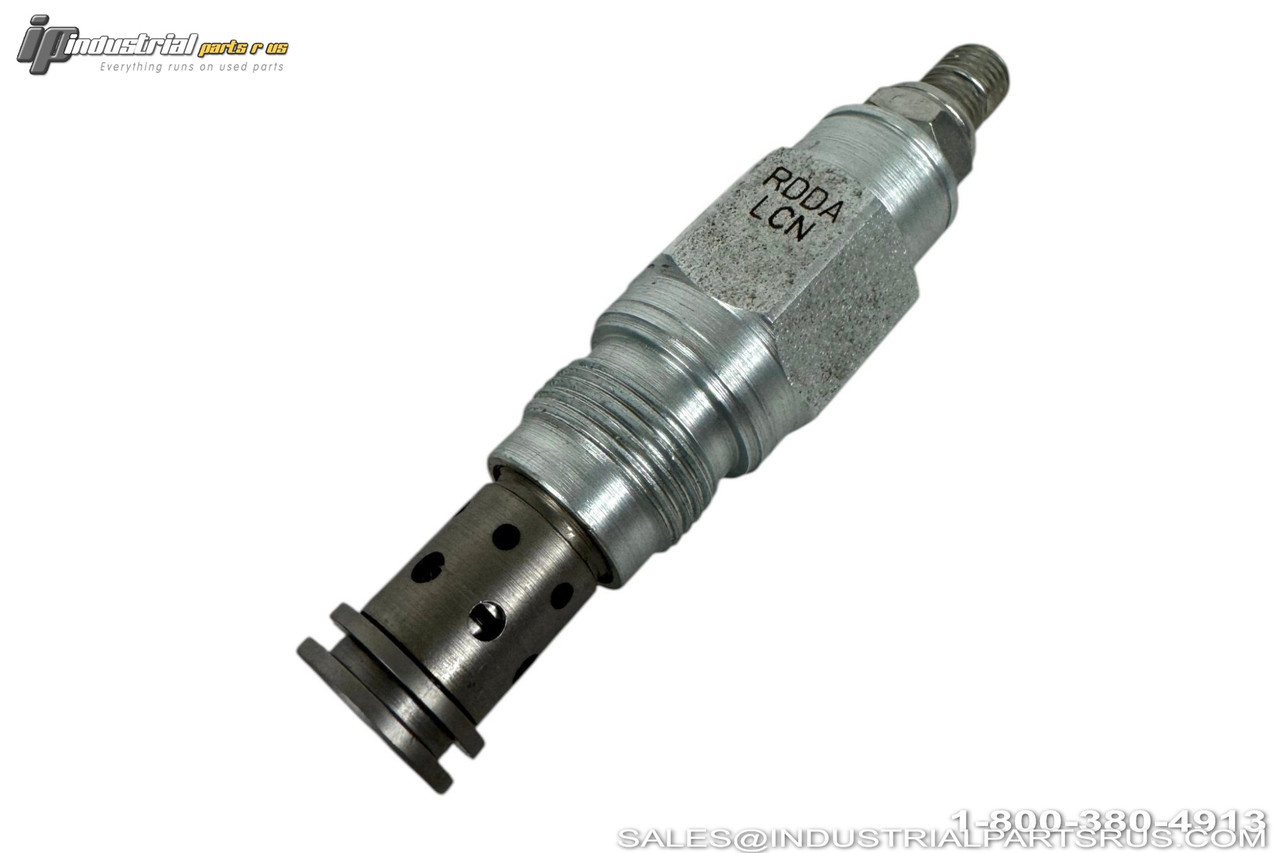

The Sun Hydraulics Rdda-lcn is a direct-acting relief cartridge valve designed to protect hydraulic components from pressure transients. This normally closed, pressure-limiting valve throttles flow to limit pressure rise when inlet pressure reaches the valve setting, providing smooth and quiet operation with essentially zero leakage.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Sun Hydraulics |
| Model/Part Number | Rdda-lcn |
| Equipment Type | Hydraulic Valve |
| Valve Type | Direct-Acting Relief |
| Capacity | 25 GPM (95 L/min) |
| Cavity | T-10A |
| Series | 1 |
| Adjustment Type | Standard Screw Adjustment |
| Pressure Range | 1000-6000 PSI (70-420 bar) |
| Standard Setting | 1000 PSI (70 bar) |
| Max Operating Pressure | 5000 PSI (350 bar) |
| Seal Material | Buna-N (NBR) |
| Body Material | Steel |
| Response Time | 2 ms (typical) |
| Max Valve Leakage | 10 drops/min (0.7 cc/min) |
| Oil Viscosity Range | 2.8-380 cSt |
| Contamination Level Max | 19/17/14 ISO 4406 |
| Installation Torque | 30-35 lbf-ft (41-47 Nm) |
| Weight | 0.37 lbs (190 g) |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Country/Region of Manufacture China
Equipment Type Hydraulic Valve
Manufacturer Sun Hydraulics
Part Number RDDA-LCN
Shelf K-55 box 2
Model RDDA-LCN
MPN RDDA-LCN
Type Hydraulic Valve
