Sunx NPS-C7 On/Off Input Sensor Controller, 100-240V AC, NEW

Product Description

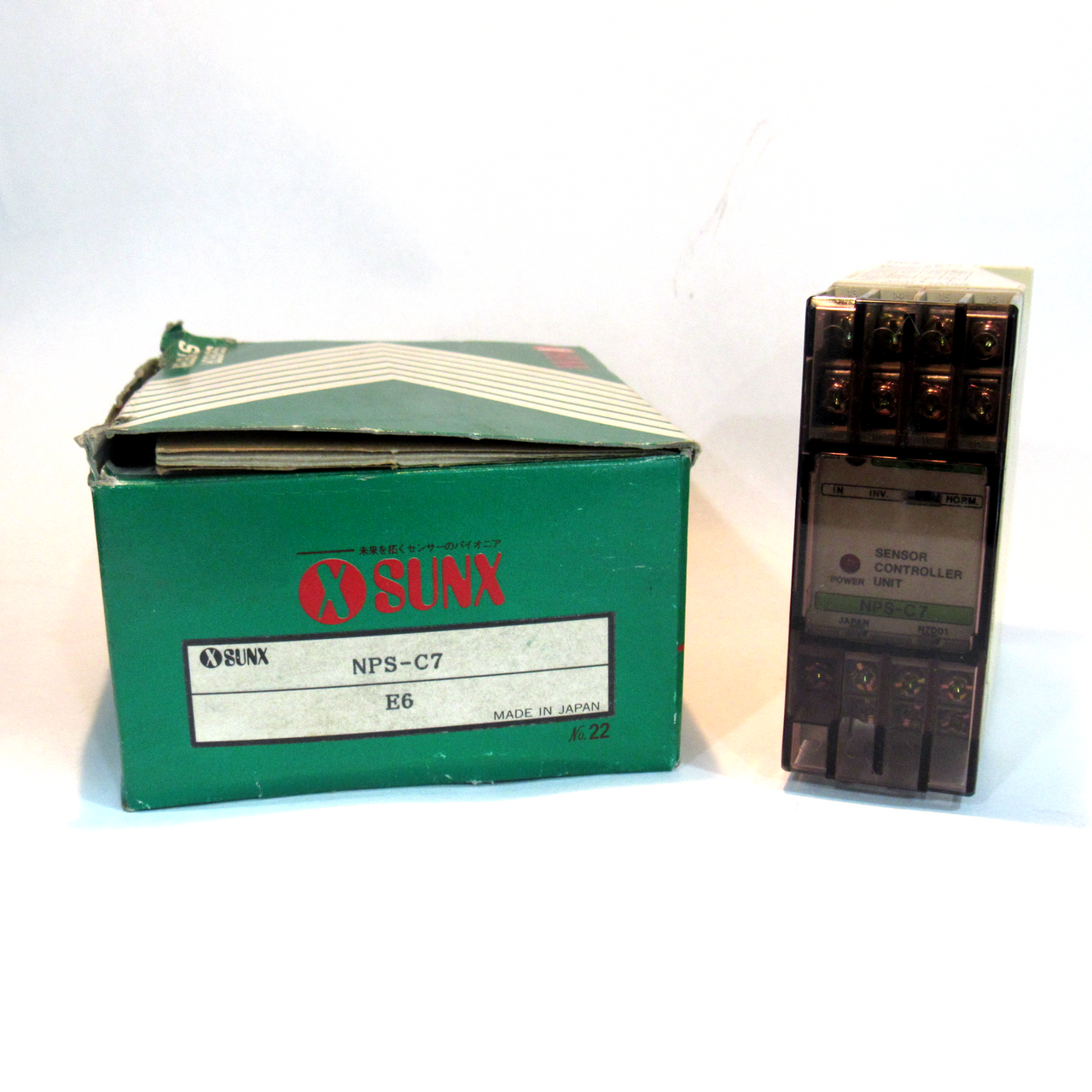

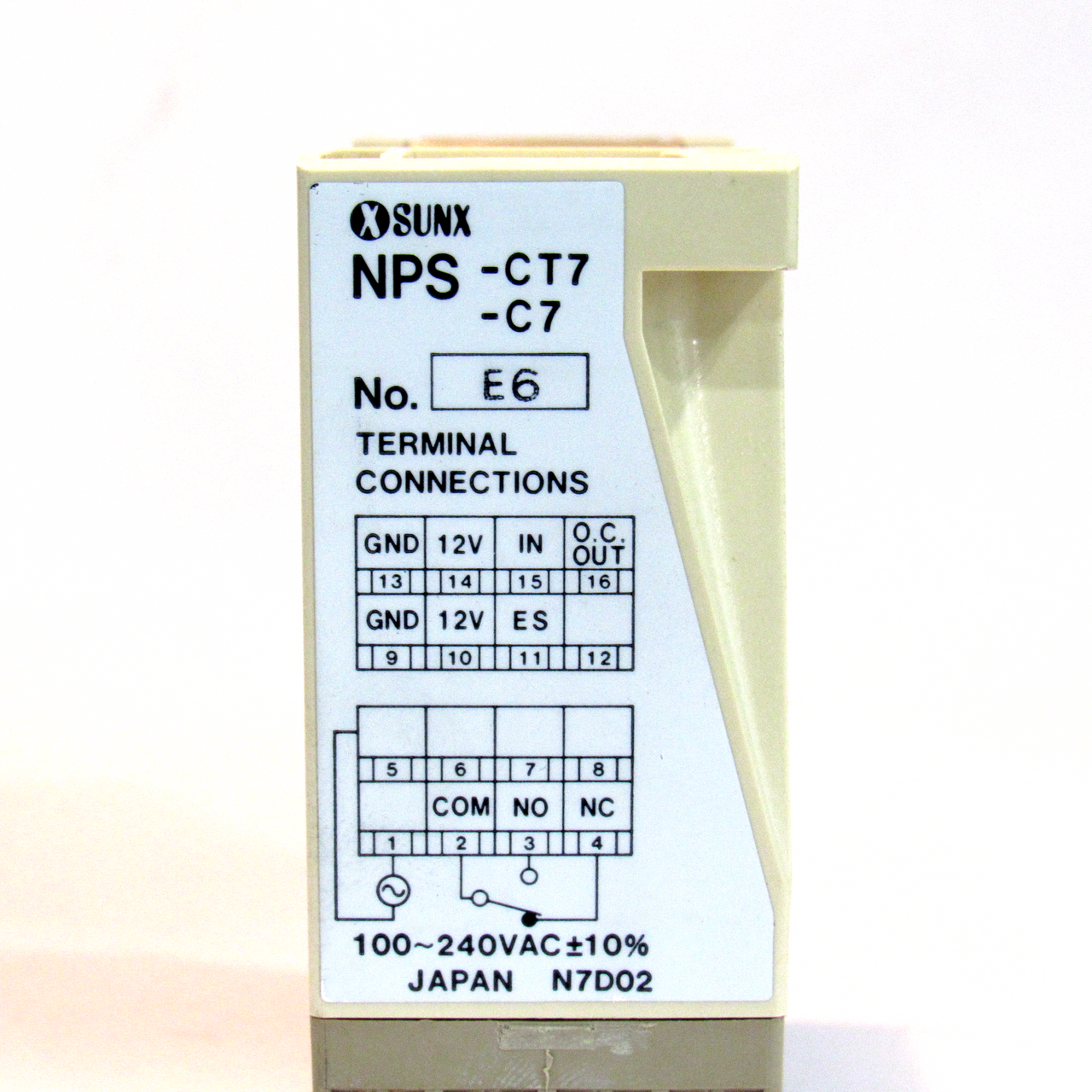

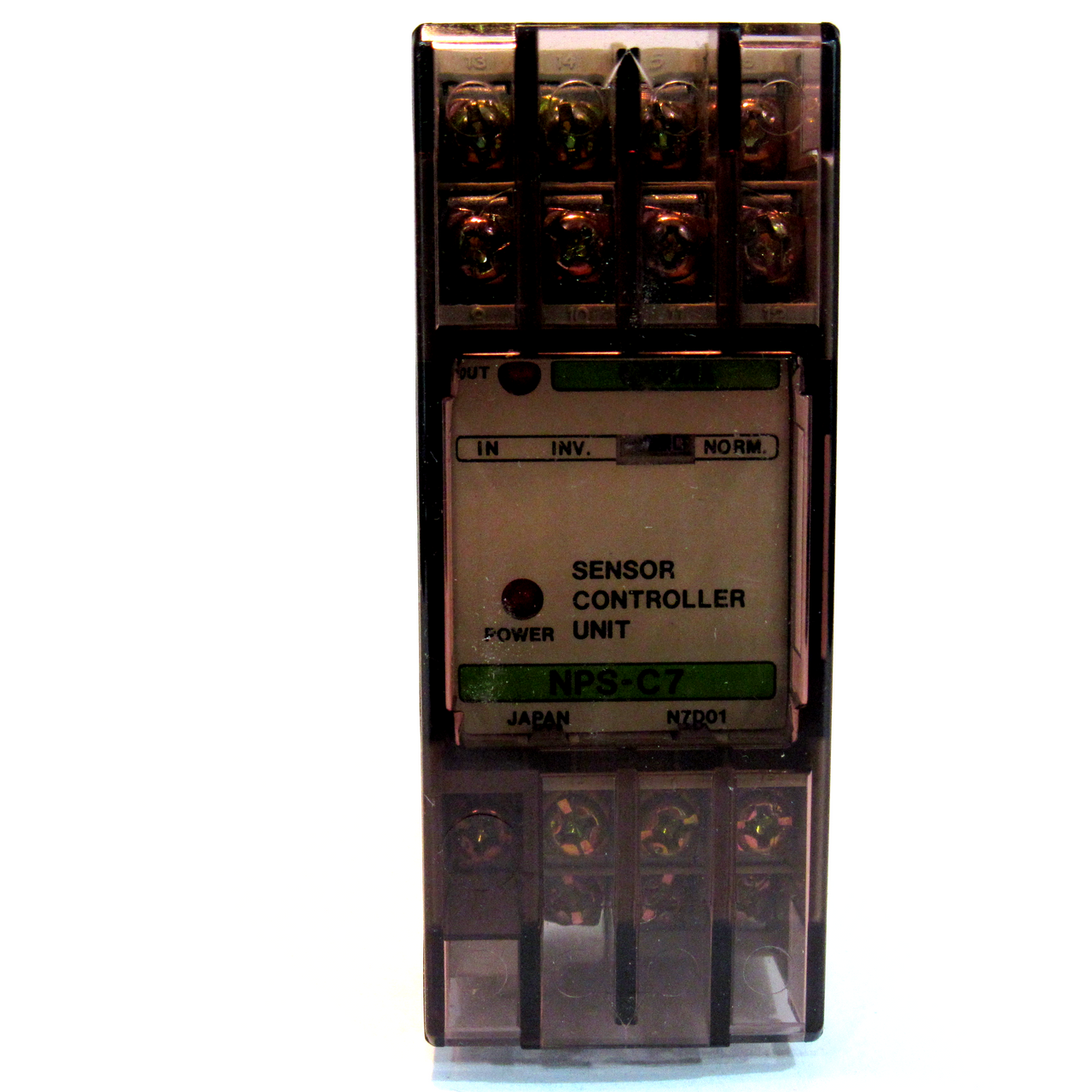

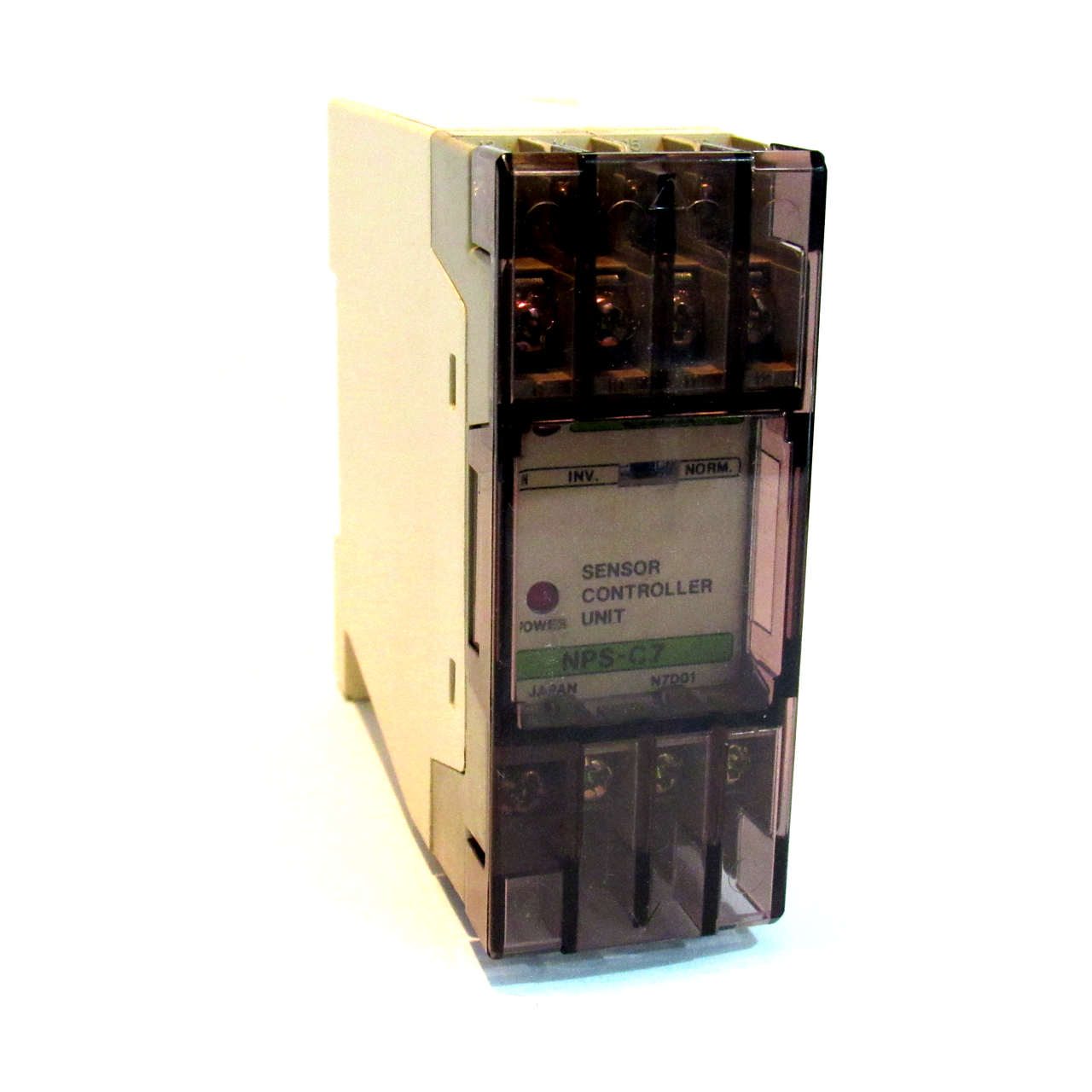

Sunx NPS-C7 On/Off Input Sensor Controller, 100-240V AC, NEW New, in Box. 30 Day warranty included! Product Number NPS-C7 Part Number NPS-C7 Connectable sensors Photoelectric sensor, inductive proximity sensor, etc., with NPN transistor output or relay output Supply voltage 100 to 240 V AC±10% Power consumption 6 VA or less Power supply for sensor : Voltage 12 V DC ± 10 % (incorporated with short-circuit protection) Power supply for sensor : Current 150 mA max. Output Relay contact 1c ・Switching capacity : 250 V 3 A AC (resistive load) ・Electrical life : 100,000 switching operations or more(rated load)(at 1,800 operations/hour) ・Mechanical life : 10 million switching operations or more(at 36,000 operations/hour) NPN open-collector transistor ・Maximum sink current : 100 mA or less ・Applied voltage : 30 V DC or less(between output and 0 V) ・Residual voltage : 1 V or less (at 100 mA sink current), 0.4 V or less (at 16 mA sink current) Output : Output operation Switchable normal operation or inverse operation Response time Relay contact: 10 ms approx., NPN open-collector transistor: 5 μs or less Indicators : Power Red LED (lights up when the power is ON) Indicators : Output Red LED (lights up when the output is ON) External synchronization function Gate trigger Environmental resistance : Ambient temperature -10 to +50 ℃ +14 to +122 ℉ (No dew condensation or icing allowed), Storage: -30 to +70 ℃ -22 to +158 ℉ Environmental resistance : Ambient humidity 35 to 85 % RH, Storage: 35 to 85 % RH Environmental resistance : Voltage withstandability 1,500 V AC for one min. between the power and the output terminals Environmental resistance : Insulation resistance 10 MΩ, or more, with 500 V DC megger between the power and the output terminals Environmental resistance : Vibration resistance 10 to 55 Hz frequency, 0.75 mm 0.030 in double amplitude in X, Y and Z directions for two hours each Environmental resistance : Shock resistance 100 m/s2 acceleration (10 G approx.) in X, Y and Z directions two times each
