Product Description

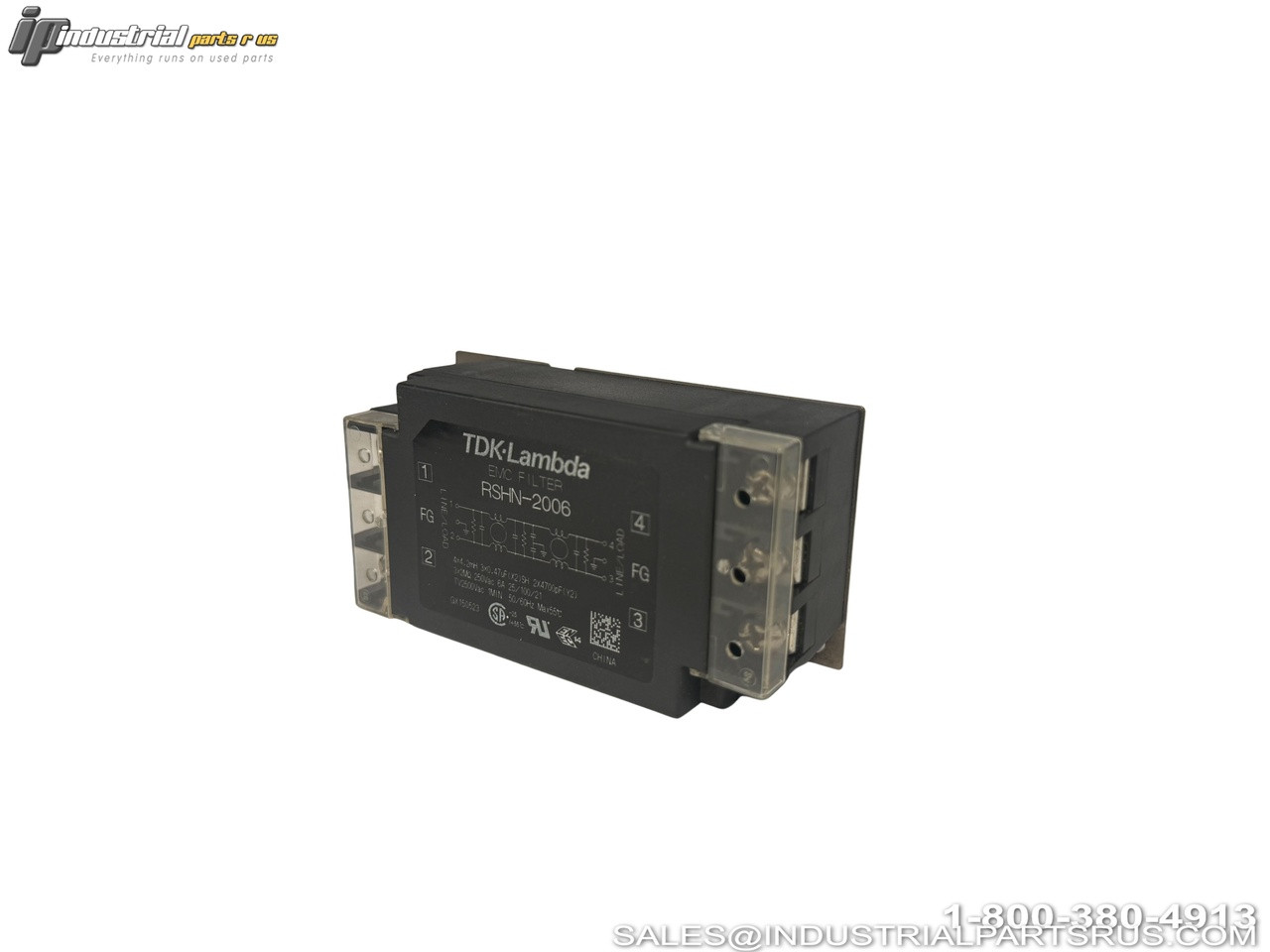

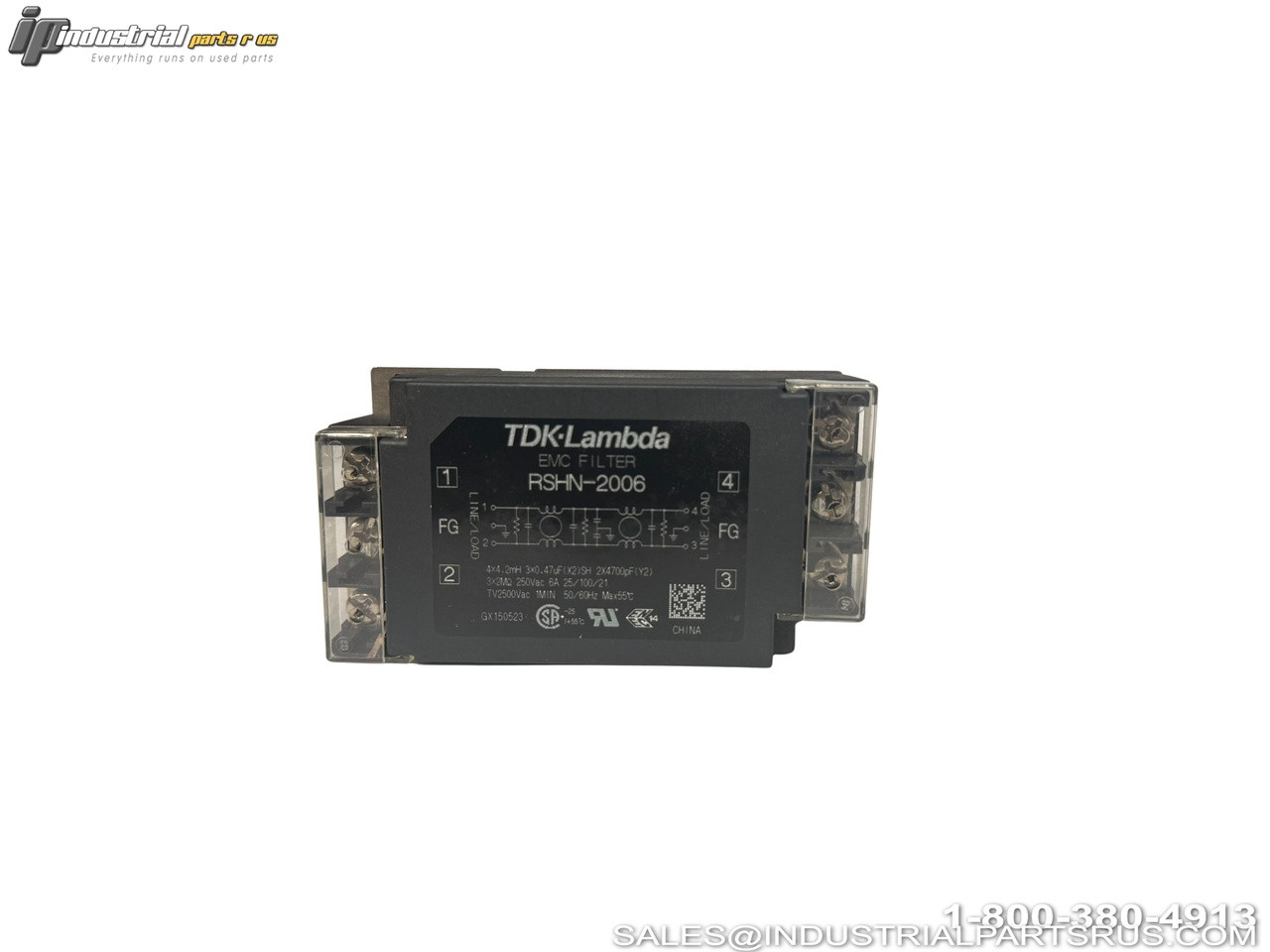

The TDK-Lambda RSHN-2006 is a single-phase EMC/EMI power line filter designed to provide high attenuation electromagnetic interference filtering for general purpose applications. This filter features terminal block connections and flange mounting for secure installation in industrial environments.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TDK-Lambda |
| Model/Part Number | RSHN-2006 |
| Type | Power Line Filter |
| Series | RSHN |
| Current Rating | 6A |
| Voltage Rating (AC) | 250VAC |
| Voltage Rating (DC) | 250VDC |
| Number of Phases | Single Phase |
| Number of Stages | Two Stage |
| Operating Frequency | 60Hz |
| Operating Temperature Range | -25°C to 85°C |
| Termination Type | Terminal Block |

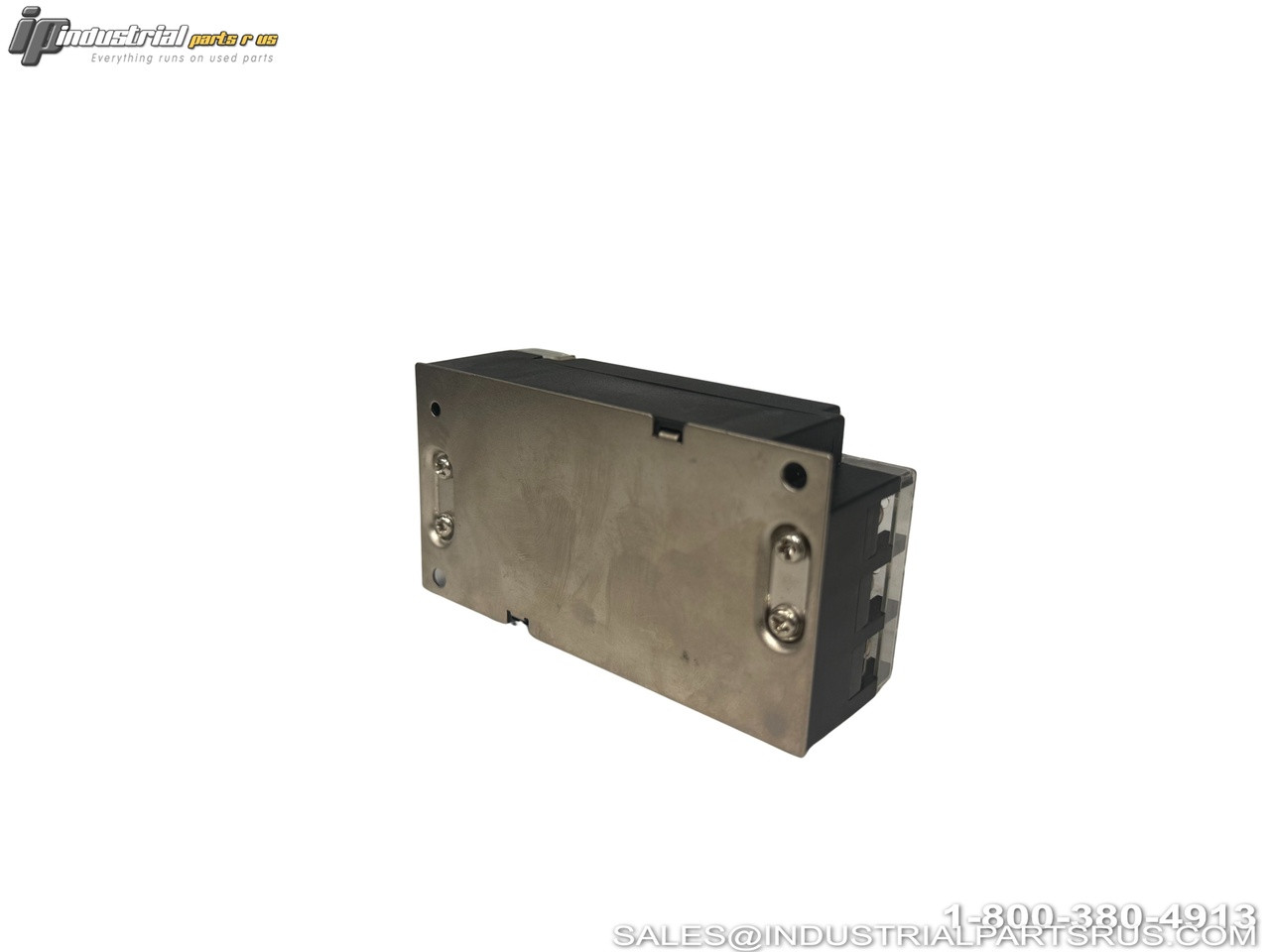

| Mounting Type | Flange Mount |
| Dimensions (L x W x H) | 98mm x 52mm x 35mm |
| Weight | 240g |
| Insulation Resistance | 100MΩ |
| Leakage Current | 1mA |
| Withstanding Voltage | 2500VAC |
| Safety Standards | UL1283/CSA C22.2 No.8/EN60939 |
| RoHS Compliant | Yes |
We warranty all items for 30 days from date of purchase.
Other Details
We warranty all items for 30 days from date of purchase. If you experience any issues with your item within this period, please contact us and we will work with you to resolve the problem. This warranty covers defects in functionality but does not cover damage caused by misuse, improper installation, or normal wear and tear.Product Videos
Custom Field
GTIN 679523686161
Full Load Amps 1mA
Manufacturer TDK-Lambda
Part Number RSHN-2006
Shelf K-41
Model RSHN-2006
MPN RSHN-2006
Type Power Line Filter
